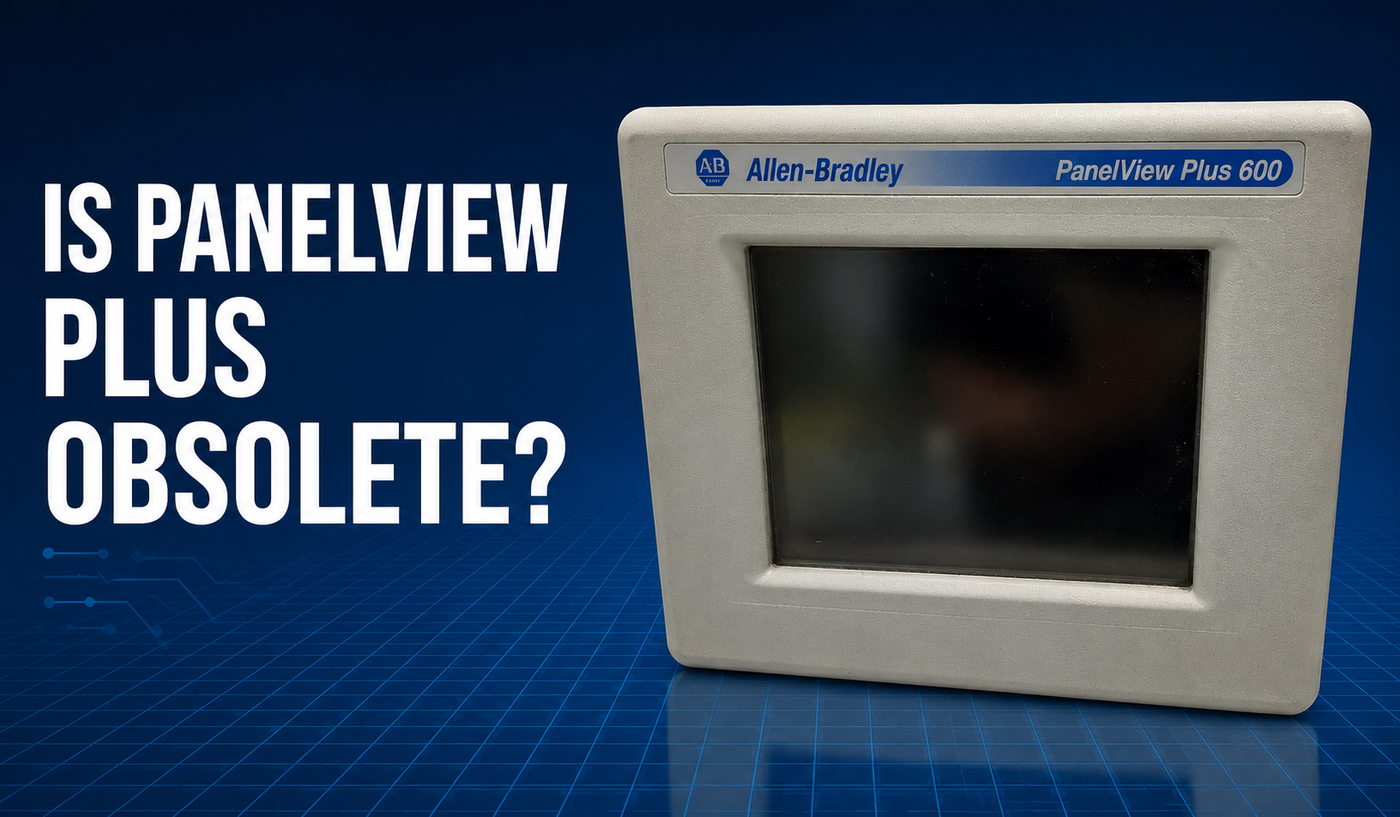

Is PanelView Plus Obsolete? What You Need to Know
The Allen-Bradley PanelView Plus family has been a workhorse HMI in North American plants for over two decades. If you are budgeting a repair, planning an upgrade, or just trying to keep an aging machine running, the obsolescence question is legitimate and the answer is not simple.
Quick Answer
Original PanelView Plus and PanelView Plus CE units (600–1500 series) are discontinued and have reached End of Life, though many still run in the field. PanelView Plus 6 is in a mature phase. PanelView Plus 7 is Rockwell's current generation and remains actively supported. Surplus and refurbished units are widely available for legacy repairs.
⚠️ Safety First
Before swapping any HMI panel, follow your site's LOTO procedure. Confirm 24 VDC power is removed before disconnecting terminal blocks. Never assume a panel is de-energized because the screen is dark — backlight failure is common on aged units.
What Is PanelView Plus?
PanelView Plus is Rockwell Automation's line of touchscreen and keypad operator interface terminals (HMIs). They communicate with Allen-Bradley PLCs — primarily ControlLogix and CompactLogix — over EtherNet/IP or DF1. They run applications built in FactoryTalk View Studio Machine Edition (ME), displaying process graphics, alarm logs, and trend data. The "Plus" designation separated them from the older PanelView Standard series, which used legacy PanelBuilder software and had no Ethernet capability.
The Generation Breakdown: Original, 6, and 7
Three distinct hardware generations exist, and they are not software-interchangeable:
- PanelView Plus (original): Discontinued. Rockwell has removed these from the active product catalog. Spare parts and factory support are no longer available from Rockwell. Confirm current support status with Rockwell directly before making decisions — support program details can change. Surplus market is the primary source for replacement hardware.
- PanelView Plus 6: Discontinued but still widely supported in the surplus market. Availability through distribution channels varies by catalog number and region — verify current stock and lifecycle status with your distributor before ordering. Applications built for PV+ 6 run in FactoryTalk View ME.
- PanelView Plus 7 Standard and Performance: Current generation. Actively sold and supported. Improved processor speed, modern display technology, and continued FactoryTalk View ME compatibility.
Pro tip: If you find a PanelView Plus 6 unit that still works, keep it running. The application files (.mer) built for PV+ 6 will not automatically run on PV+ 7 hardware without opening them in FactoryTalk View Studio and recompiling. Budget time for that conversion.
What Software Do You Need for PanelView Plus 1000?
The PanelView Plus 1000 refers to the 10-inch screen size, available across all three generations. Software requirements depend on the generation you have:
- Development PC: FactoryTalk View Studio Machine Edition (ME). This is the only supported tool for building, editing, and downloading .mer runtime files to any PanelView Plus terminal. The minimum supported version of FactoryTalk View Studio ME varies by terminal generation — consult Rockwell's compatibility matrix or release notes for your specific hardware before purchasing or installing software.
- Runtime on the terminal: FactoryTalk View ME Station software, which is pre-loaded on the terminal at the factory. You should not need to install it separately unless you are recovering a corrupted terminal.
- Transfer tool: FactoryTalk View ME Transfer Utility, bundled with FactoryTalk View Studio, used to push .mer files to the panel over Ethernet or a USB/CF card depending on generation.
Do not confuse FactoryTalk View ME (machine edition, used for PanelView Plus) with FactoryTalk View SE (site edition, used for supervisory PC-based SCADA). They are different products with different file formats.
FactoryTalk ViewPoint Compatibility: Which Hardware Is Excluded?
FactoryTalk ViewPoint is Rockwell's web-based thin-client option. It allows remote operators to view and interact with an HMI application through a browser without a dedicated terminal at every station.
The critical compatibility wall: original PanelView Plus hardware (first generation) does not support FactoryTalk ViewPoint. ViewPoint requires FactoryTalk View SE for server-side hosting, or it works with PanelView Plus 6 and 7 terminals running supported firmware in conjunction with a FactoryTalk View SE server. Note that PanelView Plus 6 CE variants ran a distinct operating system build from standard variants — ViewPoint support details differ between those variants, so confirm compatibility for your specific catalog number in Rockwell's current compatibility documentation before assuming ViewPoint will work on a PV+ 6 CE unit.
If you are trying to add ViewPoint capability to a machine running original PV+ hardware, the hardware itself is the blocker. A terminal upgrade is required.
PanelView Plus 7 Update Rate
Update rate is how frequently the terminal polls tag data from the controller and refreshes screen objects. Rockwell publishes display update rate specifications for PanelView Plus 7 — exact figures differ between the Standard and Performance tiers, so confirm the number for your specific model in the current Rockwell product catalog or release notes rather than relying on figures from secondary sources.
In practice, actual screen refresh depends on: number of tags being polled, network traffic load, application complexity (animation, trends, alarms active simultaneously), and the controller's CIP communication task loading. A well-tuned application on PV+ 7 Performance hardware noticeably outperforms the same application on a first-generation PV+ terminal.
Common Problems With Aging PanelView Plus Units
| Symptom | Likely Cause |
|---|---|
| Screen dark, panel boots | CCFL backlight failure (common on original PV+ and PV+ 6) |
| Touch input drifts or misses | Resistive touchscreen wear — recalibrate or replace overlay |
| Comm fault to PLC on startup | IP address lost after battery failure or CF card corruption |
| Application will not load | CF card failure or .mer file version mismatch with runtime |
| Random reboots | Power supply noise or aging capacitors in the terminal |
When Replacement Makes More Sense Than Repair
Repair makes sense when the terminal is electrically sound and you just need a backlight or touch panel. Replacement makes sense when: the unit is an original PV+ with no Rockwell support path, you need ViewPoint capability, the backplane connector is damaged, or you have had the same unit fail twice in 18 months. Surplus tested units are often cheaper than new-old-stock repair parts at this point.
