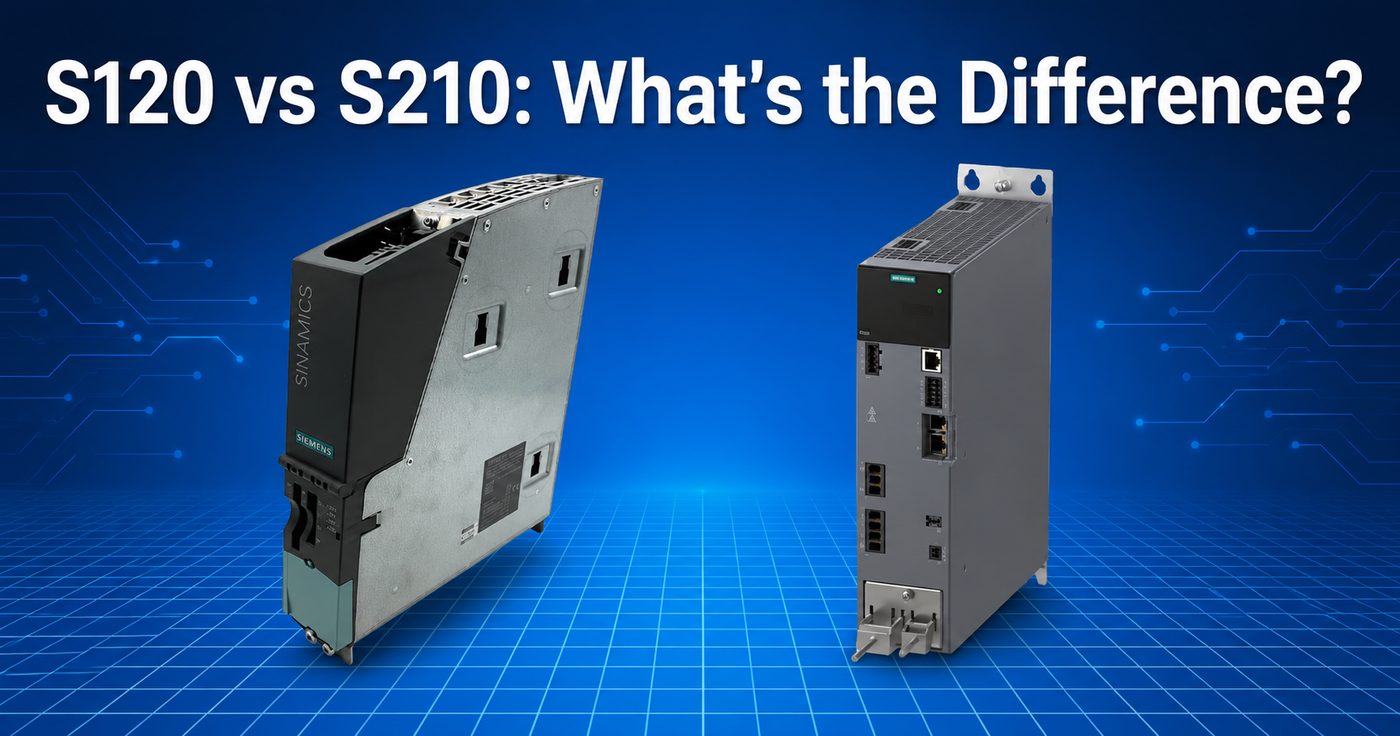

S120 vs S210: What's the Difference?

July 20, 2026 • PLC Department Tech Team • 7 min read

Walk into any machine builder's panel shop and you'll hear the names Sinamics S120, S210, S220, and G120 used almost interchangeably — they're not interchangeable. Each sits in a distinct performance tier with a very different architecture. Picking the wrong family means weeks of rework. This guide sorts them out in plain terms.

Quick Answer

The S120 is Siemens' high-performance, multi-axis servo/spindle platform built around a shared DC bus — it's the workhorse of complex coordinated motion machines. The S210 is a compact, single-axis servo system designed for simpler, space-saving servo tasks without the full S120 infrastructure. The G120 is a general-purpose AC induction drive, not a servo family at all.

⚠️ Safety First

All Sinamics drives store hazardous DC bus voltage long after AC power is removed. Before handling any drive hardware, follow your site's LOTO procedure, confirm the DC bus discharge indicator is dark or at a safe level per the drive's nameplate, and wait the full discharge time stated in the Sinamics safety guidelines. Never assume a de-energized contactor means zero volts on the bus.

What Is a Sinamics Drive?

Sinamics is Siemens' brand name for their entire variable-speed drive portfolio. Think of it as the umbrella — the way Siemens organizes every product from a basic pump drive to a high-precision CNC spindle amplifier. The letter prefix (G, S, V) and the number tier (120, 210, 220, etc.) together tell you the application class and performance level.

G-family — General purpose. Vector or V/Hz control of standard induction motors.
S-family — Servo/high-performance. Closed-loop control of servo and synchronous motors, high dynamic response.
V-family — Variable torque, simplified (fans, pumps at lower cost).

Within each family, lower numbers are older or simpler; higher numbers are newer or more capable. That pattern breaks down at the boundary between G and S families, which is why the G120 vs S120 question comes up constantly.

Sinamics S120: The Multi-Axis Servo Platform

The S120 is Siemens' flagship coordinated motion platform. Its defining feature is a shared DC bus architecture: one Active Line Module (ALM) or Basic Line Module rectifies AC to DC, and multiple Motor Modules (axis drives) hang off that common bus. Energy regenerated by a decelerating axis is immediately available to an accelerating axis — critical for gantries, winders, and multi-axis machine tools.

The S120 supports induction motors, synchronous servo motors, and linear motors on the same bus simultaneously. Control is centralized in a Control Unit (CU320-2 or similar) that communicates with Motor Modules over DRIVE-CLiQ, Siemens' proprietary daisy-chain topology that carries encoder data, motor temperature, and drive status on a single cable.

Where S120 belongs: CNC machines, packaging lines with synchronized axes, printing machines, winding/unwinding stations, traction drives, large multi-axis robots.

Pro tip: The S120 booksize form factor is the most common in machine tool panels. The chassis format handles significantly higher power. If you're sourcing a replacement and the label says "6SL3..." you're in S120 territory — check the sub-code carefully because Motor Modules and Line Modules are not interchangeable.

Sinamics S210: The Compact Single-Axis Servo

The S210 is a purpose-built, single-axis servo system introduced to give machine builders a simpler, lower-cost servo solution when full S120 multi-axis infrastructure is overkill. The drive and its matching 1FK2 motor are designed as a matched pair — the motor connector plugs directly into the drive body, eliminating separate encoder cables and power cables in many mounting configurations.

There is no shared DC bus on the S210. Each axis has its own AC input. That simplifies wiring dramatically for standalone or loosely-coupled servo axes but means you cannot share regenerative energy between axes the way the S120 does.

The S210 supports PROFINET with PROFIdrive and can integrate into TIA Portal like other Sinamics drives, so the commissioning experience is familiar. It does not carry the full S120 technology functions (no built-in infeed/regeneration management, no DRIVE-CLiQ bus architecture).

Where S210 belongs: Single-axis positioning on assembly stations, simple pick-and-place, conveyor indexing, any application where one servo axis runs independently and panel space is at a premium.

How the S220 Fits In

The S220 is a newer single/multi-axis servo platform positioned between the S210 and the full S120. It targets modular machine builders who want more capability than the S210 but a simpler, more modern architecture than the mature S120 platform. The S220 uses a cabinet module approach and supports safety functions and PROFINET natively. Think of it as the successor-generation platform that will grow into the role the S120 occupies today in new machine designs.

If you're comparing S220 to S120 today: the S120 has a larger installed base, more third-party documentation, and broader power range; the S220 offers a more integrated, TIA-Portal-native design experience. For legacy replacement and repair, S120 parts are far more available in the surplus market. Exact positioning of the S220 within the current Siemens portfolio continues to evolve — confirm current product relationships in the Siemens catalog before making a new machine design decision.

Sinamics S120 vs G120: Not the Same Animal

This is the comparison that trips people up most often. The G120 and S120 share a brand but almost nothing else.

Feature	G120	S120
Primary application	Pumps, fans, conveyors, general induction motor control	Multi-axis servo, spindle, precision motion
Motor types	Induction (primary), basic PM support	Induction, synchronous servo, linear, torque motors
Architecture	Single-axis, self-contained drive	Shared DC bus, separate Line Module + Motor Module(s)
Encoder feedback	Optional, basic feedback types	Full servo encoder support via DRIVE-CLiQ
Coordinated motion	Not designed for it	Core capability — multiple axes share bus and CU
Typical replacement source	High availability, widely stocked surplus	Available surplus — match sub-model exactly

Bottom line: if your drive is running a pump or fan and you just need variable speed, you're probably looking at a G120. If axes need to coordinate or you're driving a servo motor with an encoder for position control, you're in S120 (or S210/S220) territory. Never substitute one family for the other.

Common Problems When Sourcing Replacements

Confusing the Motor Module with the Line Module. Both are in the S120 family, both carry "6SL3" part numbers, but they are completely different functions. The Motor Module drives a motor; the Line Module converts AC to the shared DC bus. Ordering the wrong one is a very common mistake — pull the exact part number from the drive's nameplate, not from the system drawing.
Mixing S120 form factors. Booksize, chassis, and cabinet module variants are not cross-compatible. Confirm form factor before ordering.
Assuming S210 and S120 Motor Modules are interchangeable. They are not. The S210 does not use the shared DC bus infrastructure and its part numbering is distinct.
Firmware mismatch on a refurbished unit. S120 Control Units must run firmware compatible with the Motor Modules and with the project's TIA Portal or Starter version. Compatibility requirements vary by firmware generation — confirm the revision on a replacement Control Unit against the existing system before powering up, using the Siemens support portal for the current compatibility guidance.
DRIVE-CLiQ cable length limits. When replacing a Motor Module, ensure the DRIVE-CLiQ topology is restored exactly. Exceeding segment length limits or changing the daisy-chain order can cause topology faults that look like hardware failures.

Pro tip: When you pull a failed S120 module, photograph the nameplate, the DRIVE-CLiQ port connections, and the DC bus bar connection before removing anything. That photo is worth more than any wiring diagram when you're reinstalling at 2 AM.

Which Drive Do You Actually Have? A Quick Identification Guide

Part number starts with 6SL3 and the description says "Motor Module" or "Line Module" — you're in S120 territory. Read the full description field on the nameplate carefully; Motor Modules and Line Modules share the same prefix family but serve completely different functions.
Drive is self-contained with a single AC input and no external Line Module — likely a G120 Power Module. Cross-reference the full part number at the Siemens Industry Support portal to confirm the product family.
Nameplate references 1FK2 motor pairing or "Single Axis Servo" — likely S210. Confirm the part number prefix against current Siemens S210 documentation, as part number structures can vary by product generation.
System has a DRIVE-CLiQ ring with a CU320-2 — you're in S120 territory.

When in doubt, cross-reference at the Siemens Industry Support portal using the full part number from the nameplate. The product family is always listed in the first search result.

When Replacement Makes More Sense Than Repair

If your S120 Motor Module or Control Unit is showing repeated fault codes that don't clear after power cycling, if the DC bus capacitors have visible bulging, or if the unit is more than 10–15 years old and the machine is production-critical, replacement is almost always faster than depot repair. Lead times on new Siemens drives can stretch — tested surplus stock ships the same day and costs significantly less.
