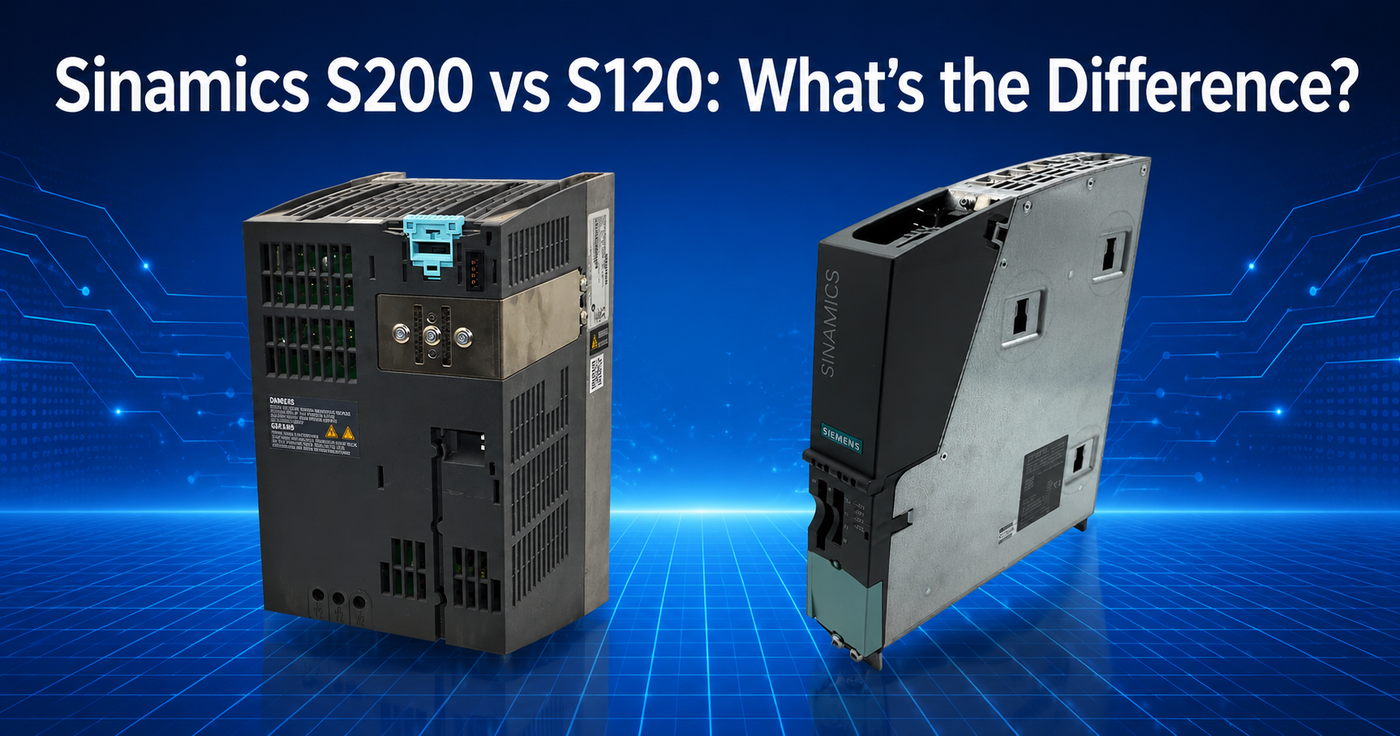

Sinamics S200 vs S120: What's the Difference?
You're sizing a servo application and the Siemens catalog shows both the Sinamics S200 and S120. They're both servo drives. They both run PROFINET. So what's actually different—and which one belongs in your panel?
The short answer is architecture and application scale. The longer answer matters when you're specifying hardware, troubleshooting a running system, or sourcing a tested replacement under time pressure.
Quick Answer
The Sinamics S200 is a compact, all-in-one PROFINET servo drive system aimed at single-axis or loosely coupled multi-axis machines—wiring is simple and commissioning is fast. The S120 is a modular, shared-DC-bus platform built for tightly coordinated multi-axis motion where axes need synchronized torque/speed control and maximum scalability. If you need one motor to move precisely and get to market fast, lean S200. If you're coordinating four or more axes on a common DC bus with a motion controller, lean S120.
⚠️ Safety First
Both drive families store hazardous DC bus voltage after power removal. Before any physical work—wiring, card swaps, encoder connections—follow your site LOTO procedure, verify the DC bus has discharged using a calibrated meter, and confirm the drive's safe-torque-off (STO) function is engaged. The S120 shared DC bus retains voltage across multiple Motor Modules even when individual modules are disabled. Never assume a single breaker clears the whole bus.
What Is the Sinamics S200?
The S200 is Siemens' answer to a specific complaint: traditional servo systems take too long to commission. The S200 is designed as a compact servo drive and motor system where the drive and servo motor are matched at the factory. You select a drive unit, bolt on a matched SIMOTICS S-1FL2 servo motor, connect PROFINET and 24 VDC logic power, run the one-button tuning routine, and you're moving.
Key characteristics of the S200 platform:
- Integrated safety: STO (Safe Torque Off) is standard; SBC (Safe Brake Control) is available. No separate safety option card required for basic functional safety.
- PROFINET IRT capable: Isochronous Real-Time PROFINET lets the S200 accept cyclic position/velocity/torque setpoints from a SIMATIC S7-1500 or S7-1500T motion controller with deterministic timing.
- Absolute encoder via HIPERFACE DSL: The motor feedback and power travel over a single cable (the SINAMICS S200 matched motor uses a single-cable connection). Fewer cables = faster install.
- Standalone positioning: The S200 can execute basic positioning tasks without a higher-level controller using its built-in Basic Positioner (EPOS) function—useful for simple point-to-point moves.
- Form factor: Self-contained drive unit. Each axis is its own device. No shared DC bus infrastructure.
What Is the Sinamics S120?
The S120 is a modular drive system built around a shared DC bus. A central Line Module (Active, Smart, or Basic) rectifies AC power into a DC bus. Individual Motor Modules tap off that bus to drive separate servo or vector axes. All modules communicate over the internal DRIVE-CLiQ fiber/cable network, and the whole system is orchestrated by a Control Unit (CU320-2 or similar).
That architecture unlocks capabilities the S200 can't match:
- Regenerative energy sharing: When one axis decelerates, its energy flows back to the DC bus and gets consumed by an accelerating axis. This cuts energy draw and can eliminate a braking resistor on balanced multi-axis machines.
- Tight multi-axis synchronization: Electronic cam, gearing, and cross-axis torque coupling are native S120 functions. Coordinated winding, printing, and packaging lines are classic S120 territory.
- Wide power scalability: The S120 platform scales from fractional-kW servo axes up through high-power vector axes on the same DC bus. Confirm exact ratings for your voltage class in the Siemens catalog—the range is wide and varies by Line Module type.
- Vector and servo on one bus: You can run a main spindle as a vector drive and servo-position a tool changer on the same S120 cabinet. The S200 is servo-only.
- DRIVE-CLiQ topology: Every S120 component (motors with DRIVE-CLiQ encoders, Motor Modules, sensors) is automatically identified by the Control Unit. Commissioning in TIA Portal/STARTER is topology-driven.
Head-to-Head Comparison
| Feature | Sinamics S200 | Sinamics S120 |
|---|---|---|
| Architecture | Self-contained per axis | Shared DC bus, modular |
| Best axis count | 1–4 loosely coupled axes | 4–many tightly coordinated axes |
| Communication | PROFINET IRT (native) | PROFINET IRT / PROFIBUS (via CU) |
| Motor feedback cable | Single-cable (HIPERFACE DSL) | DRIVE-CLiQ or separate encoder cable |
| Regenerative energy sharing | No | Yes (with Active Line Module) |
| Safety (base) | STO/SBC standard | Safety availability varies by Motor Module generation and Control Unit variant—confirm requirements in the Siemens S120 hardware manual for your specific configuration |
| Commissioning tool | TIA Portal (Startdrive) | TIA Portal (Startdrive) / STARTER |
| Panel space per axis | Compact—drive is standalone unit | Larger upfront; efficient at scale |
PROFINET on the S200: How It Actually Works
The S200's PROFINET implementation deserves its own explanation because it's one of the platform's biggest selling points for machine builders.
The S200 drive appears as a PROFINET IO Device in your TIA Portal project. You assign it an IP address, drop the GSD file into TIA Portal, and the drive's cyclic data exchange begins. For motion control, you pair the S200 with a SIMATIC S7-1500T or standard S7-1500 running TIA Portal Motion Control technology objects (TOs). The drive receives setpoints—position, velocity, or torque depending on the operating mode—every PROFINET cycle.
With PROFINET IRT, the drive supports fast isochronous cycle times in deterministic mode—confirm the minimum cycle time supported for your firmware version in the current S200 PROFINET function manual. That timing determinism is what a servo application needs without a dedicated motion bus like SERCOS or EtherCAT. For most single-axis servo tasks—pick-and-place, conveyor positioning, rotary indexing—this is more than sufficient.
Pro tip: If you're comparing S200 PROFINET to an S120 with PROFINET, the cycle time and IRT capability are comparable—the difference is what each drive does with those setpoints internally. The S120 can execute complex cross-axis cam profiles in firmware; the S200 executes them from the PLC's motion technology objects. For simple axes, S200 is cleaner. For complex coordinated motion, S120's onboard functions reduce PLC scan load.
Common Mistakes When Choosing Between Them
Choosing S200 when axes need tight synchronization
The S200 is PROFINET-coordinated, which means sync depends on your PLC scan and network cycle. For a flying shear or electronic cam where two axes must stay phase-locked under load transients, the S120's onboard cross-axis coupling is the right tool. Don't learn this after commissioning.
Over-specifying S120 for simple applications
A single-axis conveyor indexer does not need a Line Module, Motor Module, Control Unit, DRIVE-CLiQ cables, and a cabinet. The S200 handles it in a fraction of the panel space and wiring time. S120 overhead—both cost and commissioning time—is only justified when you need what it uniquely offers.
Assuming motor interchangeability
The S200 is matched to the SIMOTICS S-1FL2 servo motor family. The S120 supports a broader motor ecosystem including SIMOTICS S-1FK7, 1FT7, and others. Motor compatibility depends on drive generation and firmware version—confirm supported motor types in the current Siemens compatibility documentation for your hardware before making a substitution.
Missing the DC bus hazard on S120 during maintenance
Technicians familiar with standalone drives sometimes disable one Motor Module and assume that axis is safe. On an S120 shared bus, all Motor Modules share the same DC rail. The entire Line Module must be de-energized and the bus discharge verified before touching any Motor Module's power terminals.
When Replacement Makes More Sense Than Repair
Both platforms are repairable, but the economics depend on age and application criticality. If an S200 drive unit fails and the machine is down, the fastest path is a tested replacement unit—not a board-level repair that takes weeks. Same logic applies to S120 Motor Modules: they fail as line-replaceable units, and sourcing a tested surplus module is often faster and cheaper than depot repair.
Signs replacement beats repair:
- Drive is out of Siemens active support / spare parts lifecycle
- Repair quote exceeds 60% of a tested surplus unit
- Second failure on the same unit within 12 months
- Application cannot tolerate depot repair lead time
⚡ Need a tested replacement?
PLC Department stocks tested Siemens Sinamics and SIMATIC hardware with a 1-year warranty and same-day shipping from our Texas warehouse—no depot wait, no guesswork.
Shop Siemens Inventory →Further Reading
For official product documentation, Siemens maintains a full literature and firmware archive at support.industry.siemens.com. Search by product family ("Sinamics S200" or "Sinamics S120") to find the current operating instructions, parameter manuals, and function manuals for your exact hardware version.
