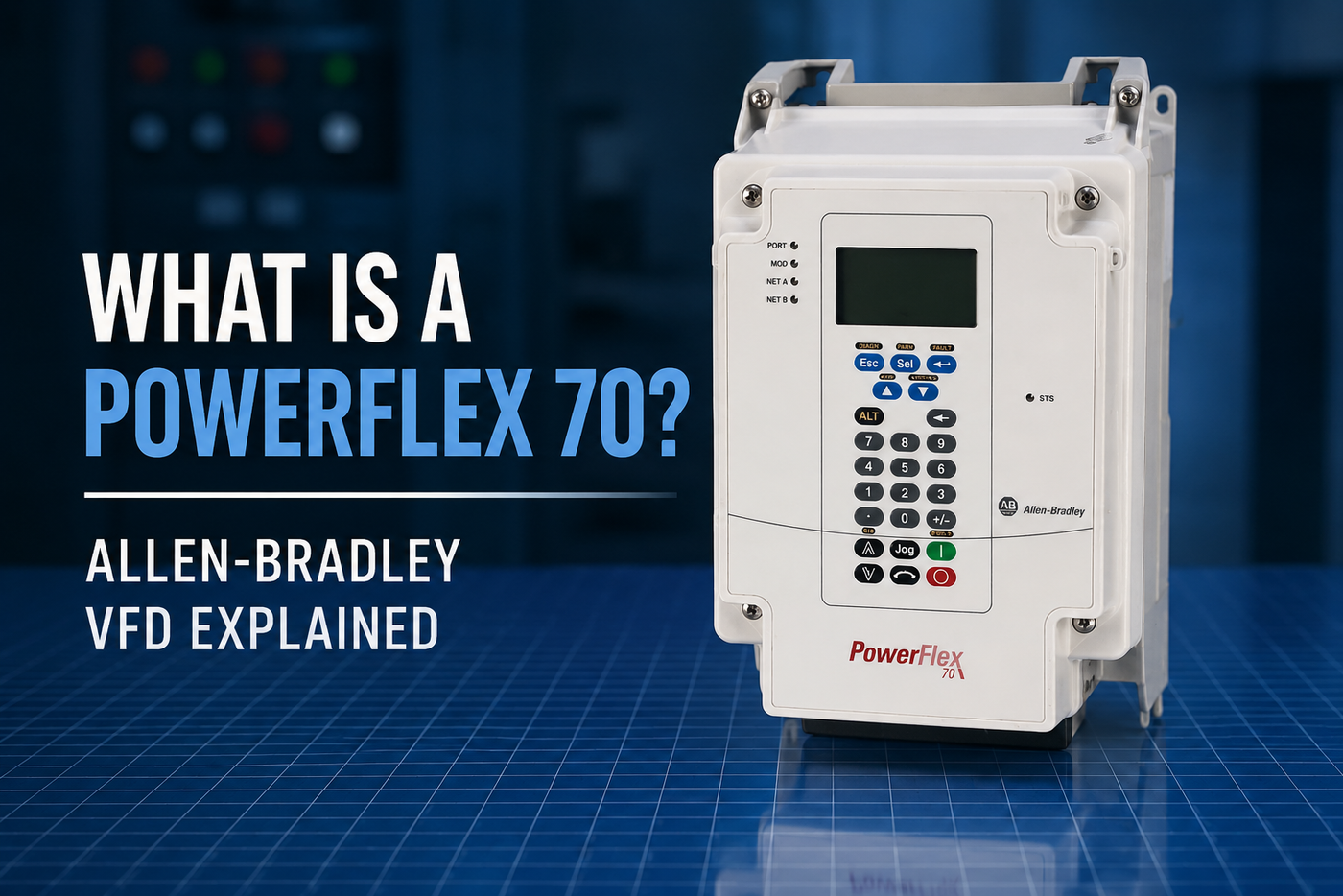

What Is a PowerFlex 70? Allen-Bradley VFD Explained

July 17, 2026 • PLC Department Tech Team • 6 min read

The Allen-Bradley PowerFlex 70 shows up on plant floors everywhere — controlling conveyor belts, pumps, fans, compressors, and just about any three-phase AC motor application you can name. If you've just inherited one on a job or you're speccing a replacement, this guide covers what it is, what it does, and what you need to know to work with it confidently.

Quick Answer

The PowerFlex 70 is a mid-range AC variable frequency drive (VFD) made by Rockwell Automation under the Allen-Bradley brand. It controls the speed and direction of three-phase AC induction motors by varying output frequency and voltage. It supports both sensorless vector and volts-per-hertz control modes and is programmable through an integral keypad or over a network.

⚠️ Safety First

Any work on or near a VFD requires full LOTO (Lockout/Tagout) compliance. Even after disconnecting input power, the drive's DC bus capacitors hold lethal voltage for several minutes. Wait for the bus voltage indicator to extinguish and verify with a meter before touching internal components. Follow your site's electrical safety program and NFPA 70E requirements.

Is the PowerFlex 70 a VFD?

Yes — it is a VFD (variable frequency drive), also called a variable speed drive (VSD) or adjustable frequency drive (AFD). All three terms describe the same basic function: converting fixed-frequency AC power into variable-frequency, variable-voltage AC output to control motor speed.

The PowerFlex 70 does this in three stages:

Rectifier: Converts incoming AC to DC.
DC Bus: Filters and stores that DC energy in capacitors.
Inverter: Uses IGBTs (insulated gate bipolar transistors) to synthesize variable-frequency AC output via pulse-width modulation (PWM).

The result: you can run a motor at 30 Hz instead of 60 Hz, cutting speed roughly in half. On centrifugal loads like fans and pumps, that translates directly to dramatic energy savings — because power on a centrifugal load scales with the cube of speed, halving the speed cuts power consumption to roughly one-eighth.

What Is the PowerFlex Family?

"PowerFlex" is Rockwell Automation's brand name for its entire line of AC drives. The family spans from compact, entry-level drives up to large, high-power units for heavy industrial applications. Common members include the PowerFlex 4, 40, 400, 70, 700, 755, and 6000 series — each targeting a different combination of power range, features, and application complexity.

The PowerFlex 70 sits in the mid-range tier. It offers more built-in functionality than the smaller 4/40 drives — including onboard autotune, a wider I/O complement, and expanded network options — without the full motion-control feature set of the 750 series. It's a workhorse for general-purpose industrial applications.

Pro tip: Don't confuse the PowerFlex 70 with the PowerFlex 700. They are different products with different power ratings, firmware, and parameter sets. A replacement must match the original catalog number — not just the series name. Confirm exact HP/kW and voltage class from the drive's nameplate before ordering.

Key Features of the PowerFlex 70

Feature	What It Means on the Floor
Control Modes	Sensorless vector (SVC) and V/Hz — SVC gives better low-speed torque without an encoder
Onboard Autotune	Drive measures motor parameters automatically; eliminates manual calculation for most installs
Integral Keypad (HIM)	Local speed control and parameter programming without a laptop or external tool
Network Options	Optional communication cards for DeviceNet, EtherNet/IP, ControlNet, Profibus, and others
Analog & Digital I/O	Multiple configurable I/O points for speed reference, run/stop, fault relay, and process feedback
Preset Speeds	Store multiple fixed speed references — useful for multi-step process sequences
Accel/Decel Ramps	Independently adjustable ramp times protect mechanical equipment on start and stop
Built-in Motor Protection	Electronic overload, overcurrent, over/undervoltage, and ground fault protection

What Is the Direction Parameter on a PowerFlex 70?

The direction parameter controls which way the drive commands motor rotation. On the PowerFlex 70, motor direction can be set in more than one place, which is a common source of confusion on the floor.

How Direction Control Works

The drive determines rotation direction from the commanded frequency reference — a positive reference runs the motor in one direction, a negative reference reverses it. How that command gets applied depends on your control source configuration.

Relevant Parameters

The PowerFlex 70 uses a parameter group structure. Direction-related behavior is controlled by a combination of parameters covering the direction mode, the rotation setting, and whether reverse is permitted at all. Key areas to check:

Direction Mode parameter: Sets whether direction is commanded by a digital input, by the sign of the speed reference signal, or locked to a single direction. Exact parameter numbers vary by firmware revision — confirm the correct number in the PowerFlex 70 User Manual (Publication 20A-UM001) for your specific drive.
Reverse Disable: A separate parameter that, when enabled, ignores any reverse command regardless of input state. Important for applications like pumps where reverse rotation causes damage.
Run Forward / Run Reverse digital inputs: When using hardwired control, discrete inputs can be assigned to run the motor in each direction independently.

Pro tip: If the motor runs backward after installation, don't immediately dig into drive parameters. First check the motor wiring — swapping any two of the three motor output leads (T1/T2/T3) at the drive's output terminals physically reverses rotation. That's often faster and more reliable than a parameter change, especially on a commissioning job.

Setting Direction via the Keypad

In local keypad (HIM) control mode, the PowerFlex 70 typically provides a dedicated Forward/Reverse key or a direction toggle accessible through the HIM menu. The exact navigation path depends on the HIM model installed and its firmware version — the standard HIM and the enhanced HIM (EAHIM) use different menu structures, so consult the HIM user guide for your specific unit.

For definitive parameter numbers and menu paths, refer to the official Rockwell literature at literature.rockwellautomation.com and search for the PowerFlex 70 user manual (Publication 20A-UM001).

Common Problems with PowerFlex 70 Drives

Auxiliary Input fault: A hardwired enable or safety input is open. Check terminal wiring and any safety relay circuits before chasing drive parameters. Fault code designations vary by firmware — look up the exact code shown on your HIM in the user manual.
Overcurrent or Ground Fault: Often a motor winding failure, a shorted output cable, or an undersized drive for the load. Disconnect the motor and run the drive unloaded to isolate. Confirm the specific fault code meaning in the PowerFlex 70 fault code table for your firmware revision.
Drive runs but motor doesn't move: Confirm the enable input is active, the run command is present, and the speed reference is not zero. Check direction mode — a locked direction with a conflicting command can result in zero output.
HIM shows correct speed but motor runs slow: Check if slip compensation is disabled, or if a maximum frequency parameter has been changed from its default.
Drive powers up but HIM is blank: HIM ribbon cable or HIM port damage. Try reseating or swapping the HIM. The drive may still be functional without it.
Parameter values lost after power cycle: The drive includes a parameter that controls whether values are saved to non-volatile memory. The exact parameter name and number vary by firmware revision — confirm in the PowerFlex 70 user manual before making changes.

When Replacement Makes More Sense Than Repair

A PowerFlex 70 with a failed power stack, blown IGBTs, or a damaged DC bus capacitor bank is generally not economical to board-level repair in the field. If you're seeing repeated overcurrent faults with no load-side cause, or if the drive is dead on power-up with no bus voltage, replacement is usually the right call.

Parts availability for this drive series is solid in the surplus market — tested, warranted units are a fraction of new price and can ship same day.
