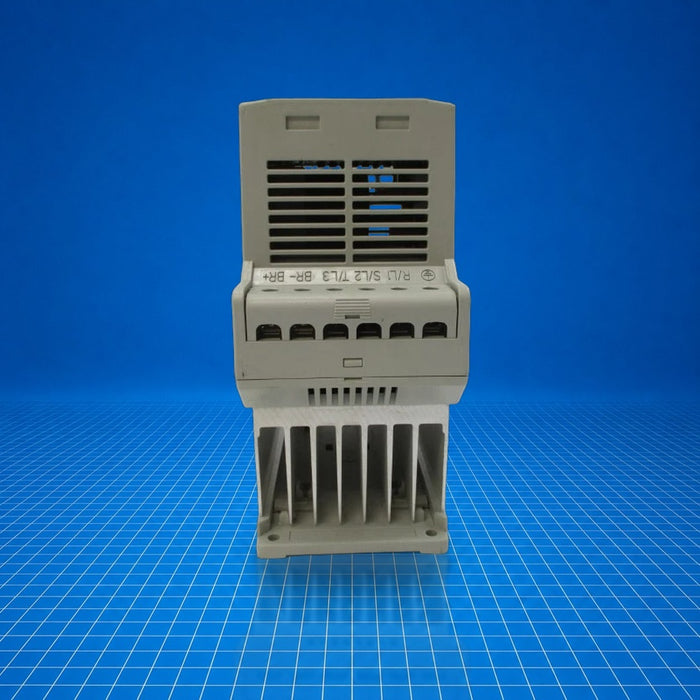

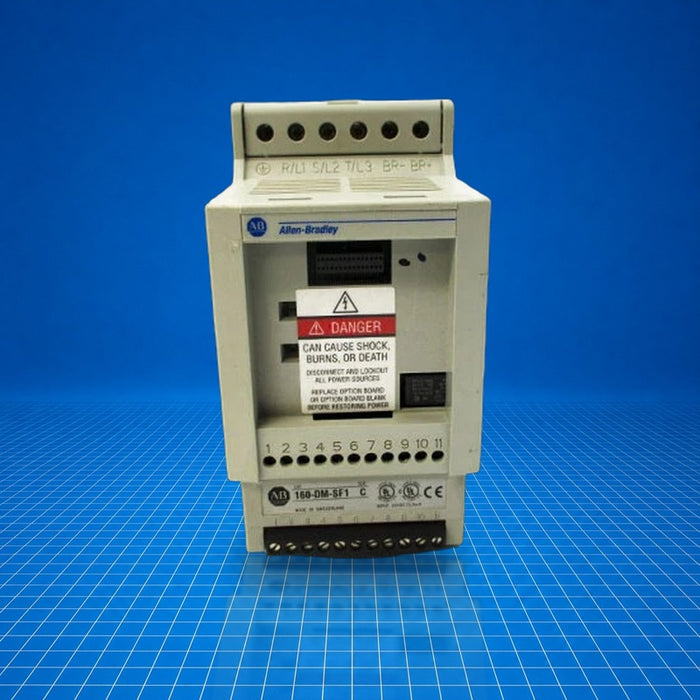

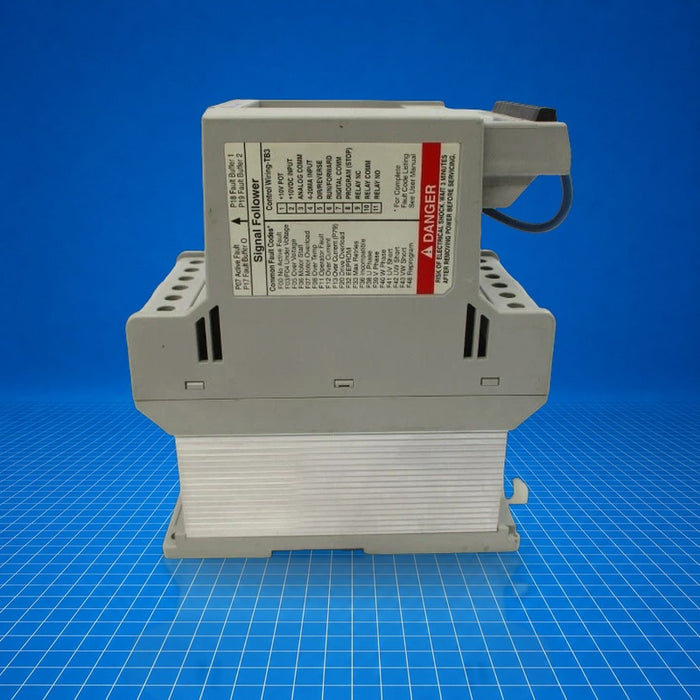

160-AA03NSF1P1 Allen-Bradley
Original price
$759.96
-
Original price
$2,279.25
Original price
$759.96
$759.96
-
$2,279.25
Current price
$759.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 160-AA03NSF1P1 is an Allen-Bradley Bulletin 160 SSC variable speed drive (Series C) designed for three-phase 200-240 V AC input. As an Analog Signal Follower variant (SF1), it controls AC induction motors by following an analog control signal. Typical industrial uses include standalone motor speed control in machinery, retrofit for obsolete drives, and basic analog-controlled variable speed applications. 160-AA03NSF1P1 integrates a program keypad module for local monitoring and parameter setup.
Best Suited For
- Standalone motor speed control via analog signal (±10 V, 0-10 V, 4-20 mA)
- Replacement/retrofit in existing Bulletin 160 SSC systems
- Industrial applications with 200-240 V, 3-phase supply
- Floor-level or panel mount installations (IP20 open-style)
Voltage rating
200-240 V AC 3-phase
Max output current
3 A
Control type
Analog signal follower
Enclosure
Open (IP20)
Ambient operating temp
0-50 °C
Technical Specifications
I/O & Electrical
Input voltage range
180-265 V AC
Input current
3.6 A
Max output current
3 A
Communication & Power
Power consumption
(not specified)
Cooling method
Convection
Physical & Environmental
Operating ambient temperature
0-50 °C
Enclosure rating
IP20 (open style)
Weight
2.50 lbs (1.13 kg)
