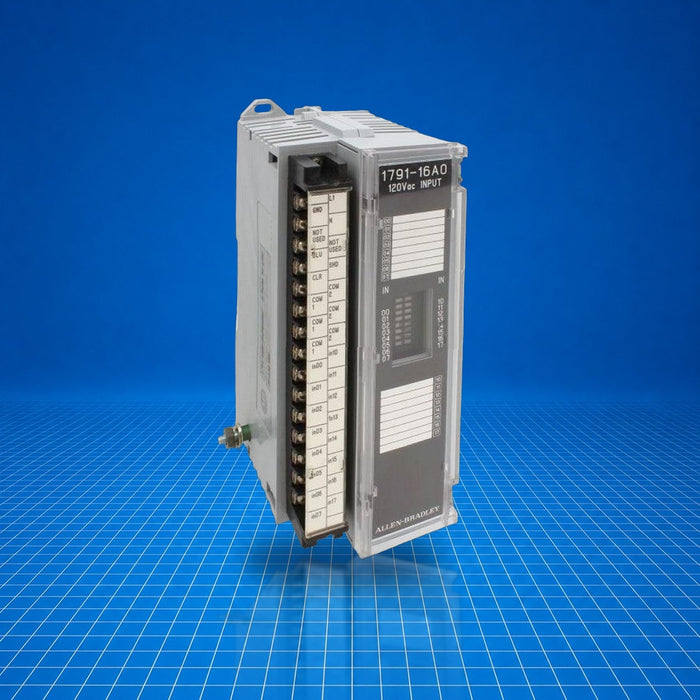

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1791-16A0 Allen-Bradley
Original price
$962.47
-
Original price
$1,849.75
Original price
$962.47
$962.47
-
$1,849.75
Current price
$962.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1791-16A0 is an Allen-Bradley 1791 Block I/O AC input module that provides sixteen discrete 120 V AC input channels, grouped into two banks of eight, along with integrated status and communication indicators. This module functions as a self-contained remote I/O device - combining power supply, PLC interface, and input signal conditioning. It is commonly used in distributed control systems where modular placement near field devices (e.g., switches, proximity sensors) improves wiring efficiency and maintenance speed. The 1791-16A0 is suitable for industrial control cabinets or machine-mounted networks.
Best Suited For
- Distributed AC discrete input applications
- On-machine or panel ► local input scanning
- Integration with proximity, limit, float, selector, pushbutton switches
- Daisy-chain remote I/O architectures
Inputs
16 AC channels
Operating voltage
79-132 V AC, 47-63 Hz
External power
85-132 V AC @ 150 mA
Mounting
Horizontal or vertical
Max ambient temperature
60 °C (140 °F)
Technical Specifications
I/O & Electrical
Number of inputs
16
Groups
2 groups of 8
On-state voltage range
79-132 V AC
Off-state voltage, max
35 V AC
On-state current
5 mA @ 79 V (min)
Off-state current
2.3 mA (min)
Max ambient temperature
60 °C (140 °F)
Communication & Power
External power requirement
85-132 V AC, 47-63 Hz @ 150 mA
Surge current capability
10 A for 50 ms (repeatable every 2 s)
Physical & Environmental
Mounting orientation
Horizontal or vertical
Weight
≈ 0.57 kg (1.25 lb)
