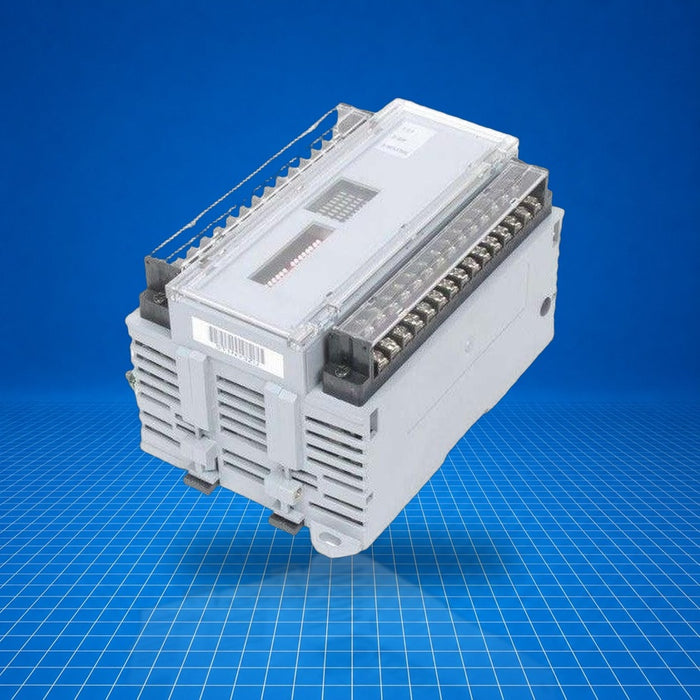

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1791-32A0 Allen-Bradley
Original price
$525.00
-
Original price
$2,585.23
Original price
$525.00
$525.00
-
$2,585.23
Current price
$525.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1791-32A0 is a discrete AC input block I/O module within the 1791 Block I/O platform, designed for distributed Remote I/O (RIO) architectures. It provides 32 120 VAC input channels grouped into four groups of eight, enabling direct connection of devices such as limit switches, selector switches, float or proximity switches. It features group-to-group and I/O-to-logic isolation, RIO communications, and operates in industrial control environments where localized input acquisition and segregation are required.
Best Suited For
- Remote I/O architecture with RIO control systems
- In-cabinet acquisition of 120 VAC discrete inputs (e.g. proximity, selector switches)
- Distributed input expansion in PLC-2, PLC-3, PLC-5 or SLC® 5/02 systems
- Applications requiring isolation between input groups and logic
Inputs
32 channels (120 VAC)
Input groups
4 groups of 8 channels
Input voltage range
79-132 VAC, 47-63 Hz
Communication
Remote I/O (RIO)
Technical Specifications
I/O & Electrical
Input voltage (nominal)
120 VAC
On-state voltage range
79-132 VAC, 47-63 Hz
On-state current
5 mA min @ 79 VAC, 60 Hz; 12.3 mA max @ 132 VAC, 60 Hz
Off-state voltage
≤ 35 VAC
Off-state current
≥ 2.3 mA
External supply voltage
85-132 VAC, 47-63 Hz
External supply current
150 mA
Power dissipation
13.62 W
Thermal dissipation
46.44 BTU/hr
Isolation
1250 VAC I/O-group to logic/group; 500 VAC power to RIO
Communication & Power
Communication protocol
Remote I/O (RIO)
Remote I/O port
single port (isolated)
Physical & Environmental
Operating temperature
0 °C to 60 °C
Storage temperature
-40 °C to 85 °C
Relative humidity
5 % to 95 %, non-condensing
Weight
2.00 lb (0.91 kg)
