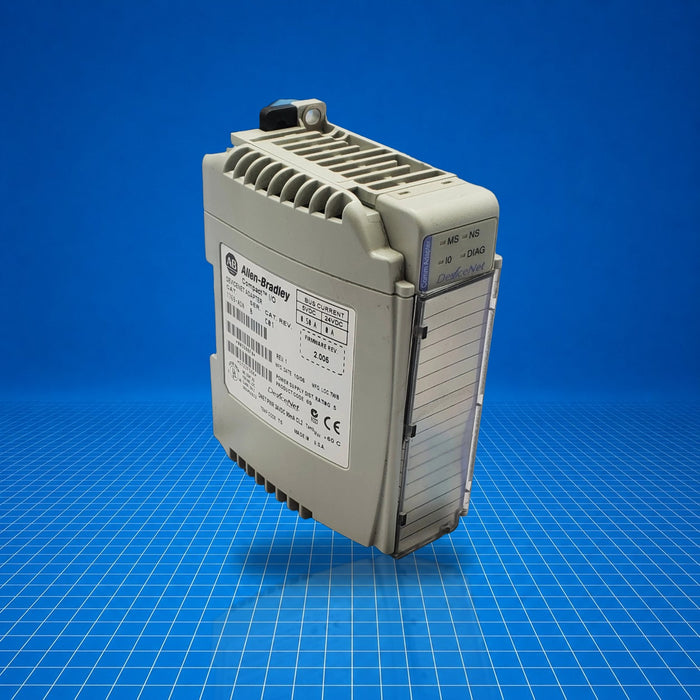

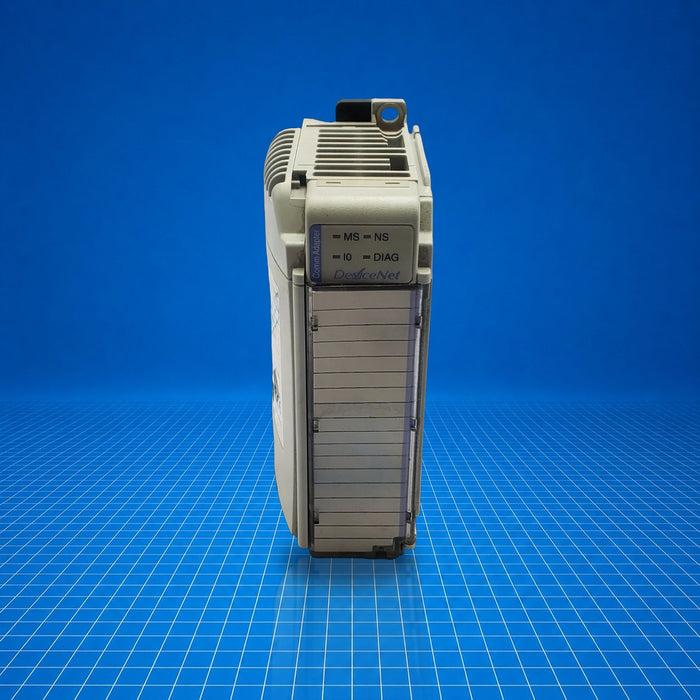

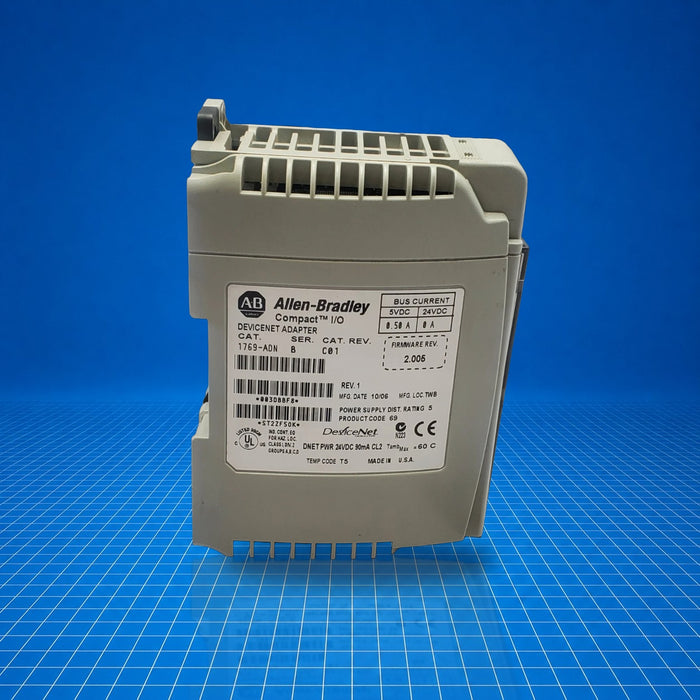

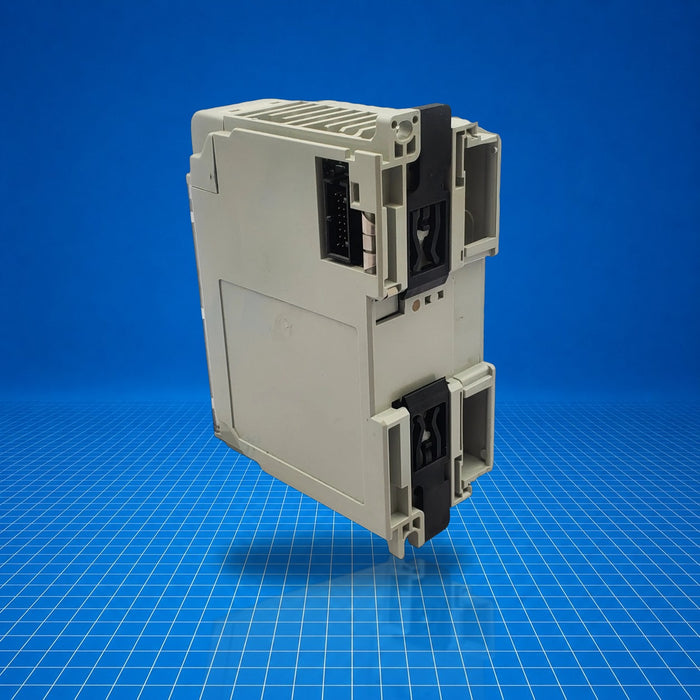

1769-ADN Allen-Bradley
Original price
$360.00
-
Original price
$381.00
Original price
$360.00
$360.00
-
$381.00
Current price
$360.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1769-ADN is a CompactLogix DeviceNet adapter module that enables a CompactLogix or MicroLogix 1500 controller to function as a DeviceNet scanner, facilitating communication with DeviceNet-compatible field devices. It mounts on DIN rail or panel beside CompactLogix I/O modules and is part of the 1769 Compact I/O platform. Typical industrial uses include distributed field device integration over DeviceNet networks for control, diagnostics, and data collection functions.
Best Suited For
- Integrating sensors and actuators over DeviceNet in CompactLogix systems
- Applications requiring distributed DeviceNet scanning capability
- Retrofitting older CompactLogix or MicroLogix 1500 control panels
- Maintenance of legacy DeviceNet field networks
Communication speed
125/250/500 kbit/s
Backplane current
450 mA (Series A) / 500 mA (Series B) at 5 V DC
Power consumption
33.6 W
Operating temperature
0 °C to 60 °C
Weight
0.17 kg (0.38 lb)
Technical Specifications
I/O & Electrical
Input voltage
11 to 25 V DC
Backplane current
450 mA (Series A) / 500 mA (Series B) at 5 V DC
Power consumption
33.6 W
Power dissipation
7.5 W
Isolation voltage
30 V continuous
Communication & Power
DeviceNet baud rates
125, 250, 500 kbit/s
Physical & Environmental
Mounting
DIN rail or panel
Operating temperature
0 °C to +60 °C (32 °F to 140 °F)
Storage temperature
-40 °C to +85 °C (-40 °F to +185 °F)
Humidity
5% to 95% non-condensing
Weight
0.17 kg (0.38 lb)
Certifications
ULCEDeviceNet-Foundation
