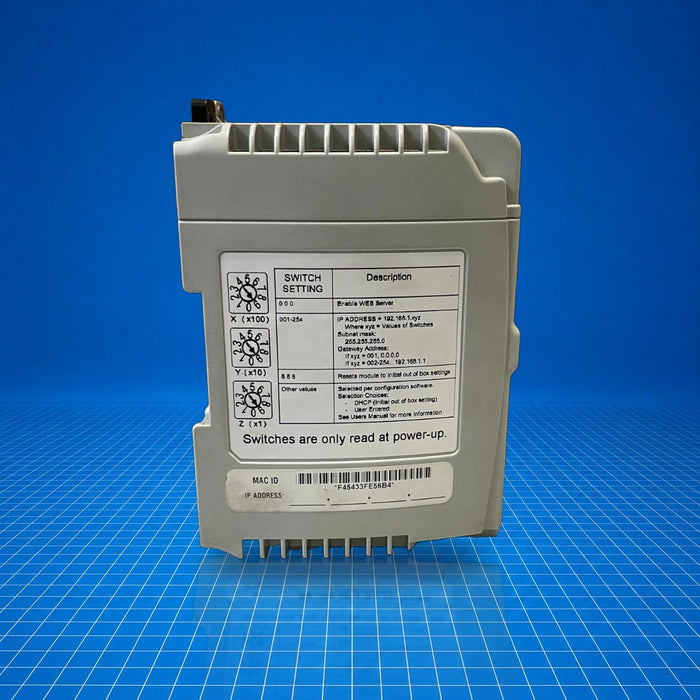

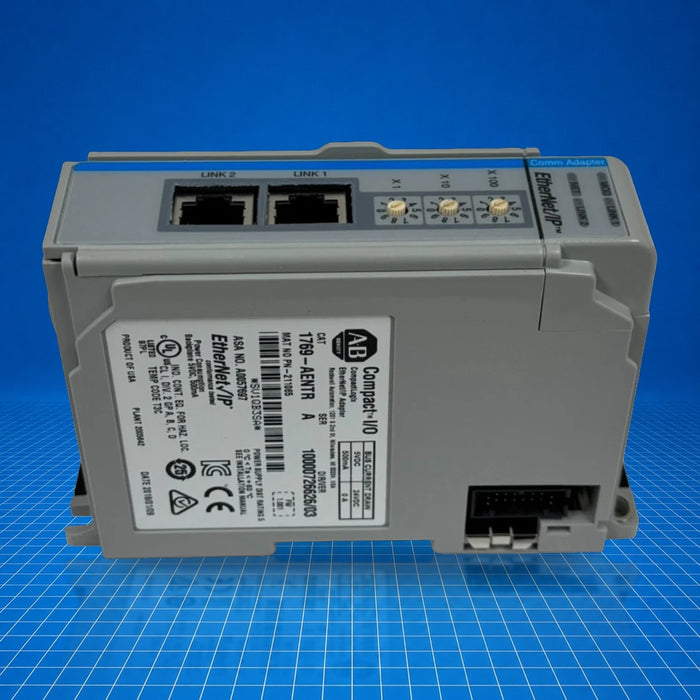

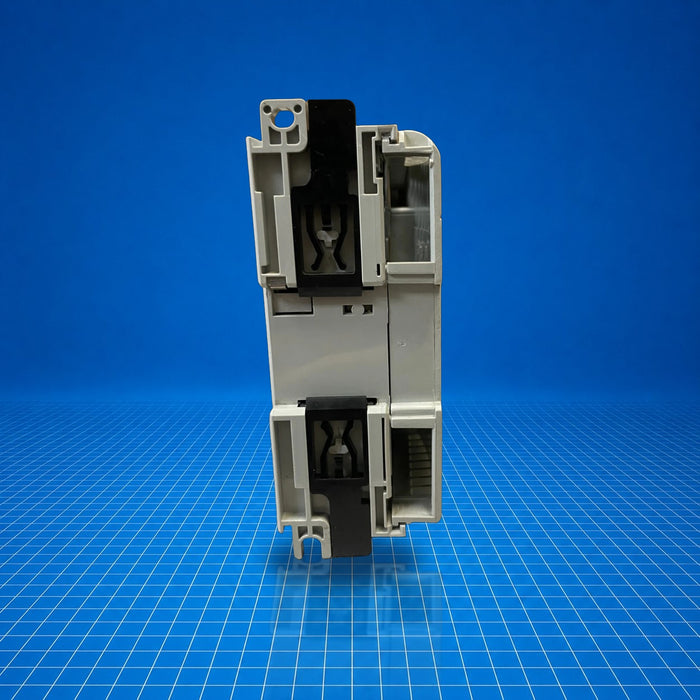

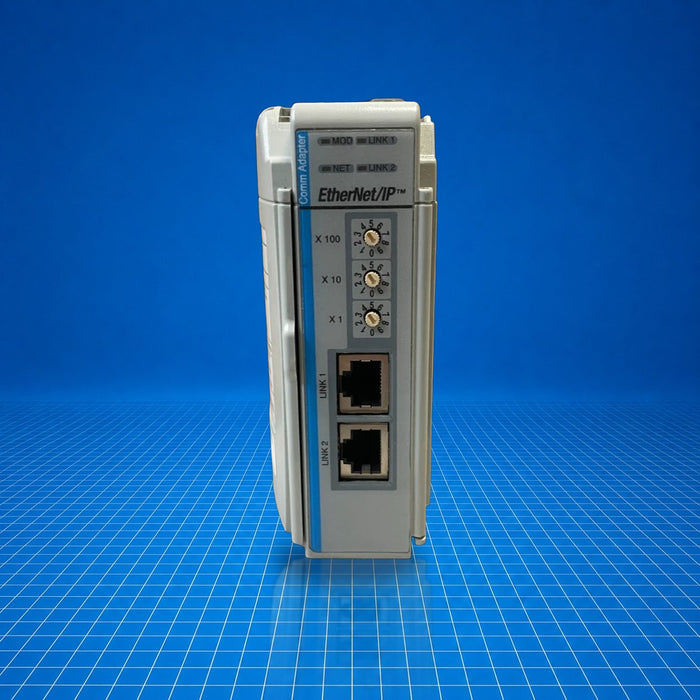

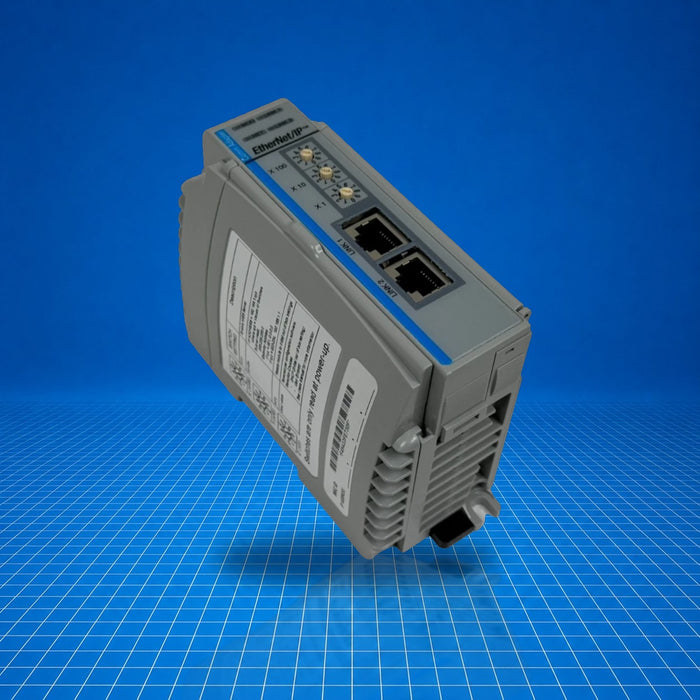

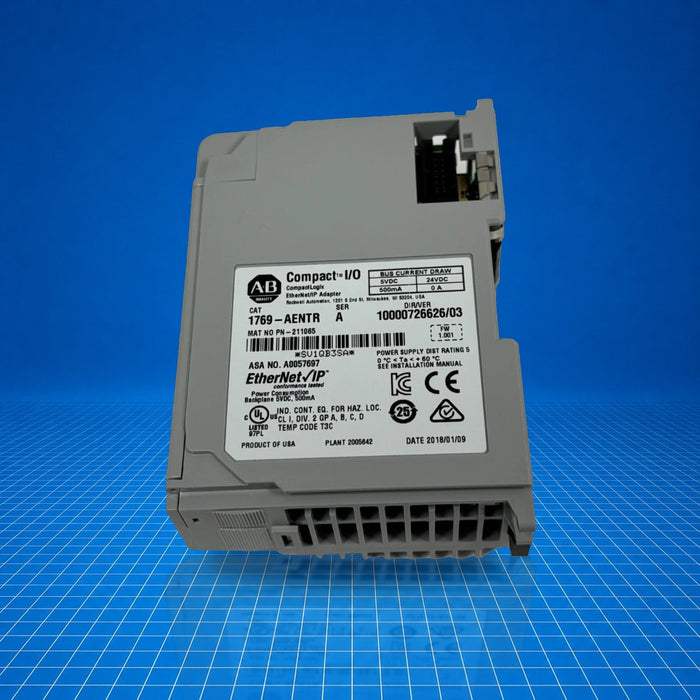

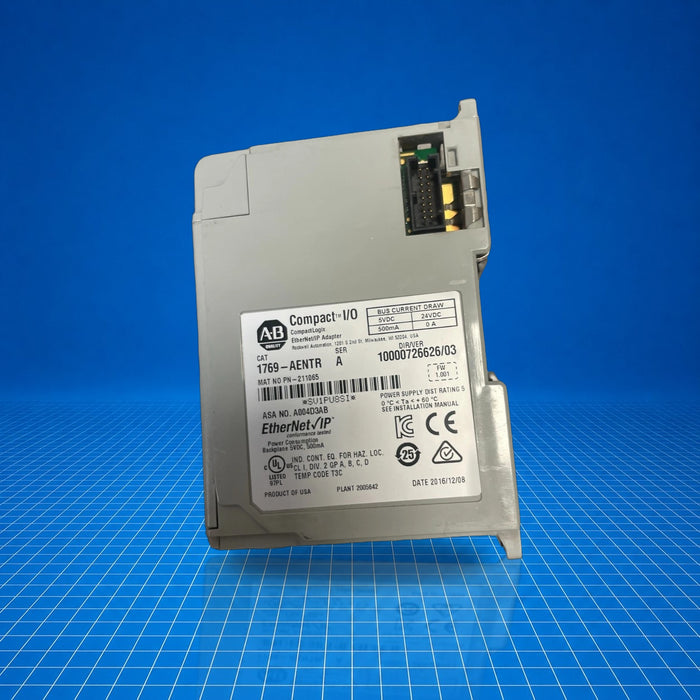

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1769-AENTR Allen-Bradley
Original price
$1,127.50
-
Original price
$1,292.23
Original price
$1,292.23
$1,127.50
-
$1,292.23
Current price
$1,292.23
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-AENTR is an Allen-Bradley CompactLogix EtherNet/IP adapter module. It functions as a network communication interface within CompactLogix systems, enabling standard Compact I/O modules to connect over EtherNet/IP. Typically used in distributed I/O applications, the 1769-AENTR provides dual RJ45 Ethernet ports and supports both Logix and TCP/IP communication.
Best Suited For
- Distributed I/O systems on CompactLogix platforms
- Expanding legacy 1769 I/O over EtherNet/IP networks
- Linear or DLR network topologies
- Applications requiring up to 128 Logix connections
EtherNet/IP connections
128 Logix, 96 TCP/IP
Ports
2 × Ethernet RJ45
Current draw
500 mA @ 5.2 V DC
Dimensions (H×W×D)
118 × 50 × 87 mm
Operating temperature
0 … 60 °C
Technical Specifications
I/O & Electrical
Current draw
500 mA @ 5.2 V DC
Logix communication connections
128
TCP/IP communication connections
96
Isolation voltage
50 V (continuous), basic insulation; tested at 710 V DC for 60 s
Communication & Power
Ports
2 Ethernet RJ45 Category 5
EtherNet/IP communication rate
10/100 Mbps
Physical & Environmental
Dimensions (H × W × D)
118 × 50 × 87 mm
Weight, approx.
0.28 kg
Module location
DIN-rail or panel mount
Operating temperature
0 … 60 °C
Non-operating temperature
-40 … 85 °C
Certifications
ODVA-EtherNet/IPCISPR 11 Class A
ODVA conformant to EtherNet/IP specifications; emissions per CISPR 11 (IEC 61000-6-4) Class A; industrial immunity per IEC 61000-6-2
