1769-ASCII Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

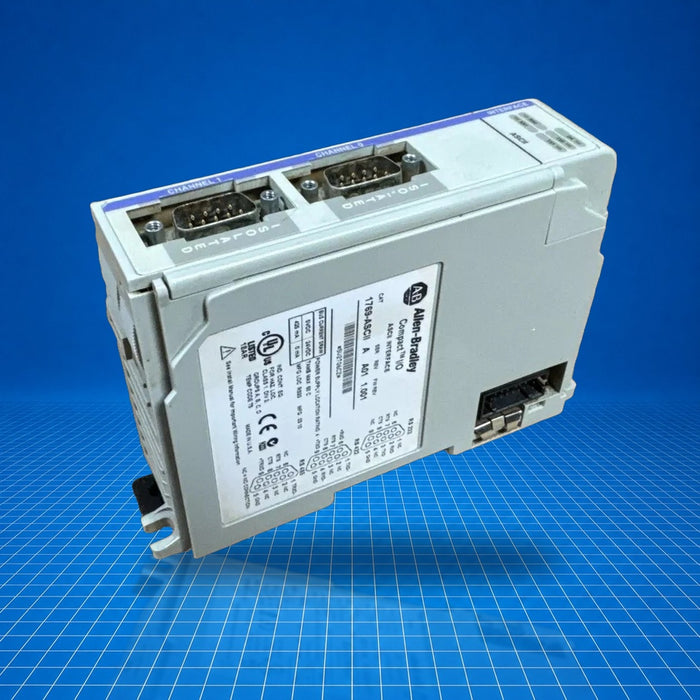

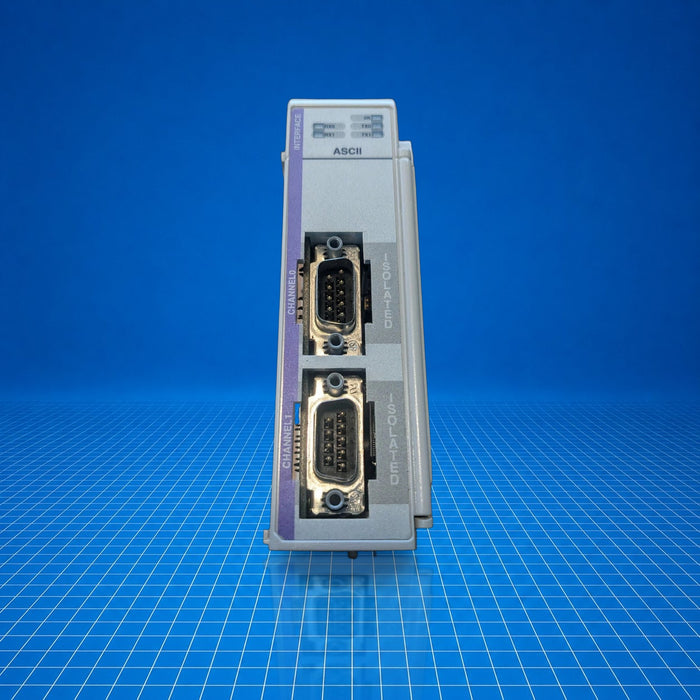

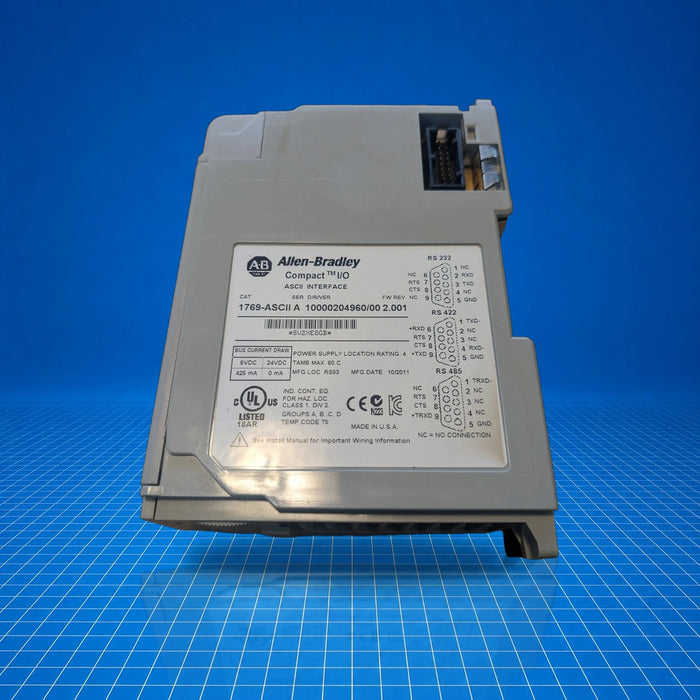

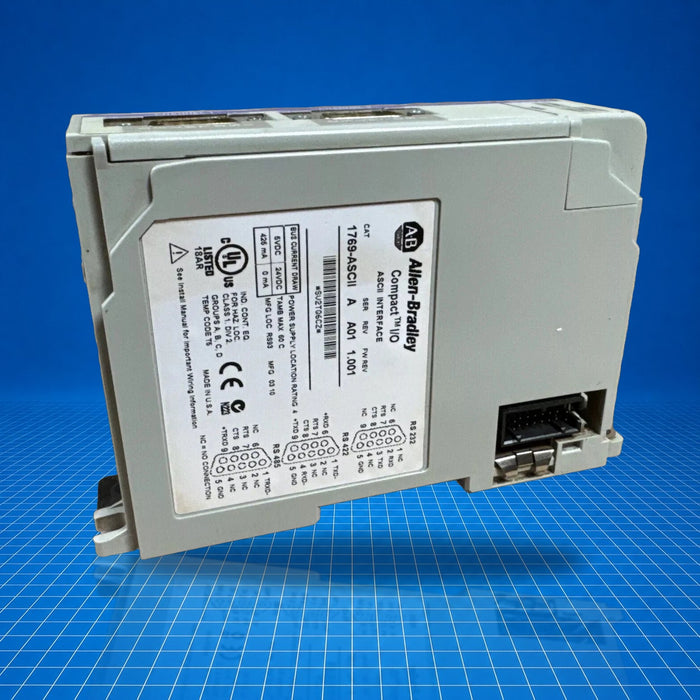

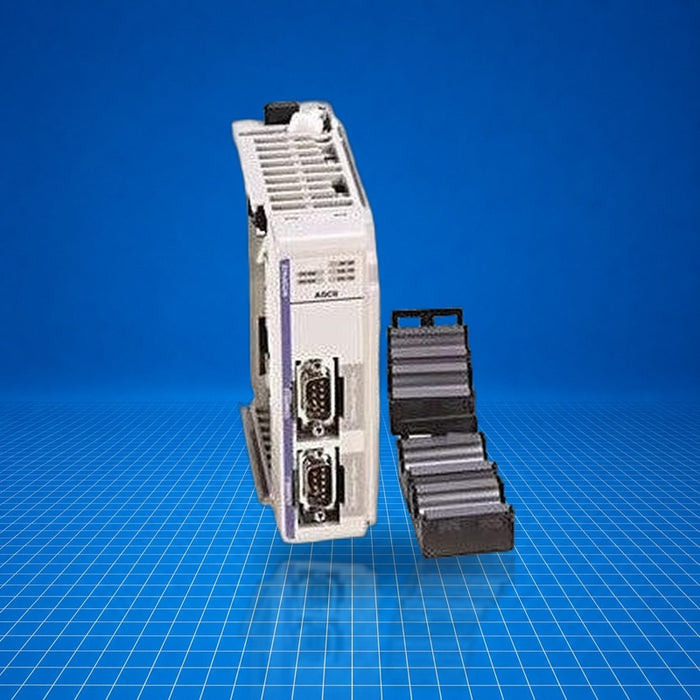

The Allen-Bradley 1769-ASCII is a CompactLogix (and MicroLogix 1500) specialty communication interface module providing two independent channels for ASCII-based devices over RS-232, RS-422, or RS-485. It mounts directly on the CompactLogix backplane and enables integration of legacy ASCII peripherals such as barcode readers into automation systems. The module occupies a single 1769 slot, relies on the CompactLogix power bus, and enables configurable communication across industrial and manufacturing settings. Part number 1769-ASCII.
Best Suited For
- Integration of barcode readers or legacy ASCII devices
- CompactLogix or MicroLogix 1500 systems
- Environments requiring dual independent serial channels
- Replacement of aging RS-232/RS-485 interface modules
