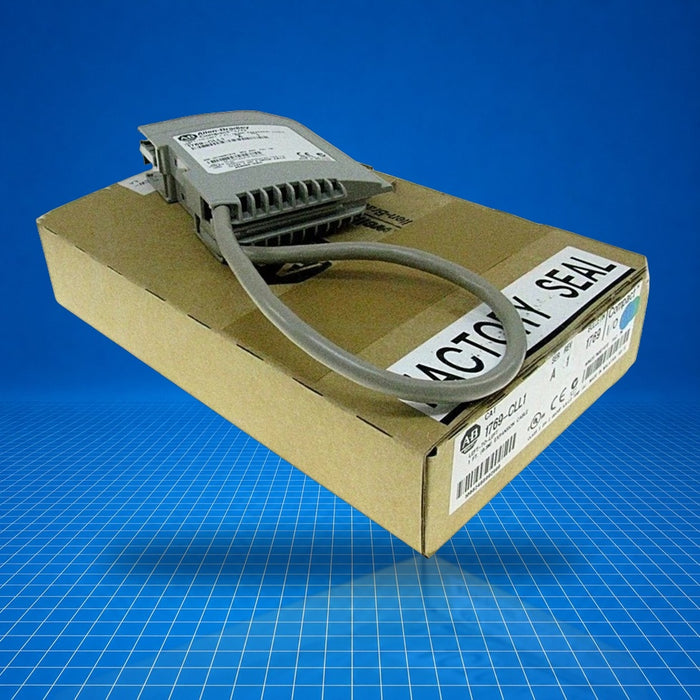

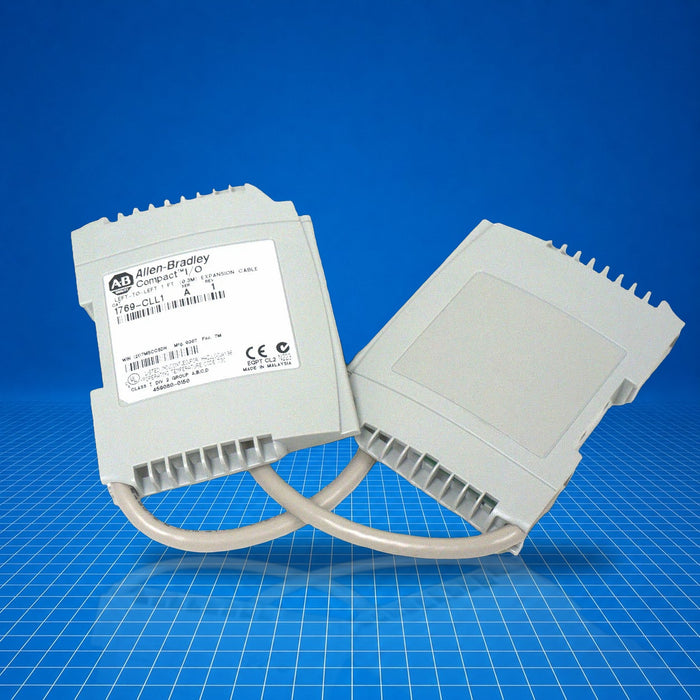

1769-CLL1 Allen-Bradley
Original price
$360.00
-
Original price
$387.84
Original price
$387.84
$360.00
-
$387.84
Current price
$387.84
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-CLL1 is an Allen-Bradley Compact I/O expansion cable (left-to-left bus extension) used in 1769 CompactLogix systems. It enables configuration of three module banks by connecting I/O modules via the left side of the CompactLogix backplane. It supports industrial control architectures requiring modular I/O expansion such as machine control, panel integration, or distributed rack assemblies.
Best Suited For
- Expanding CompactLogix I/O banks (adds a third bank)
- DIN-rail mounted Compact I/O installations
- High-vibration environments (up to 5 g)
- Compact left-to-left module layouts
Cable length
305 mm (1 ft)
Weight
300 g (0.66 lb)
Temperature rating
0…60 °C (32…140 °F)
Vibration / shock
5 g / 20 g
Max expansion cables per system
2 (for three I/O banks)
Technical Specifications
Physical & Environmental
Cable length
305 mm (1 ft)
Weight
300 g (0.66 lb)
Operating temperature
0…60 °C (32…140 °F)
Vibration rating
5 g
Shock rating
20 g
Mounting
DIN-rail Compact I/O backplane (left-to-left)
Certifications
c-UL-usCERCMKCUKCARoHS
UL Listed Class I, Division 2 (U.S. & Canada); CE (EMC EN 61000-6-2/6-4), RoHS (EN IEC 63000), RCM, KC, UKCA, Morocco DOC.
