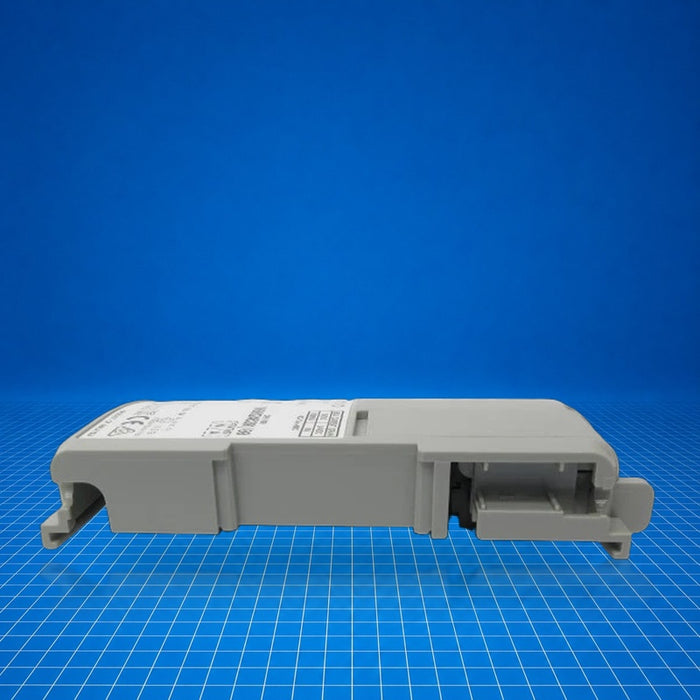

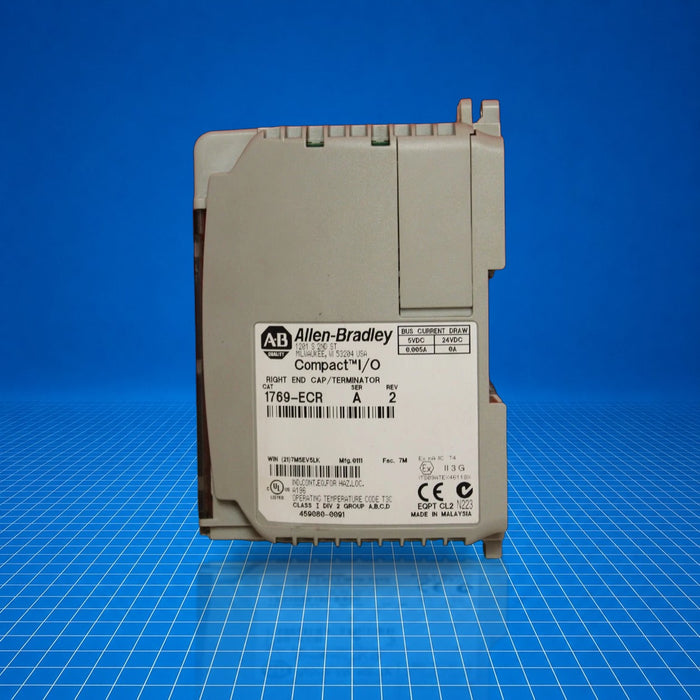

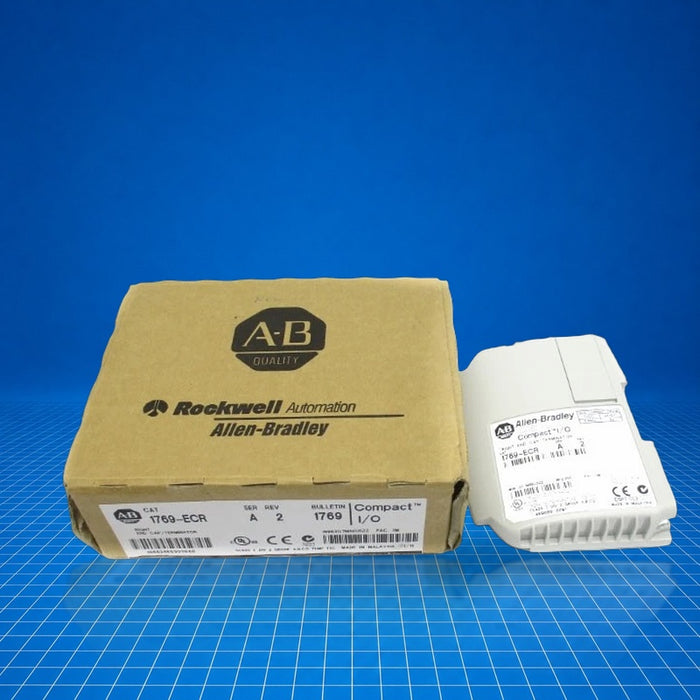

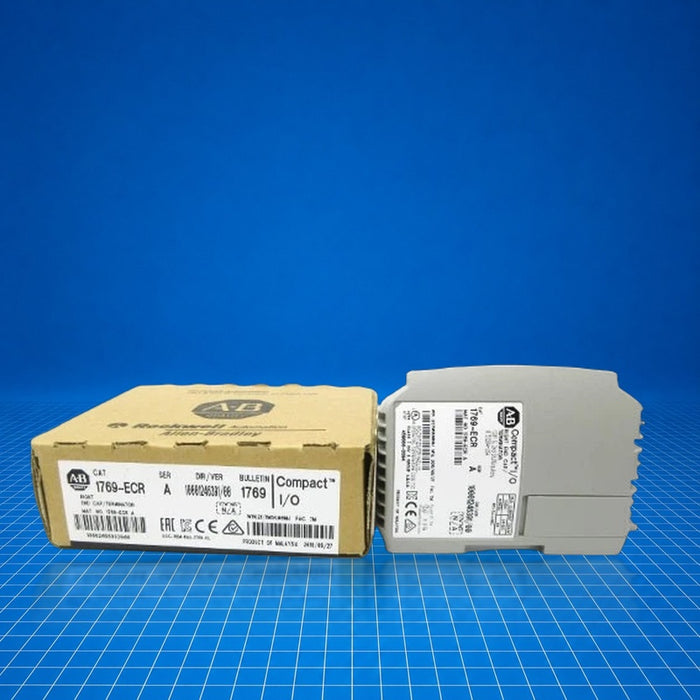

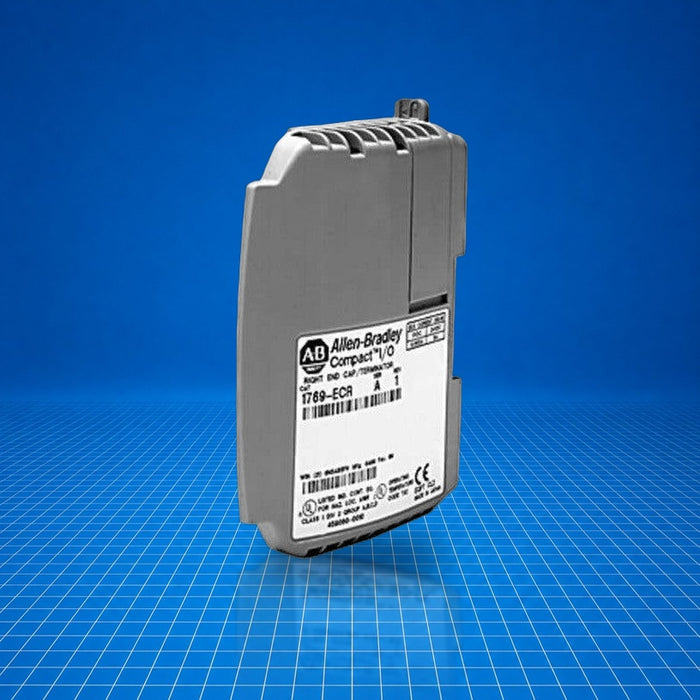

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1769-ECR Allen-Bradley

Name: 1769-ECR Allen-Bradley
Brand: Allen Bradley
SKU: 1769-ECR
Price: 400.0 USD
Availability: InStock

$400.00 - $400.00

$400.00

$400.00 - $400.00

$400.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-ECR is the right-end cap (terminator) accessory for Allen-Bradley CompactLogix (1769 Compact I/O) systems. It completes the communication bus at the rightmost position of a Compact I/O rack, ensuring proper bus termination. Made by Rockwell Automation under the Allen-Bradley brand, it is typically used in machine-level control and expansion I/O configurations in industrial automation, especially where a clean, electrically terminated bus is required. The 1769-ECR is a nonactive accessory, not a controller or I/O module.

Best Suited For

Terminating Compact I/O backplane communication bus (right side)
CompactLogix expansion I/O assemblies
Control racks requiring clean bus termination
Applications with operating temperature compliance (0…60 °C)

Operating temperature

0…60 °C (32…140 °F)

Current draw @ 5 V DC

5 mA

Open-style enclosure

None

Mounting type

DIN-rail or panel

Technical Specifications

I/O & Electrical

Current draw at 5 V DC

5 mA

Current draw at 24 V DC

0 mA

Physical & Environmental

Operating temperature

0…60 °C (32…140 °F)

Storage / non-operating temperature

-40…85 °C (-40…185 °F)

Relative humidity

5…95 %, non-condensing

Operating altitude

up to 2000 m

Enclosure style

None (open-style)

Certifications

ATEXIECExUKEXChina CCCAmerican Bureau of ShippingRegistro Italiano Navale

Certified under ATEX, IECEx, UK EX, China CCC, Registro Italiano Navale, American Bureau of Shipping (as of May 17, 2026).
