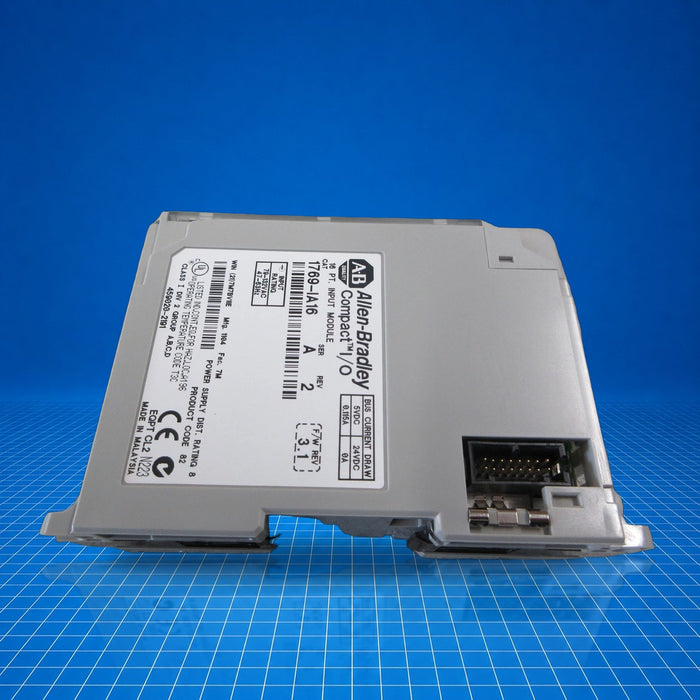

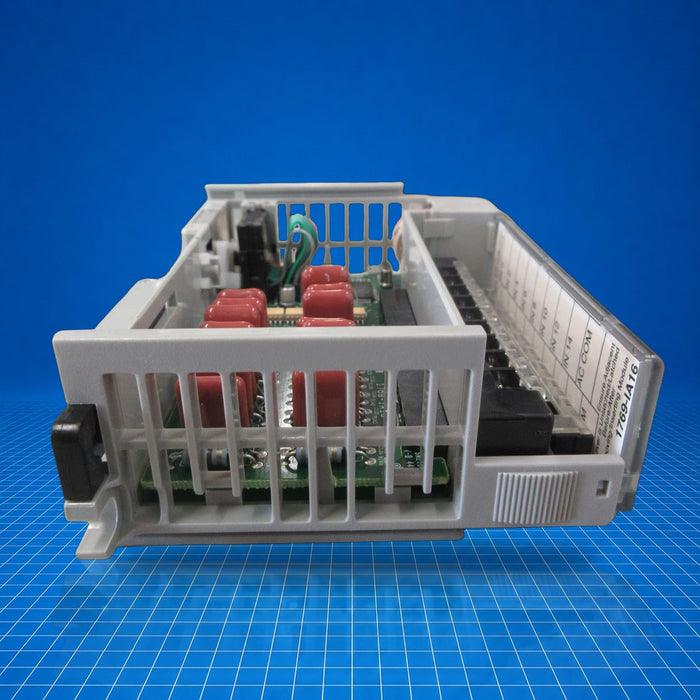

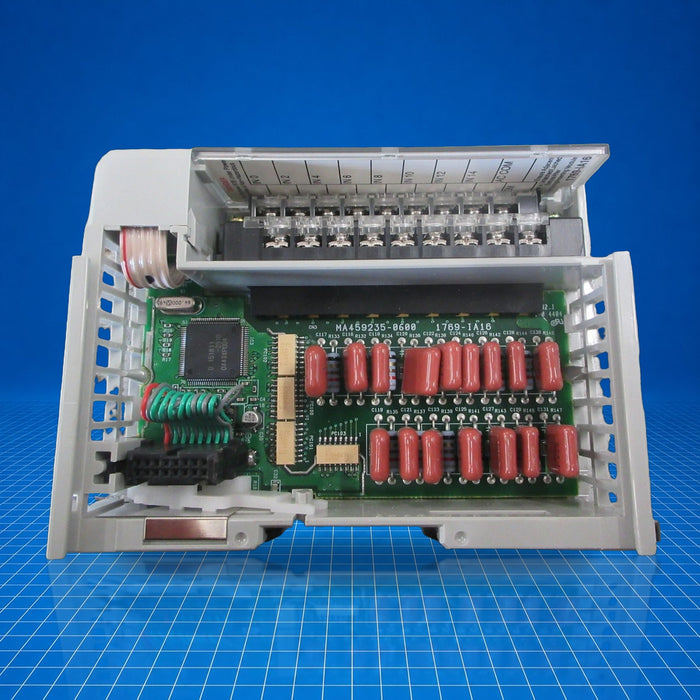

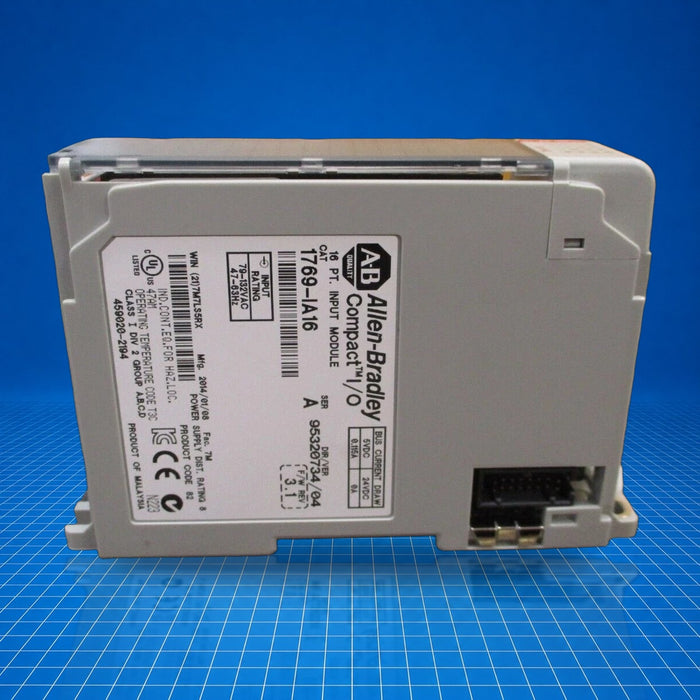

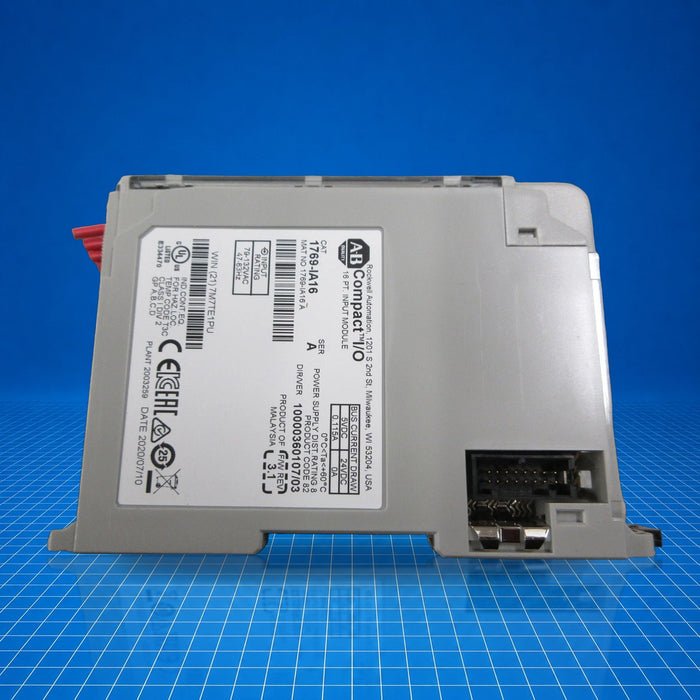

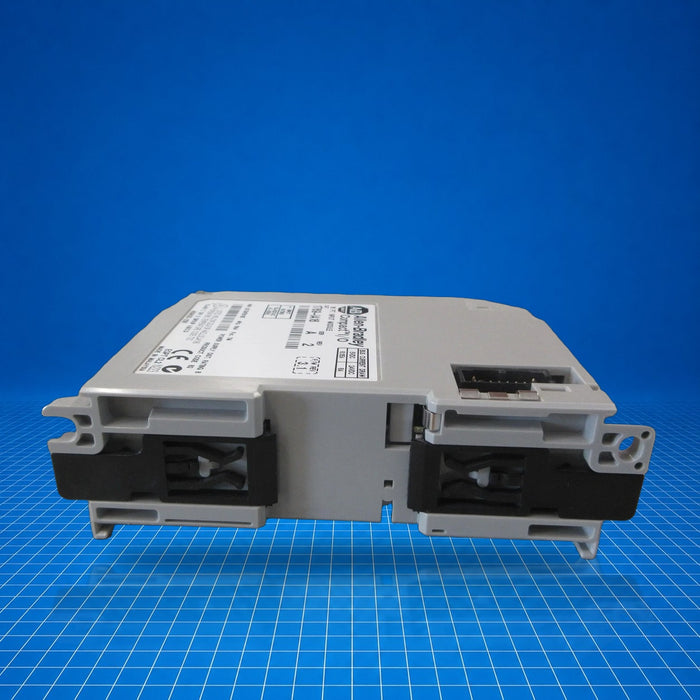

1769-IA16 Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-IA16 is an Allen-Bradley CompactLogix 16-point 120 VAC digital input module. It connects field 120 VAC signals to CompactLogix systems via the 1769 Compact I/O platform, providing 16 input channels with internal common configurations. It is typically used in industrial control applications such as motor control panels, machine safety monitoring, conveyor systems, and general discrete 120 VAC status signal acquisition. Part number 1769-IA16 is engineered for integration into CompactLogix racks, enabling standard AC discrete input expansion.
Best Suited For
- CompactLogix expansion for 120 VAC discrete inputs
- Machine status monitoring from 120 VAC sensors
- Control panel integration in OEM systems
- Retrofits of existing 120 VAC input systems with Compact I/O
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Certified for IEC Class II reinforced insulation, isolation tested to 1517 V AC for 1 s or 2145 V DC for 1 s between input points and bus. (See publication 1769-TD006H.)
