1769-IA8I Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

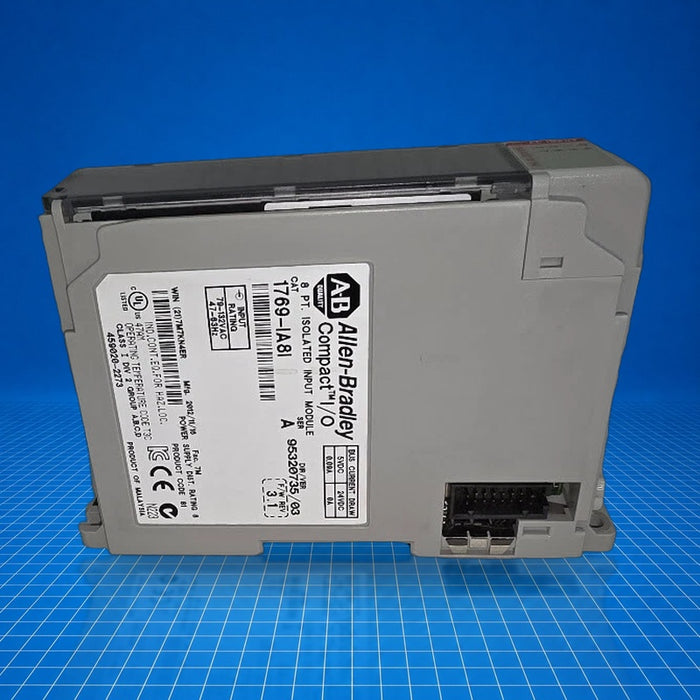

1769-IA8I Allen-Bradley

$377.70 - $599.97
$377.70
$377.70 - $599.97
$377.70
Surplus - Tested (With Warranty)
Need a Specific Revision?
$377.70
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$599.97
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-IA8I is an Allen-Bradley CompactLogix Compact I/O module providing eight individually isolated 120 VAC input channels. It integrates on the 1769 Compact I/O platform, interfacing directly with CompactLogix and Compact GuardLogix controllers via the backplane. In a control system, it serves as the discrete AC input interface for sensor or device status signals. Typical industrial uses include machine-level input sensing, control panel integration, and modular system expansion within CompactLogix architectures.

Best Suited For

  • Expansion of CompactLogix I/O banks
  • Panel or DIN-rail mounted discrete AC sensing
  • Applications requiring individually isolated channels
  • Retrofit replacement for legacy SLC 100/120 VAC modules
Input channels
8 individually isolated
Backplane current draw
90 mA @ 5 V DC
Operating voltage range
79…132 V AC, 47…63 Hz
Signal delay (on/off)
20 ms
Heat dissipation (max)
1.81 W

Technical Specifications

I/O & Electrical

Number of inputs
8 individually isolated
Operating voltage range
79…132 V AC, 47…63 Hz
Off-state voltage, max
20 V AC
Off-state current, max
2.5 mA
On-state voltage, min
79 V AC
On-state current, min
5 mA @ 79 V AC
On-state current, nominal
12 mA @ 120 V AC
Input impedance
12 kΩ @ 50 Hz; 10 kΩ @ 60 Hz
Inrush current, max
250 mA
Input delay (on/off)
20 ms / 20 ms

Communication & Power

Backplane current draw
90 mA @ 5 V DC (0.45 W)
Heat dissipation, max
1.81 W

Physical & Environmental

Dimensions (HxWxD)
118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in.)
Weight (approx)
270 g (0.60 lb)
Mounting
DIN-rail or panel mount
Wire size
22…14 AWG solid, 22…16 AWG stranded
Terminal screw torque
0.68 N·m (6 lb·in)
Retaining screw torque
0.46 N·m (4.1 lb·in)
Enclosure rating
open-style (no enclosure)

Certifications

Registro Italiano NavaleAmerican Bureau of ShippingMOROCCO DOCUKCA

Certified as of May 20 2026 under Registro Italiano Navale, American Bureau of Shipping, MOROCCO DOC and UKCA documentation. Verify labels for specific unit certification status.
