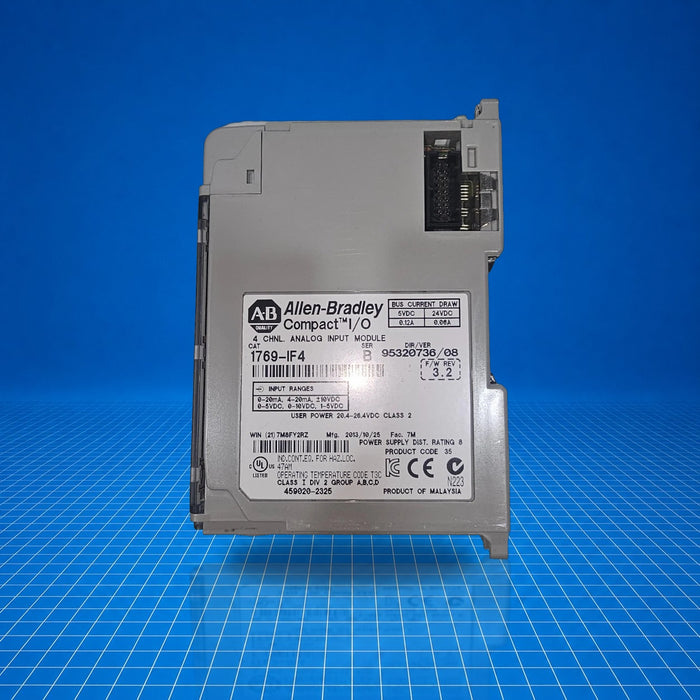

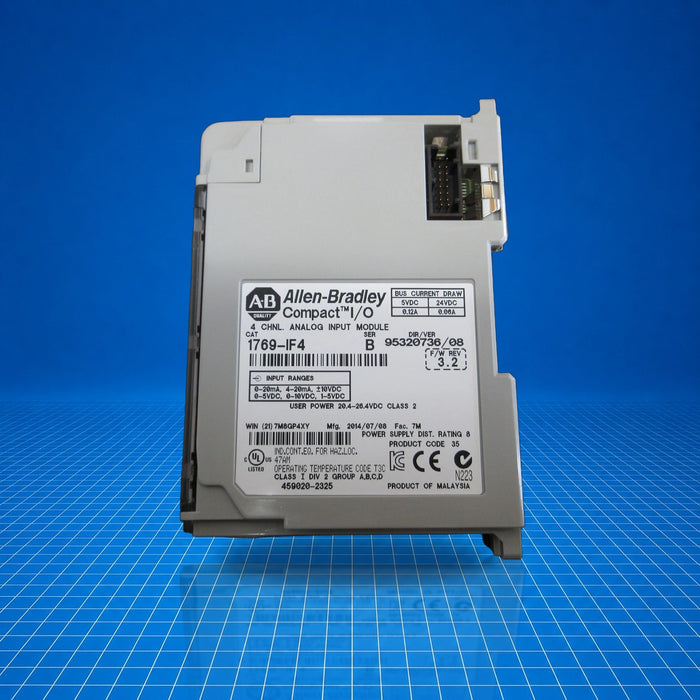

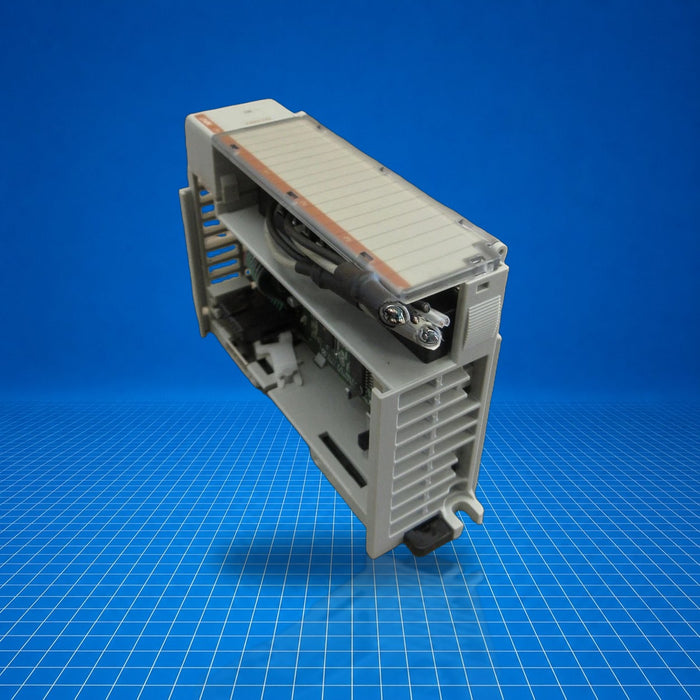

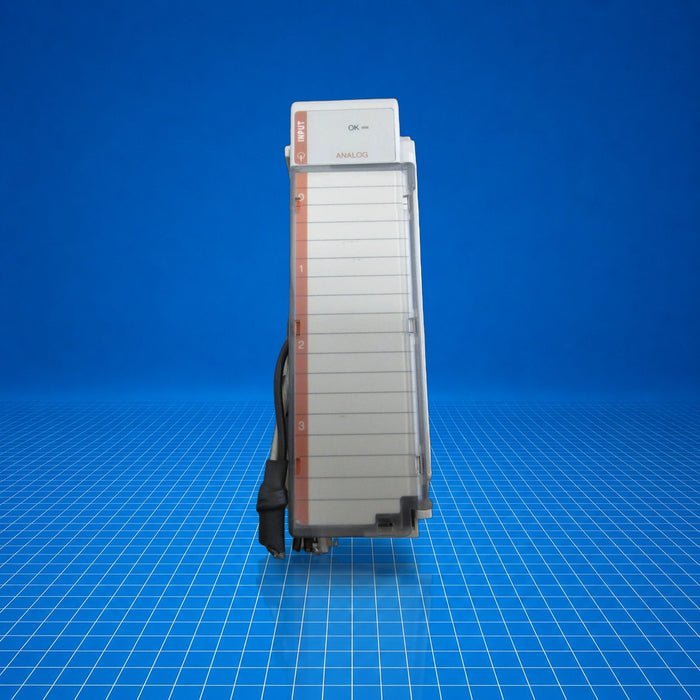

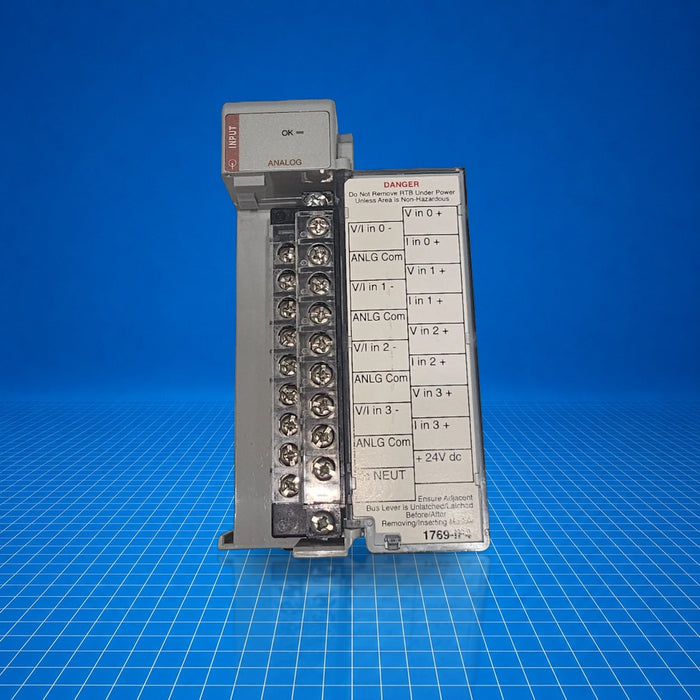

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1769-IF4 Allen-Bradley

Name: 1769-IF4 Allen-Bradley
Brand: Allen Bradley
SKU: 1769-IF4
Price: 400.0 USD
Availability: InStock

$400.00 - $599.85

$400.00

$400.00 - $599.85

$400.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-IF4 from Allen-Bradley is a CompactLogix™ analog input module that provides four channels configurable for voltage or current measurement. It belongs to the Compact I/O platform and integrates into CompactLogix and Compact GuardLogix systems for processing analog signals. The module supports ±10 V, 0-10 V, 0-5 V, 1-5 V voltage ranges and 0-20 mA or 4-20 mA current ranges, and features on-channel autocalibration, diagnostics, and selectable filtering. 1769-IF4 is typically used where precise multichannel analog data acquisition is required within CompactLogix-based control architectures.

Best Suited For

CompactLogix or GuardLogix analog measurements
4-channel field signal acquisition (voltage or current)
Systems requiring autocalibration and diagnostics
DIN-rail or panel mount I/O expansion

Channels

4 (differential or single-ended)

Analog ranges

±10 V, 0-10 V, 0-5 V, 1-5 V; 0-20 mA, 4-20 mA

Resolution

14-bit (unipolar), 14-bit plus sign (bipolar)

Bus current draw

120 mA @ 5 V DC; 60 mA @ 24 V DC

Heat dissipation

2.52 W max

Technical Specifications

I/O & Electrical

Number of inputs

4 differential or single-ended

Input ranges

±10 V, 0-10 V, 0-5 V, 1-5 V; 0-20 mA, 4-20 mA

Full-scale ranges

±10.5 V, -0.5…10.5 V, -0.5…5.25 V, 0.5…5.25 V; 0-21 mA, 3.2-21 mA

Input impedance

Voltage: 220 kΩ; Current: 250 Ω

Accuracy (@ 25 °C)

Voltage: ±0.2 % FS; Current: ±0.35 % FS

Accuracy drift with temperature

Voltage: ±0.003 %/°C; Current: ±0.0045 %/°C

Non-linearity

±0.03 % FS

Repeatability

±0.03 %

Module error (0 °C to +60 °C)

Voltage: ±0.3 %; Current: ±0.5 %

Isolation

500 V AC or 710 V DC for 1 min (group-to-bus); 30 V AC/DC working (IEC Class 2)

Communication & Power

Bus current draw

120 mA @ 5 V DC; 60 mA @ 24 V DC

Heat dissipation

2.52 W max

Physical & Environmental

Dimensions (H×W×D)

118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in); height with tabs 138 mm (5.43 in)

Mounting

DIN-rail or panel mount

Terminal torque

Screw: 0.68 N·m (6 lb·in); Retaining screw: 0.46 N·m (4.1 lb·in)

Wire size

Solid: 22-14 AWG; Stranded: 22-16 AWG, Cu-90 °C

Certifications

UL ListedUKCARegistro Italiano NavaleMOROCCO DOC

Refer to product label; certifications as of May 20 2026 include applicable UL, CE, UKCA, Morrison, etc.
