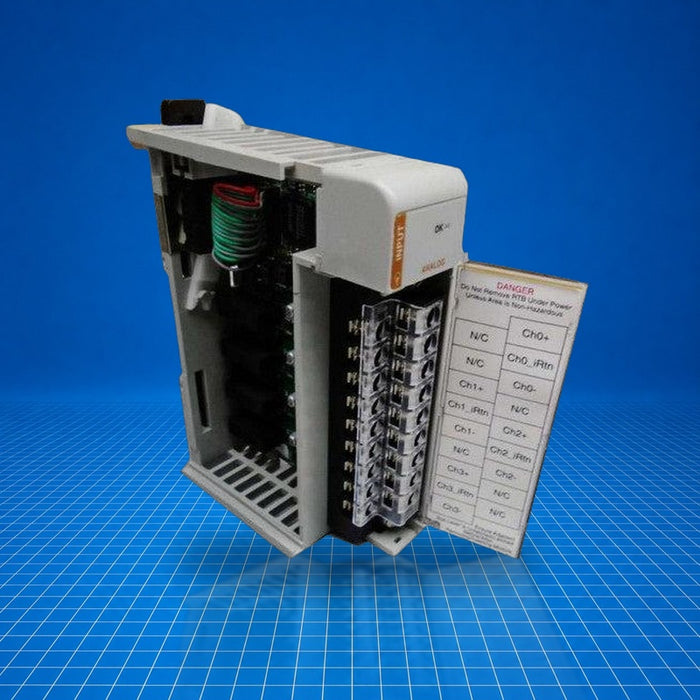

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1769-IF4I Allen-Bradley

$756.25 - $822.22
$756.25
$756.25 - $822.22
$756.25
Surplus - Tested (With Warranty)
Need a Specific Revision?
$756.25
5 in stock
New / Open-Box Surplus
Need a Specific Revision?
$822.22
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-IF4I is an Allen-Bradley CompactLogix module providing four isolated analog input channels supporting both current and voltage signals. Designed for integration into CompactLogix control systems, it accepts ±10 V, 0 … 10 V, 0 … 5 V voltage ranges and 0 … 20 mA, 4 … 20 mA current ranges, isolating each channel for signal integrity. In control architectures, it serves as a field interface for sensors and transducers-ideal for process monitoring, data acquisition, or feedback loops. 1769-IF4I fits into Compact I/O racks directly on DIN rail or panel.

Best Suited For

  • CompactLogix systems requiring isolated analog sensing
  • Process variable measurement (e.g. pressure, flow, temperature inputs)
  • Mixed voltage and current input signal environments
  • Up to four-channel analog input expansion on Compact I/O backplane
Channels
4 isolated analog inputs
Voltage ranges
± 10 V, 0 … 10 V, 0 … 5 V
Current ranges
0 … 20 mA, 4 … 20 mA
Bus power draw
145 mA @ 5 V DC; 125 mA @ 24 V DC
Heat dissipation
3.0 W total

Technical Specifications

I/O & Electrical

Input voltage ranges
±10 V, 0 … 10 V, 0 … 5 V
Input current ranges
0 … 20 mA, 4 … 20 mA
Input impedance - voltage
1 MΩ (typical)
Input impedance - current
249 Ω
Resolution
16-bit unipolar, 15-bit plus sign bipolar
Accuracy - voltage
±0.2 % full scale at 25 °C
Accuracy - current
±0.35 % full scale at 25 °C
Isolation rating
500 V AC, 710 V DC for 1 min (qualification test)

Communication & Power

Bus current draw
145 mA @ 5 V DC; 125 mA @ 24 V DC
Heat dissipation
3.0 W

Physical & Environmental

Dimensions (H×D×W)
118 mm × 87 mm × 35 mm (4.65″ × 3.43″ × 1.38″)
Weight (with carton)
300 g (0.65 lb)
Operating temperature
0 … +60 °C (+32 … +140 °F)
Storage temperature
-40 … +85 °C (-40 … +185 °F)
Operating humidity
5 … 95 % non-condensing
Operating altitude
≤ 2000 m (6561 ft)
Shock - operating (DIN-rail)
20 g, 11 ms
Vibration - operating
10 … 500 Hz, 5 g, 0.030 in. peak-to-peak
Mounting
DIN-rail or panel (with mounting tabs)

Certifications

UL ListedC-ULCEClass I Div 2

UL 508 listed; C-UL (CSA C22.2 No 142); CE compliant; Class I, Division 2, Groups A, B, C, D (UL 1604/C-UL under CSA C22.2 No 213); CISPR 11 Class A radiated and conducted emissions.
