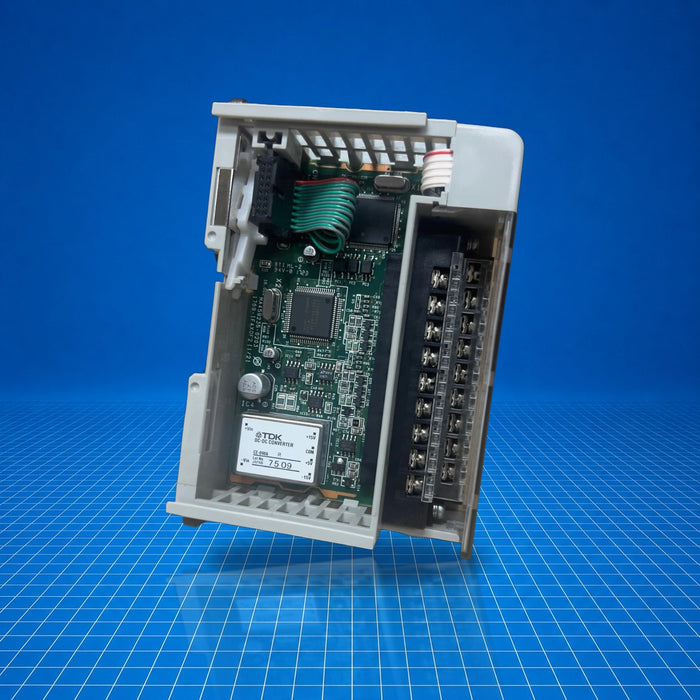

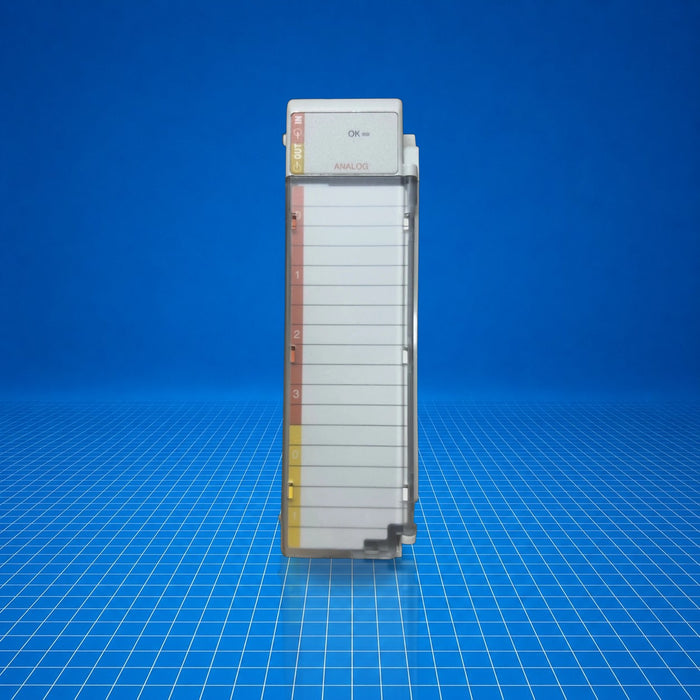

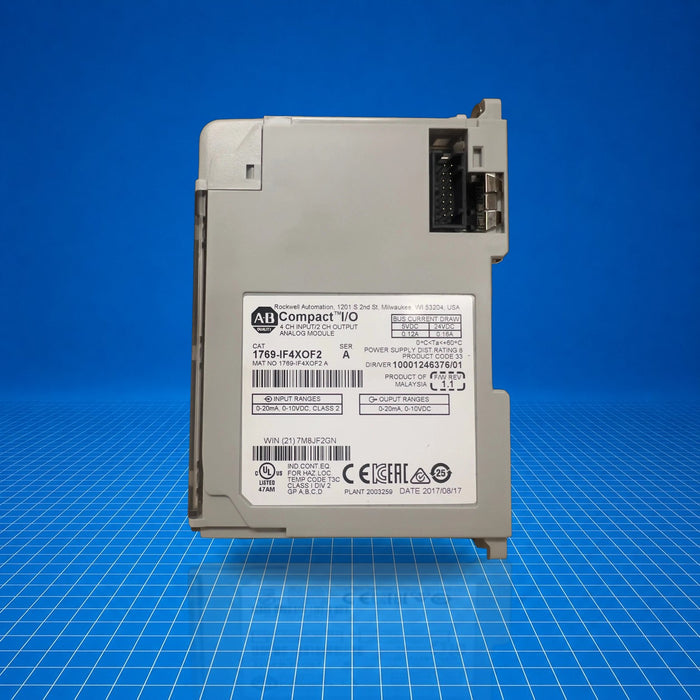

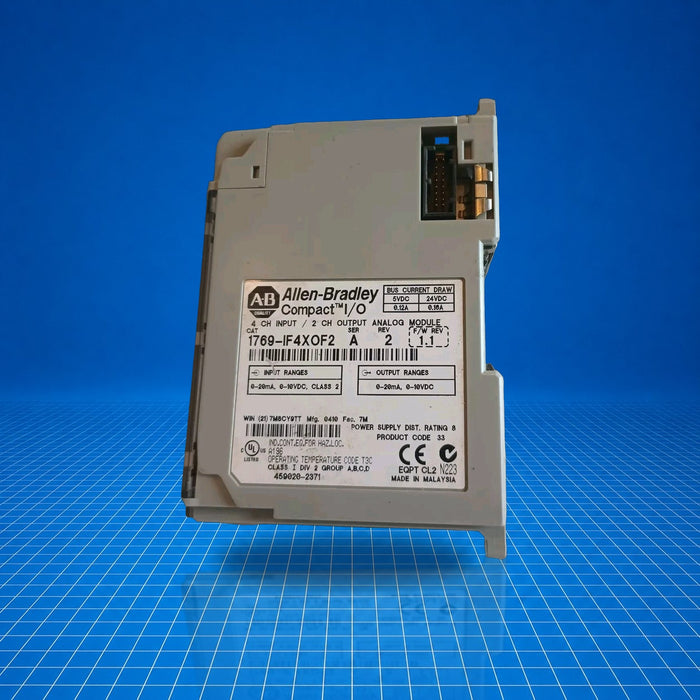

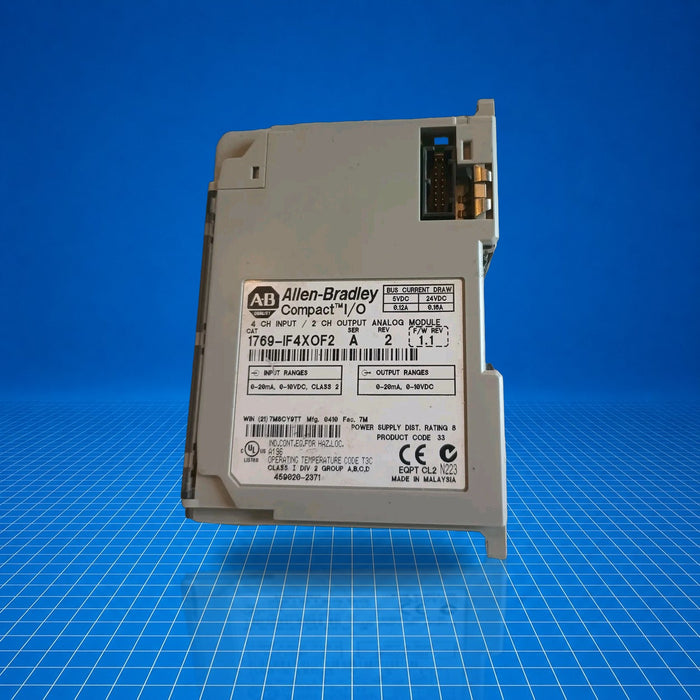

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1769-IF4XOF2 Allen-Bradley
Original price
$414.00
-
Original price
$810.92
Original price
$414.00
$414.00
-
$810.92
Current price
$414.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-IF4XOF2 is an Allen-Bradley CompactLogix analog combination I/O module, part of the 1769 Compact I/O family. It provides four analog inputs and two analog outputs with both voltage and current capability for integration into CompactLogix control systems. The module performs A/D and D/A conversion to interface field signals with logic controllers and is typically used for process control, machine automation, or instrumentation tasks requiring mixed analog I/O in a compact format. Part number 1769-IF4XOF2 integrates channel isolation and diagnostics for field reliability.
Best Suited For
- Mixed analog input/output requirements within CompactLogix systems
- Process control loops requiring voltage and current I/O
- Retrofit installations where space is constrained
- On-machine sensing and control with analog signals
Analog channels (IN/OUT)
4 in / 2 out
Signal types
±10 V, 0-10 V, 0-5 V, 1-5 V; 0-20 mA, 4-20 mA
Bus current draw
120 mA @ 5 V DC; 160 mA @ 24 V DC
Isolation voltage
500 V AC / 710 V DC for 1 min
Operating temp
0 °C to +60 °C
Technical Specifications
I/O & Electrical
Analog input channels
4 (differential or single-ended)
Analog output channels
2 (single-ended)
Input range
±10 V, 0-10 V, 0-5 V, 1-5 V, 0-20 mA, 4-20 mA
Output range
±10 V, 0-10 V, 0-5 V, 1-5 V, 0-20 mA, 4-20 mA
Resolution
13-bit (unipolar), 13-bit + sign (bipolar)
Converter types
Successive approximation (A/D), D/A converter
Accuracy
±0.15% (voltage), ±0.2% (current) full-scale @ 25 °C
Isolation rating
500 V AC / 710 V DC, Group to bus
Communication & Power
Bus current draw
120 mA @ 5 V DC; 160 mA @ 24 V DC
Heat dissipation
3.03 W total
Power supply distance
Max 8 modules from system power supply
Physical & Environmental
Dimensions (HxWxD)
118 × 35 × 87 mm (height with tabs 138 mm)
Weight
290 g
Operating temperature
0 °C to +60 °C
Storage temperature
-40 °C to +85 °C
Humidity
5% to 95% non-condensing
Vibration (operating)
10-500 Hz, 5 g, 0.030 in peak-to-peak
Shock (operating)
30 g, 11 ms panel; 20 g DIN-rail
Certifications
UL 508 Listedc-UL (CSA C22.2 No. 142)CEC-TickClass I, Division 2 Groups A,B,C,D (UL 1604)
