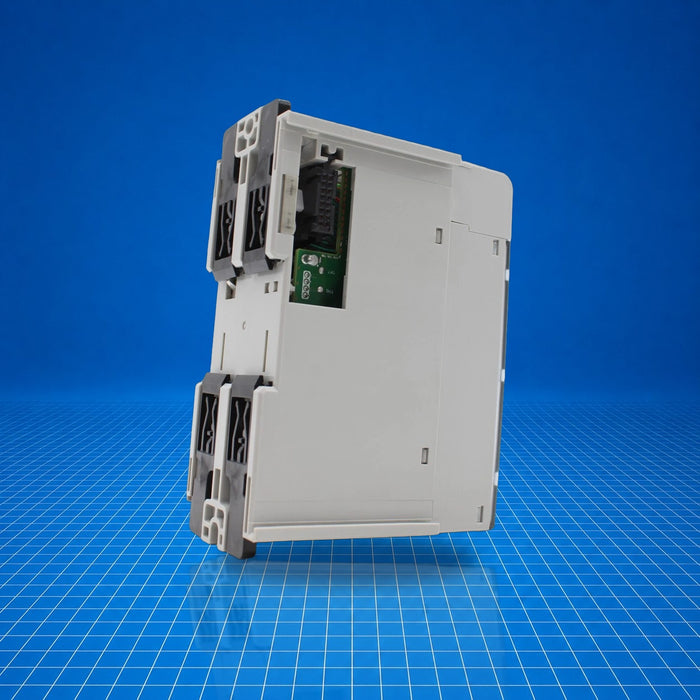

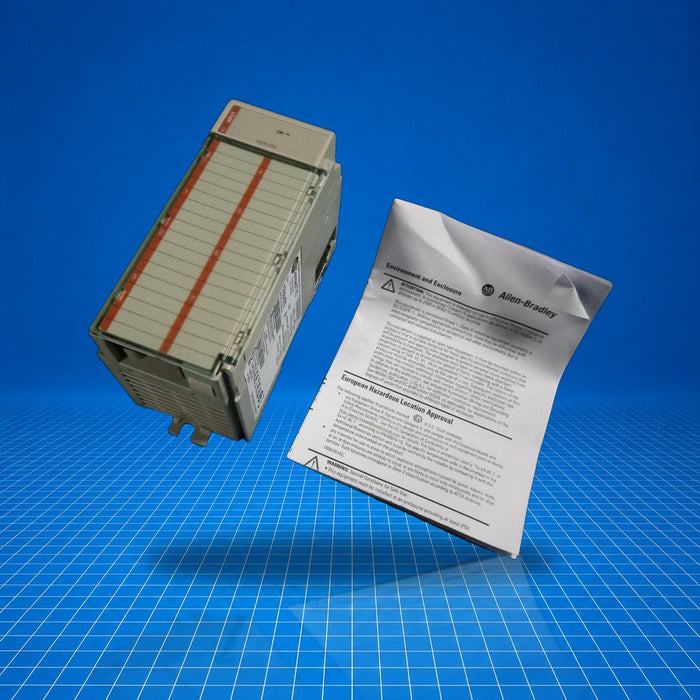

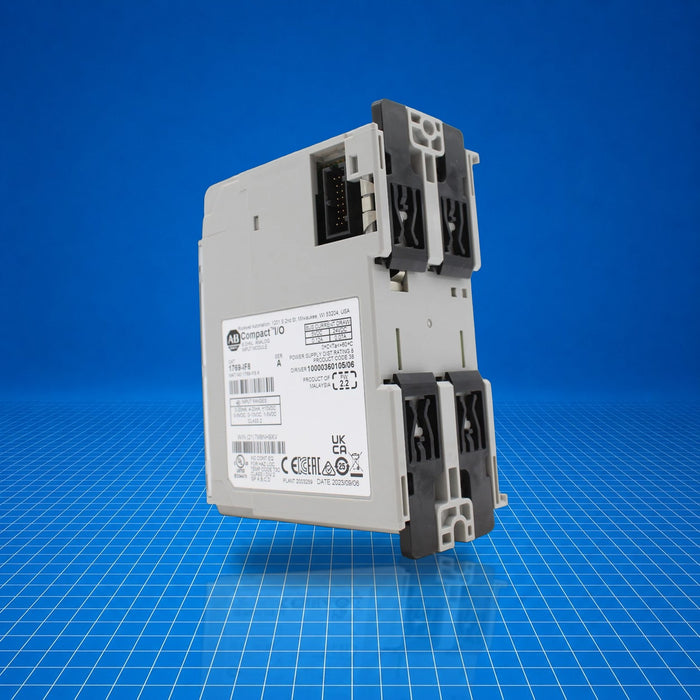

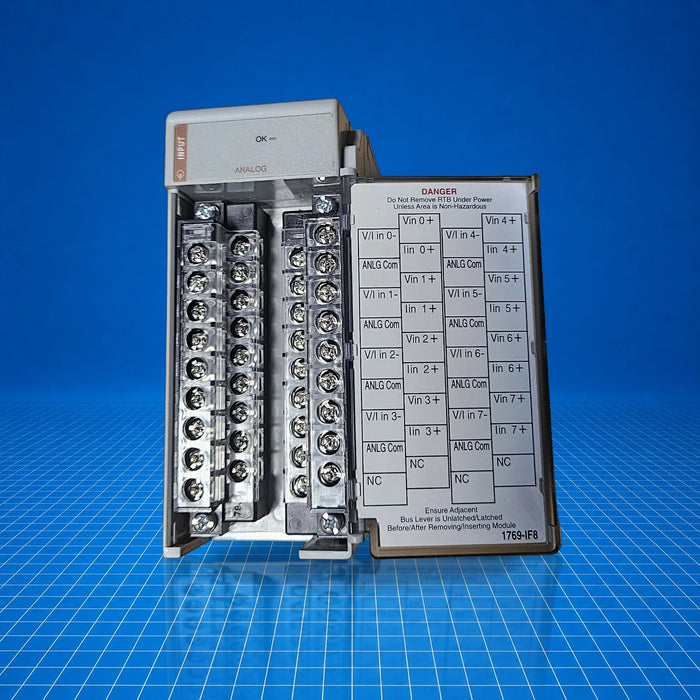

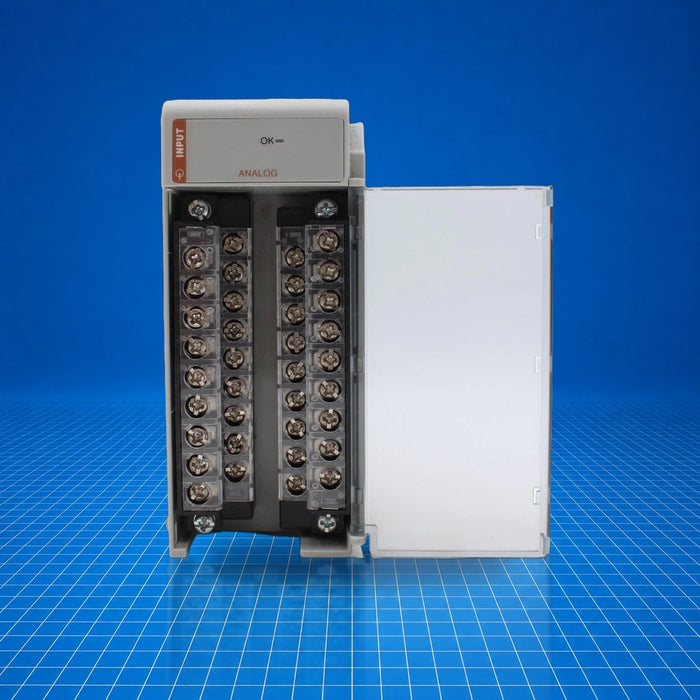

1769-IF8 Allen-Bradley
Original price
$447.00
-
Original price
$524.97
Original price
$524.97
$447.00
-
$524.97
Current price
$524.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-IF8 is an Allen-Bradley CompactLogix analog input module. It provides eight channels that accept voltage (±10 V, 0-10 V, 0-5 V) or current (0-20 mA, 4-20 mA) signals. It integrates into CompactLogix systems for data acquisition from field sensors. Typical industrial applications include monitoring analog process variables such as temperature, pressure, and flow in manufacturing, water treatment, or machine control environments. Part number 1769-IF8.
Best Suited For
- CompactLogix I/O expansion
- Differential or single-ended analog signal acquisition
- Machine-side analog monitoring
- Process variable acquisition (pressure, temperature)
Channels
8
Analog ranges
±10 V, 0-10 V, 0-5 V, 0-20 mA, 4-20 mA
Resolution
16-bit unipolar / 15-bit plus sign bipolar
Bus power draw
120 mA @ 5 V DC; 70 mA @ 24 V DC
Technical Specifications
I/O & Electrical
Number of inputs
8 differential or single-ended
Analog normal operating ranges
Voltage: ±10 V, 0-10 V, 0-5 V; Current: 0-20 mA, 4-20 mA
Full-scale ranges
Voltage: ±10.5 V, 0-10.5 V, 0-5.25 V; Current: 0-21 mA, 3.2-21 mA
Resolution
16 bits (unipolar); 15 bits plus sign (bipolar)
Input impedance
Voltage: 220 kΩ (typical); Current: 250 Ω
Common-mode voltage range
±10 V DC maximum per channel
Common-mode rejection
> 60 dB @ 50/60 Hz (10 Hz filter)
Normal-mode rejection
-50 dB @ 50/60 Hz (10 Hz filter)
Accuracy
Voltage: ±0.2 % full-scale @ 25 °C; Current: ±0.35 % full-scale @ 25 °C
Converter type
Delta-Sigma
Response speed
Filter-dependent
Communication & Power
Bus current draw
120 mA @ 5 V DC; 70 mA @ 24 V DC
Heat dissipation
3.24 W total (all points energized)
Physical & Environmental
Depth
87 mm (3.43″)
Height
118 mm (4.65″)
Certifications
UL ListedUKCARegistro Italiano NavaleAmerican Bureau of ShippingMorocco DOC
Certified as of May 20, 2026; review product labeling for specific certifications.
