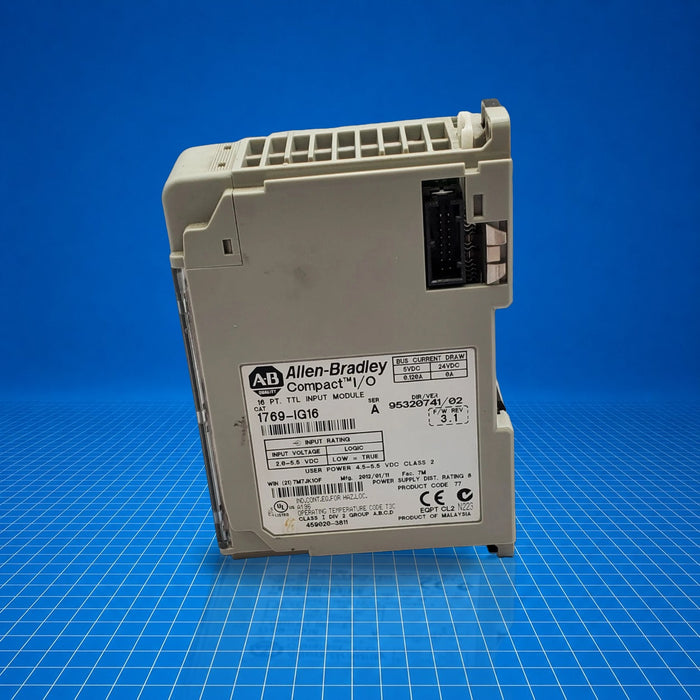

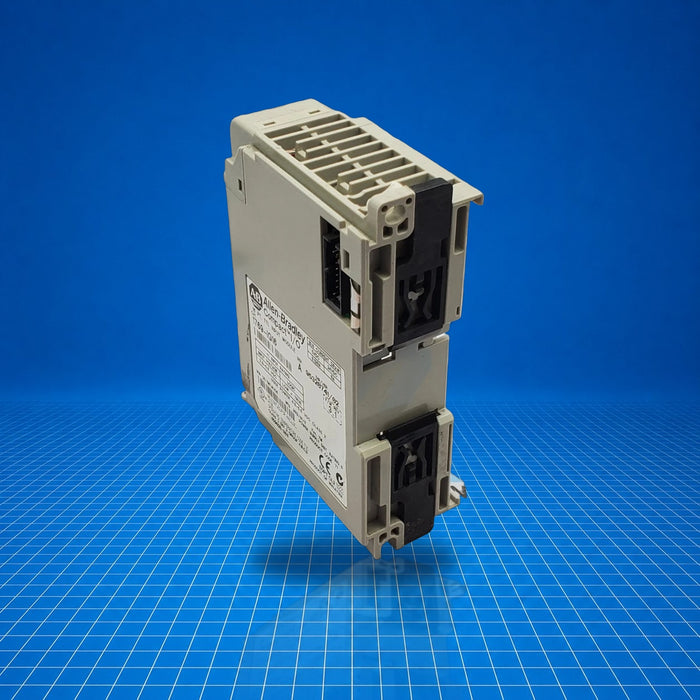

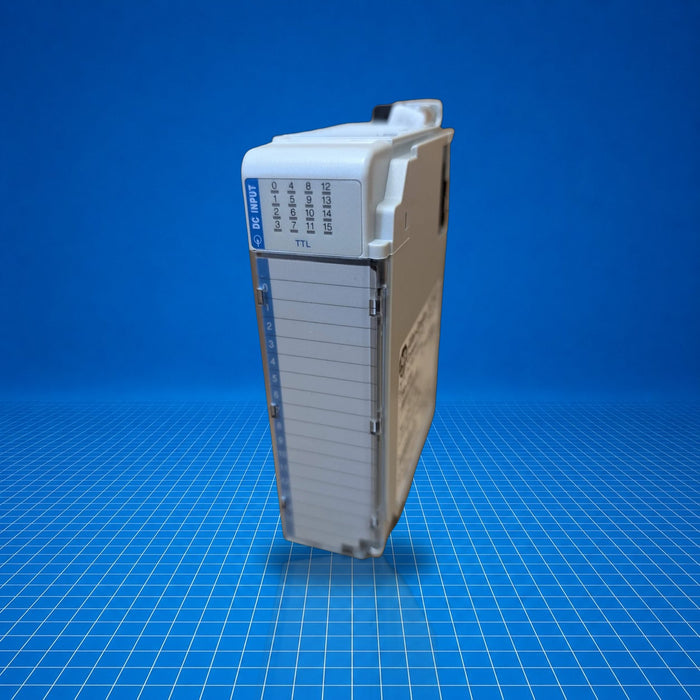

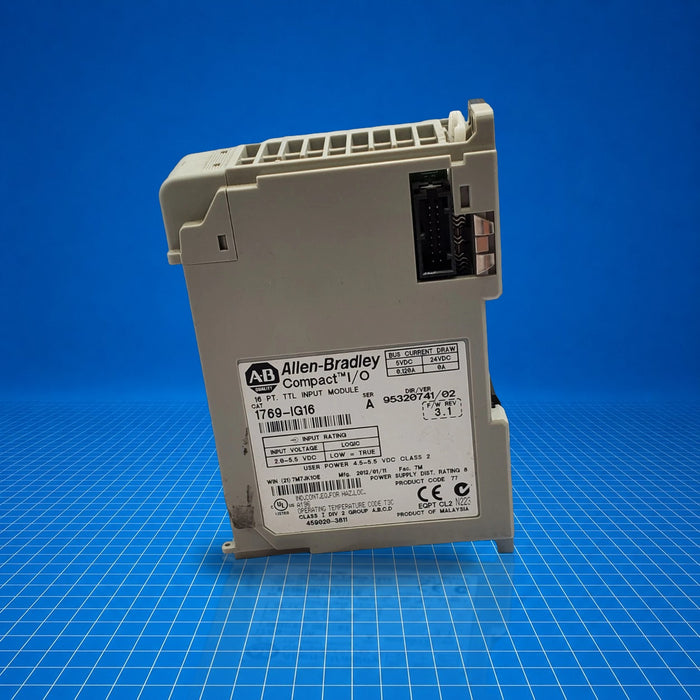

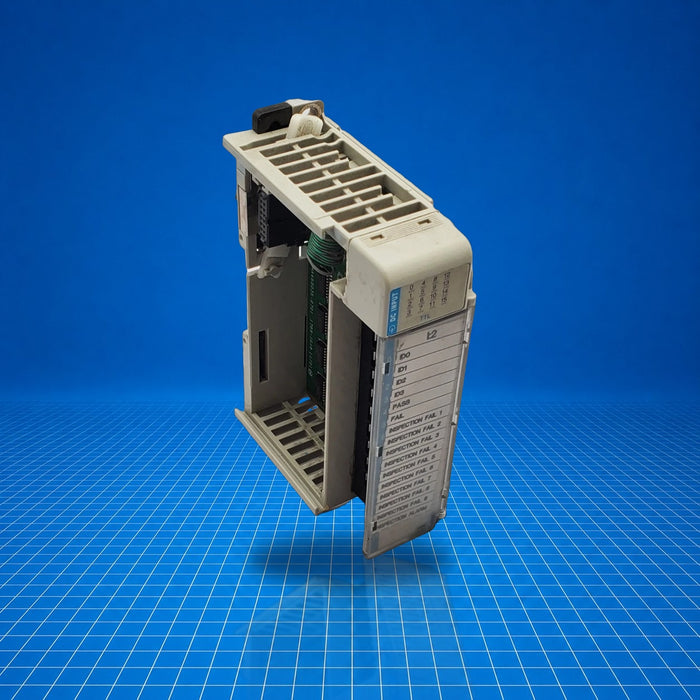

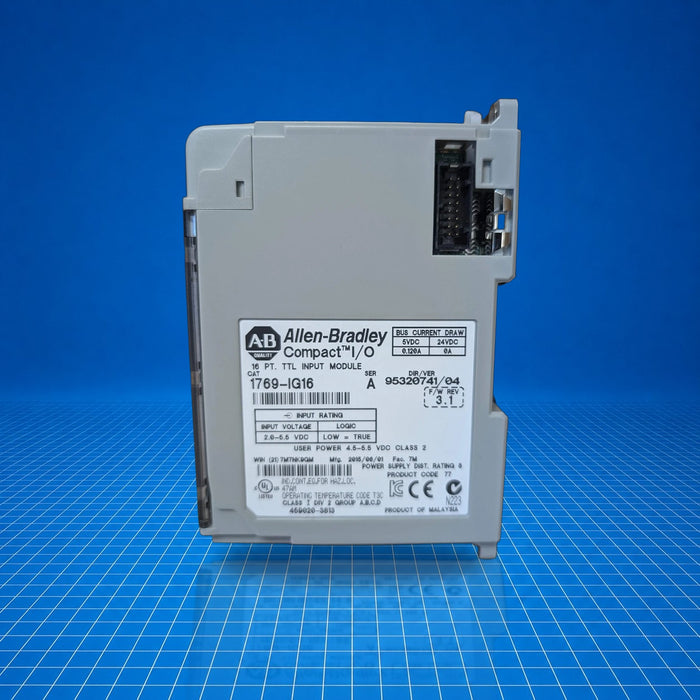

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1769-IG16 Allen-Bradley
Original price
$450.00
-
Original price
$605.00
Original price
$450.00
$450.00
-
$605.00
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-IG16 is an Allen-Bradley CompactLogix module providing 16 TTL (5 V DC) discrete inputs. It integrates into CompactLogix control systems, offering low-level logic input signals for feeding control logic in industrial automation environments. Typical applications include sensing low-voltage discrete devices, TTL-level interlocks, and direct interface to logic circuits within machine control cabinets.
Best Suited For
- CompactLogix distributed input expansion
- Low-voltage TTL device interfacing
- Machine control panel logic inputs
- Applications requiring Class 2 5 V DC input
Channels
16 TTL inputs
Operating voltage range
4.5…5.5 V DC
Current draw
120 mA @ 5.1 V
Heat dissipation, max
1.6 W
Isolation voltage
1 200 V AC (2 s) / 1 697 V DC
Technical Specifications
I/O & Electrical
Number of inputs
16
Input type
5 V DC TTL (Low = True)
Operating voltage range
4.5…5.5 V DC
Input delay, on
20 ms
Digital filter (off→on, on→off)
0 s, 100 ms, 500 ms, 1 ms, 2 ms, 4 ms, 8 ms
Current draw
120 mA @ 5.1 V
On-state current, typical
3.7 mA @ 5 V DC
Off-state current, max
4.1 mA
Heat dissipation, max
1.6 W
Isolation voltage
1 200 V AC @ 2 s or 1 697 V DC
Communication & Power
Power supply modules supported
1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power supply distance rating
8 modules
Physical & Environmental
Dimensions (HxWxD)
118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in); height w/ tabs 138 mm (5.43 in)
Weight
approx 250 g (0.55 lb)
Slot width
1
Mounting
DIN-rail or panel mount
Terminal screw torque
0.68 N·m (6 lb·in)
Retaining screw torque
0.46 N·m (4.1 lb·in)
Wire size
22…14 AWG solid, 22…16 AWG stranded
Wire type
Copper, 90 °C
Certifications
CEUKCARegistro Italiano NavaleAmerican Bureau of Shipping
Refer to product label and certification documents; certified as of May 19, 2026.
