Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

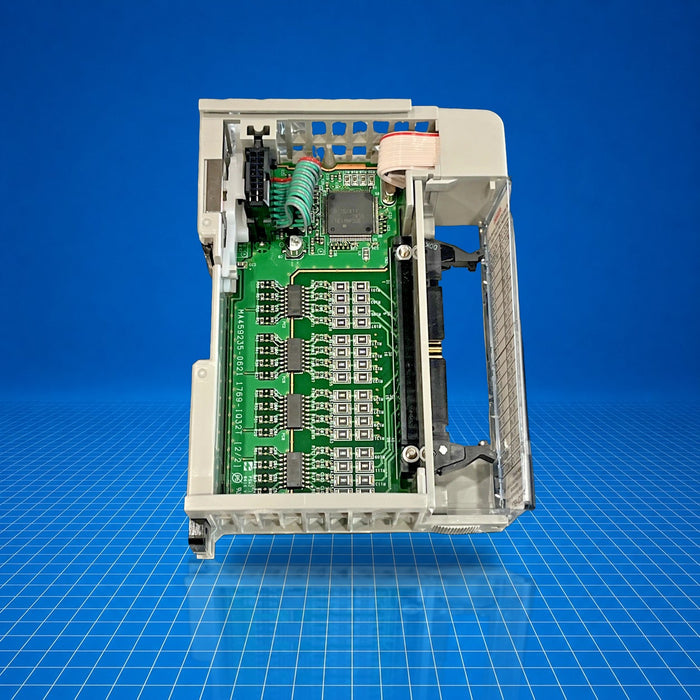

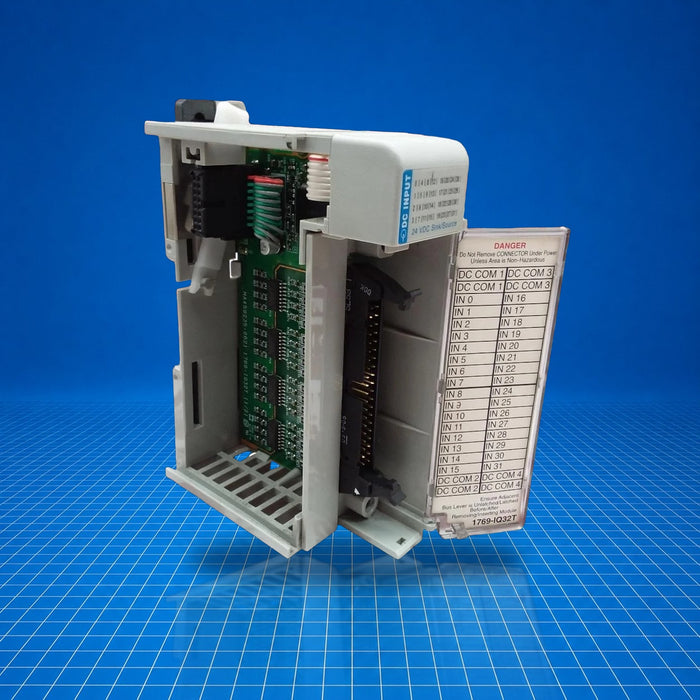

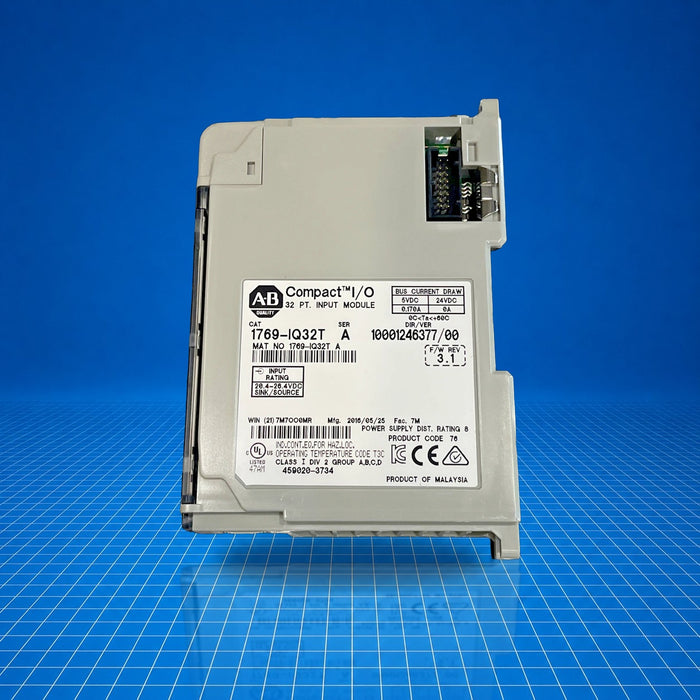

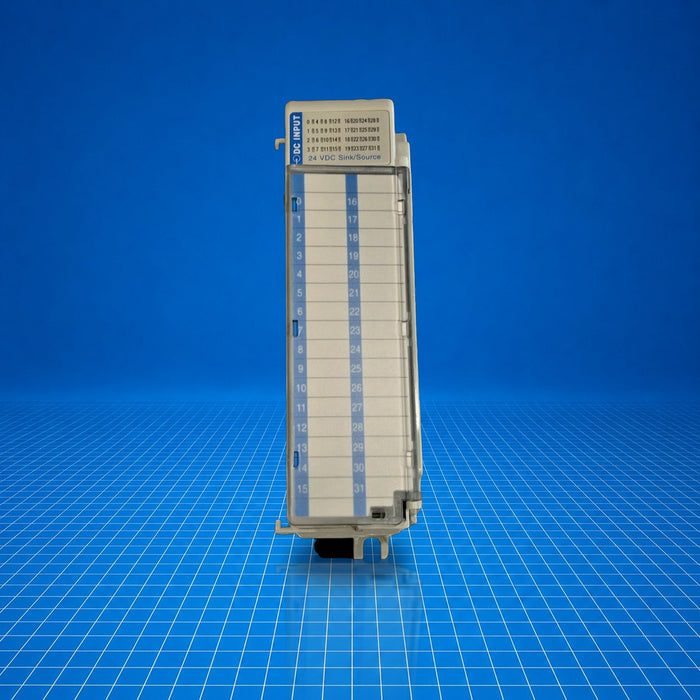

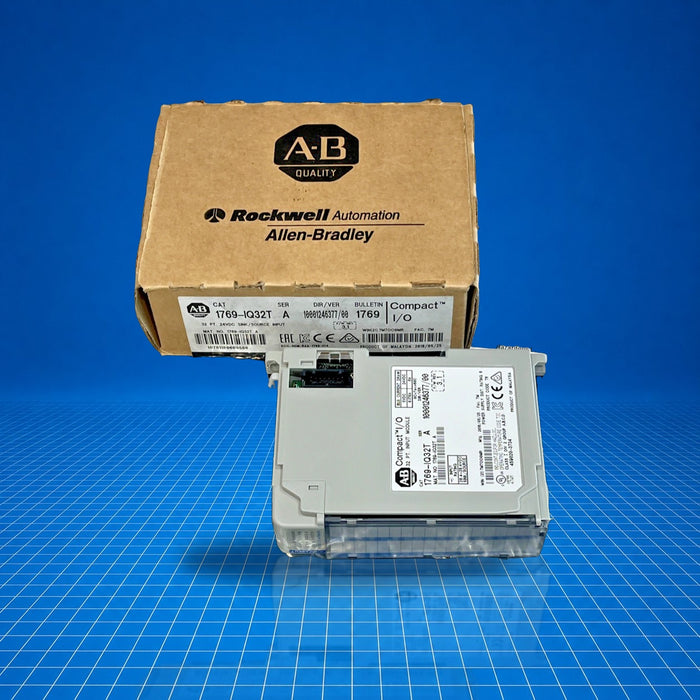

The 1769-IQ32T is an Allen-Bradley Compact 32-point 24 V DC input module (Compact I/O family, part number 1769-IQ32T). It provides terminated sink/source inputs, isolated in four groups of eight, for integration into CompactLogix or MicroLogix 1500 systems. It mounts on DIN-rail or panel, enabling centralized processing of multiple discrete field signals in manufacturing, packaging, and machine control applications. The 1769-IQ32T supports standard CompactBus spacing and simplifies wiring via a prefabricated cable connector.
Best Suited For
- High-density discrete input applications in CompactLogix or MicroLogix systems
- Panel or machine-mounted installations requiring compact form factor
- Terminated sink/source wiring via prefabricated connector
- Multiple isolated input groups for fault containment
Inputs
32
Voltage
24 V DC sink/source
Isolation groups
4 (8 inputs each)
Bus current draw
170 mA @ 5 V DC
Heat dissipation
4.77 W
Technical Specifications
I/O & Electrical
Number of inputs
32
Voltage category
24 V DC sink/source
Operating voltage range
20.4…26.4 V DC @ 60 °C
Bus current draw, max
170 mA @ 5 V DC
Heat dissipation, max
4.77 W
Off-state voltage, max
11 V DC
Off-state current, max
1.7 mA
On-state voltage, min
19 V DC
On-state current, min
3.0 mA
Inrush current, max
5 mA
Input impedance, nominal
5.6 kΩ
Digital filter (off-to-on / on-to-off)
0 s, 100 µs, 500 µs, 1 ms, 2 ms, 4 ms, 8 ms
Input delay on/off
On: 0.1 ms typ / 0.42 ms max; Off: 0.25 ms typ / 1.0 ms max
Communication & Power
Power supply distance rating
8 modules
Isolation voltage (point-to-bus and group-to-group)
1200 V AC for 1 s or 1697 V DC for 1 s; 75 V DC working (IEC Class II reinforced)
Terminal screw torque
0.68 N•m (6 lb • in)
Retaining screw torque
0.46 N•m (4.1 lb • in)
Wire size
22…14 AWG solid; 22…16 AWG stranded
Wire type
Cu-90 °C (194 °F)
Physical & Environmental
Dimensions (H × W × D)
118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in); height with tabs 138 mm (5.43 in)
Weight, approx
280 g (0.61 lb)
Mounting

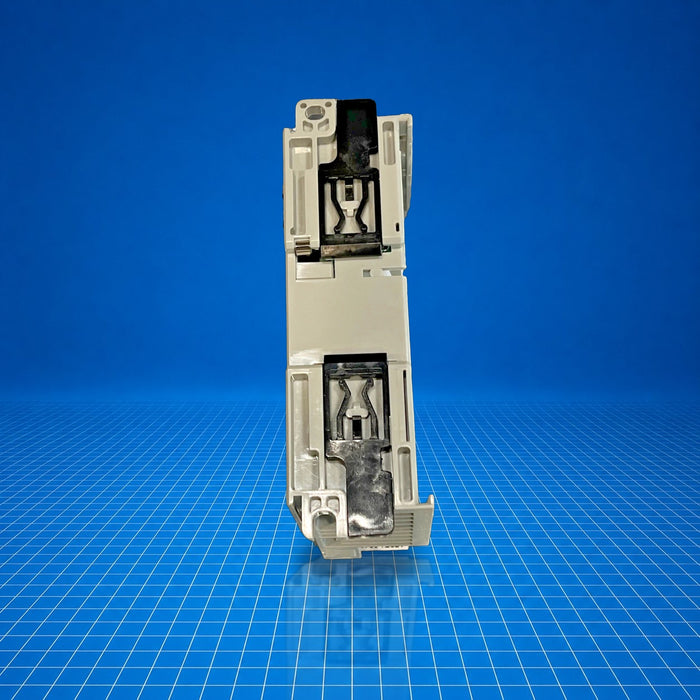

DIN-rail or panel mount
Slot width
1
Enclosure type rating
None (open-style)
IEC input compatibility
Type 1+
Certifications
UL ListedCEc-ULus
Certifications as of May 20, 2026; refer to product labeling for specific unit compliance.
