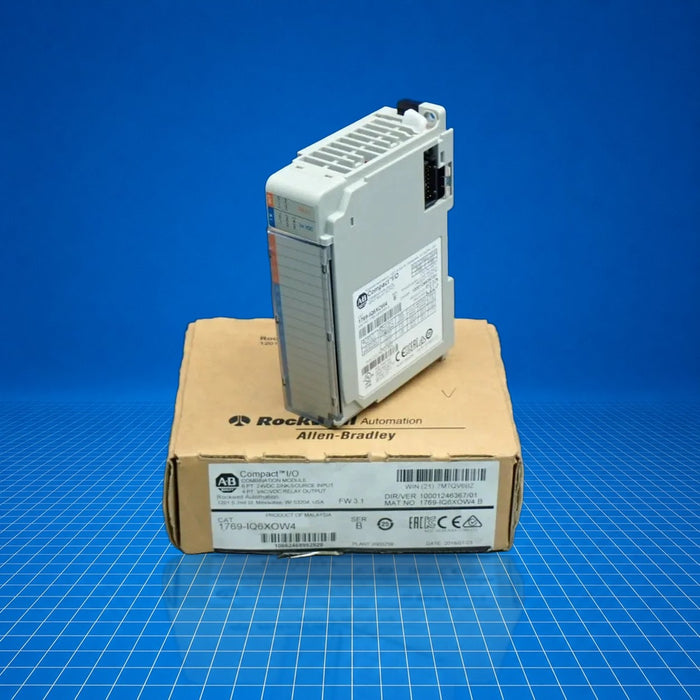

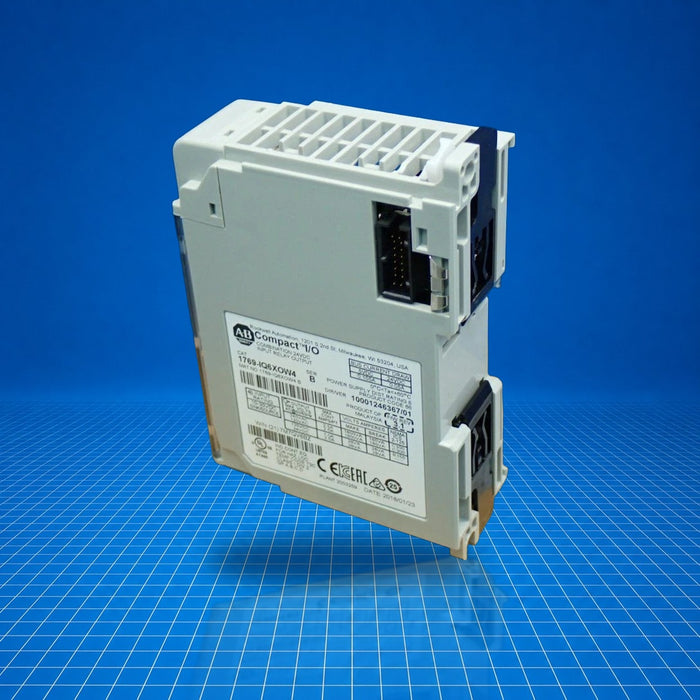

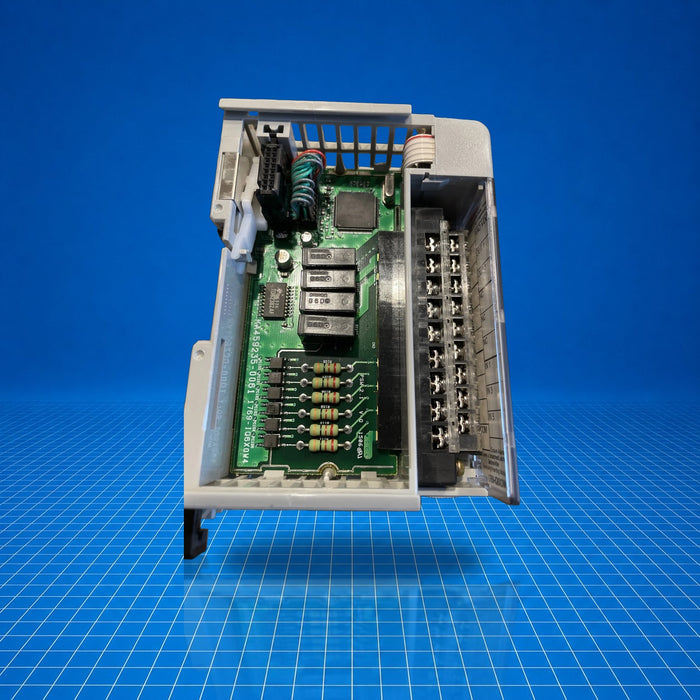

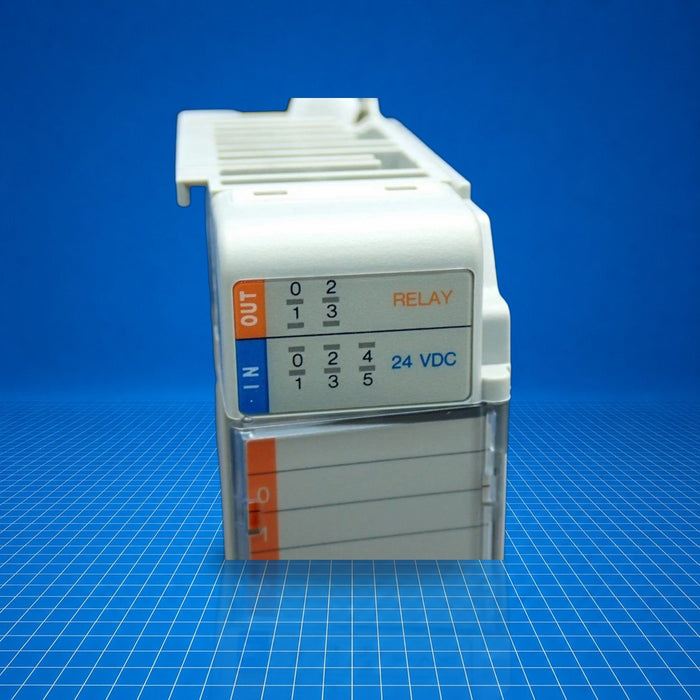

1769-IQ6XOW4 Allen-Bradley
Original price
$400.00
-
Original price
$450.00
Original price
$400.00
$400.00
-
$450.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-IQ6XOW4 is an Allen-Bradley Compact I/O combination module providing six 24 V DC sink/source discrete inputs and four form-A (normally open) AC/DC relay outputs. It installs on a 1769 CompactLogix I/O chassis and interfaces discrete field signals to a CompactLogix or Compact GuardLogix controller. It is typically used in machine control, packaging lines, or OEM applications that require both discrete input sensing and relay output actuation in a single footprint. 1769-IQ6XOW4 is designed for control panels and field cabinets where mixed I/O is needed.
Best Suited For
- CompactLogix Compact I/O applications
- Mixed discrete sensing and relay output requirements
- Panel-mounted or DIN-rail I/O expansions
- OEM and machine-builder compact installations
Inputs
6 × 24 V DC sink/source
Outputs
4 × AC/DC relay (form-A)
Operating voltage (inputs)
10…30 V DC @ 30 °C; 10…26.4 V DC @ 60 °C
Operating range (outputs)
5…265 V AC; 5…125 V DC
Bus current draw
105 mA @ 5 V; 50 mA @ 24 V
Technical Specifications
I/O & Electrical
Number of inputs
6
Input type
24 V DC sink/source
Number of outputs
4
Output type
AC/DC form-A relay contacts
Input operating voltage
10…30 V DC @ 30 °C; 10…26.4 V DC @ 60 °C
Input on/off delay
On: 8 ms; Off: 8 ms
Output voltage range
5…265 V AC; 5…125 V DC
Output on/off delay
On: 10 ms; Off: 10 ms
Output current per point
Max 2.5 A
Output current per module
Max 8 A
Communication & Power
Bus current draw
105 mA @ 5 V; 50 mA @ 24 V
Power dissipation
Max 2.75 W
Isolation voltage
1200 V AC for 1 s or 1697 V DC
Physical & Environmental
Weight
280 g (0.61 lb)
Dimensions (HxWxD)
118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in); height with tabs 138 mm (5.43 in)
Mounting
DIN-rail or panel
Wire size
Solid 22…14 AWG; stranded 22…16 AWG
Wire type
Cu-90 °C (194 °F)
Terminal screw torque
0.68 N·m (6 lb·in)
Retaining screw torque
0.46 N·m (4.1 lb·in)
Power-supply distance rating
8 modules
Enclosure type
None (open-style)
