1769-IR6 Allen-Bradley
Original price
$618.75
-
Original price
$907.50
Original price
$618.75
$618.75
-
$907.50
Current price
$618.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

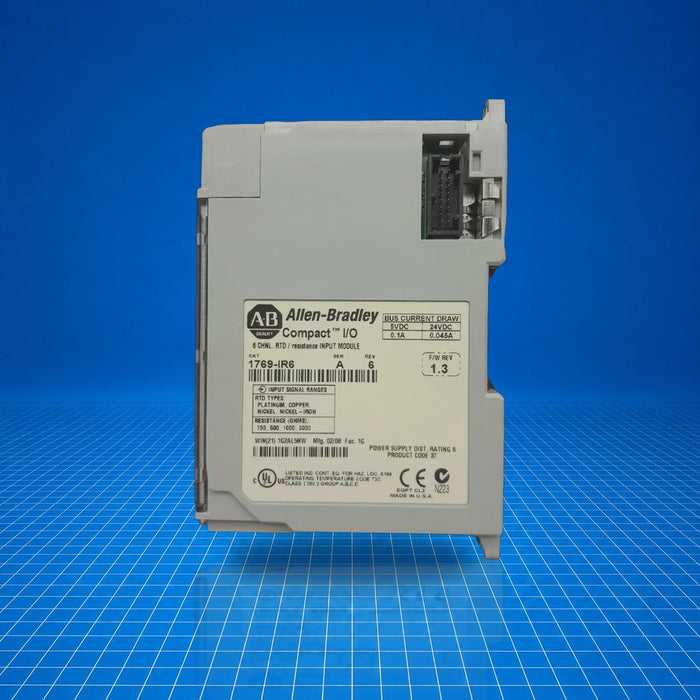

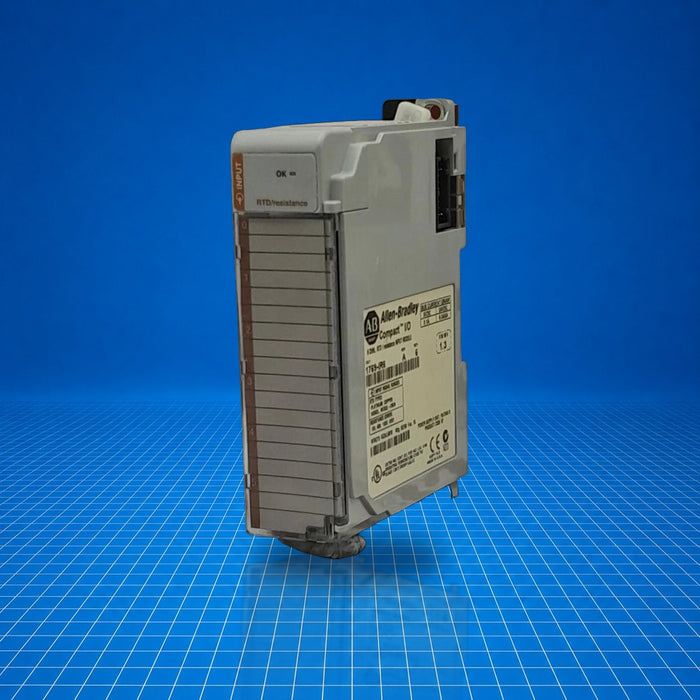

The 1769-IR6 is an Allen-Bradley CompactLogix analog input module providing six channels for RTD or resistance measurements. It integrates into Compact I/O and CompactLogix control systems, converting temperature or resistance signals for automation tasks. Typical applications include process temperature monitoring, distributed machine monitoring, and integration into CompactLogix or MicroLogix 1500 architectures. This module supports multiple RTD types and resistance ranges suitable for industrial sensor interfacing. Part number: 1769-IR6.
Best Suited For
- CompactLogix systems requiring multiple RTD inputs
- Distributed I/O installations with temperature sensors
- Retrofit or expansion of MicroLogix 1500 systems
- Processes needing open-circuit/short-circuit detection
Channels
6 RTD inputs
Input ranges
0…150, 0…500, 0…1000, 0…3000 Ω
Isolation voltage
720 V DC for 1 min, optical and magnetic
Current draw @ 24 V DC
35 mA
Weight
276 g (0.61 lb)
Technical Specifications
I/O & Electrical
Input ranges
0…150 Ω; 0…500 Ω; 0…1000 Ω; 0…3000 Ω
Supported sensor types
Pt 385, Pt 3916, Ni 672, Ni 618, Ni-Fe 518 (and direct resistances)
Common-mode voltage range
±10 V DC
Input impedance
> 10 MΩ
Cable impedance, max
25 Ω
Communication & Power
Power supply current @ 5.1 V
100 mA
Power supply current @ 24 V DC
35 mA
Heat dissipation, max
1.5 W
Converter type
Sigma-Delta
Physical & Environmental
Dimensions (HxWxD)
118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in)
Weight
276 g (0.61 lb)
Mounting
DIN-rail or panel mount
Wire size
22…14 AWG solid, 22…16 AWG stranded
Wire type
Cu-90 °C (194 °F)
