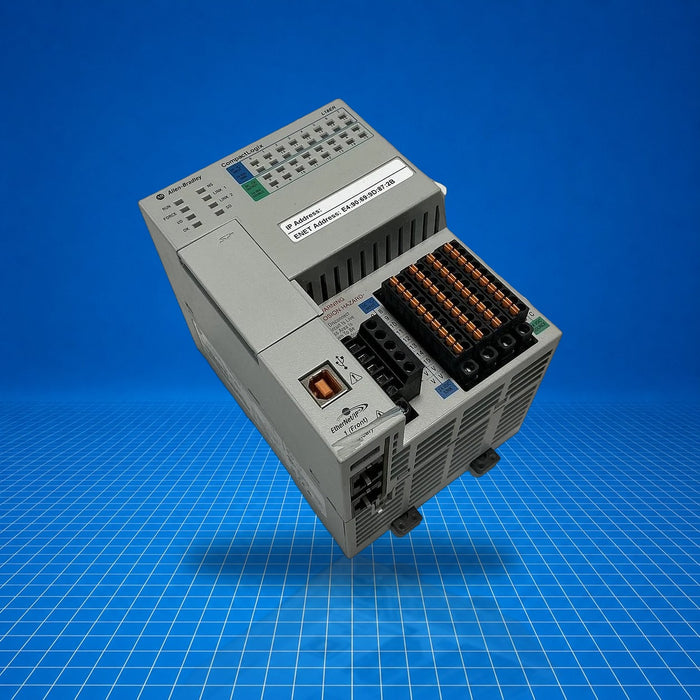

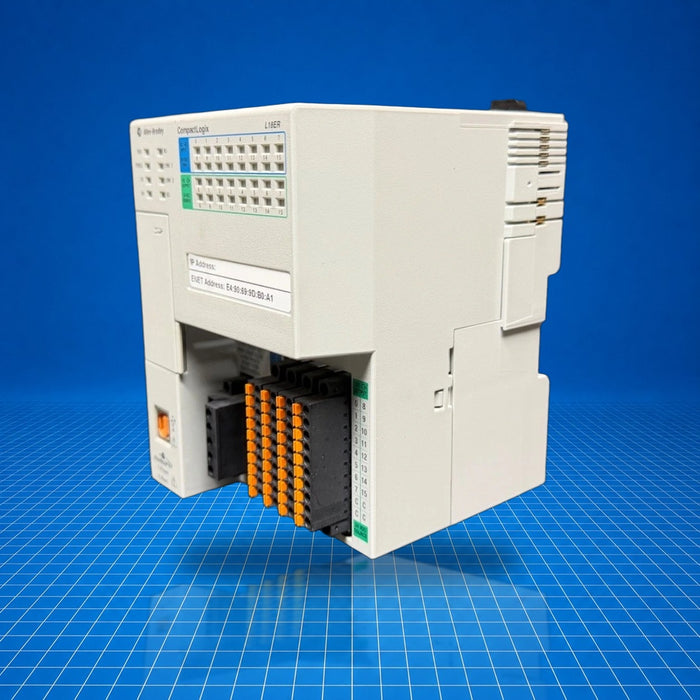

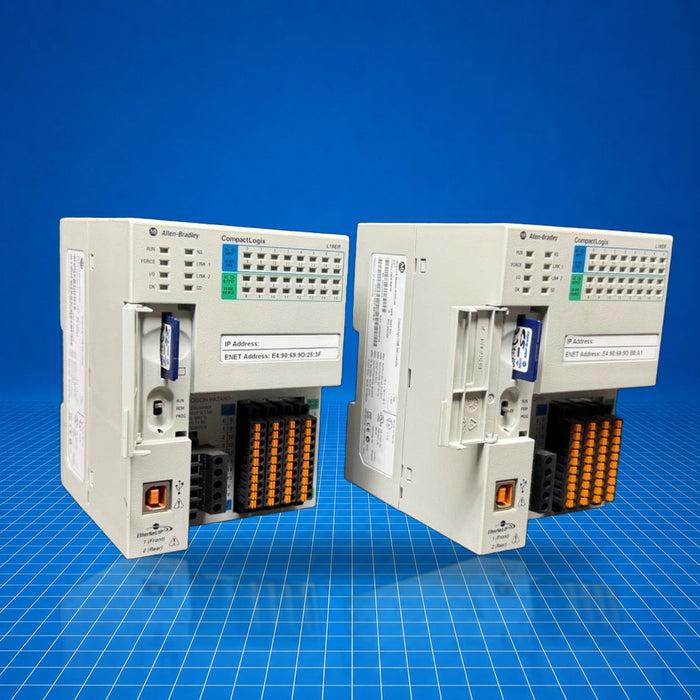

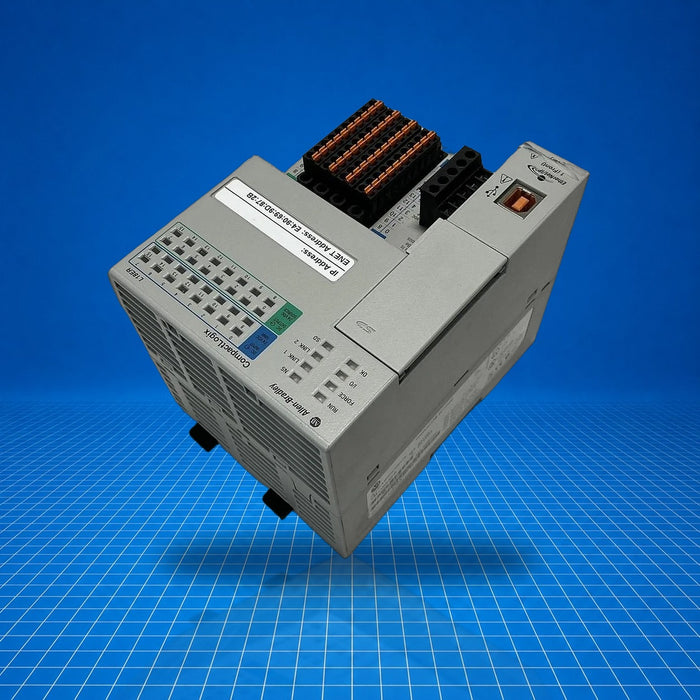

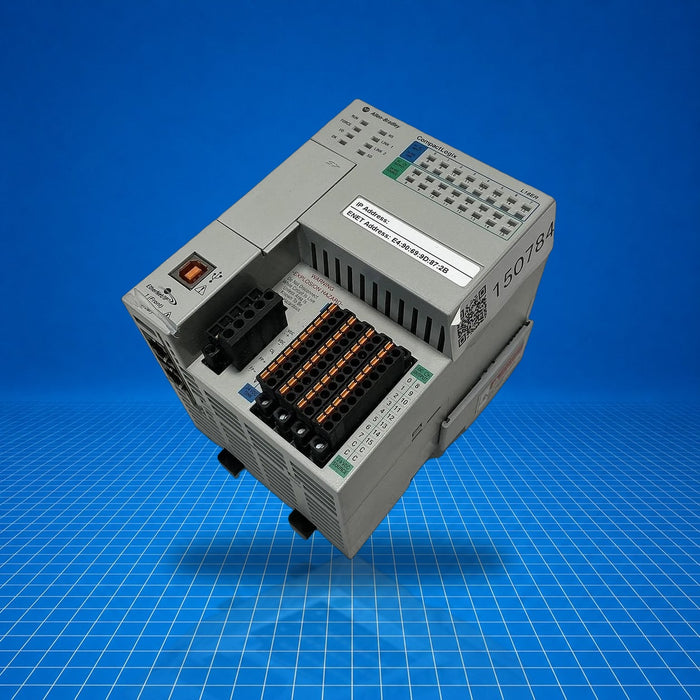

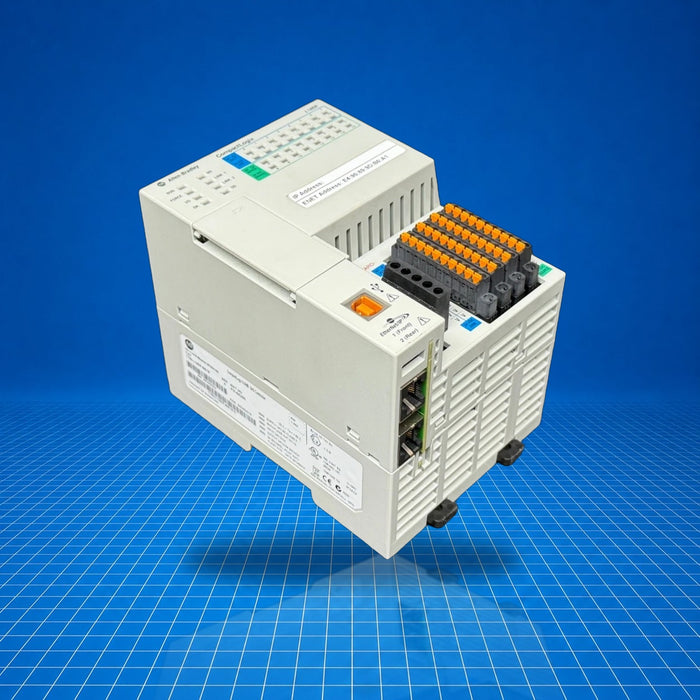

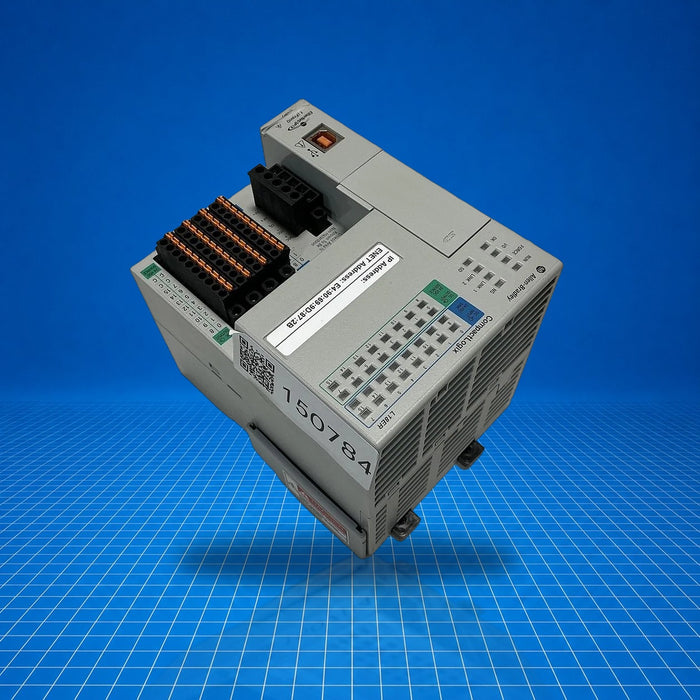

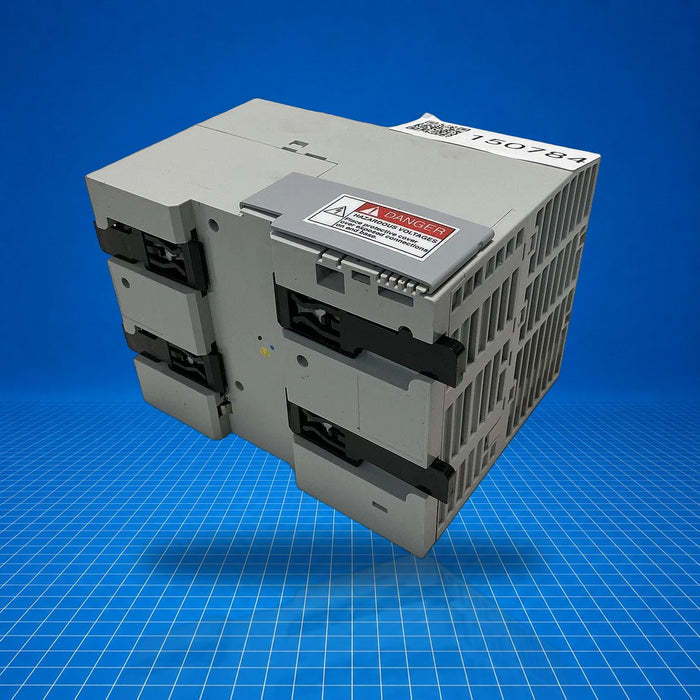

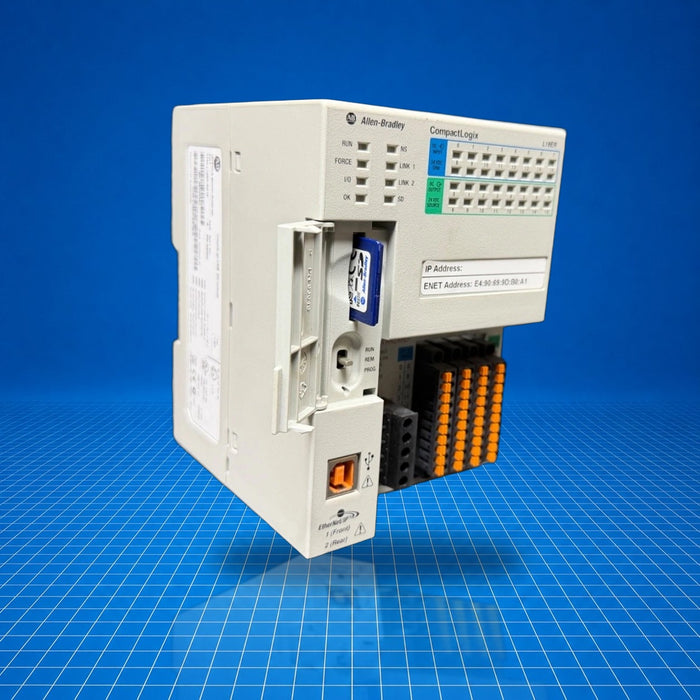

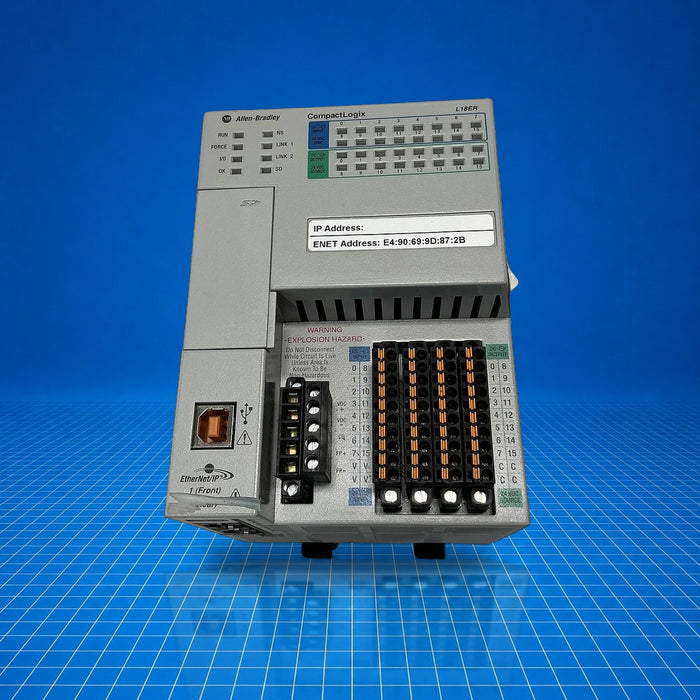

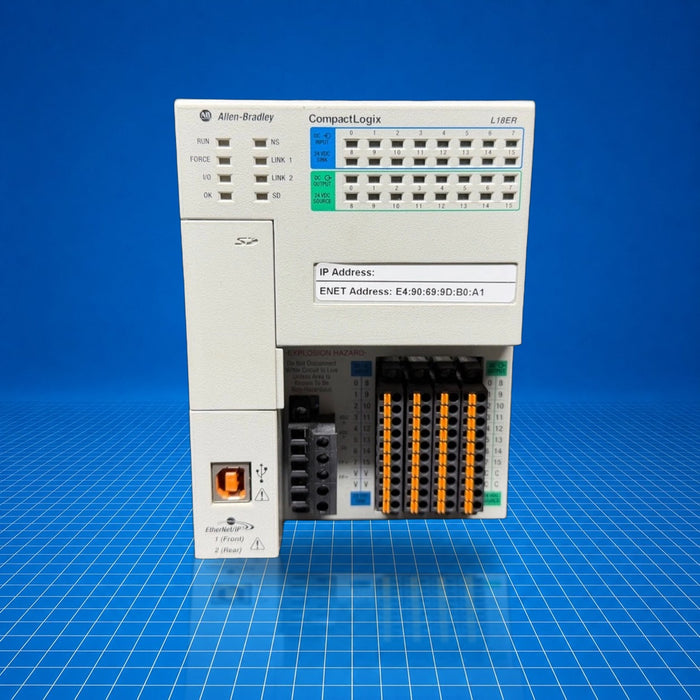

1769-L18ER-BB1B Allen-Bradley
Original price
$1,375.00
-
Original price
$2,405.25
Original price
$1,375.00
$1,375.00
-
$2,405.25
Current price
$1,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1769-L18ER-BB1B is a CompactLogix 5370 L1 programmable controller. It operates at 24 V DC, integrates 16 sinking digital inputs and 16 sourcing digital outputs, and supports up to 8 POINT I/O modules via the POINT-Bus backplane. The controller includes dual Ethernet/IP ports with Device Level Ring (DLR) capability, supports up to 8 Ethernet/IP nodes, includes 512 KB user memory, and ships with a 1 GB SD card for program/data storage. In control systems it provides mid-range logic control and I/O expansion suitable for small to medium industrial automation applications.
Best Suited For
- Small to mid-size discrete control systems
- Applications requiring integrated digital I/O and expansion
- EtherNet/IP network architectures with redundancy (DLR)
- Embedded control tasks with local energy storage
User memory
512 KB
Embedded digital I/O
16 DI (sink), 16 DO (source)
Expansion modules
Up to 8 POINT I/O modules
EtherNet/IP ports
2 (DLR)
EtherNet/IP nodes supported
Up to 8
Technical Specifications
I/O & Electrical
Embedded digital inputs
16 sink, 24 V DC
Embedded digital outputs
16 source, 24 V DC
Communication & Power
EtherNet/IP ports
2, DLR
Expansion capability
Up to 8 POINT I/O modules
User memory
512 KB
SD card included
1 GB
Physical & Environmental
Current draw @ 5 V DC (controller power)
1 A
Current draw @ 24 V DC (field power max)
3 A
Power dissipation
11.5 W
Wire screw torque
0.5…0.6 N·m
Certifications
ATEXCEAmerican Bureau of ShippingChina CCCKorean KCAustralian RCMUL ListedUL Listed HazardousODVA
