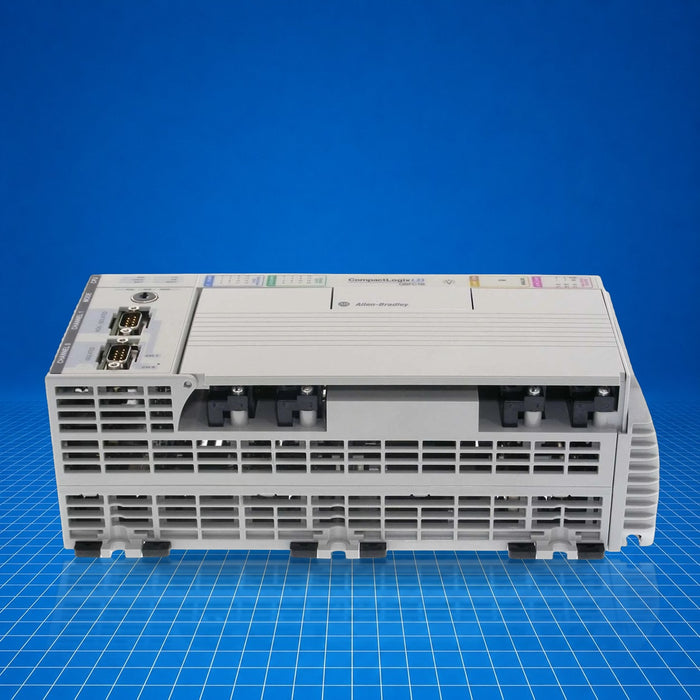

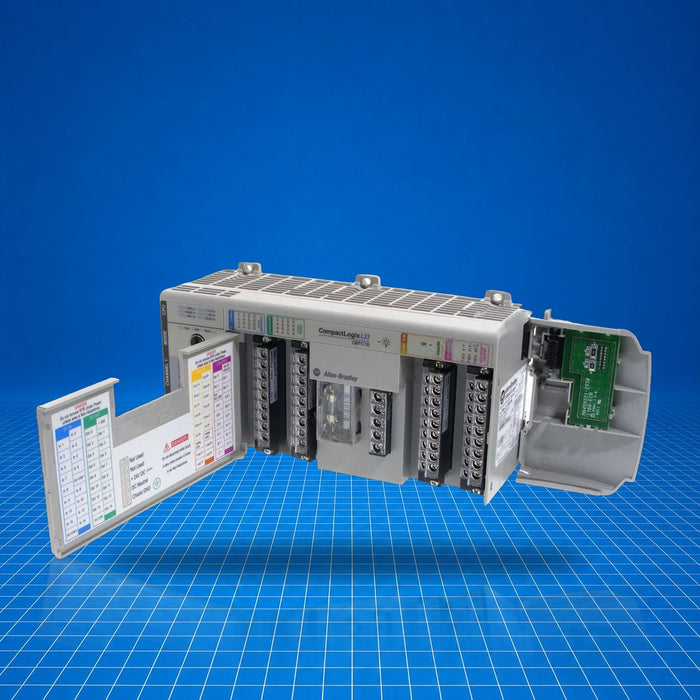

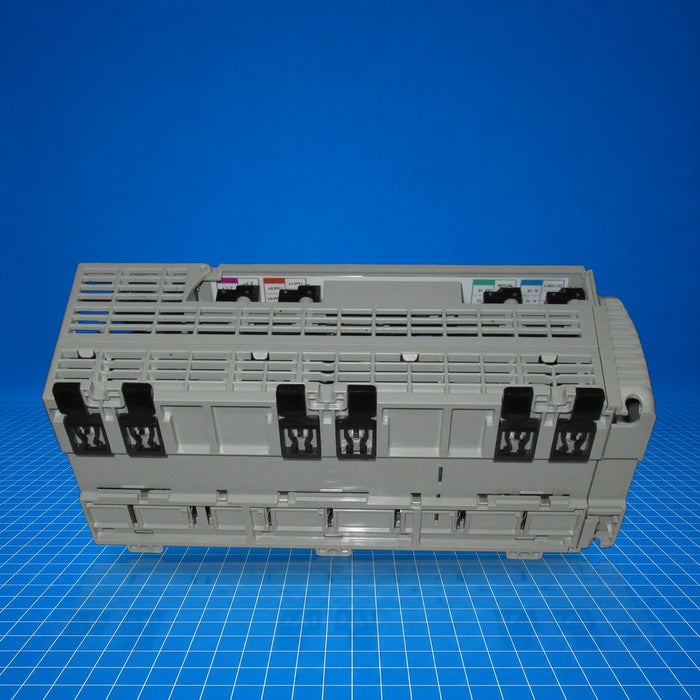

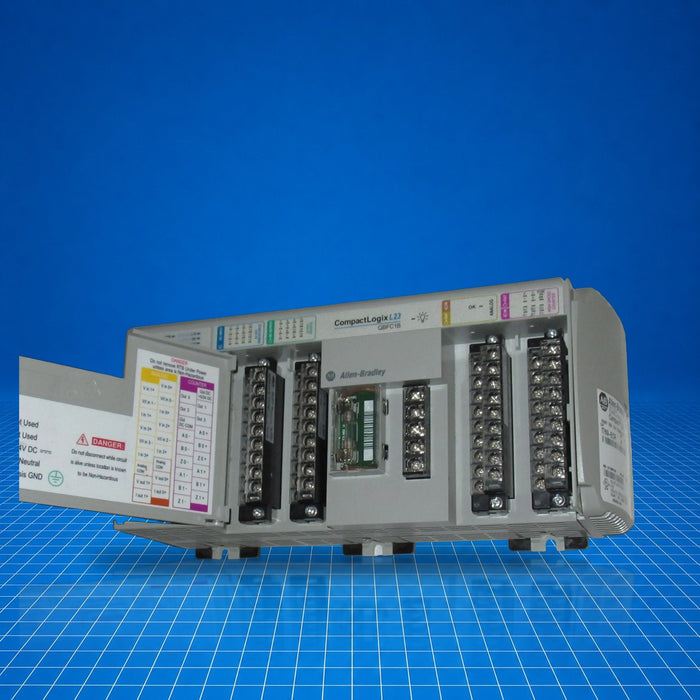

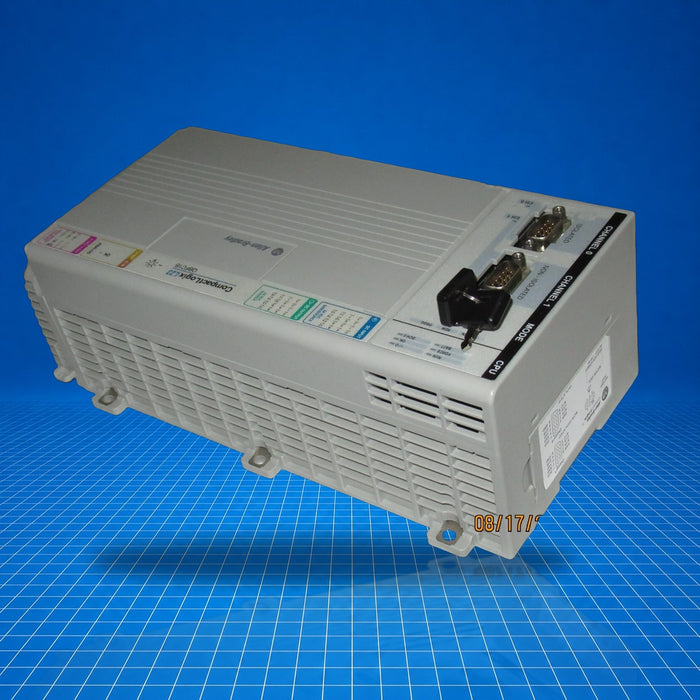

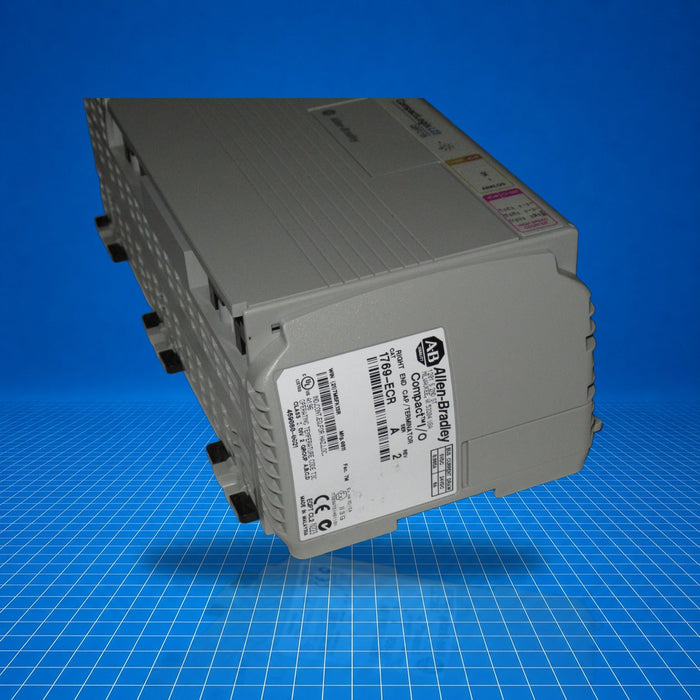

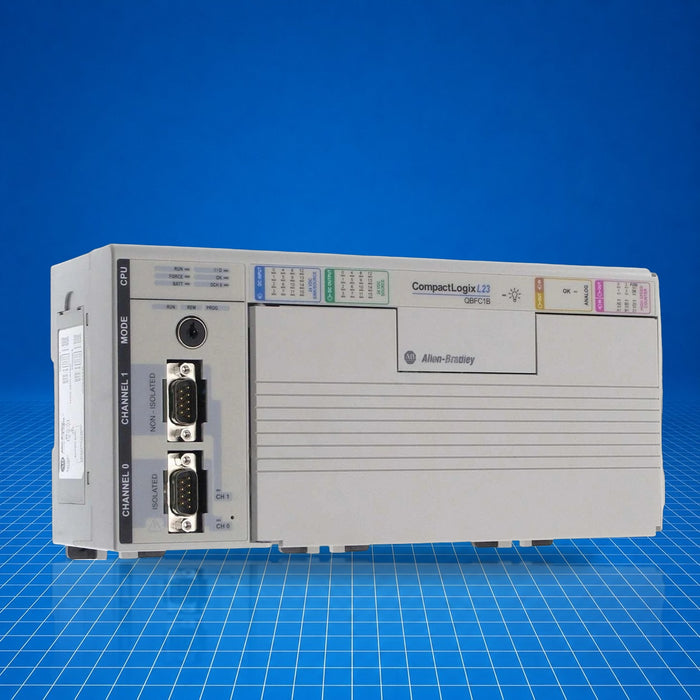

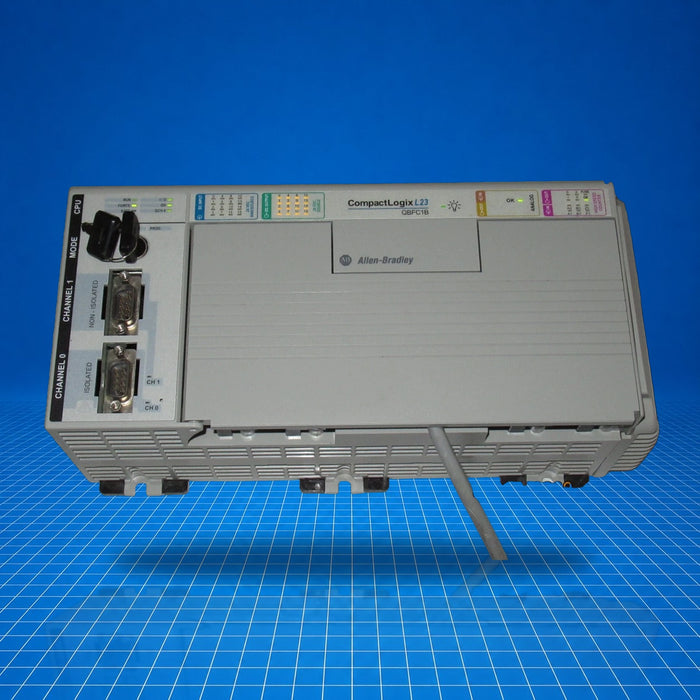

1769-L23-QBFC1B Allen-Bradley
Original price
$1,372.25
-
Original price
$2,406.35
Original price
$1,372.25
$1,372.25
-
$2,406.35
Current price
$1,372.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

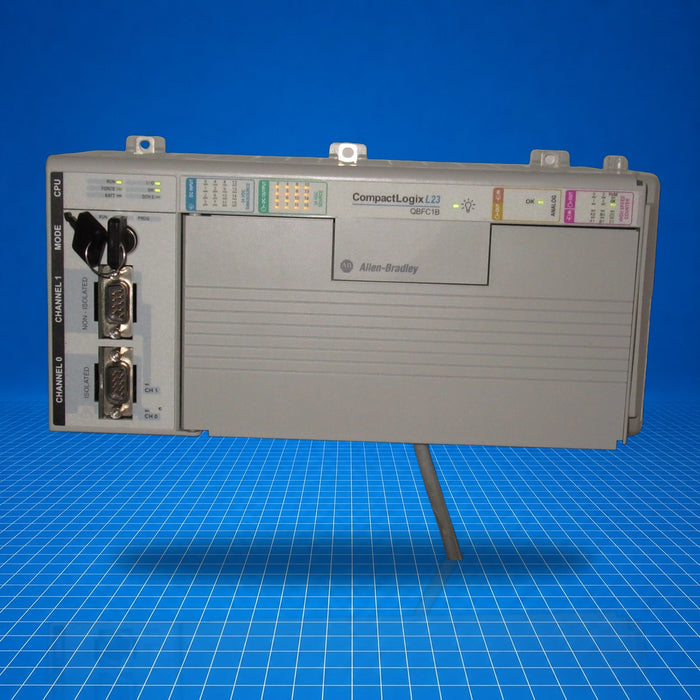

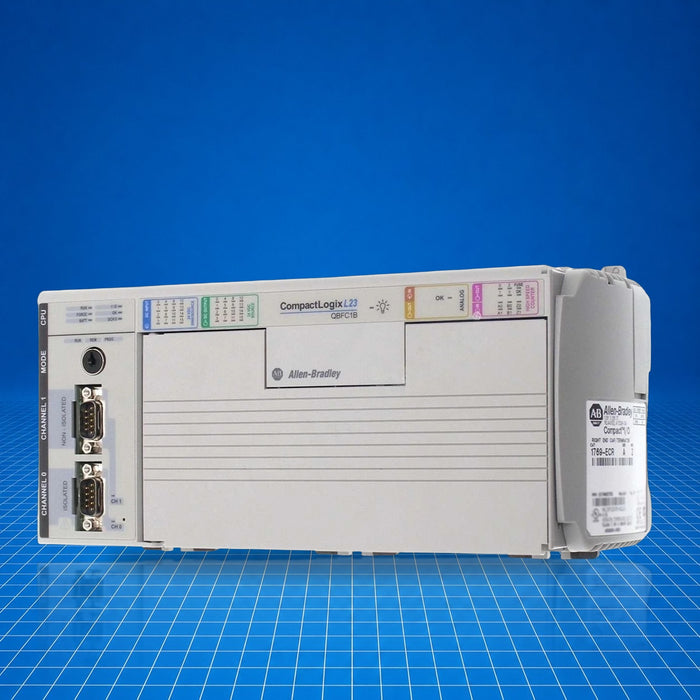

The 1769-L23-QBFC1B is an Allen-Bradley CompactLogix packaged dual-serial controller module featuring embedded digital, analog, and high-speed counter I/O. It includes 512 KB of memory and supports 16 discrete inputs, 16 discrete outputs, 4 analog inputs, 2 analog outputs, and 4 high-speed counters. As a CompactLogix platform controller, it typically serves as the core CPU for small-machine and modular control systems where integrated serial communication and mixed I/O types are required.
Best Suited For
- Small-machine control with mixed I/O
- Applications requiring serial DF1 or DH-485 communication
- Scenarios needing embedded analog signals plus discrete I/O
- Systems with limited module expansion (up to two CompactLogix I/O modules)
Memory
512 KB
Embedded I/O
16 DI, 16 DO, 4 AI, 2 AO, 4 HSC
Communication ports
2 × RS-232 (CH0 isolated, CH1 non-isolated)
Power dissipation
10.73 W
Operating temperature
0…60 °C
Technical Specifications
I/O & Electrical
Embedded digital inputs
16 DI
Embedded digital outputs
16 DO
Embedded analog inputs
4 AI
Embedded analog outputs
2 AO
High-speed counters
4 HSC
Communication & Power
Serial communication ports
CH0 RS-232 DF1, DH-485, ASCII (fully isolated); CH1 RS-232 DF1, DH-485 (non-isolated), 38.4 kbps
Current draw @ 5 V DC
800 mA
Current draw @ 24 V DC
600 mA
Power dissipation
10.73 W
Physical & Environmental
Weight, approx
1.22 kg (2.7 lb)
Operating temperature
0…60 °C (32…140 °F)
Storage temperature
-40…85 °C (-40…185 °F)
Relative humidity
5…95 % non-condensing
Vibration (operating)
5 g @ 10…500 Hz
Shock (operating)
20 g (DIN rail), 30 g (panel)
Shock (non-operating)
30 g (DIN rail), 40 g (panel)
