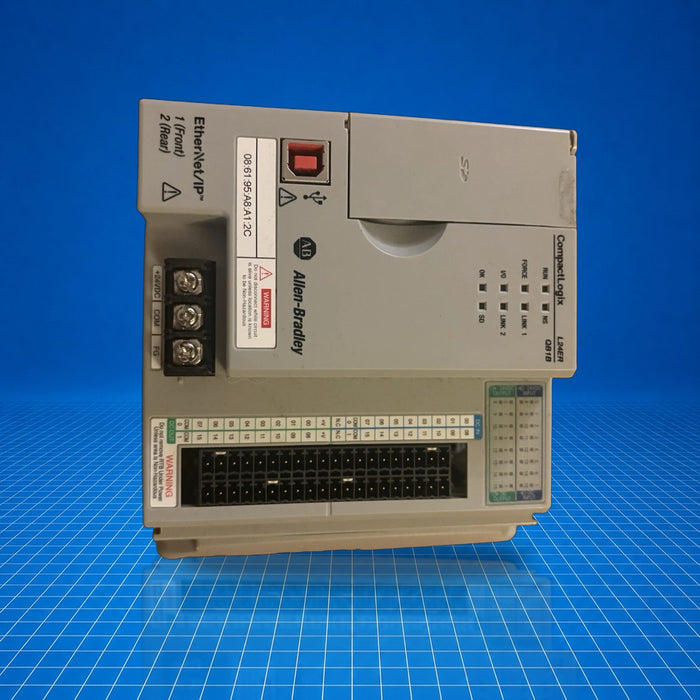

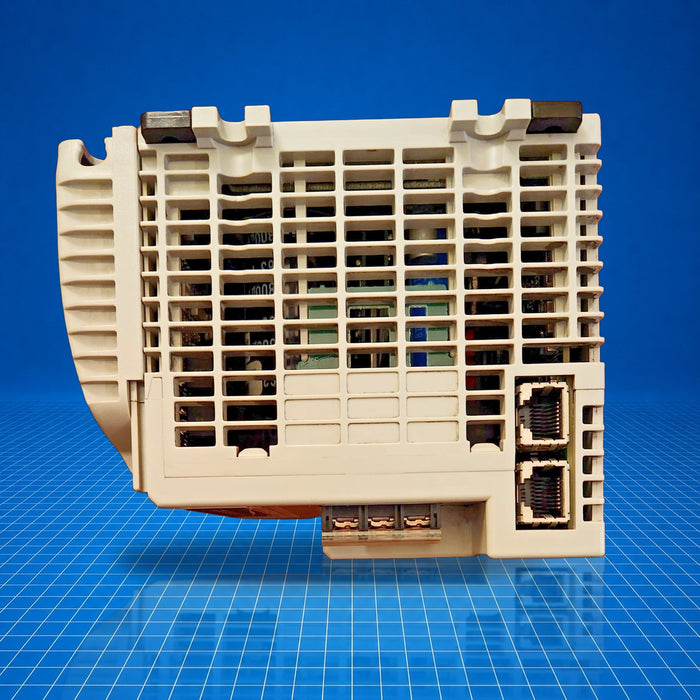

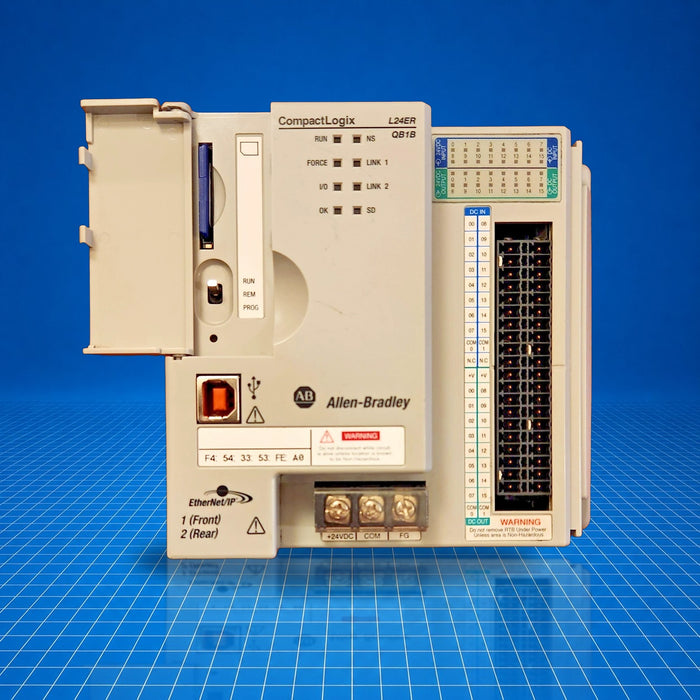

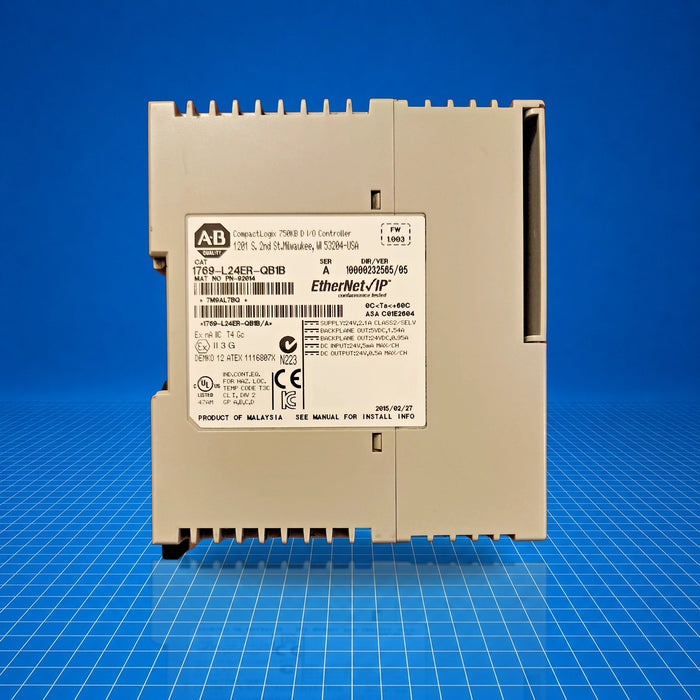

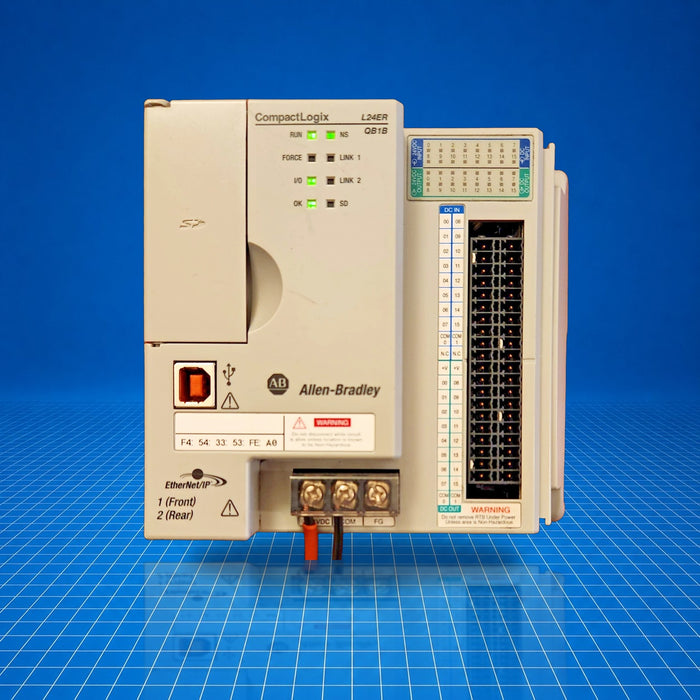

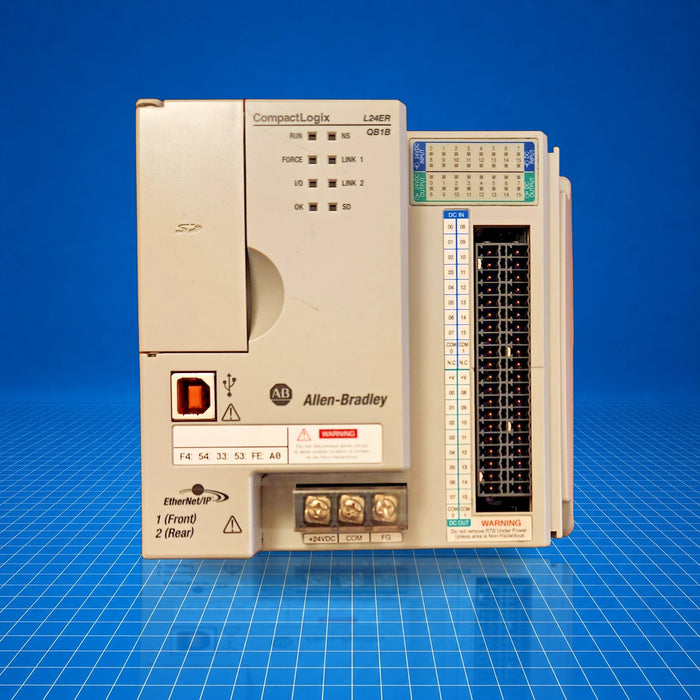

1769-L24ER-QB1B Allen-Bradley

Name: 1769-L24ER-QB1B Allen-Bradley
Brand: Allen Bradley
SKU: 1769-L24ER-QB1B
Price: 1312.5 USD
Availability: InStock

$1,312.50 - $3,415.43

$1,312.50

$1,312.50 - $3,415.43

$1,312.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-L24ER-QB1B is a CompactLogix 5370 L2 programmable automation controller (PAC) from Allen-Bradley. It integrates a 24 V DC isolated embedded power supply, 16 digital inputs, 16 digital outputs, dual Ethernet ports with Device Level Ring support, and USB connectivity. With 750 KB user memory and support for up to four local 1769 Compact I/O expansion modules, it serves mid-level control applications such as machine control, modular automation, and distributed system integration efficiently. 1769-L24ER-QB1B.

Best Suited For

Mid-level machine control and logic processing
Applications requiring dual EtherNet/IP with Device Level Ring redundancy
Local I/O expansion up to four modules
Systems needing embedded digital I/O with compact footprint

User memory

750 KB

Embedded I/O

16 DC inputs, 16 DC outputs

Ethernet ports

2 (EtherNet/IP, Device Level Ring)

Expansion modules

Supports 4 local 1769 I/O modules

Technical Specifications

I/O & Electrical

DC input voltage range

10…28.8 V DC @ 40 °C; 10…26.4 V DC @ 60 °C

DC outputs (FET sourcing)

0.83 A @ 24 V DC @ 40 °C; 0.5 A @ 24 V DC @ 60 °C

Communication & Power

Embedded power supply

24 V DC, 2.1 A (Class 2/SELV)

Backplane out

1.54 A @ 5 V DC

Power dissipation

- (not specified in official)

Communication ports

2 × Ethernet (EtherNet/IP, Device Level Ring), 1 × USB

Physical & Environmental

Operating temperature

0…60 °C

Mounting

DIN-rail or panel mount

Dimensions (WxHxD)

approx. 100 × 115 × 118 mm (3.94 × 4.53 × 4.65 in.)

Weight

approx. 3 lb (1.36 kg)

Certifications

UL ListedCEODVAChina CCCAustralian RCMATEXIECExKorean KCUKCAUK EXMorocco DOC

Certifications include UL Listed, CE, ODVA, China CCC, Australian RCM, UL Listed Hazardous, ATEX, IECEx, Korean KC, UKCA, UK EX Certificate, Morocco DOC (as of June 26, 2026).
