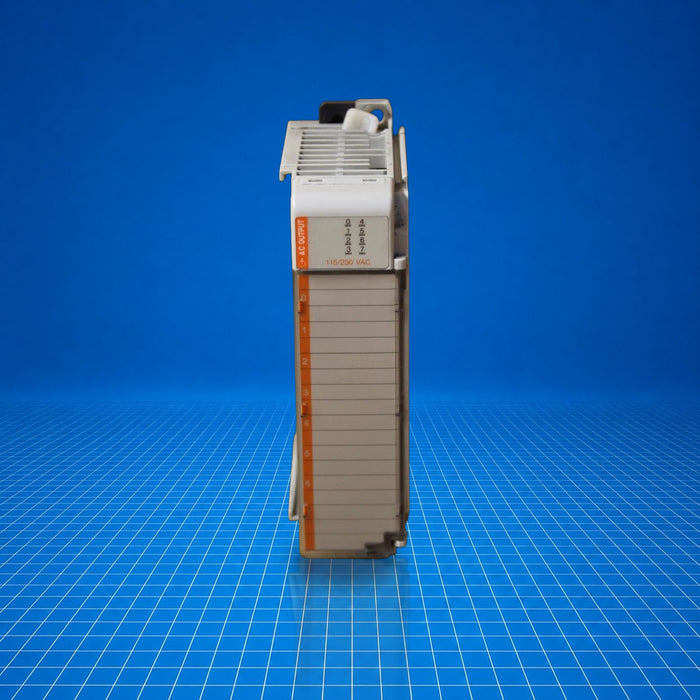

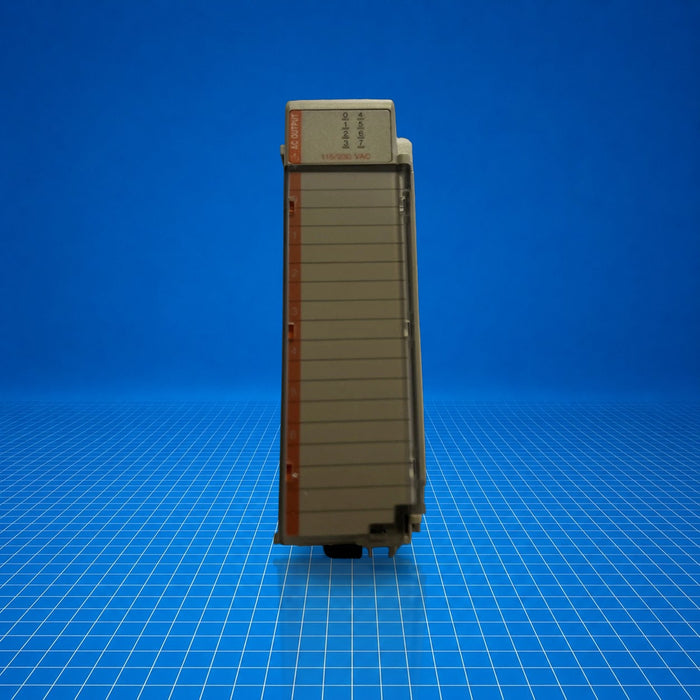

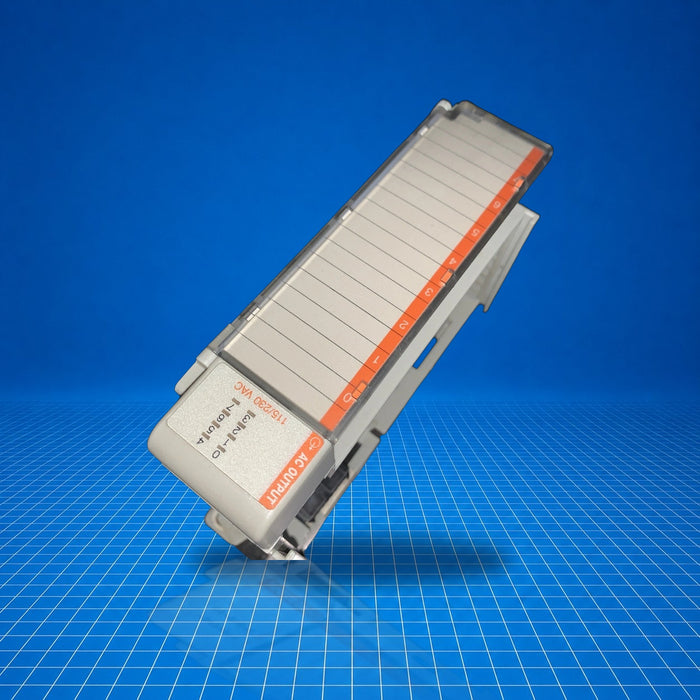

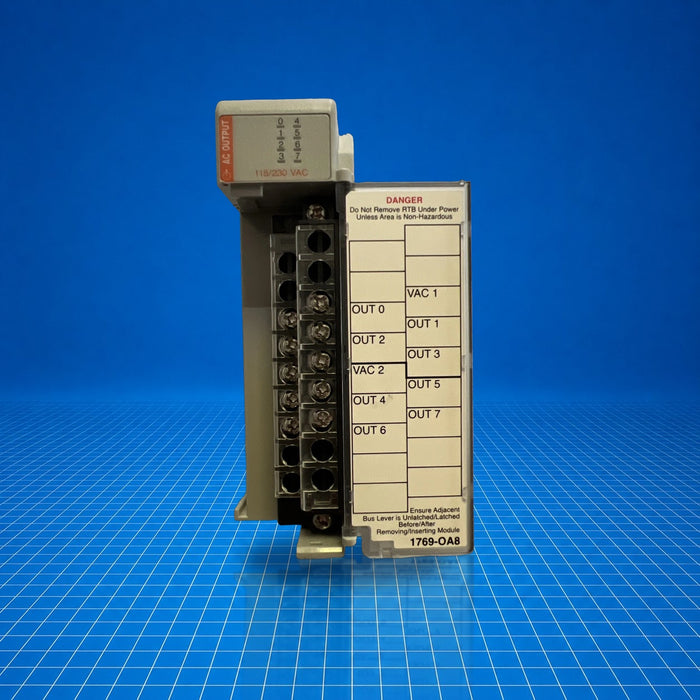

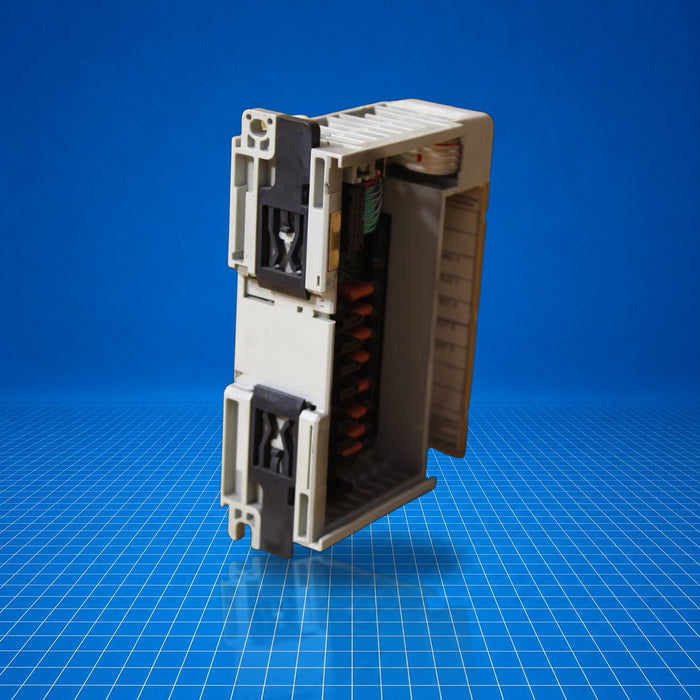

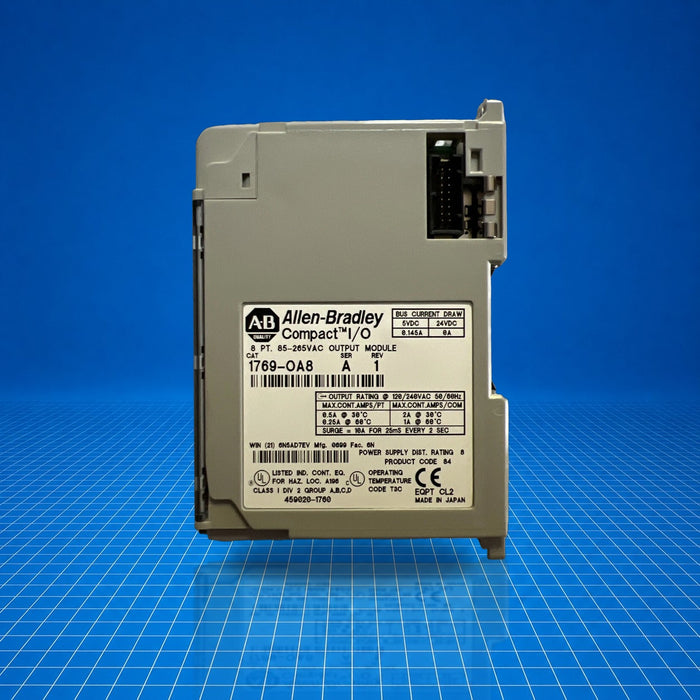

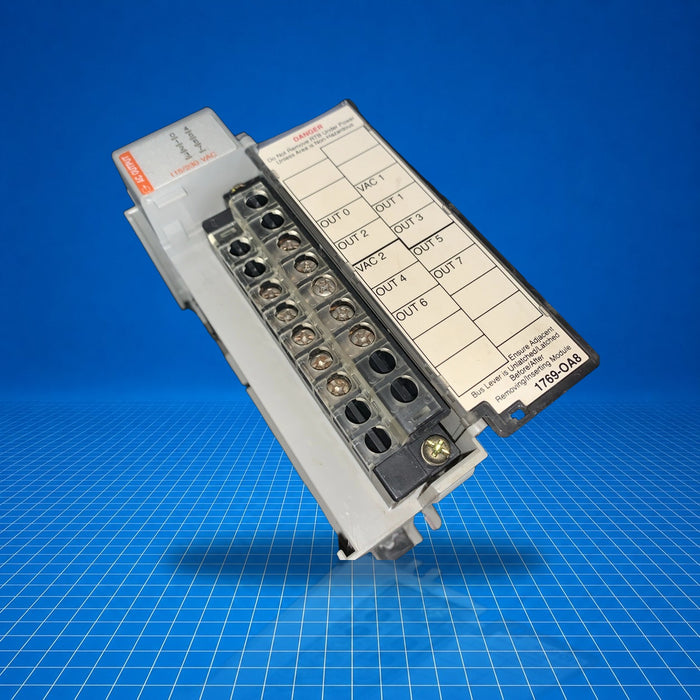

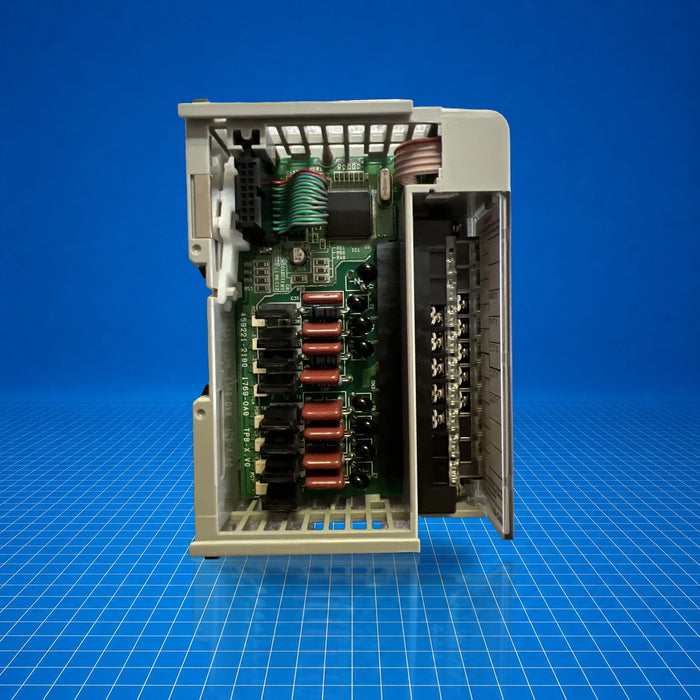

1769-OA8 Allen-Bradley
Original price
$400.00
-
Original price
$400.00
Original price
$400.00
$400.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1769-OA8 is a CompactLogix digital output module providing eight solid-state outputs suitable for controlling 100-240 VAC loads. It integrates into a CompactLogix I/O chassis and operates under common industrial control systems using powered backplanes (e.g. 1769-PA2/PA4 or PB2/PB4). Typical applications include controlling heaters, lights, motors, and other AC loads in manufacturing, material handling, or process automation.
Best Suited For
- CompactLogix systems requiring 100-240 VAC outputs
- Panel or DIN-rail mounted AC load switching
- Modular expansion of Compact I/O in control panels
- Industrial applications managing resistive or inductive AC loads
Channels
8 solid-state outputs
Output Voltage Range
85…265 V AC
Max Current per Point
0.25 A @ 60 °C; 0.5 A @ 30 °C
Isolation Voltage
1836 V AC @ 1 s or 2596 V DC
Technical Specifications
I/O & Electrical
Number of channels
8
Output voltage range
85…265 V AC, 47…63 Hz
Current per point, max
0.25 A @ 60 °C; 0.5 A @ 30 °C
Current per module, max
2 A @ 60 °C; 4 A @ 30 °C
Off-state leakage current, max
2.0 mA @ 132 V AC; 2.5 mA @ 265 V AC
On-state voltage drop, max
1.5 V peak @ 2 A
Surge current
10 A for 25 ms, repeatable every 2 s
Isolation voltage
1836 V AC @ 1 s or 2596 V DC
Communication & Power
Control bus supply draw (@5.1 V)
145 mA
Heat dissipation, max
2.12 W
Physical & Environmental
Dimensions (HxWxD)
118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in); height with tabs 138 mm (5.43 in)
Mounting
DIN-rail or panel mount
Terminal screw torque
0.68 N•m (6 lb-in)
Retaining screw torque
0.46 N•m (4.1 lb-in)
Wire size solid
22…14 AWG
Wire size stranded
22…16 AWG
Wire type
Cu-90 °C (194 °F)
Weight, approx
280 g (0.61 lb)
