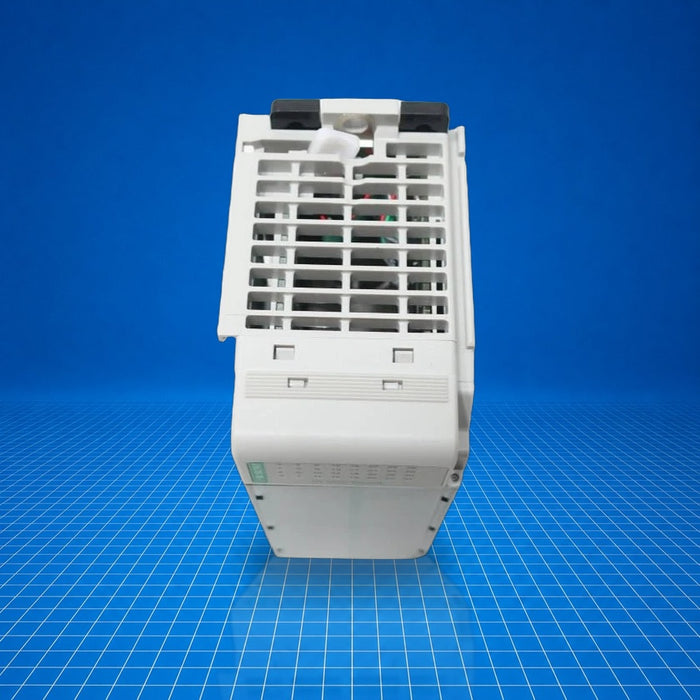

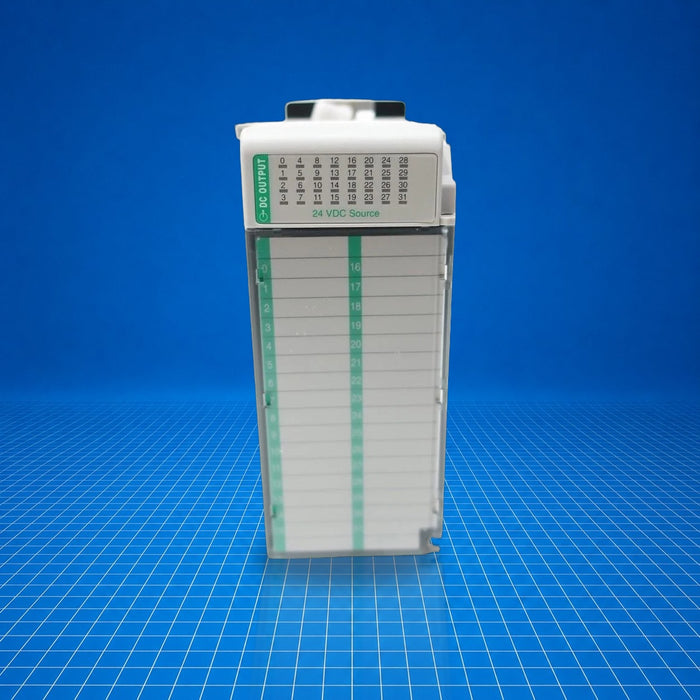

1769-OB32K Allen-Bradley
Original price
$1,182.47
-
Original price
$2,204.02
Original price
$1,182.47
$1,182.47
-
$2,204.02
Current price
$1,182.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-OB32K is an Allen-Bradley CompactLogix digital output module featuring 32 sourcing outputs at 24 V DC with conformal coating. It mounts to a CompactLogix chassis and interfaces the controller's logic to field loads such as relays, indicators, and solenoids. Typical uses include factory automation, machine control, and packaging systems in environments requiring protection against humidity or contamination. The 1769-OB32K module ensures reliable output switching while maintaining electrical isolation and conforms to CompactLogix I/O architecture.
Best Suited For
- CompactLogix chassis output expansion
- Applications in corrosive or humid environments (conformally coated)
- Discrete DC load switching (e.g. relays, valves, indicators)
- Systems requiring isolation between output groups
Output points
32
Voltage range
20.4…26.4 V DC
Isolation voltage
1200 V AC @ 2 s or 1697 V DC
Max surge current
2.0 A for 10 ms every 2 s
Technical Specifications
I/O & Electrical
Output points
32 (2 groups of 16)
Output type
24 V DC source
Operating voltage range
20.4…26.4 V DC
On-state voltage drop, max
1.0 V DC @ 1 A
Off-state leakage current, max
1.0 mA @ 26.4 V DC
Signal delay, On
0.1 ms
Signal delay, Off
1.0 ms
On-state current, min
1.0 mA
Current per point, max
0.5 A @ 60 °C; 1.0 A @ 30 °C
Current per module, max
4.0 A @ 60 °C; 8.0 A @ 30 °C
Surge current
2.0 A for 10 ms (every 2 s)
Bus current draw
300 mA @ 5 V DC
Heat dissipation, max
4.5 W
Communication & Power
Isolation voltage
1200 V AC @ 2 s or 1697 V DC
Physical & Environmental
Dimensions (HxWxD)
118 × 52.5 × 87 mm (4.65 × 2.07 × 3.43 in)
Weight
450 g (0.992 lb)
Mounting
DIN rail or panel mount
Wire size, solid
22…14 AWG
Wire size, stranded
22…16 AWG
Terminal screw torque
0.68 N·m (6 lb·in)
Retaining screw torque
0.46 N·m (4.1 lb·in)
