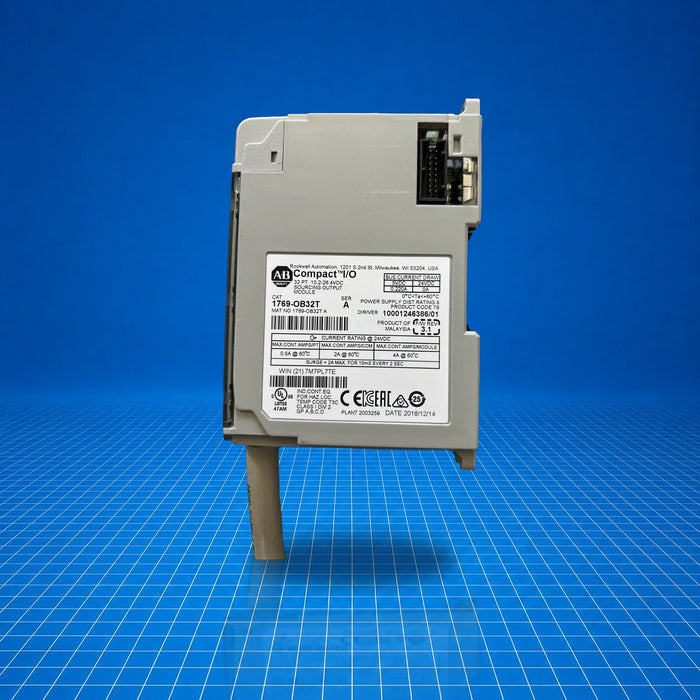

1769-OB32T Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1769-OB32T Allen-Bradley

$351.00 - $610.23
$351.00
$351.00 - $610.23
$351.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$351.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$610.23
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

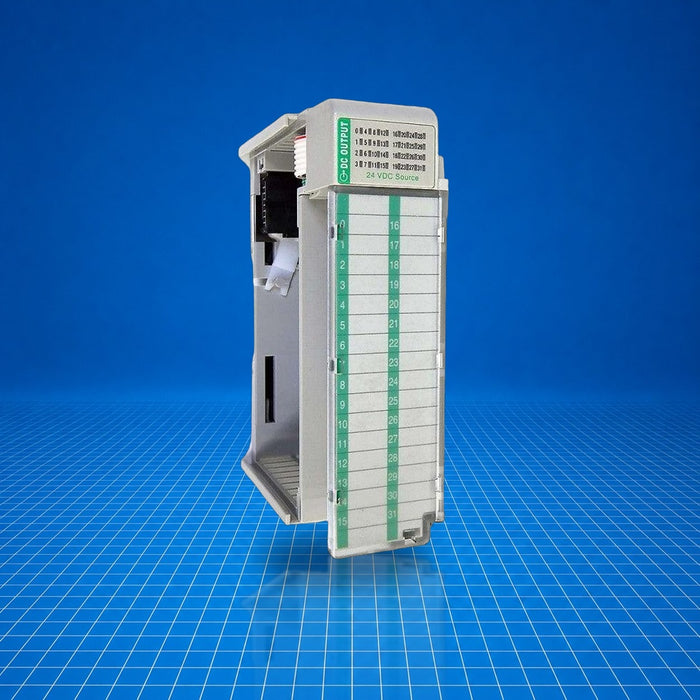

The 1769-OB32T is an Allen-Bradley CompactLogix I/O module providing 32 sourcing discrete outputs at 24 V DC. Designed to mount on a DIN-rail or panel within CompactLogix or MicroLogix systems, the module isolates two groups of outputs and delivers controlled switching capability. It supports typical applications such as control of 24 V loads, solenoids, indicators, and automation actuators in machine control panels. 1769-OB32T integrates into Compact I/O racks and CompactLogix architectures.

Best Suited For

  • Discrete 24 V DC load switching
  • CompactLogix and MicroLogix 1500 expansion
  • Panel-mounted machine control I/O
  • Applications requiring sourcing transistor outputs
Channels
32
Output voltage range
10.2…26.4 V DC
Max current/module
4.0 A
Isolation
1200 V AC @ 2 s / 1697 V DC

Technical Specifications

I/O & Electrical

Number of outputs
32
Operating voltage range
10.2…26.4 V DC
On-state voltage drop (max)
0.3 V DC @ 0.5 A
Off-state leakage current (max)
0.1 mA @ 26.4 V DC
On-state current (min)
1.0 mA
Continuous current per point (max)
0.5 A
Continuous current per module (max)
4.0 A
Continuous current per common (max)
2.0 A
Surge current (max)
2.0 A for 10 ms (repeat every 2 s)
Output delays (resistive load)
On: 0.5 ms; Off: 4.0 ms
Backplane current draw
220 mA @ 5 V DC
Heat dissipation (max)
4.76 W

Communication & Power

Power supply distance rating
8 modules

Physical & Environmental

Dimensions (HxWxD)
118 x 35 x 87 mm (height with mounting tabs: 138 mm)
Weight (approx)
230 g (0.51 lb)
Mounting
DIN-rail or panel mount
Enclosure type
None (open style)

Certifications

Registro Italiano NavaleAmerican Bureau of ShippingUKCAMOROCCO DOC

IEC Class 2 reinforced insulation between outputs/groups and bus; two isolated groups of outputs (0-15 on DC COM 1, 16-31 on DC COM 2).
