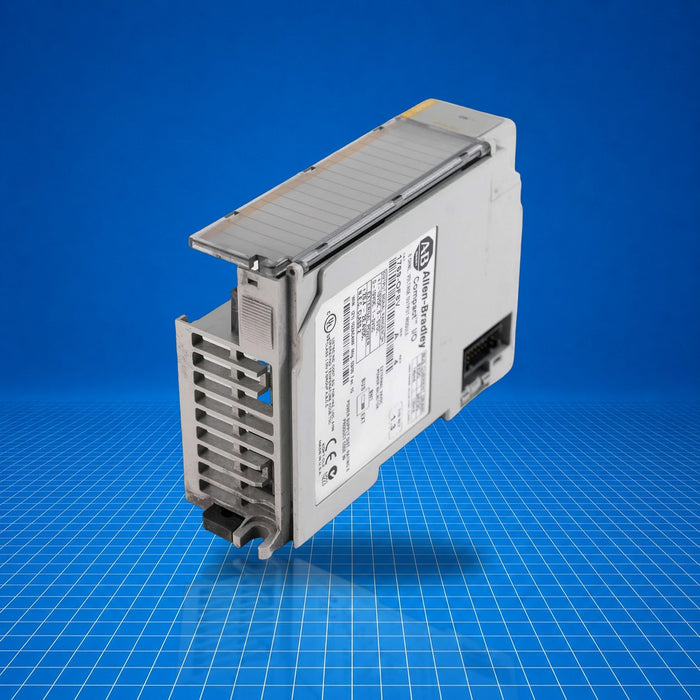

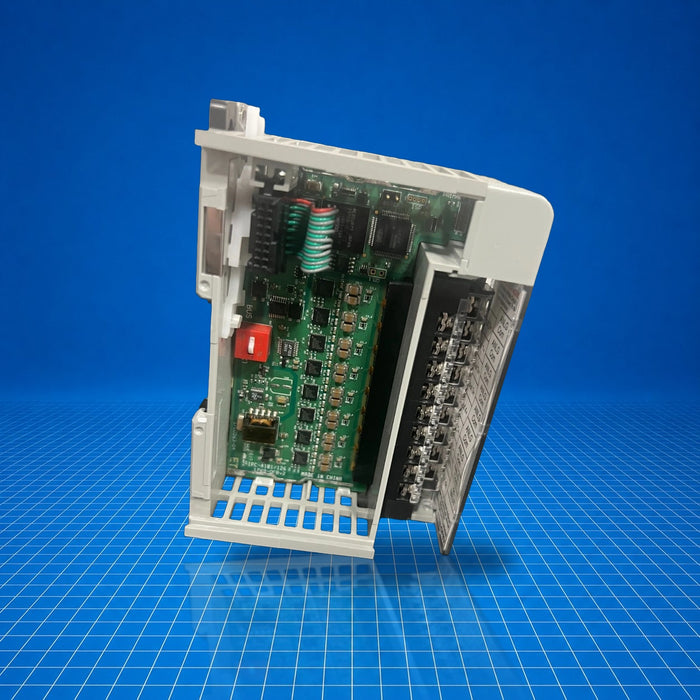

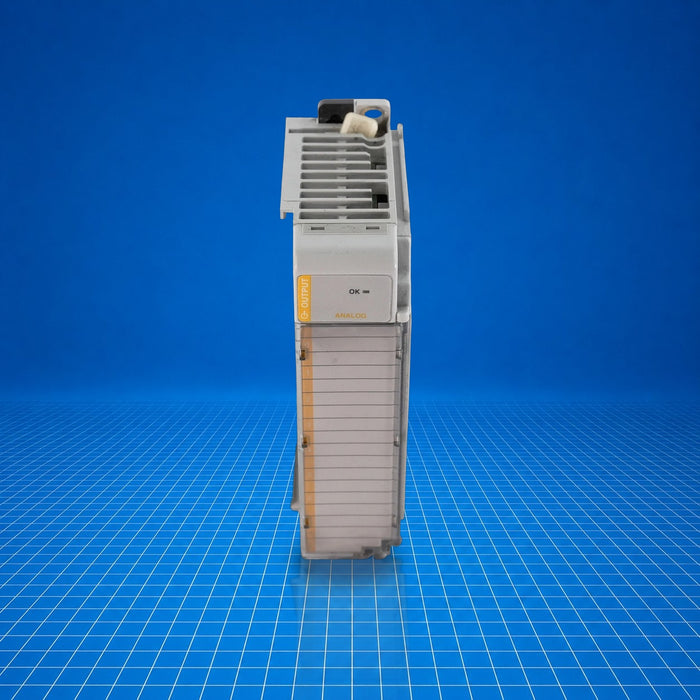

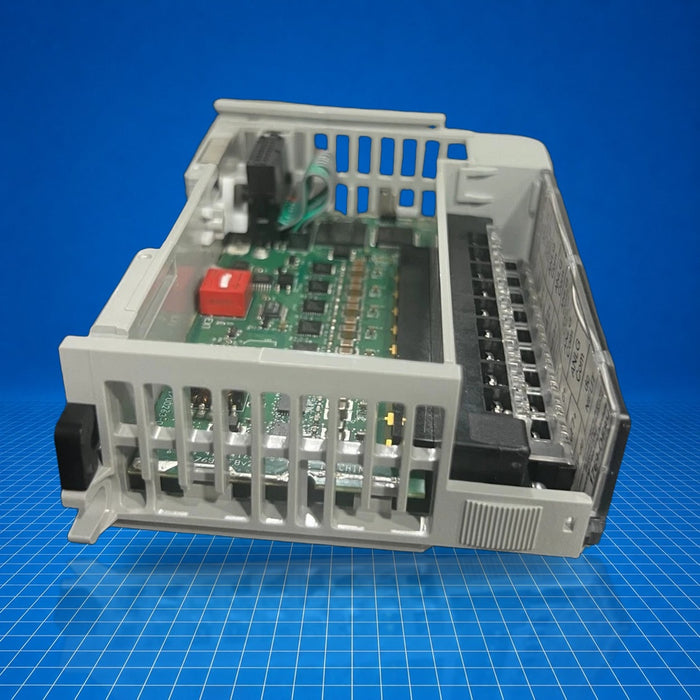

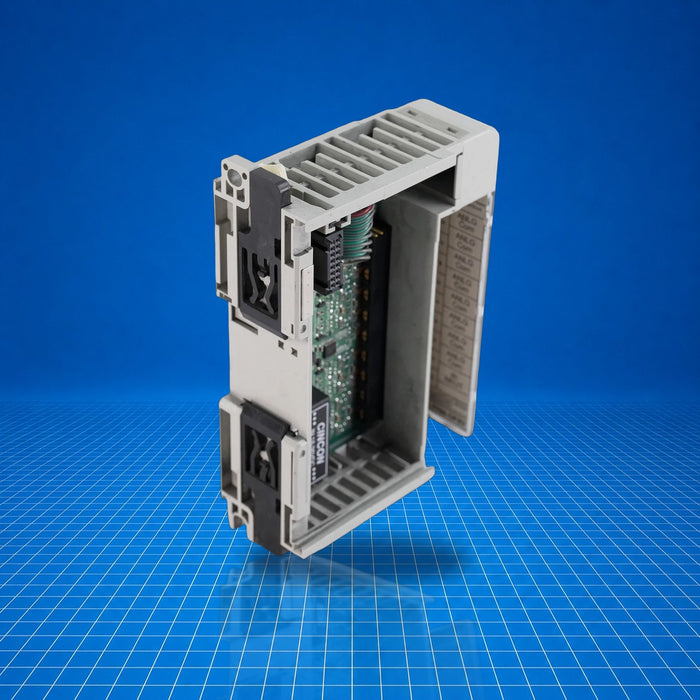

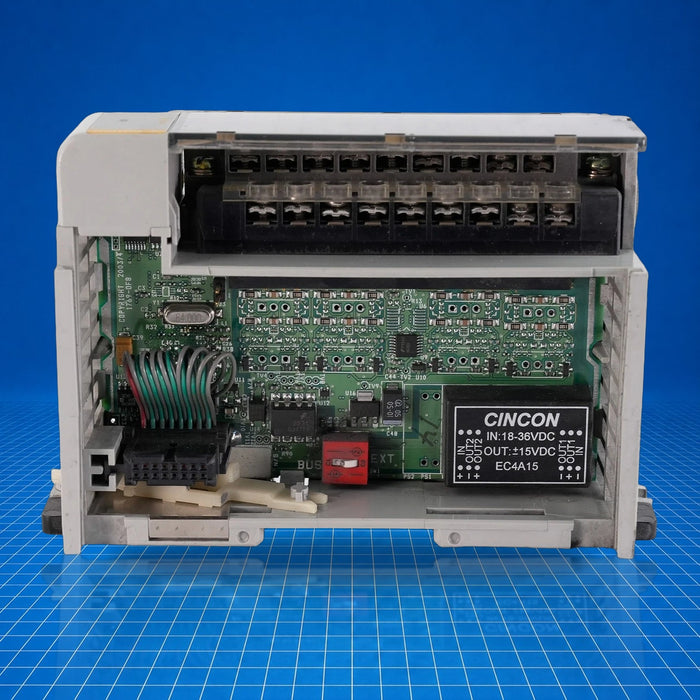

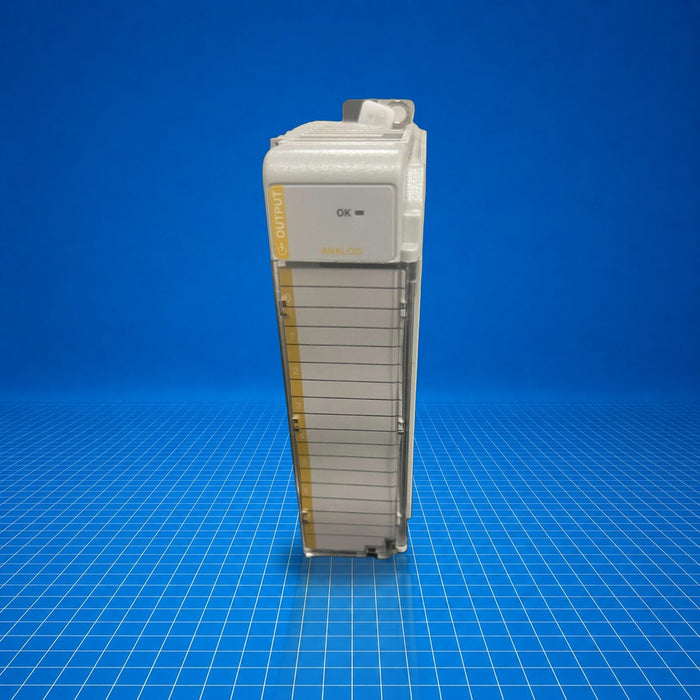

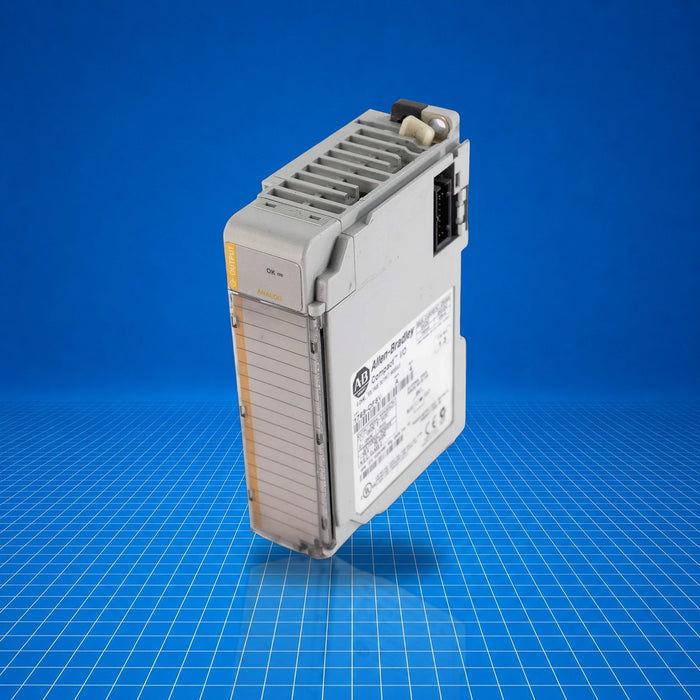

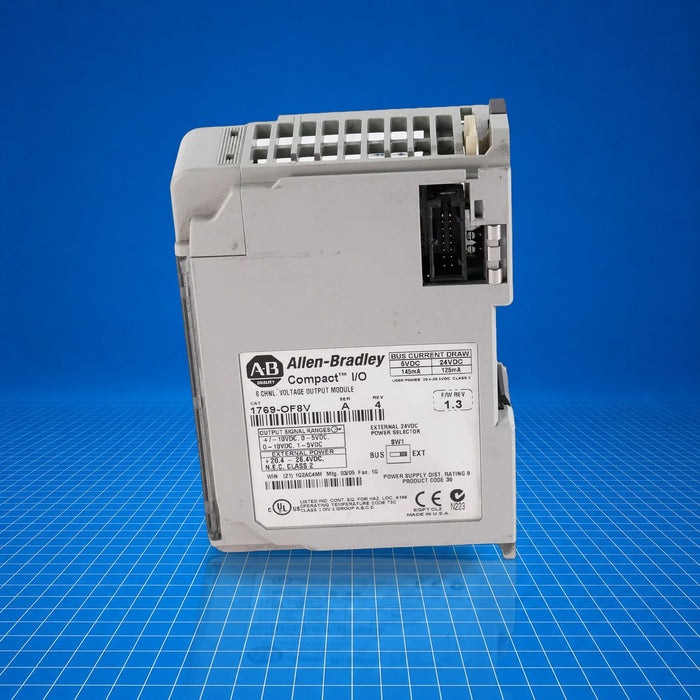

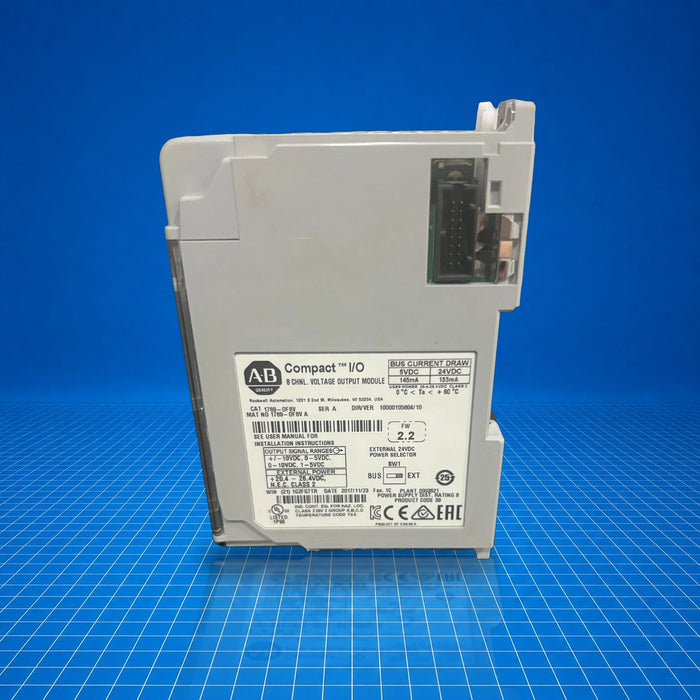

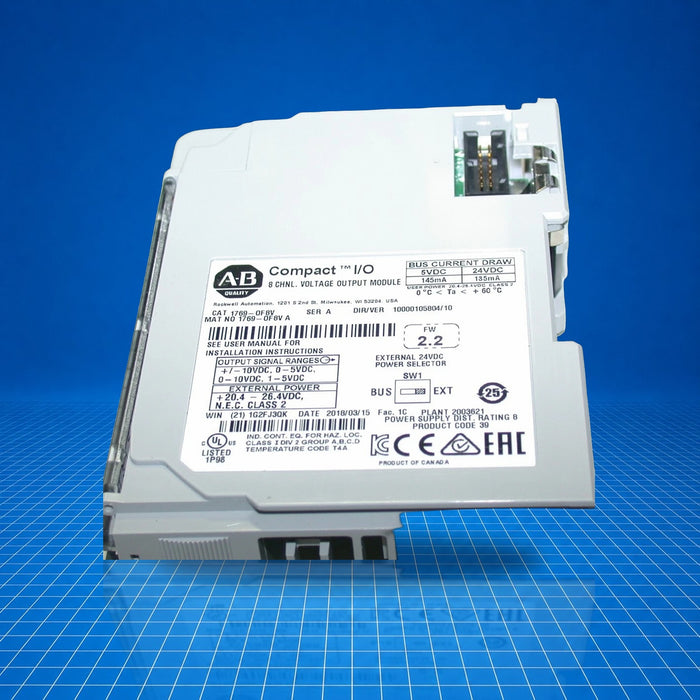

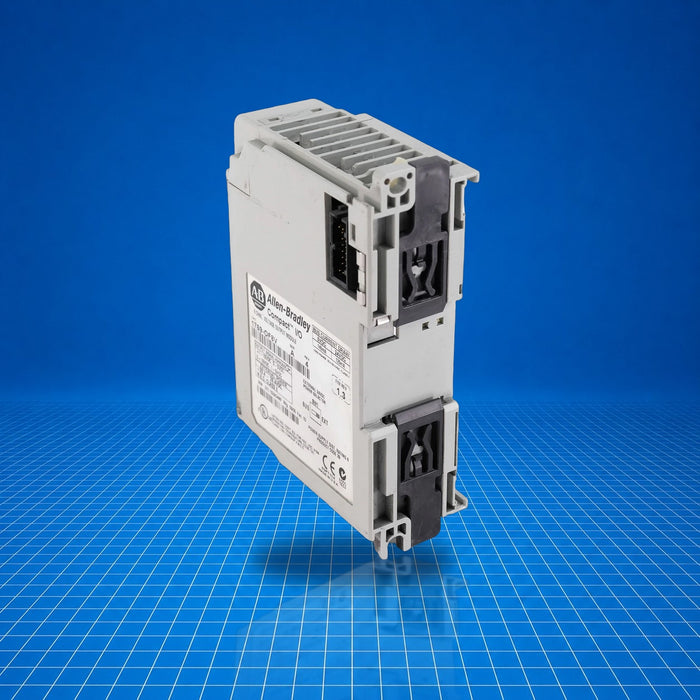

1769-OF8V Allen-Bradley
Original price
$605.00
-
Original price
$822.25
Original price
$605.00
$605.00
-
$822.25
Current price
$605.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-OF8V is an 8-point analog voltage output module in the Allen-Bradley CompactLogix I/O family. Installed on CompactLogix rails and paired with compatible CompactLogix controllers, it provides ±10 V DC, 0-10 V DC, 0-5 V DC or 1-5 V DC analog outputs. It integrates into control systems to drive analog actuators, valves or feedback systems in machine automation and process applications, offering isolation and precision within CompactLogix architectures.
Best Suited For
- CompactLogix systems requiring analog voltage outputs
- Applications needing multiple single-ended voltage outputs
- Integration with actuators or analog-controlled process elements
- DIN-rail or panel-mounted CompactLogix cabinets
- Environments needing isolated analog interface
Channels
8 single-ended outputs
Output ranges
±10 V, 0-10 V, 0-5 V, 1-5 V
Resolution
16 bits plus sign (bipolar)
Bus current draw
145 mA @ 5 V DC; 135 mA @ 24 V DC
Heat dissipation
2.16 W max
Technical Specifications
I/O & Electrical
Number of outputs
8 single-ended
Output ranges
±10.5 V FS; ranges ±10 V, 0-10 V, 0-5 V, 1-5 V
Resolution
16 bits plus sign (bipolar); e.g. ±10 V: 15.89 bits, 330 µV/bit
Load range
> 1 kΩ at 10 V DC
Max capacitive load
1 µF
Output current, max
10 mA
Open/short-circuit protection
Yes (30 mA max short-circuit)
Output impedance
< 1 Ω
Output overvoltage protection
Yes
Power-up/down spike
±0.5 V DC for < 5 ms
Communication & Power
Bus current draw
145 mA @ 5 V DC; 135 mA @ 24 V DC
Heat dissipation
2.16 W (all points at 10.5 V into 1 kΩ)
Conversion rate (all channels)
5.0 ms
Step response (to 63 %)
< 2.9 ms
Physical & Environmental
Dimensions (H×W×D)
118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in); height with tabs 138 mm
Weight
263 g (0.58 lb)
Mounting
DIN rail or panel
Optional external 24 V DC supply
20.4-26.4 V DC Class 2, ≥ 60 mA; bus draw 0 mA if used
Isolation voltage
500 V AC or 710 V DC for 1 min (output group to bus)
Ambient suitability
Class I Division 2 or non-hazardous locations (must install in enclosure)
