Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1769-OV32T Allen-Bradley
Original price
$0.00
-
Original price
$405.00
Original price
$405.00
$0.00
-
$405.00
Current price
$405.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

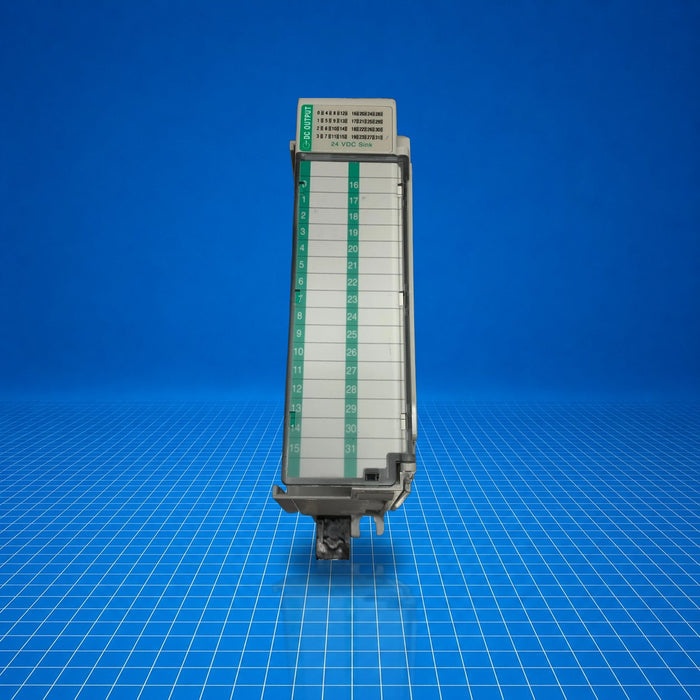

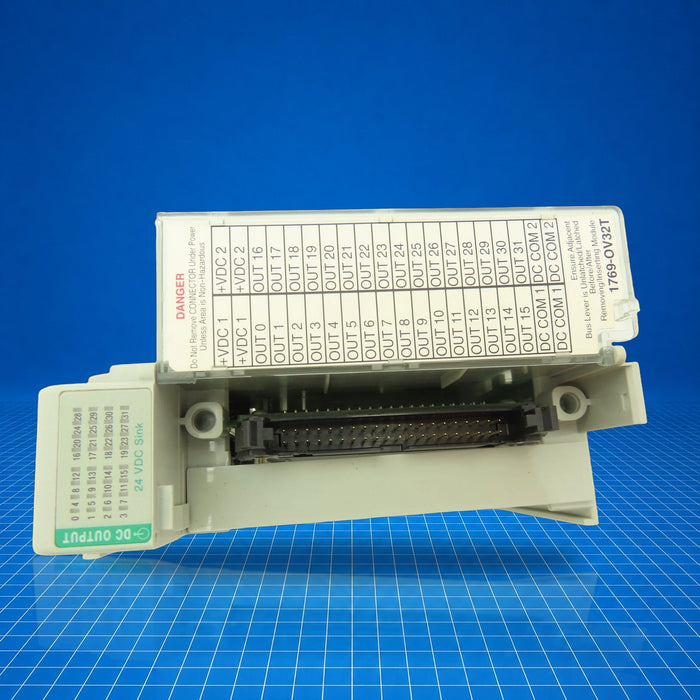

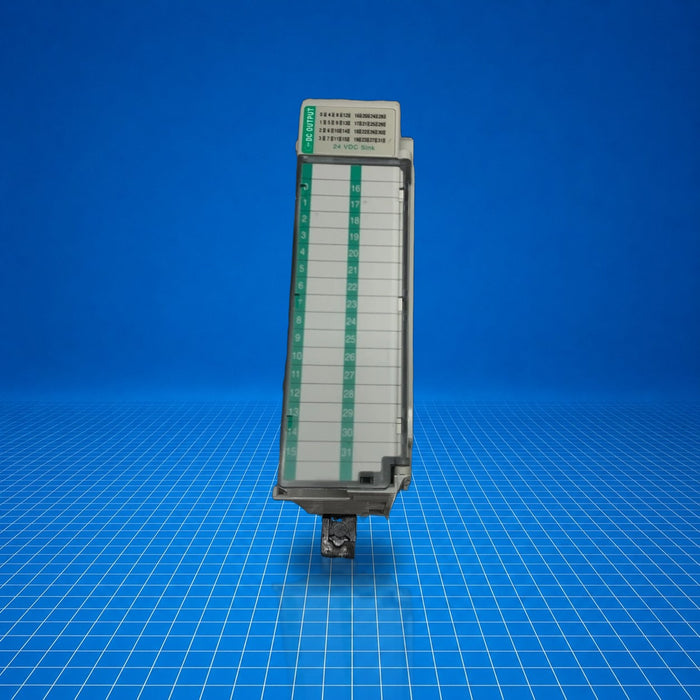

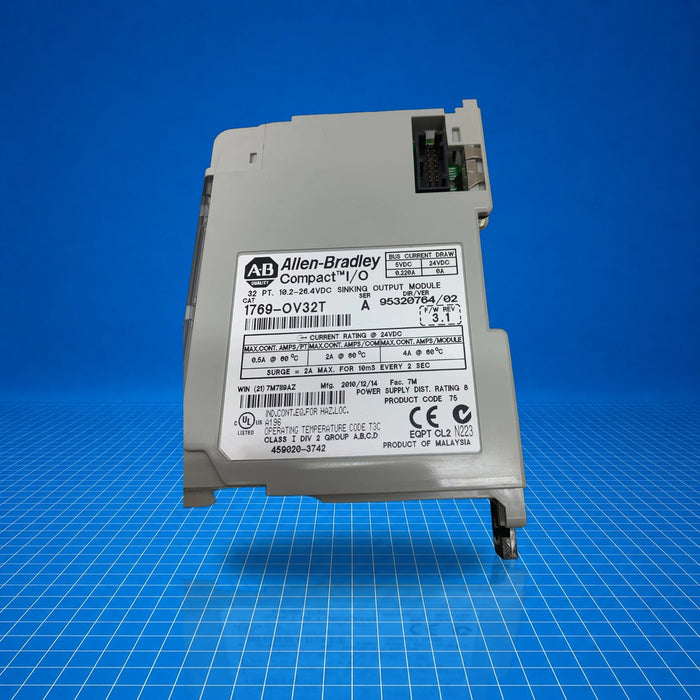

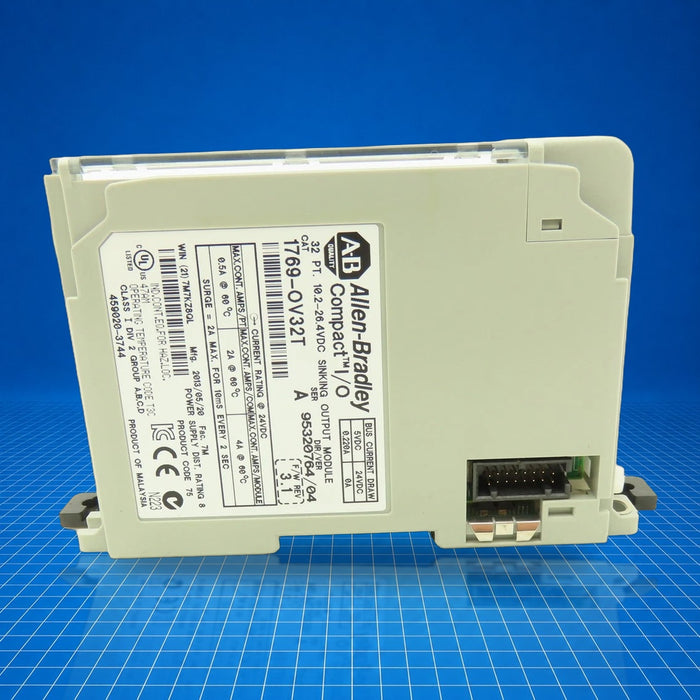

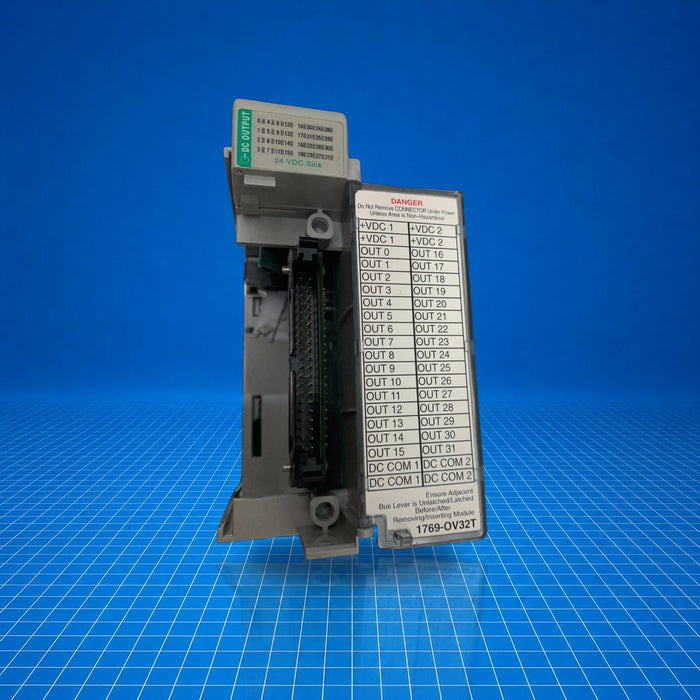

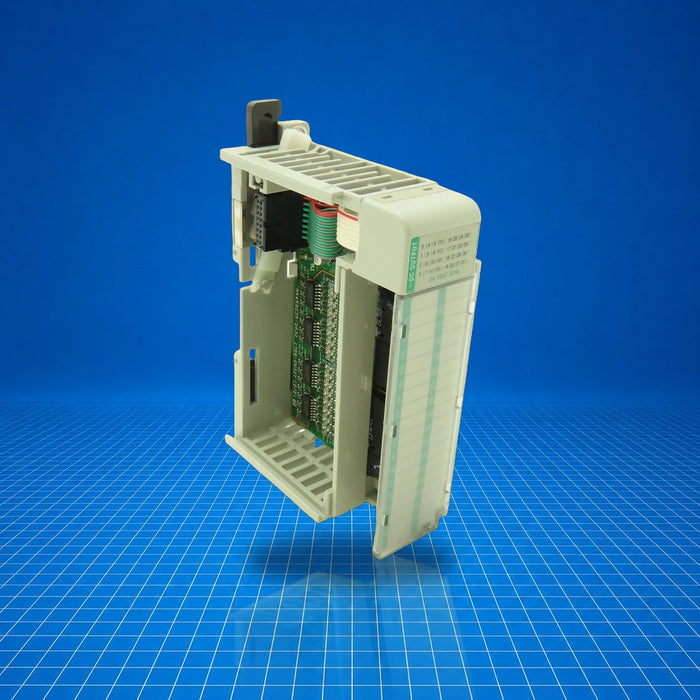

The 1769-OV32T is a CompactLogix™ series solid-state sinking (low-true) 32-point 24 V DC output module by Allen-Bradley. It mounts on DIN-rail or panel within a 1769 I/O assembly and provides terminated sinking outputs in industrial control systems. It isolates two groups of 16 outputs for connecting sourcing field devices. Typical applications include motor control, indicator actuation, machine I/O expansion, and general-purpose digital switching in automation systems.
Best Suited For
- CompactLogix I/O expansion
- Sinking output for sourcing field devices
- Machine-level digital actuation
- Control panels requiring terminated outputs
Output points
32 sinking
Operating voltage range
10.2…26.4 V DC
Max current per module
4.0 A
Isolation voltage
1200 V AC (1 s) or 1697 V DC
Technical Specifications
I/O & Electrical
Number of outputs
32
Operating voltage range
10.2…26.4 V DC
Output signal voltage
10.2…26.4 V DC
Continuous current per point (max)
0.5 A
Continuous current per module (max)
4.0 A
Surge current (max)
2.0 A for 10 ms (repeat every 2 s)
Off-state leakage current (max)
1.0 mA @ 26.4 V DC
On-state current (min)
1.0 mA
On-state voltage drop (max)
0.3 V DC @ 0.5 A
Communication & Power
Bus current draw
220 mA @ 5 V DC (0.85 W)
Heat dissipation (max)
4.5 W
Physical & Environmental
Mounting
DIN-rail or panel
Dimensions (HxWxD)
118 × 35 × 87 mm (with tabs 138 mm)
Weight
450 g
Wire size, solid
22…14 AWG
Wire size, stranded
22…16 AWG
Terminal screw torque
0.68 N·m (6 lb·in)
Retaining screw torque
0.46 N·m (4.1 lb·in)
Power supply distance rating
8 modules
Enclosure type
Open-style (none)
Certifications
Registro Italiano NavaleAmerican Bureau of ShippingUKCAMorocco
Certified per Registro Italiano Navale, American Bureau of Shipping, UKCA and Morocco documentation as of 2026-05-20.
