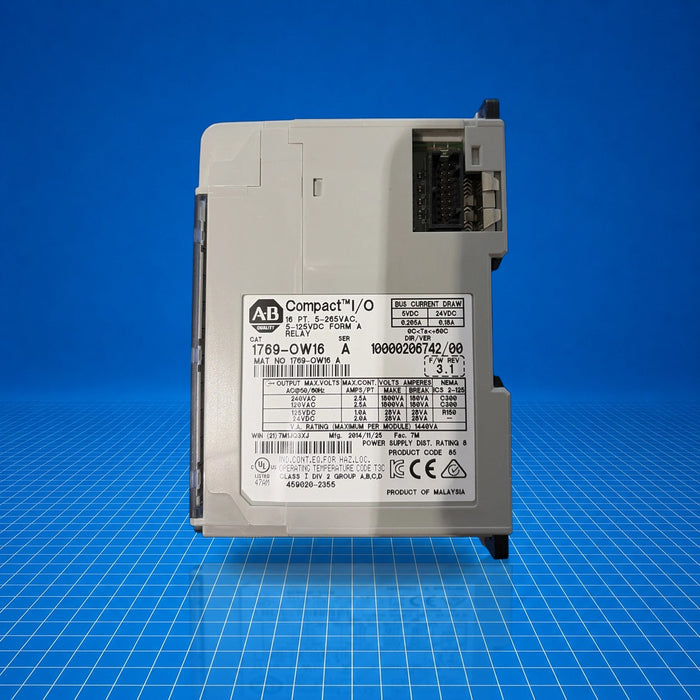

1769-OW16 Allen-Bradley
Original price
$390.00
-
Original price
$400.00
Original price
$400.00
$390.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-OW16 is an Allen-Bradley CompactLogix family relay output module that provides sixteen (16) normally-open relay outputs. It interfaces with CompactLogix and MicroLogix controllers as a local or expansion I/O module. The module switches both AC and DC loads and is typically used for controlling field devices such as pilot lights, solenoids, and valves in discrete control systems.
Best Suited For
- Discrete load switching (AC/DC)
- Expansion I/O in CompactLogix racks
- Applications requiring isolation between output groups
- Field-level control of solenoids, indicators, and relays
Outputs
16 relay points
Operating voltage range
5…265 V AC, 5…125 V DC
Max current per point
2.5 A
Heat dissipation (max)
4.75 W
Technical Specifications
I/O & Electrical
Operating voltage range
5…265 V AC, 5…125 V DC
Outputs
16 normally-open relay points
Continuous current per point (max)
2.5 A
Continuous current per module (max)
20 A
Continuous current per common (max)
10 A
Off-state leakage (max)
0 mA
On-state current (min)
10 mA @ 5 V DC
Communication & Power
Backplane current draw @ 5.1 V
205 mA
Backplane current draw @ 24 V
180 mA
Physical & Environmental
Dimensions (HxWxD)
118 × 52.5 × 87 mm (height with tabs 138 mm)
Weight (approx)
450 g (0.99 lb)
Mounting
DIN-rail or panel mount
Wire size
22…14 AWG solid; 22…16 AWG stranded
Wire type
Cu-90 °C
Slot width
1.5
Power supply distance rating
8 modules
Heat dissipation (max)
4.75 W
Certifications
Registro Italiano NavaleUKCAAmerican Bureau of ShippingMorocco DOC
Certifications include Registro Italiano Navale, UKCA, American Bureau of Shipping, Morocco DOC as of May 19 2026.
