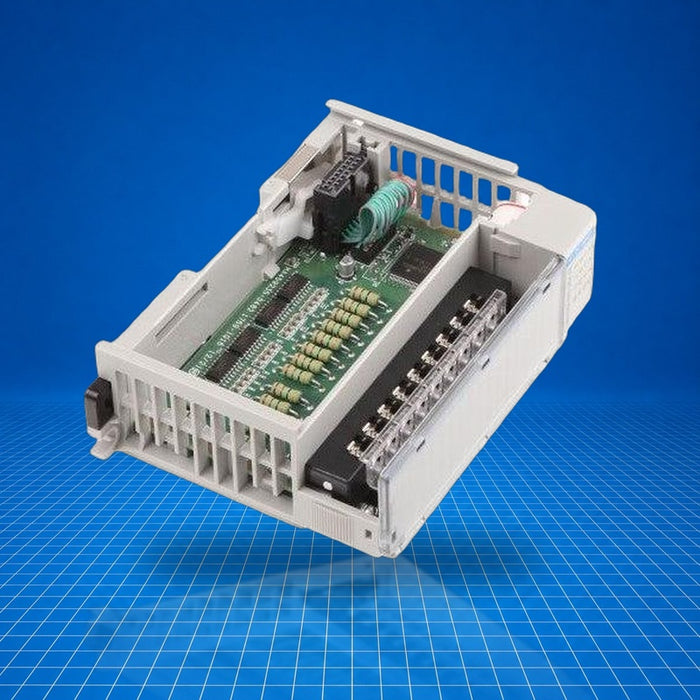

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1769-OW16K Allen-Bradley
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-OW16K is a CompactLogix contact-type digital output module featuring 16 relay outputs. It provides AC/DC switching capability and conforms to Compact I/O architecture. In control systems, it functions as a field interface, switching loads up to 265 V AC or 125 V DC across 16 channels. Typical industrial applications include machine control, discrete load switching, and processes requiring mixed AC/DC output capability.
Best Suited For
- Discrete load switching across mixed AC/DC voltages
- CompactLogix Local or distributed I/O racks
- Conformally coated environments
- Panel or DIN-rail installations
Outputs
16 relay (normally open)
Operating voltage range
5…265 V AC, 5…125 V DC
Max current per point
2.5 A
Isolation voltage
1836 V AC or 2596 V DC
Heat dissipation
4.75 W
Technical Specifications
I/O & Electrical
Outputs
16 relay (normally open, 8 per group)
Operating voltage range
5…265 V AC, 5…125 V DC
On-state current, minimum
10 mA @ 5 V DC
Current per point, maximum
2.5 A
Current per module, maximum
20 A
Off-state leakage
0 mA
Delay, on/off
10 ms / 10 ms
Communication & Power
Backplane current draw
205 mA @ 5.1 V; 180 mA @ 24 V
Power dissipation
4.75 W
Physical & Environmental
Weight
450 g (0.99 lb)
Dimensions (HxWxD)
118×52.5×87 mm (4.65×2.07×3.43 in); height with tabs 138 mm (5.43 in)
Mounting
DIN-rail or panel
Slot width
1.5
Terminal screw torque
0.68 N•m (6 lb•in)
Retaining screw torque
0.46 N•m (4.1 lb•in)
Wire size
22-14 AWG solid; 22-16 AWG stranded
Wire type
Cu-90 °C (194 °F)
Certifications
UL Listed HazardousUKCAMorocco DOCABS
UL Listed Hazardous, UKCA DOC, Morocco DOC, American Bureau of Shipping (as of 2026-05-19).
