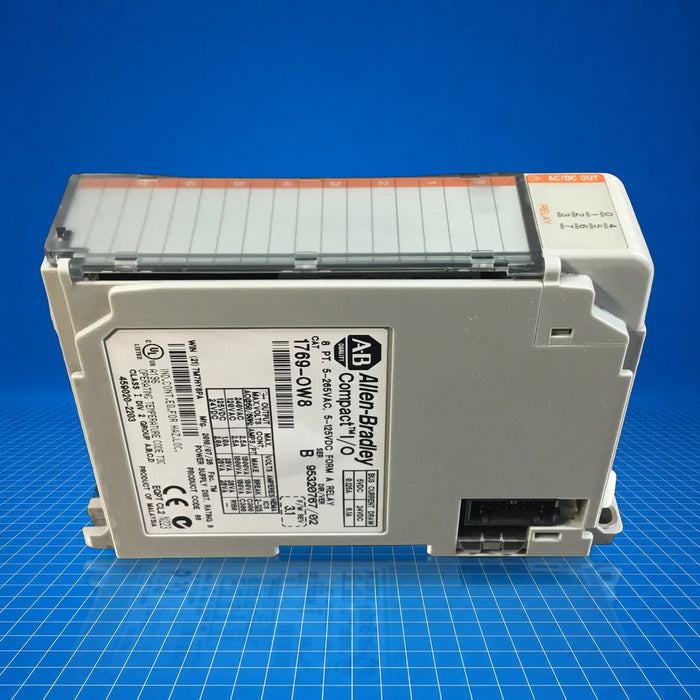

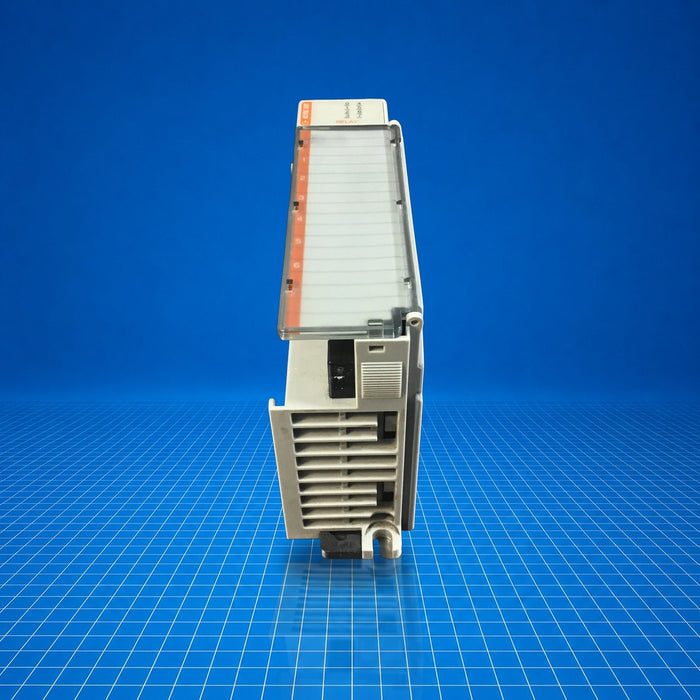

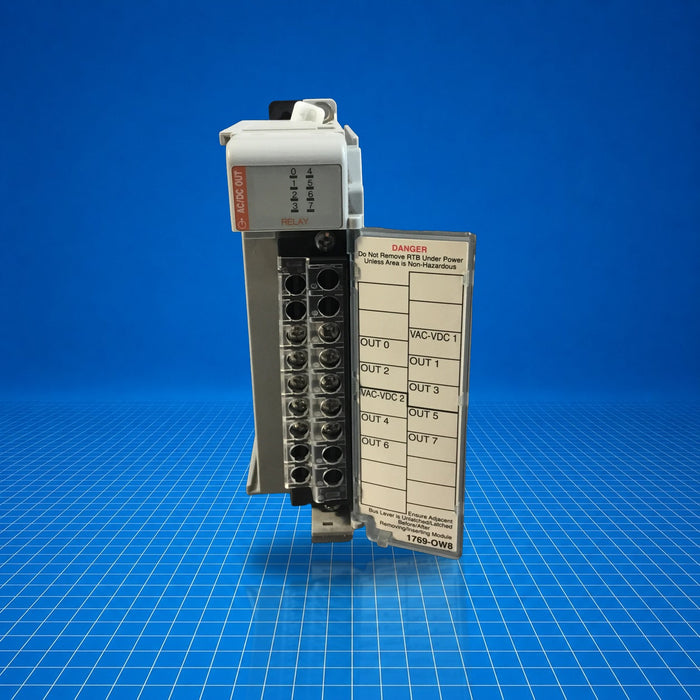

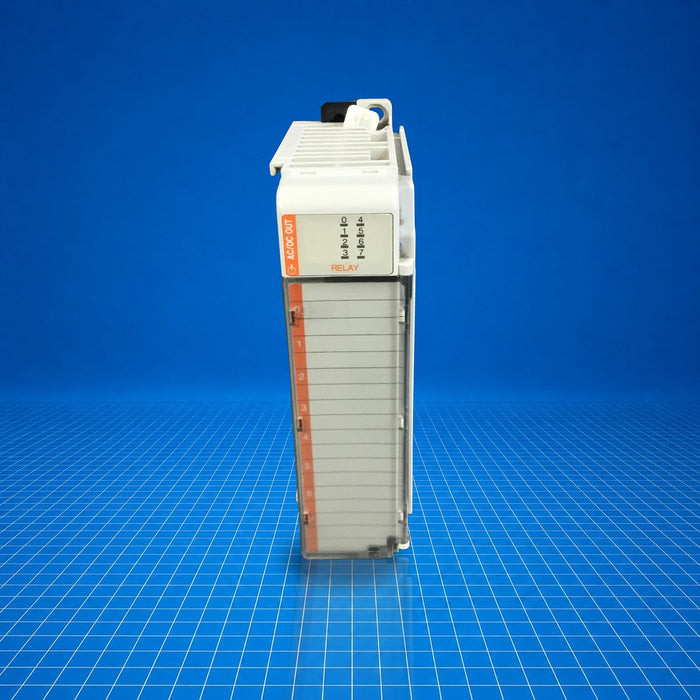

1769-OW8 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1769-OW8 Allen-Bradley

$375.00 - $400.00
$400.00
$375.00 - $400.00
$400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
5 in stock

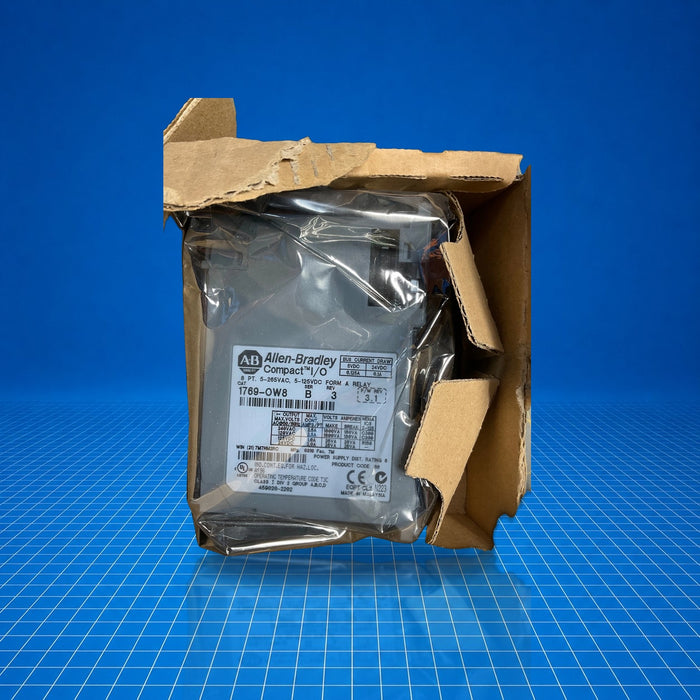

New / Open-Box Surplus
Need a Specific Revision?
$375.00
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-OW8 is an Allen-Bradley CompactLogix 8-point relay output module, designed for integrating into Compact I/O systems under CompactLogix controllers. Part number 1769-OW8 provides eight normally-open Form A relay outputs, suitable for switching both AC and DC loads within industrial control systems. It installs via DIN-rail or panel mounting, enabling load-driven devices such as solenoids, indicator lights, or contactor coils. This module is compatible with CompactLogix and MicroLogix 1500 platforms and is deployed where discrete relay outputs with electrical isolation are required.

Best Suited For

  • CompactLogix or MicroLogix 1500 I/O expansion
  • Discrete AC/DC load switching (e.g. solenoids, pilot lights)
  • Applications requiring group or point isolation
  • Panel or DIN-rail installation in machinery or control enclosures
Channels
8 relay outputs
Operating voltage range
5…265 V AC, 5…125 V DC
Isolation voltage
1836 V AC @ 1 s / 2596 V DC
Bus current draw
125 mA @ 5 V DC; 100 mA @ 24 V DC
Heat dissipation (max)
2.83 W

Technical Specifications

I/O & Electrical

Number of outputs
8 normally-open (Form A) relay contacts
Operating voltage range
5…265 V AC, 5…125 V DC
Continuous current per point (max)
2.5 A (AC), 1.0 A (125 V DC), 2.0 A (24 V DC)
Continuous current per module (max)
16 A
Continuous current per common (max)
8 A
Signal delay (max)
10 ms on; 10 ms off
Off-state leakage (max)
0 mA
On-state current (min)
10 mA @ 5 V DC
Isolation voltage
1836 V AC for 1 s or 2596 V DC for 1 s; IEC Class 2 reinforced insulation

Communication & Power

Bus current draw
125 mA @ 5 V DC; 100 mA @ 24 V DC
Power supply distance rating
8 modules from supply

Physical & Environmental

Dimensions (HxWxD) approx
118 × 35 × 87 mm (with tabs 138 mm)
Weight approx
280 g (0.61 lb)
Mounting
DIN-rail or panel mount
Slot width
1
Wire size (solid)
22…14 AWG
Wire size (stranded)
22…16 AWG
Terminal screw torque
0.68 N·m (6 lb·in)
Retaining screw torque
0.46 N·m (4.1 lb·in)
Wire type
Cu-90 °C

Certifications

UL ListedCEc-ULus

Certified (as of May 20 2026) by relevant agencies; refer to product label for exact markings.
