1769-OW8I Allen-Bradley
Original price
$400.00
-
Original price
$450.00
Original price
$400.00
$400.00
-
$450.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

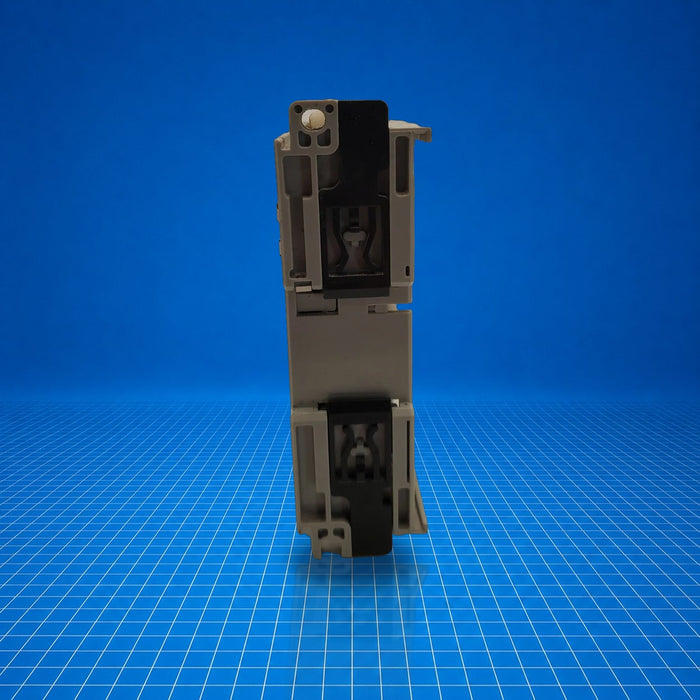

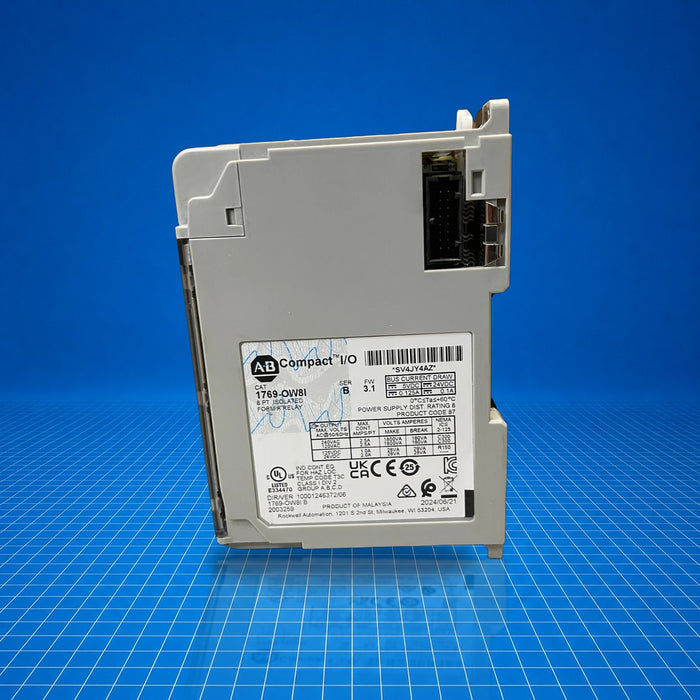

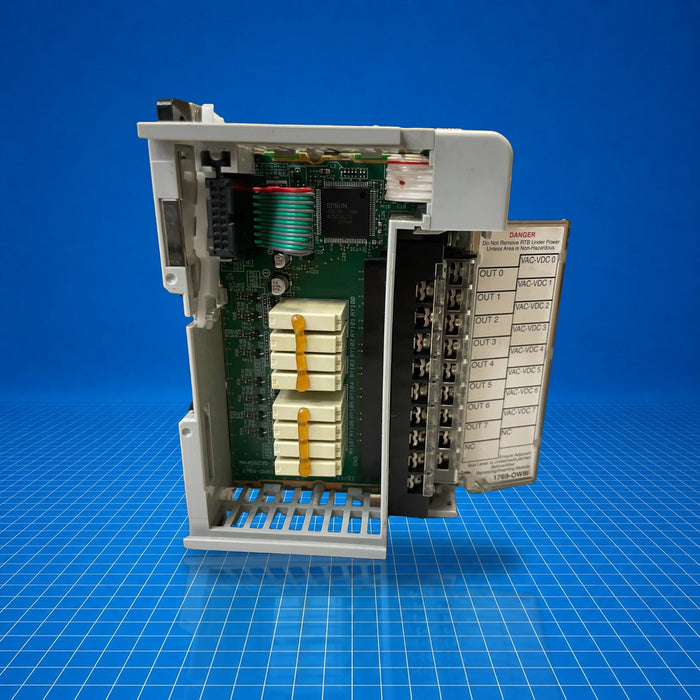

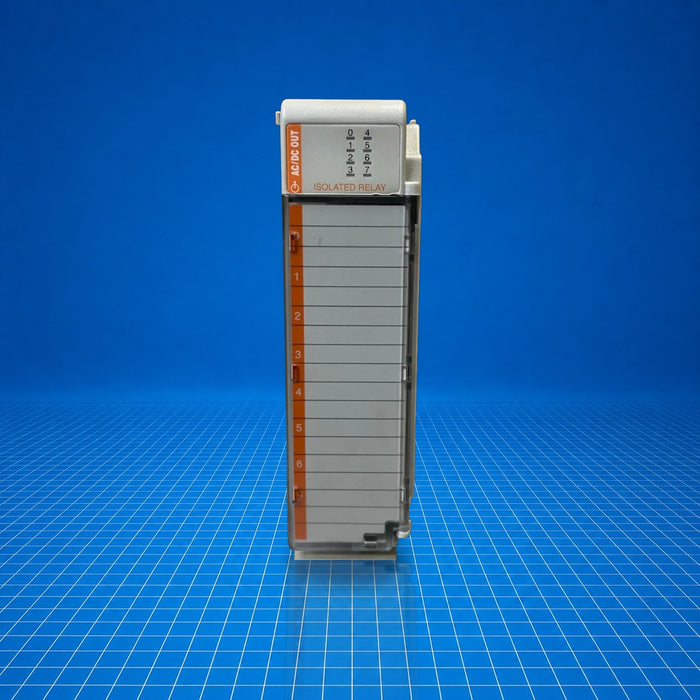

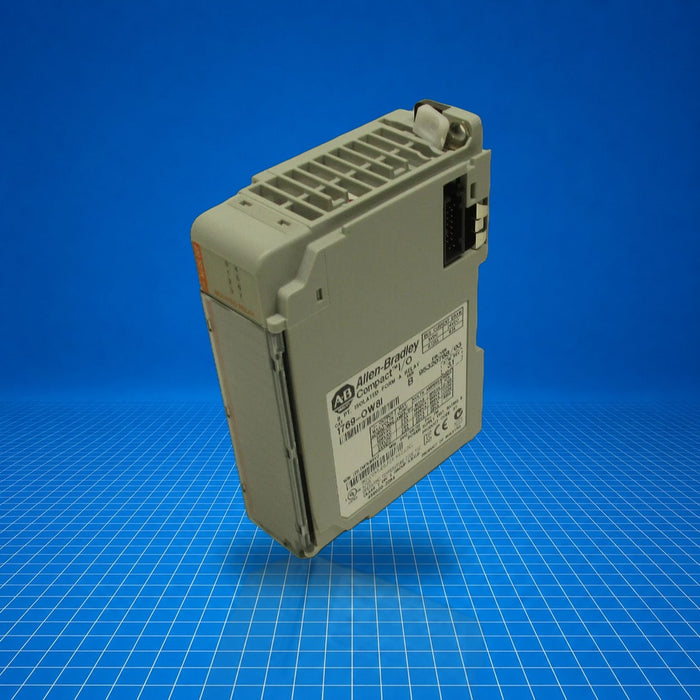

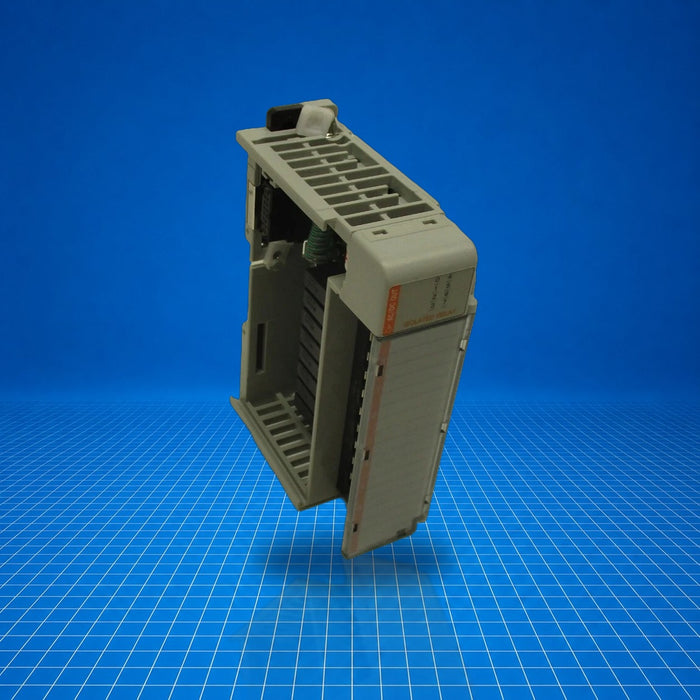

The 1769-OW8I is an Allen-Bradley Compact I/O expansion module for CompactLogix and MicroLogix 1500 systems. It provides eight individually isolated Form A relay outputs, allowing outputs to switch AC or DC loads independently. The module installs on standard DIN rail or panel and is suitable for discrete output control tasks, such as pilot contact switching, lamp or solenoid actuation. It connects via the 1769 backplane and is part of the Compact I/O relay output family, part number 1769-OW8I.
Best Suited For
- Discrete AC/DC load switching
- Individually isolated relay output applications
- CompactLogix and MicroLogix 1500 I/O expansion
- Control of pilot lights, solenoids, small motors
Outputs
8 individually isolated Form A relay channels
Operating voltage
5…265 V AC, 5…125 V DC
Backplane current
125 mA @ 5.1 V; 100 mA @ 24 V
Power dissipation
2.83 W max
Dimensions (H×W×D)
118×35×87 mm (4.65×1.38×3.43 in)
Technical Specifications
I/O & Electrical
Number of outputs
8 individually isolated Form A relay channels
Operating voltage range
5…265 V AC; 5…125 V DC
Current per point, max
2.5 A
Current per module, max
16 A
Off-state leakage, max
0 mA
On-state current, min
10 mA @ 5 V DC
Delay, on/off
10 ms / 10 ms
Isolation voltage
1836 V AC for 1 s or 2596 V DC for 1 s (output to bus; group to group)
Communication & Power
Backplane current draw
125 mA @ 5.1 V; 100 mA @ 24 V
Power dissipation
2.83 W
Power-supply distance rating
up to 8 modules
Physical & Environmental
Dimensions (HxWxD)
118×35×87 mm (4.65×1.38×3.43 in)
Weight
290 g (0.64 lb)
Mounting
DIN-rail or panel mount
Wire size
Solid 22…14 AWG; Stranded 22…16 AWG
Terminal screw torque
0.68 N·m (6 lb·in)
Retaining screw torque
0.46 N·m (4.1 lb·in)
Enclosure type
open-style (no enclosure rating)
Certifications
CEUKCAAmerican Bureau of ShippingRegistro Italiano Navale
Certified to applicable directives as of May 19, 2026; inspect product label for current certifications.
