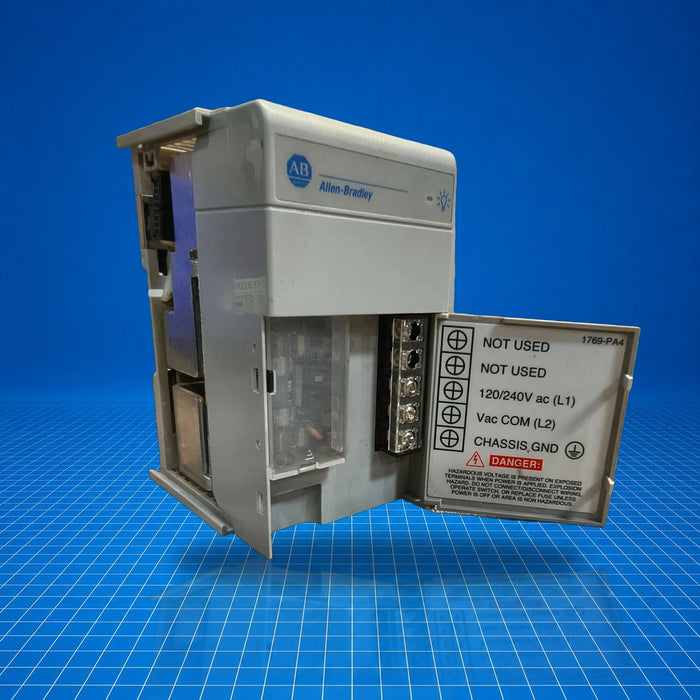

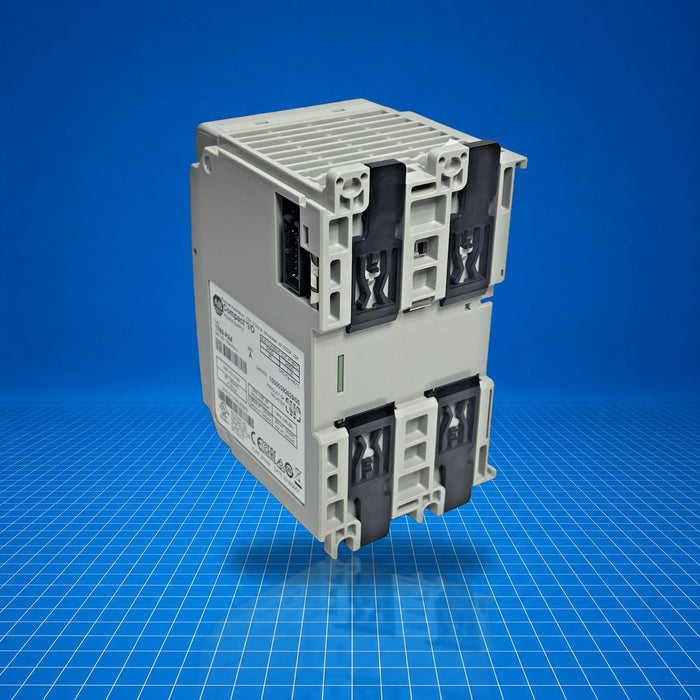

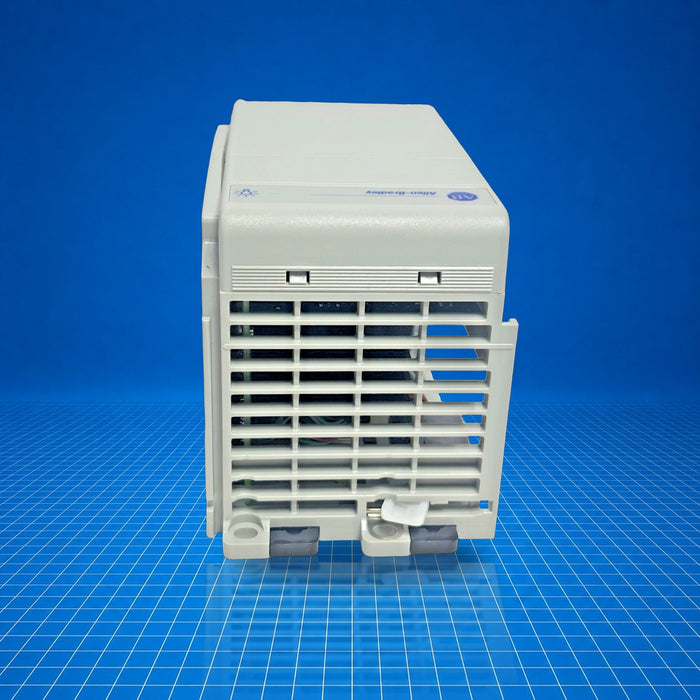

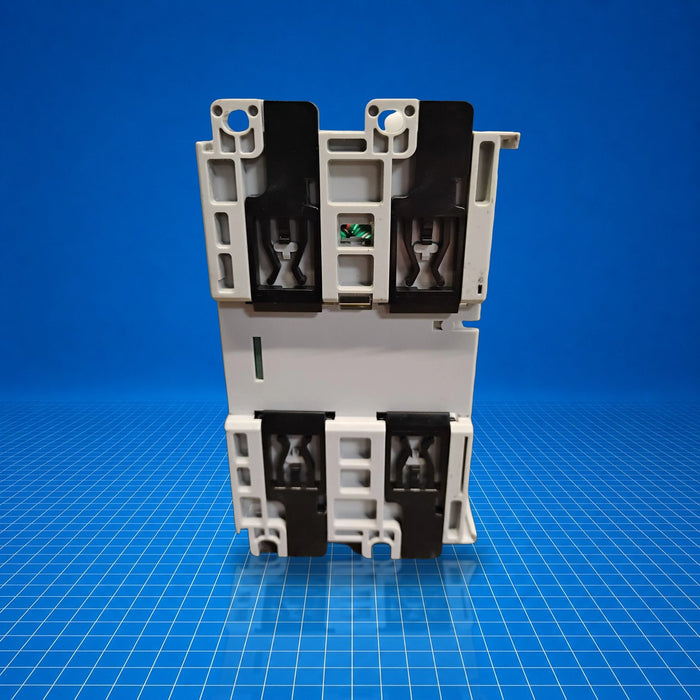

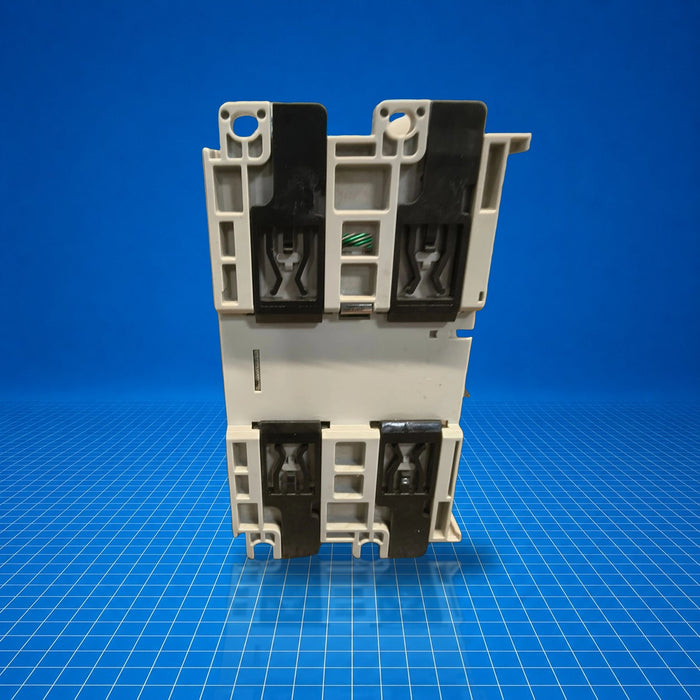

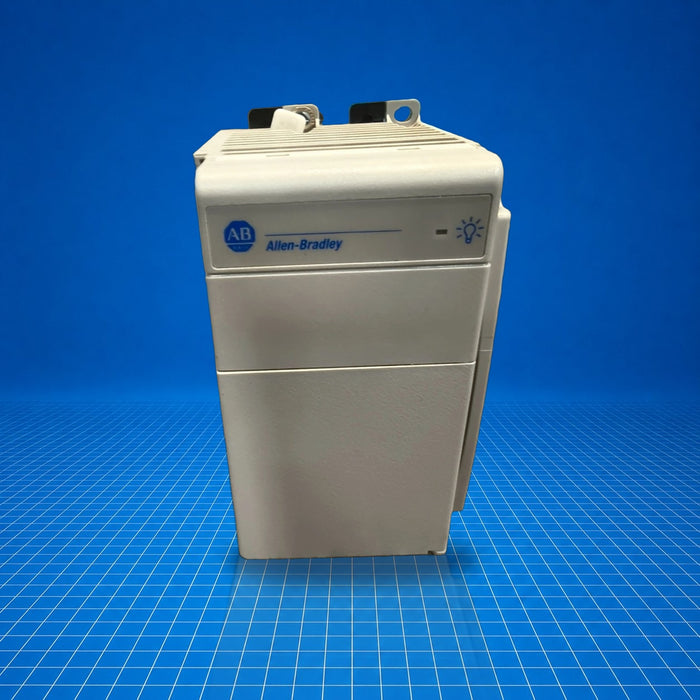

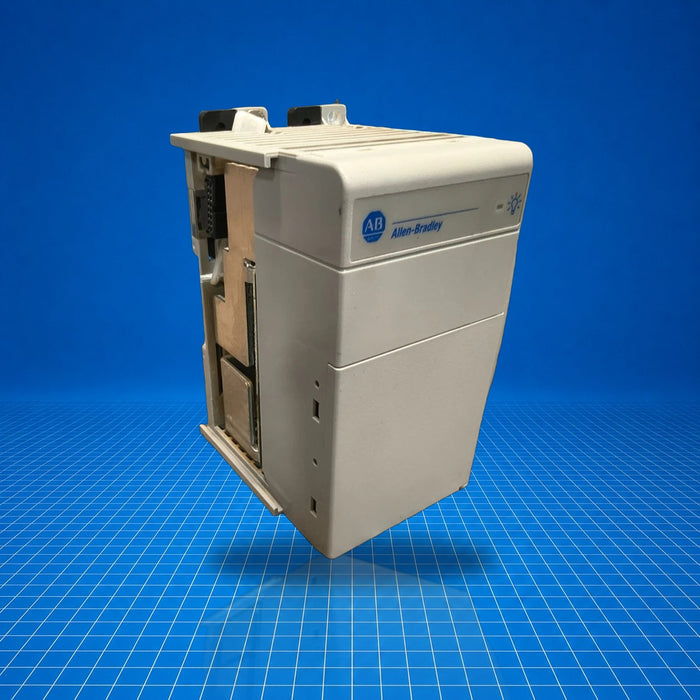

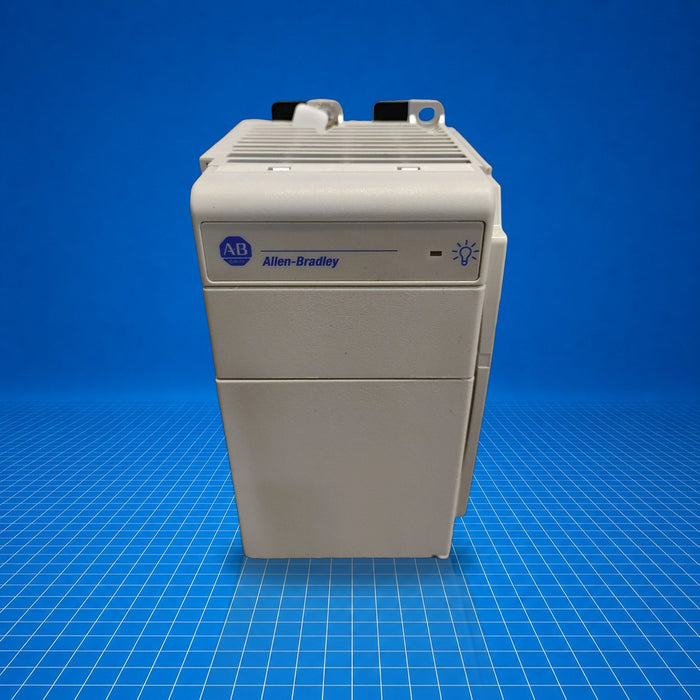

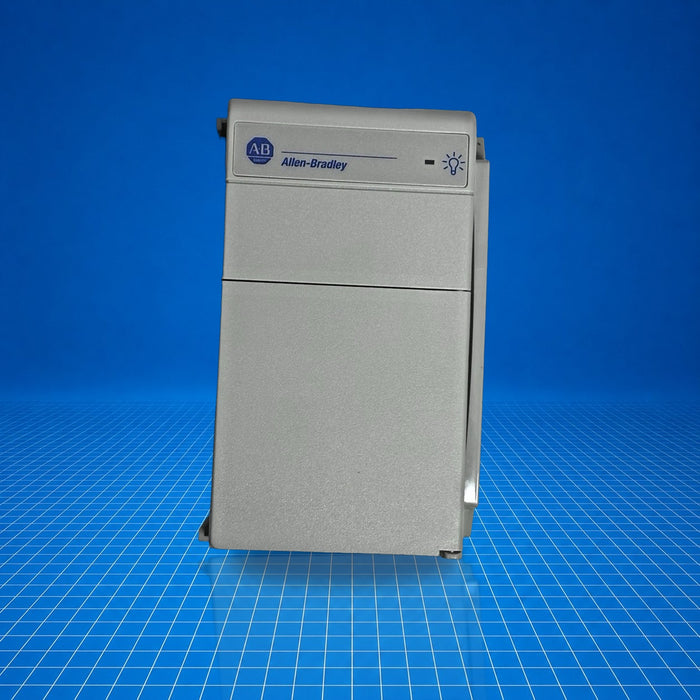

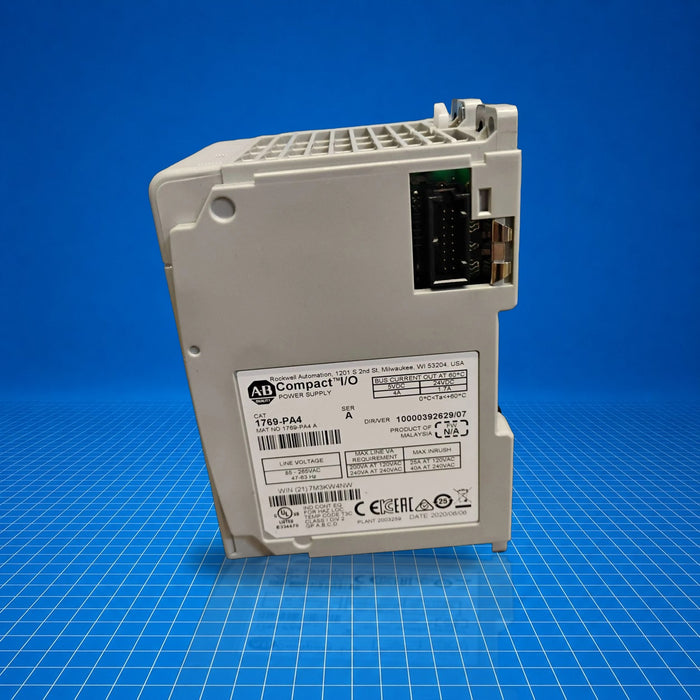

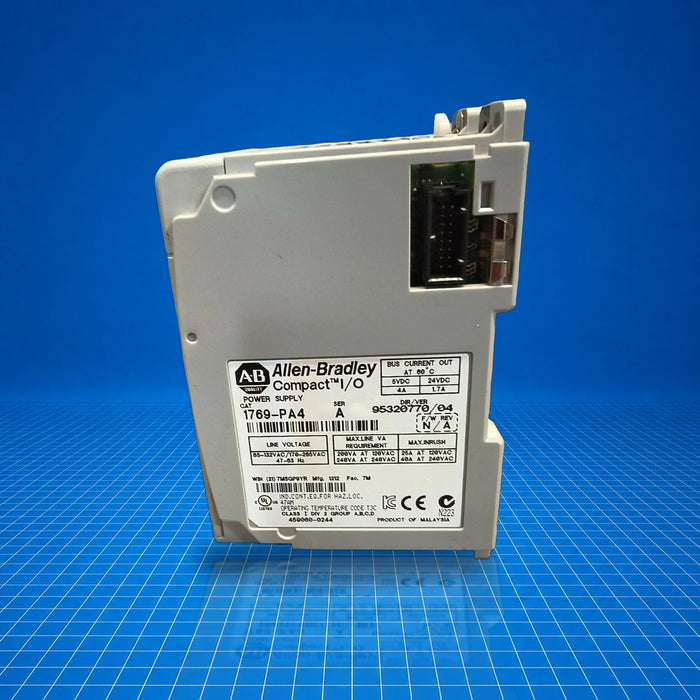

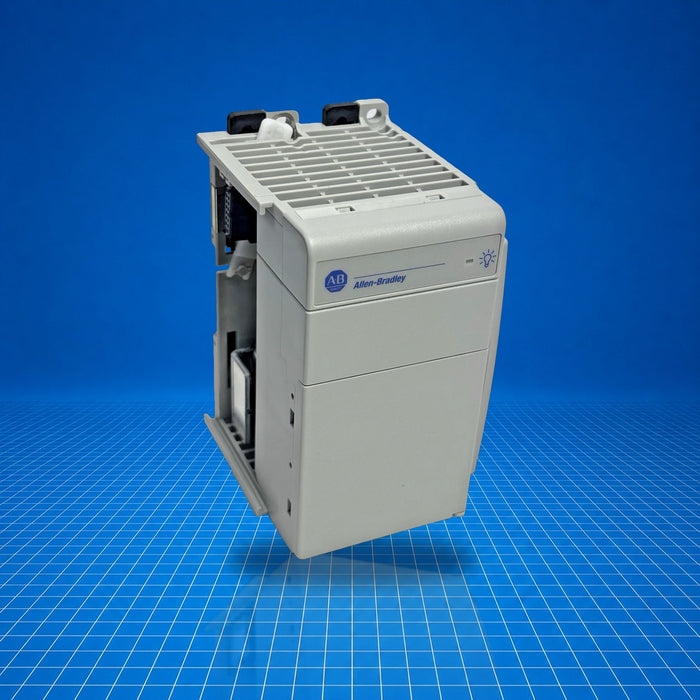

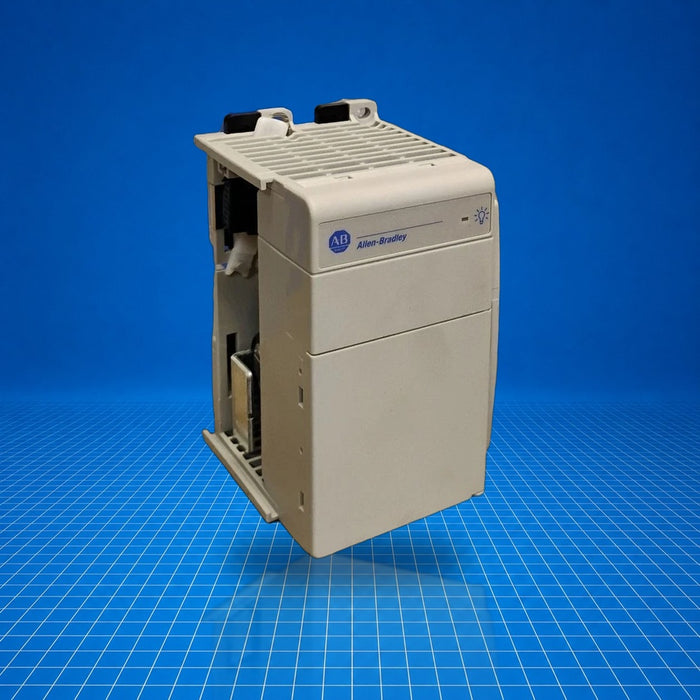

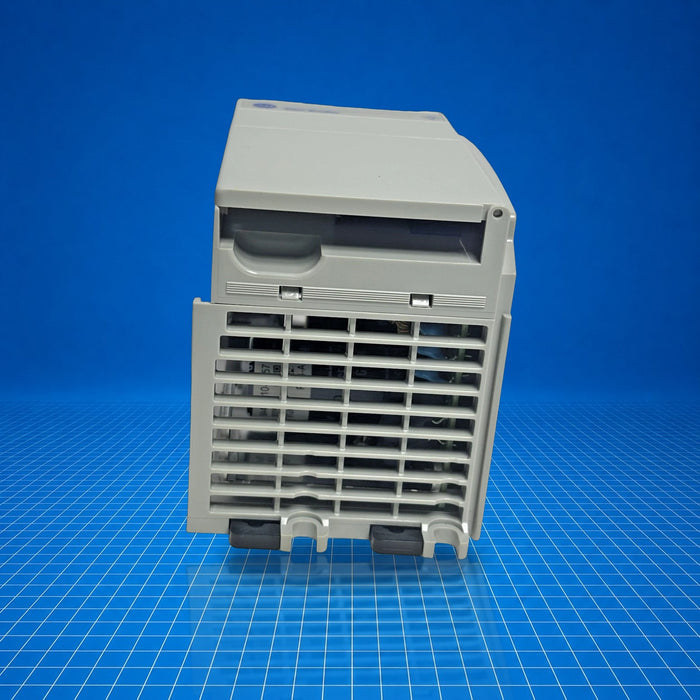

1769-PA4 Allen-Bradley
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-PA4 is an Allen-Bradley CompactLogix power supply module for L3x and L3y platforms in the 1769 Compact I/O family. It accepts 120/240 VAC input (switch-selectable 85…265 VAC or 170…265 VAC) and delivers 5 V DC at 4.0 A and 24 V DC at 2.0 A. It supplies power to controllers and up to eight I/O modules on either side in CompactLogix systems. Typical uses include mid-range machine control, panel-mount PLC systems, or expansion of CompactLogix I/O racks. Part number 1769-PA4 integrates within CompactLogix environments to provide both logic and field-device power.
Best Suited For
- Powering L3x/L3y CompactLogix controllers and I/O
- Systems requiring dual 5 V and 24 V DC outputs
- DIN-rail or panel-mount Compact I/O assemblies
- Applications needing flexible AC input voltage selection
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
As of May 17, 2026, certified to Registro Italiano Navale, American Bureau of Shipping, MOROCCO DOC, UKCA DOC.
