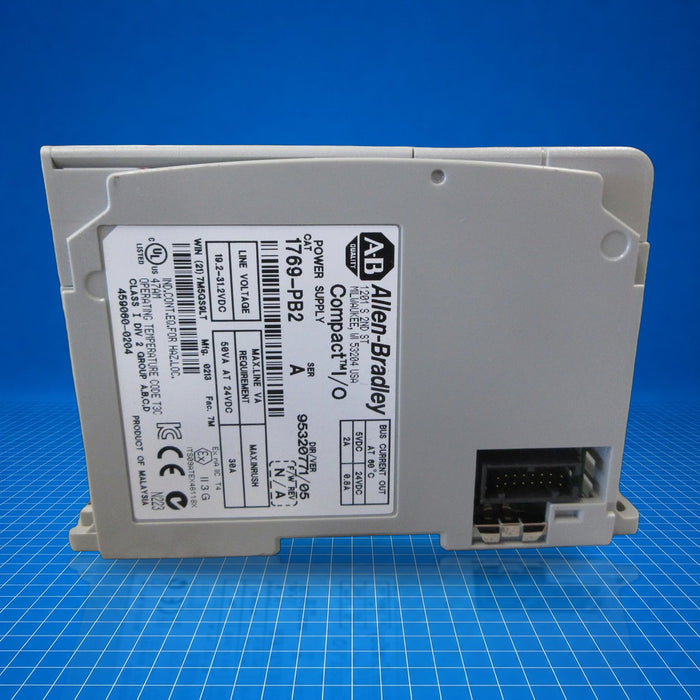

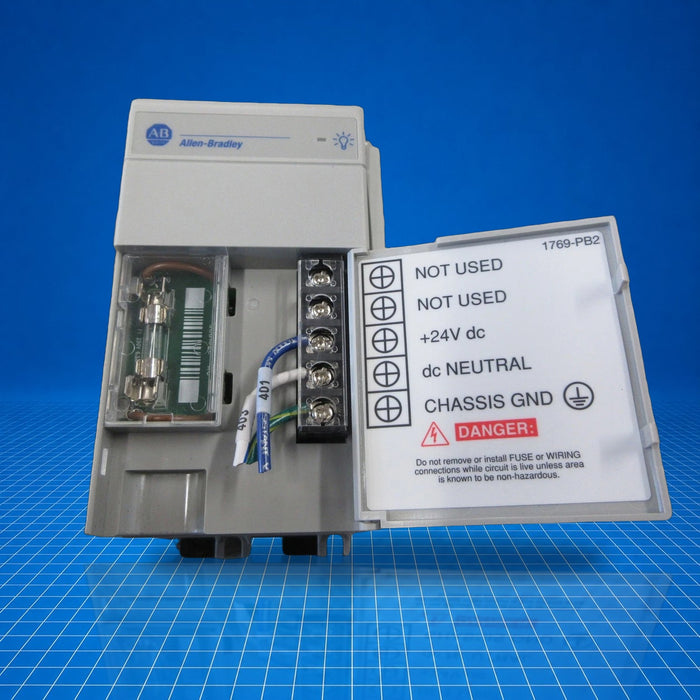

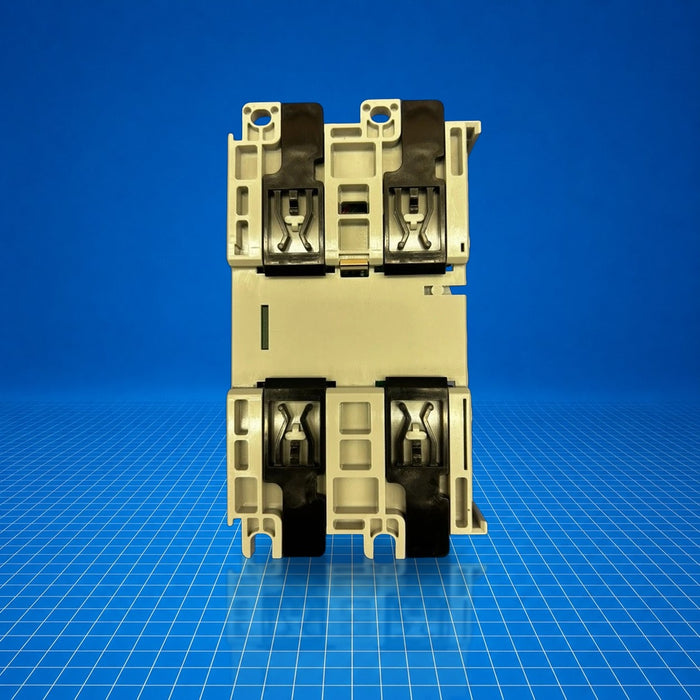

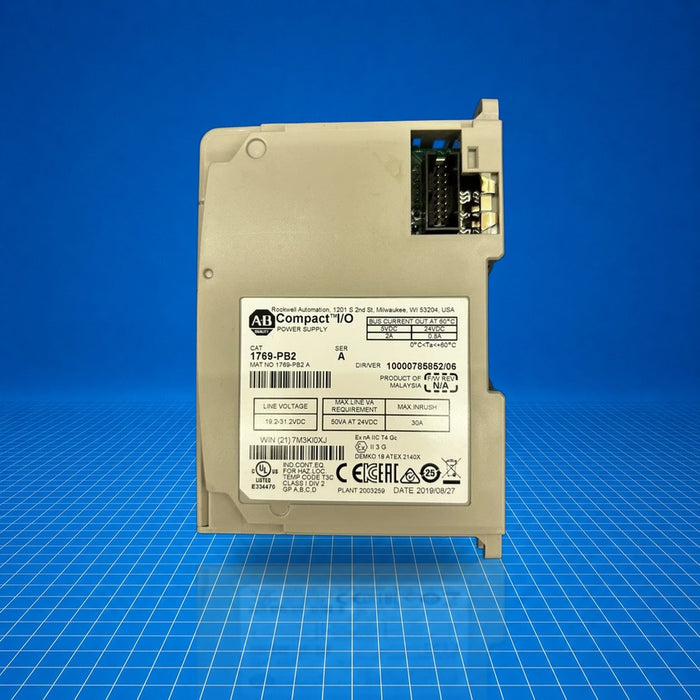

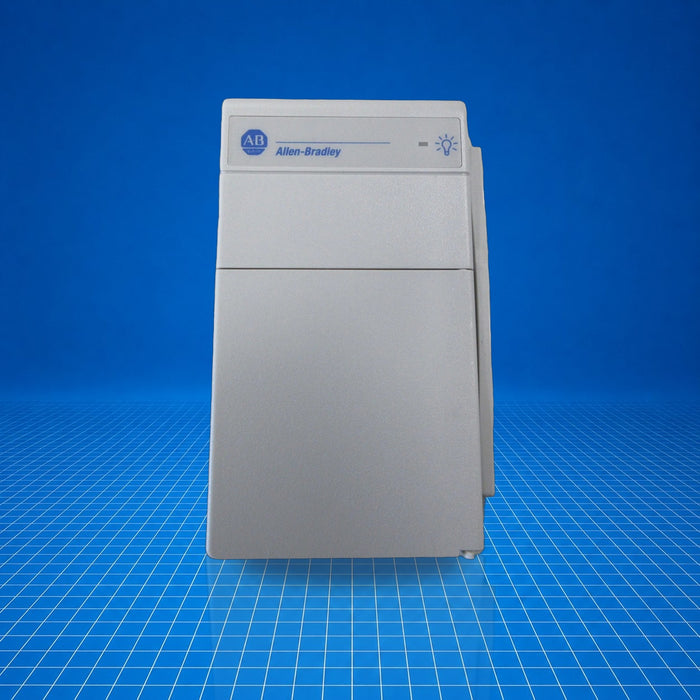

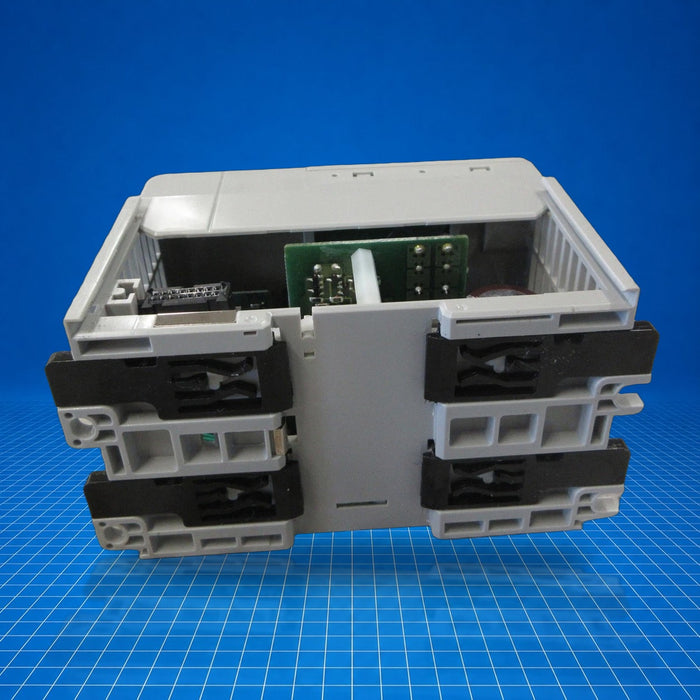

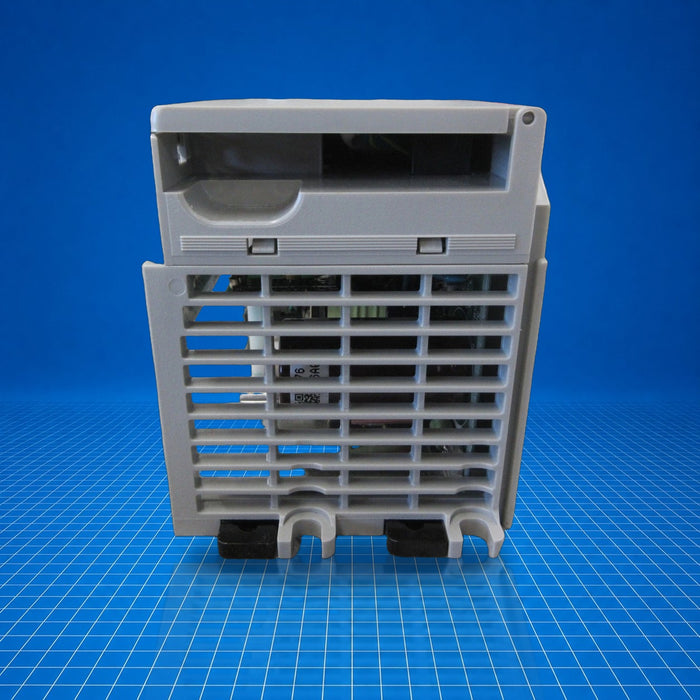

1769-PB2 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1769-PB2 Allen-Bradley

$400.00 - $431.97
$400.00
$400.00 - $431.97
$400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$431.97
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-PB2 is an Allen-Bradley CompactLogix DC power supply module designed to provide both 5 V DC and 24 V DC user power within a CompactLogix or Compact I/O system. It accepts a nominal 24 V DC input (19.2 - 31.2 V DC), delivers up to 2.0 A at 5 V and 0.7 A at 24 V, and supports up to eight I/O modules on each side. Commonly installed adjacent to controllers or I/O banks, it is used in industrial control cabinets for machine control, process automation, or distributed I/O applications.

Best Suited For

  • CompactLogix / Compact I/O banks
  • Supplying 5 V logic and 24 V field power simultaneously
  • Medium-sized module racks (up to 16 modules total)
  • Panel or DIN-rail installation in control panels
Input voltage range
19.2 … 31.2 V DC
5 V output current
2.0 A
24 V output current
0.7 A
Power dissipation
7.5 W @ 60 °C
Weight
525 g (1.16 lb)

Technical Specifications

I/O & Electrical

Input voltage range
19.2 … 31.2 V DC
Nominal input voltage
24 V DC
Current capacity @ 5 V
2.0 A
Current capacity @ 24 V
0.7 A

Communication & Power

Power consumption
50 VA @ 24 V DC

Physical & Environmental

Power dissipation
7.5 W @ 60 °C (140 °F)
Weight, approx.
525 g (1.16 lb)
Dimensions (HxWxD)
118 mm (4.65 in) height
Inrush current, max
30 A @ 31.2 V DC
Isolation voltage
75 V continuous; tested at 1697 V DC for 1 s
Fuse type
Wickmann 19193-6.3 A; Littelfuse 021706.3MXP
Mounting
Panel or DIN-rail
Wire size/type
14 AWG solid or stranded copper, 90 °C, max 1.2 mm insulation
Power supply distance rating
Up to 8 modules each side

Certifications

UL ListedATEXIECExUKCAChina CCCRegistro Italiano NavaleAmerican Bureau of ShippingUL HazardousMorocco DOC

Certified: UL Listed, ATEX, IECEx, UKCA, China CCC, Registro Italiano Navale, American Bureau of Shipping, UL Hazardous, Morocco DOC (as of May 17 2026).
