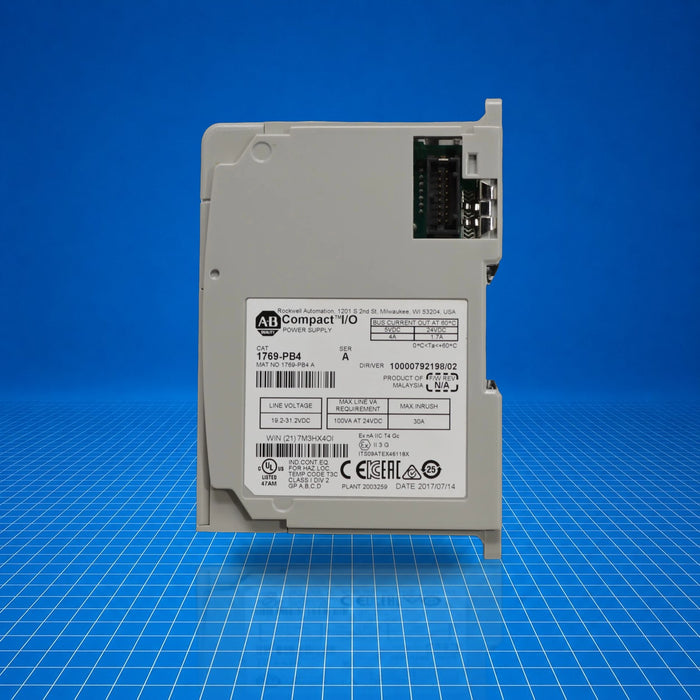

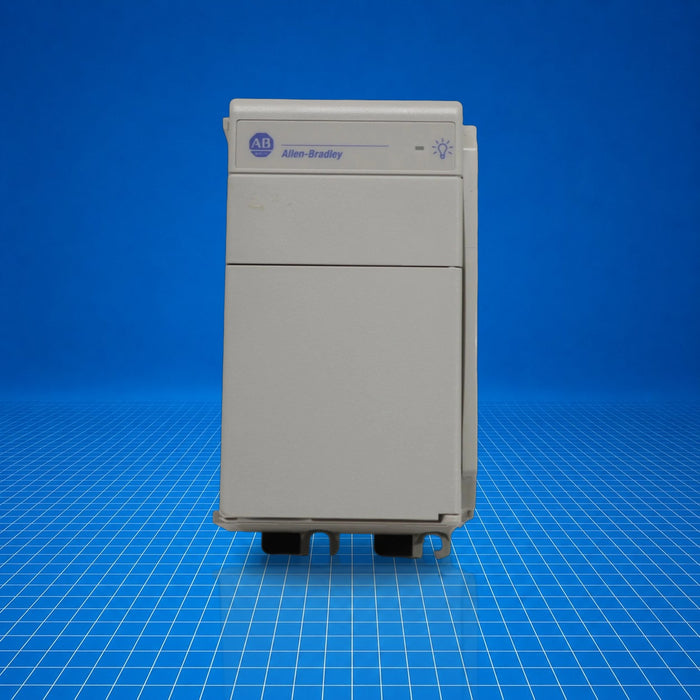

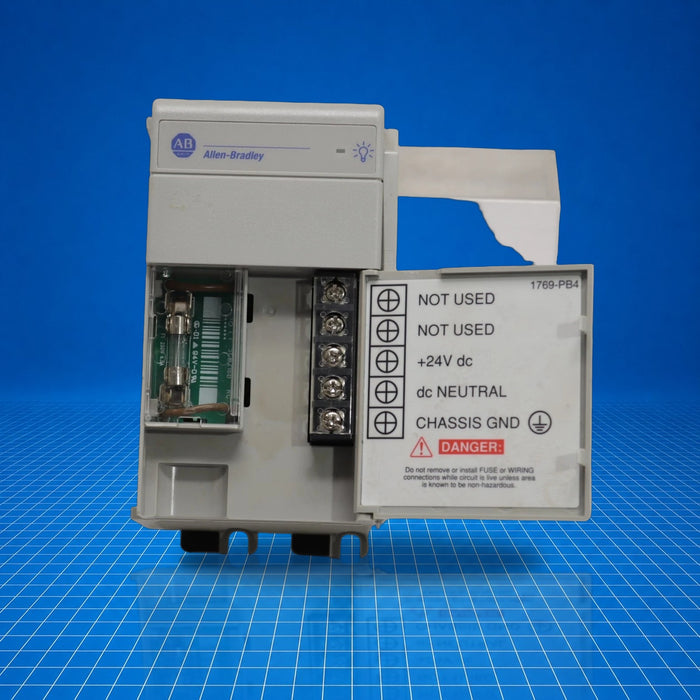

1769-PB4 Allen-Bradley

Name: 1769-PB4 Allen-Bradley
Brand: Allen Bradley
SKU: 1769-PB4
Price: 400.0 USD
Availability: InStock

$400.00 - $540.00

$400.00

$400.00 - $540.00

$400.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-PB4 is an Allen-Bradley CompactLogix power supply module in the L3x/L3y platform. It accepts 24 V DC input and provides both 5 V DC at 4 A and 24 V DC at 2 A outputs, and is used to power CompactLogix I/O modules typically arranged up to eight per side. It is intended for mounting on DIN rail or panel within industrial control systems, supplying both logic and field I/O power for mid-range CompactLogix installations. 1769-PB4 integrates into control cabinets as the primary power source for CompactLogix I/O expansion.

Best Suited For

Powering CompactLogix L3x/L3y I/O expansions
Cabinet or field enclosure installations
Applications requiring isolated 5 V and 24 V buses
Systems with up to eight I/O modules per supply

Input voltage range

19.2 - 31.2 V DC

Outputs (5 V / 24 V)

4 A @ 5 V DC / 2 A @ 24 V DC

Power consumption

100 VA @ 24 V DC

Mounting

DIN-rail or panel

Max modules per side

8 I/O modules

Technical Specifications

I/O & Electrical

Nominal input voltage

24 V DC

Input voltage range

19.2 - 31.2 V DC

Output current (5 V)

4 A @ 5 V DC

Output current (24 V)

2 A @ 24 V DC

Power consumption

100 VA @ 24 V DC

Power dissipation

14.5 W at 60 °C

Maximum inrush current

30 A @ 31.2 V DC

Physical & Environmental

Weight

0.94 lb (0.43 kg)

Mounting

DIN-rail or panel

Modules supported

Up to 8 per side

Certifications

IECExATEXCCCUKCA

Certified under IECEx and ATEX for Protection ec, temperature class T4; open-type enclosure intended for user-provided enclosure, as per IECEx certificate.
