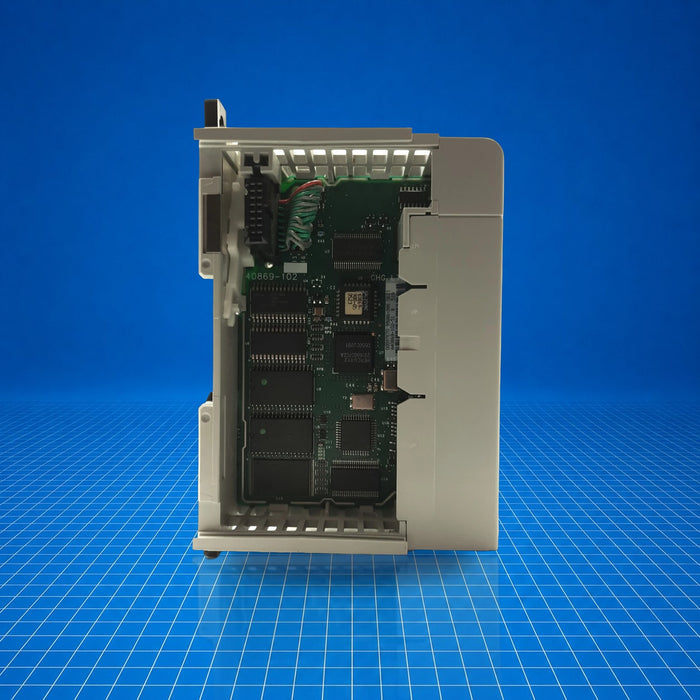

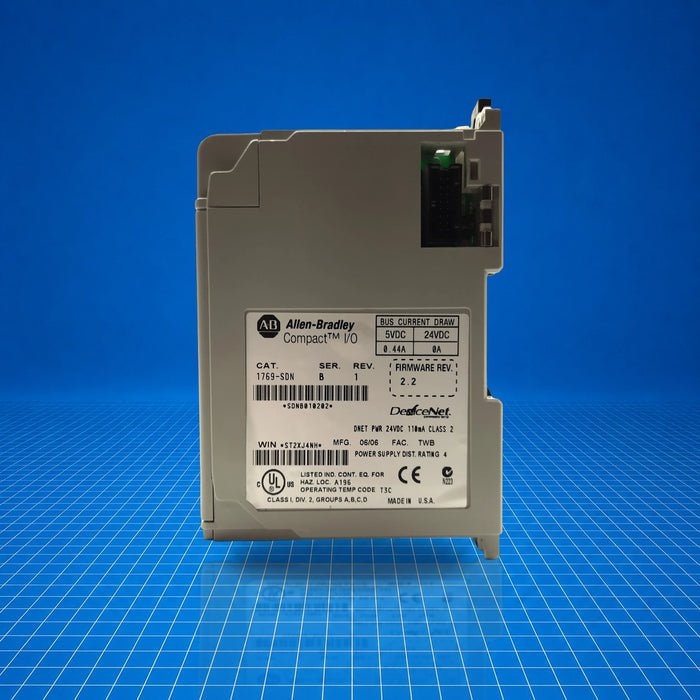

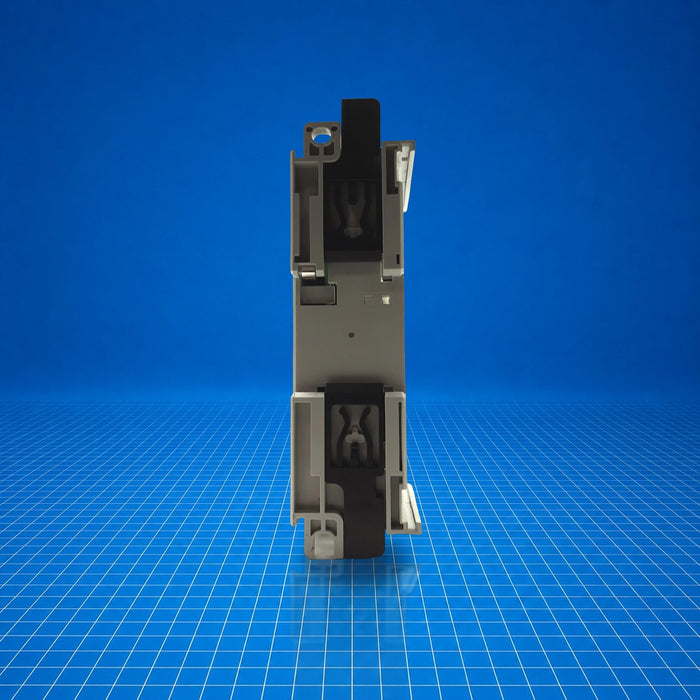

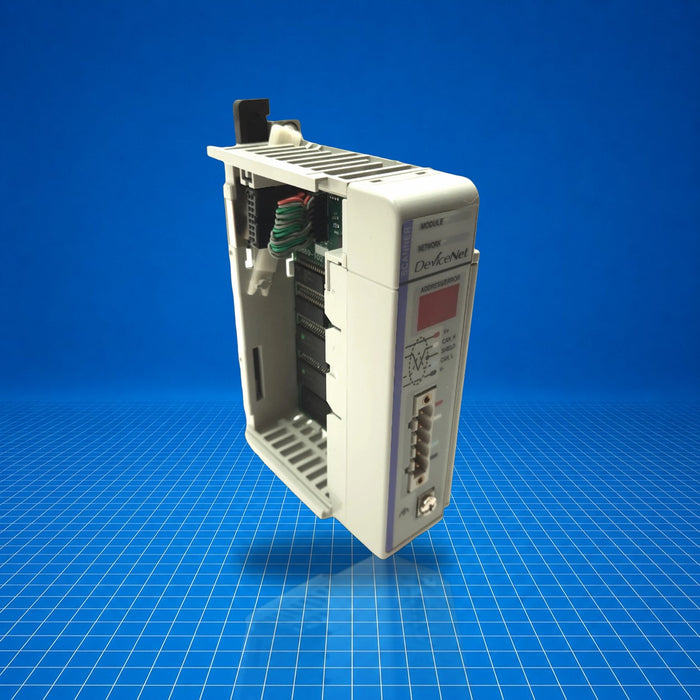

1769-SDN Allen-Bradley

Original price $315.00 - Original price $400.00
Original price
$400.00
$315.00 - $400.00
Current price $400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$315.00
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1769-SDN is an Allen-Bradley CompactLogix DeviceNet Scanner Module, part of the 1769 Compact I/O platform. It functions as a DeviceNet network scanner, enabling communication between a CompactLogix controller and DeviceNet devices for both master and slave applications. It finds use in applications requiring integration of DeviceNet I/O, sensors, or actuators into Logix-based control systems, particularly when bridging DeviceNet segments to a CompactLogix backbone. 1769-SDN facilitates explicit messaging and supports up to 64 network nodes.

Best Suited For

  • Integrating DeviceNet-based I/O with CompactLogix controllers
  • Bridge between DeviceNet devices and CompactLogix network
  • Systems requiring explicit messaging over DeviceNet
  • Applications with up to 64 network nodes
DeviceNet nodes, max
64
Communication rate, max
500 Kbps
Power dissipation
4.7 W
Current draw @ 24 V DC
110 mA
Operating temp range
0 to 60 °C

Technical Specifications

I/O & Electrical

DeviceNet current draw
110 mA @ 24 V DC
Backplane current draw
440 mA @ 5.2 V DC

Communication & Power

Supported protocol
DeviceNet
Communication rate
125, 250, or 500 Kbps
Power dissipation
4.7 W

Physical & Environmental

Dimensions (W×H×D)
50 mm × 118 mm × 87 mm
Weight, approx
0.28 kg
Operating temperature
0 to 60 °C
Non-operating temperature
-40 to 85 °C
Relative humidity
5 to 95 % non-condensing
Vibration
2 G @ 10-500 Hz
Shock (operating)
30 G
Enclosure type
Open-style
Mounting
DIN-rail or panel

Certifications

UL Listed for Class I Division 2 Groups A, B, C, D; CE (EN 61000-6-2 industrial immunity; EN 61000-6-4 industrial emissions); C-Tick (AS/NZS CISPR 11 industrial emissions); ODVA conformance tested to DeviceNet specifications.
