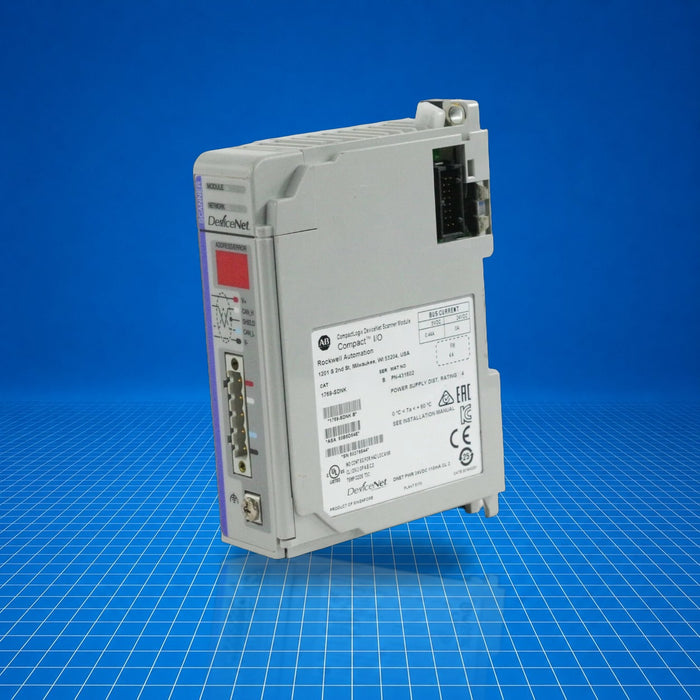

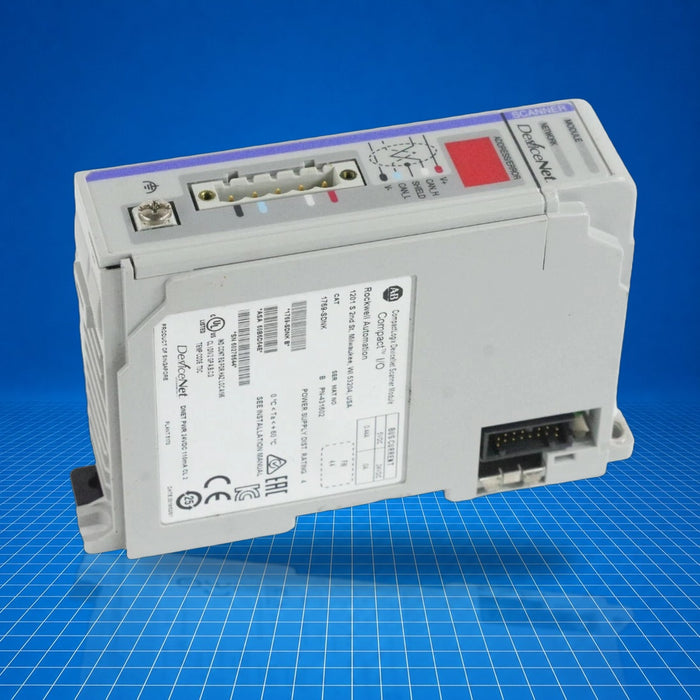

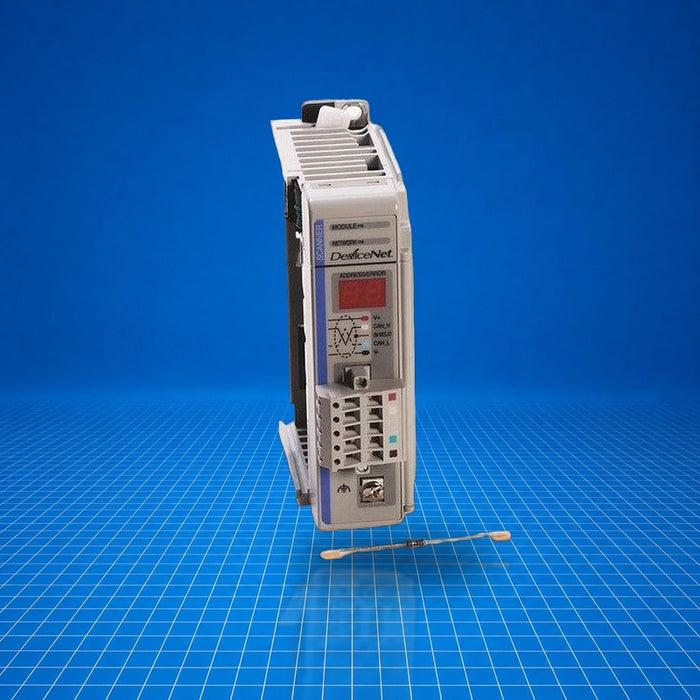

1769-SDNK Allen-Bradley
Original price
$1,959.98
-
Original price
$3,239.98
Original price
$1,959.98
$1,959.98
-
$3,239.98
Current price
$1,959.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1769-SDNK is an Allen-Bradley CompactLogix DeviceNet scanner module with conformal coating, designed to connect a CompactLogix controller to a DeviceNet network. Installed in a CompactLogix chassis, the 1769-SDNK serves as the master scanner for DeviceNet I/O and message-level devices. It supports up to 64 DeviceNet nodes and is suitable for environments requiring conformal coating for protection against moisture, dust, or minor contaminants. Common applications include factory floor I/O consolidation over DeviceNet, packaged machinery, and industrial environments requiring moderate environmental protection.
Best Suited For
- CompactLogix systems requiring DeviceNet communication
- Applications needing up to 64 DeviceNet nodes
- Environments where conformal coating is required
- Distributed I/O networks with 125/250/500 kbps DeviceNet
Max DeviceNet nodes
64
Communication rates
125 kbps / 250 kbps / 500 kbps
Power dissipation
4.7 W
Isolation voltage
30 V DC continuous (basic insulation)
Package weight
0.280 kg (0.61 lb)
Technical Specifications
I/O & Electrical
DeviceNet voltage range
11…25 V DC
Current draw at 5 V DC
440 mA
DeviceNet current draw at 24 V DC
110 mA (Class 2 / SELV)
Communication & Power
Communication rates
125 kbps (500 m max) / 250 kbps (250 m max) / 500 kbps (100 m max)
DeviceNet nodes supported
64
Power dissipation
4.7 W
Physical & Environmental
Dimensions (H×W×D)
118 × 50 × 87 mm (4.65 × 1.97 × 3.43 in.)
Weight, approx.
0.280 kg (0.61 lb)
Operating temperature
0…60 °C (32…140 °F)
Enclosure type
open-style (no enclosure rating)
Isolation voltage
30 V DC continuous (basic insulation, tested at 710 V DC for 60 s)
