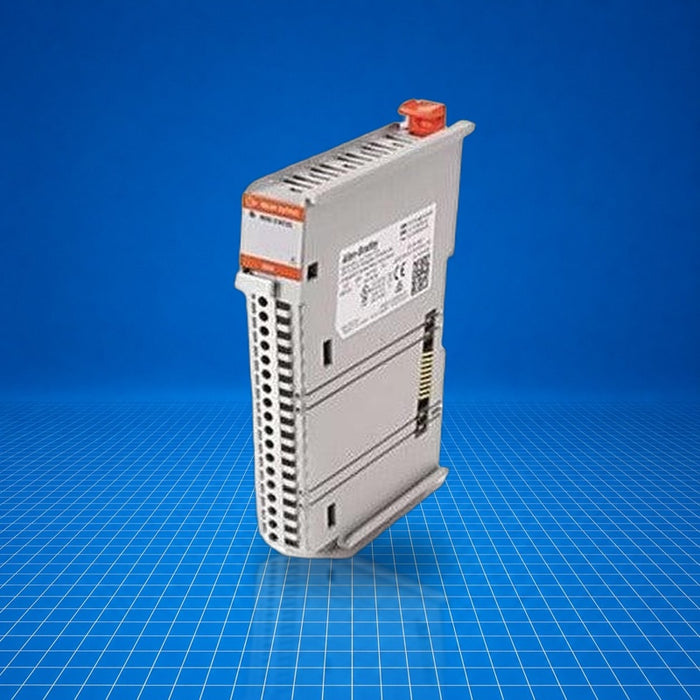

5069-OX4I Allen-Bradley
Original price
$742.47
-
Original price
$1,271.63
Original price
$1,271.63
$742.47
-
$1,271.63
Current price
$1,271.63
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 5069-OX4I is an Allen-Bradley Compact 5000 relay output module featuring four individually isolated Form C (SPDT) contacts, capable of switching both normally-open and normally-closed loads. It belongs to the Compact 5000 I/O family and interfaces with CompactLogix® 5380, Compact GuardLogix® 5380, CompactLogix 5480, and compatible ControlLogix® systems for local or distributed I/O implementations. The module provides isolation between channels and the backplane, and is typically applied in industrial control tasks where flexible relay outputs are required for ac/dc switching.
Best Suited For
- CompactLogix 5380 system I/O expansion
- Distributed I/O over EtherNet/IP via Compact 5000 adapters
- Relay control tasks with mixed NO/NC contact needs
- Applications requiring channel-to-channel isolation
Channels
4 (Form C, SPDT)
Output voltage range
5…264 V AC / 5…125 V DC
Contact current rating
2 A per channel, 8 A per module max
Power dissipation
2.6 W
Isolation voltage
250 V continuous
Technical Specifications
I/O & Electrical
Output channels
4 Form C (SPDT)
Output voltage range
5…125 V DC, 5…264 V AC
Contact current rating
2 A per channel; 8 A per module max
Off-state leakage
0 mA (dry contact, no onboard snubbers)
Minimum load current
10 mA
Expected contact life
300 K cycles resistive; 100 K cycles inductive
Switching frequency
0.3 Hz (1 operation every 3 s at rated load)
Make / Break ratings
At 240 VAC: 2 A cont, make 7.5 A / break 0.75 A; at 125 V DC: cont 0.225 A, make/break derived
Communication & Power
MOD power consumption
75 mA @ 18…32 V DC
MOD power passthrough
9.55 A @ 18…32 V DC
SA power passthrough
9.95 A @ 0…32 V DC
Power dissipation, max
2.6 W
Thermal dissipation, max
8.88 BTU/hr
Module does not draw SA power current
Physical & Environmental
Indicators
1 green/red module status; 4 yellow/red I/O status
Wire category
1 relay port, 1 power port; 1 wire per terminal per signal
Output delay time, max (Off to On)
15 ms
Initial contact resistance, max
30 mΩ
Bounce time, mean
500 µs
