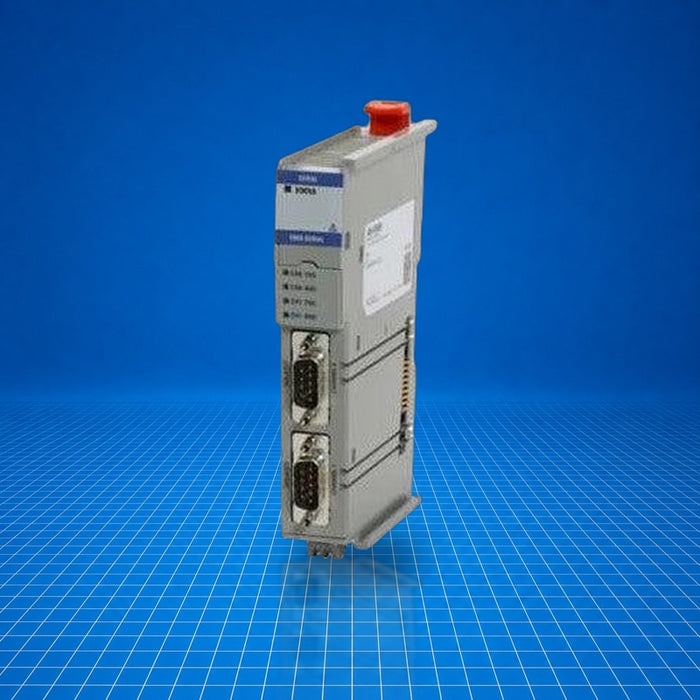

5069-SERIAL Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

5069-SERIAL Allen-Bradley

$701.25 - $1,235.16
$701.25
$701.25 - $1,235.16
$701.25
Surplus - Tested (With Warranty)
Need a Specific Revision?
$701.25
23 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,235.16
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (23) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 5069-SERIAL is an Allen-Bradley Compact 5000 serial interface module providing two serial communication channels (RS-232C/RS-422 full-duplex and RS-485 half-duplex) for CompactLogix PAC systems. Installed on the 5069 I/O backplane, it enables integration of serial devices such as barcode readers, scales, or custom instrumentation into EtherNet/IP control systems. The 5069-SERIAL routes serial data to the controller across the backplane while drawing module (MOD) power and optionally passing through system (SA) power.

Best Suited For

  • Adding RS-232/RS-422/RS-485 serial devices to Compact 5000 systems
  • Integrating legacy serial instrumentation into EtherNet/IP networks
  • On-machine serial communication modules
  • Applications requiring backplane-mounted serial interfaces
Channels
2 serial (RS-232C/RS-422 full-duplex; RS-485 half-duplex)
EtherNet/IP Support
Yes (module rack extension)
Power Dissipation
2.8 W (max)
Thermal Dissipation
9.6 BTU/h (max)

Technical Specifications

I/O & Electrical

MOD power draw
100 mA @ 18…32 V DC
MOD power passthrough, max
9.55 A @ 18…32 V DC
SA power passthrough, max
9.95 A @ 0…32 V DC
Serial input voltage signal
3…25 V DC (SG 0 asserted), -3…-25 V DC (SG 1)

Communication & Power

Communication ports
Two DB-9 male
Operating modes
Generic ASCII; Modbus RTU; Modbus ASCII; DF-1 (Ch 1 only); DH-485 (Ch 1 only)
Handshaking
RTS/CTS hardware (always enabled; user-controlled)

Physical & Environmental

Width
22 mm
Height
137.85 mm
Depth
105.42 mm
Weight
175 g
Operating temperature
0 °C to 60 °C (32 °F to 140 °F)
Non-operating temperature
-40 °C
Relative humidity
5…95 % non-condensing
Shock
Operating: 30 G; Non-operating: 50 G
Vibration
5 G @ 10…500 Hz
EMC - ESD immunity
6 kV contact, 8 kV air
EMC - EFT/B immunity
±4 kV @ 5 kHz (power); ±3 kV @ 5 kHz (shielded comm)
EMC - Surge transient
±1 kV DM & ±2 kV CM (power); ±2 kV CM (shielded comm)
EMC - Conducted RF immunity
10 V rms @ 150 kHz…80 MHz
EMC - Radiated RF immunity
10 V/m @ 80…2000 MHz (various modulations)

Certifications

Certified as of 2026-05-20 for China CCC, American Bureau of Shipping, Registro Italiano Navale, Morocco DOC, Eurasian Economic Community. Verify label for current certifications.
