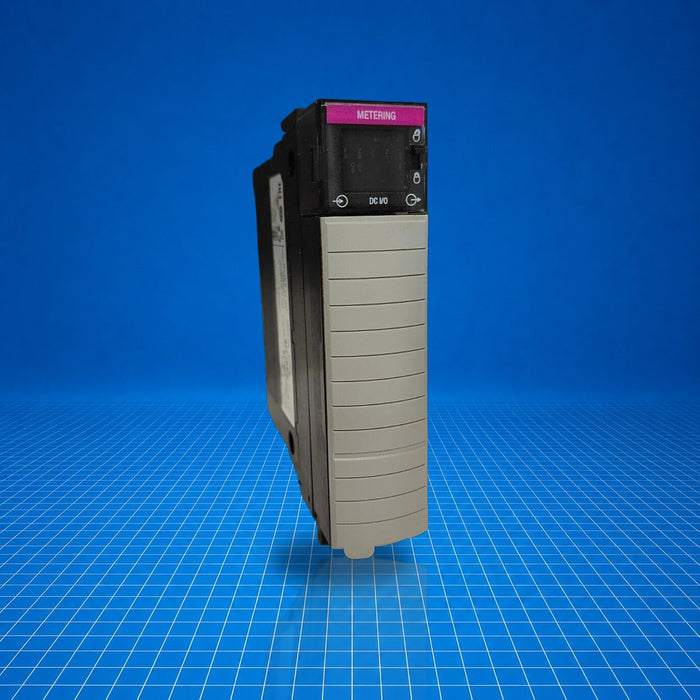

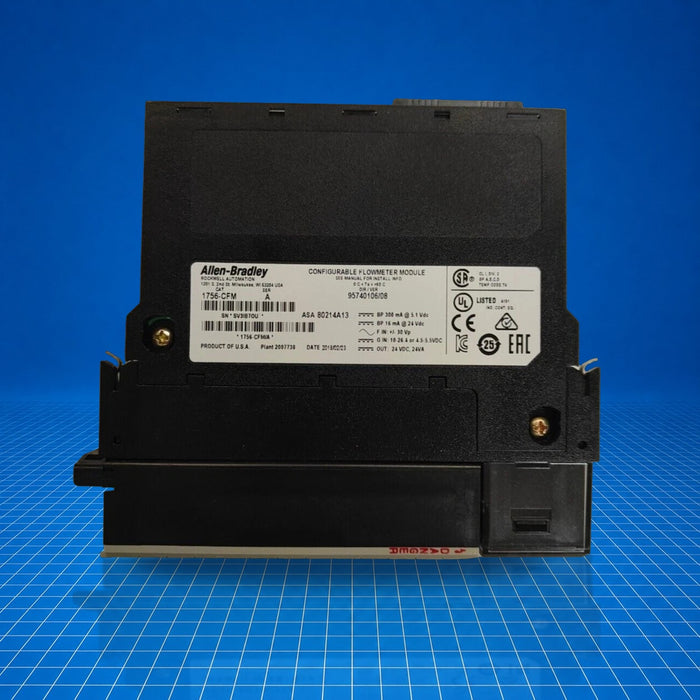

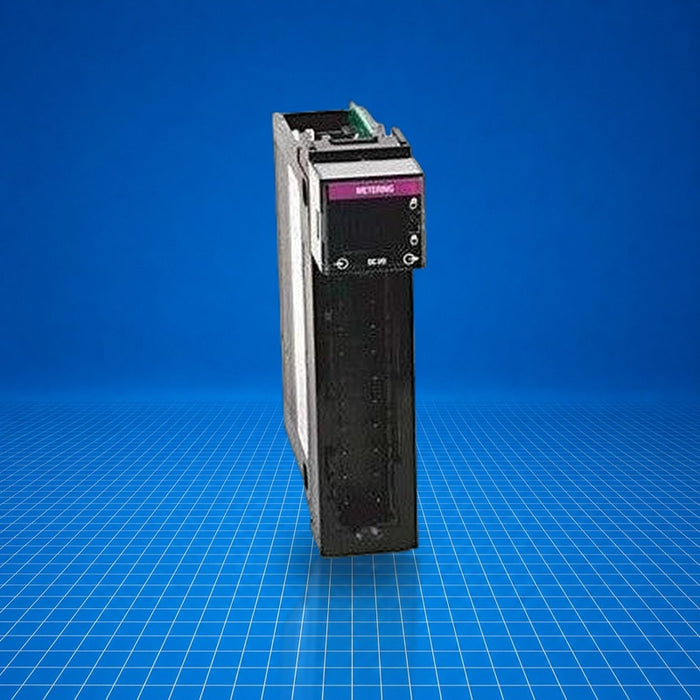

1756-CFM Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-CFM Allen-Bradley

$0.00 - $1,262.25
$1,262.25
$0.00 - $1,262.25
$1,262.25
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,262.25
4 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-CFM is a ControlLogix® Configurable Flowmeter Module in the 1756 I/O family. It occupies a single slot in a ControlLogix chassis and performs high-speed flow metering via two configurable flowmeter channels with gate/count capabilities. Typical uses include flow rate measurement, totalizer functions, and prover/store counting in industrial process control environments. 1756-CFM integrates directly with a Logix controller to streamline monitoring and control of flow-based operations.

Best Suited For

  • High-speed flow rate measurement
  • Totalizer and prover count applications
  • Integration with ControlLogix systems
  • On-machine or panel-mounted flow monitoring
Slots required
1 slot
Channels
2 flowmeter + 2 gate inputs
Backplane power (5.1 V)
300 mA
Outputs
2 current-sourcing
Operating temp range
0 to 60 °C

Technical Specifications

I/O & Electrical

Flowmeter inputs per channel
2 flowmeter + 2 gate inputs
Flowmeter input voltage range
±30 V peak
Input thresholds selectable
50 mV, 1.3 V, 4 V
Gate input voltage range
5 V ops: 4.5…5.5 V DC; 12/24 V ops: 10…26.4 V DC
Backplane current draw (5.1 V)
300 mA
Backplane current draw (24 V)
16 mA
Total backplane power
1.7 W
Power dissipation, max
6 W @ 60 °C
Thermal dissipation
20.4 BTU/h

Communication & Power

Digital outputs configurable
False
Digital inputs configurable
True
Output type
IEC 1 A 24 V DC current-sourcing
Output voltage range, nom
5 V ops: 4.5…5.5 V DC; 12/24 V ops: 10…31.2 V DC
Output current per point
20 mA @ 5 V ops; 40 mA…1 A @ 12/24 V ops
On-state voltage drop, max
0.6 Ω × current
Off-state leakage current, max
<300 µA @ 31.2 V DC
Output switching time
<50 µs on; <300 µs off; <1 ms otherwise

Physical & Environmental

Operating temperature
0 to 60 °C
Surrounding air temp, max
60 °C
Non-operating temperature
-40 °C
Relative humidity
5…95 % non-condensing
Shock (operating)
30 G
Shock (non-operating)
50 G
Vibration
2 G @ 10…500 Hz
Enclosure type
None (open-style)

Certifications

UL ListedATEXUL Listed HazardousIECExChina CCCAustralian RCMCE

Certified at least as of 17 May 2026 to UL Listed, ATEX, UL Listed Hazardous, IECEx, China CCC, Australian RCM, CE. Review product label for specific unit certifications.
