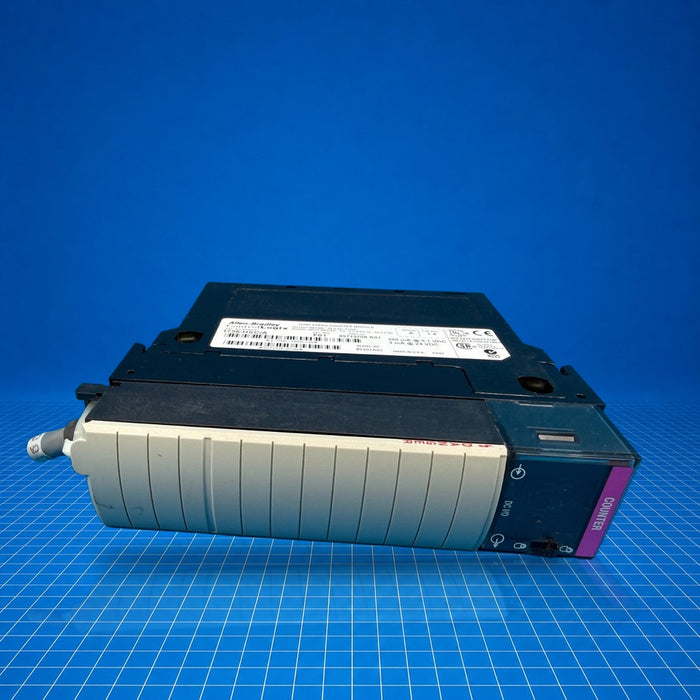

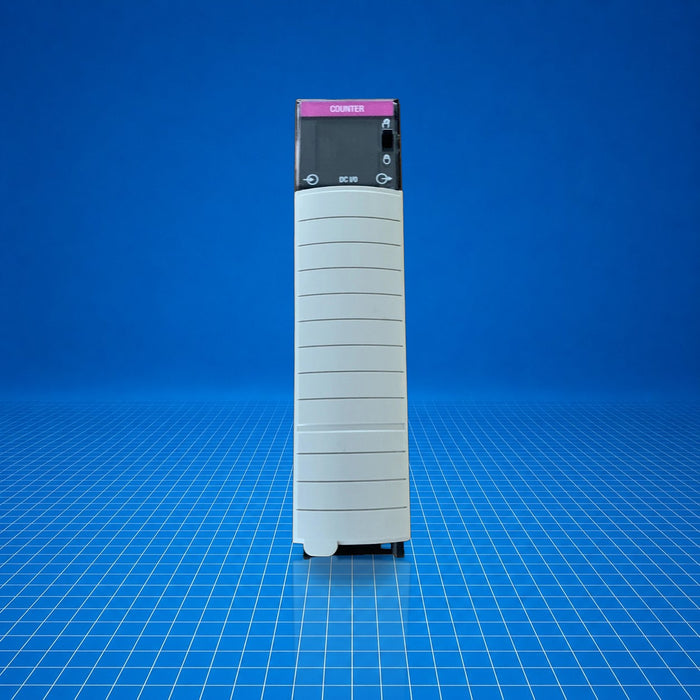

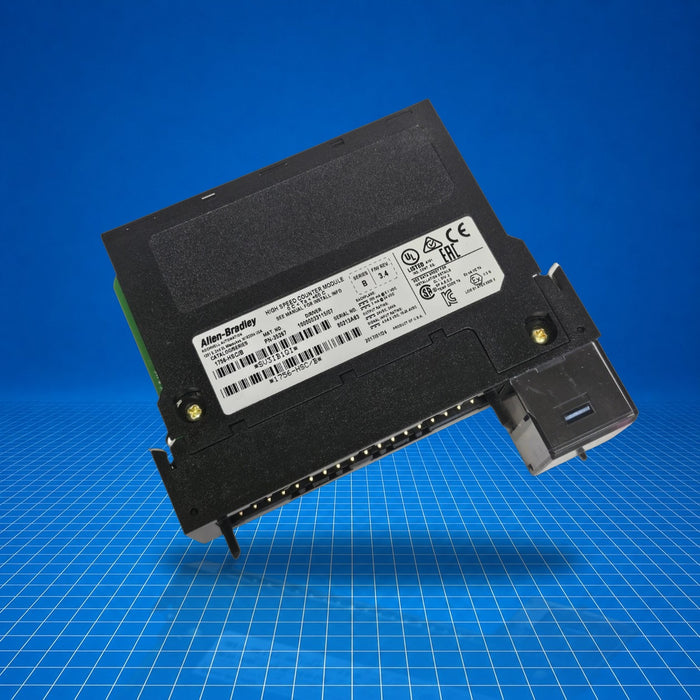

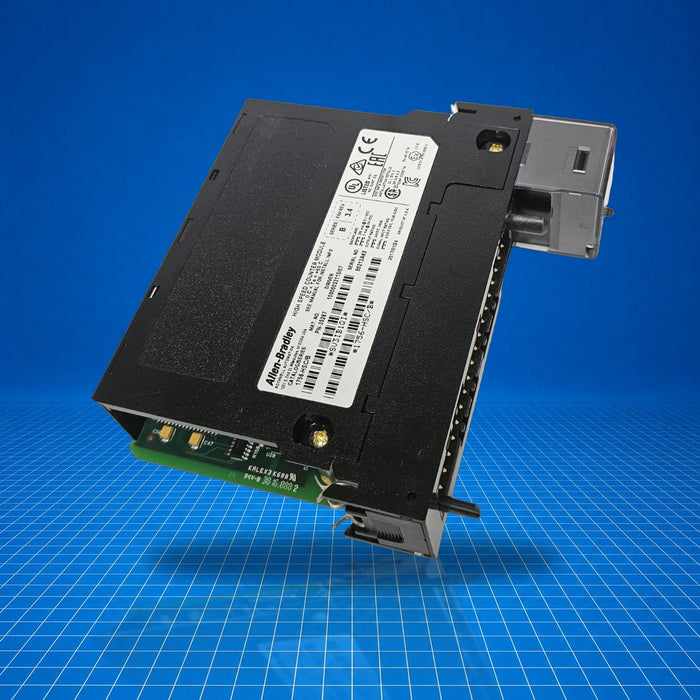

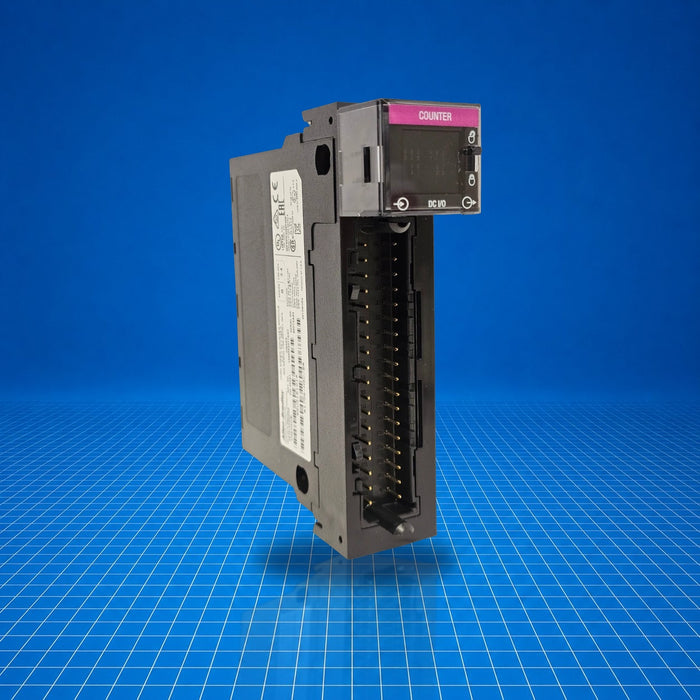

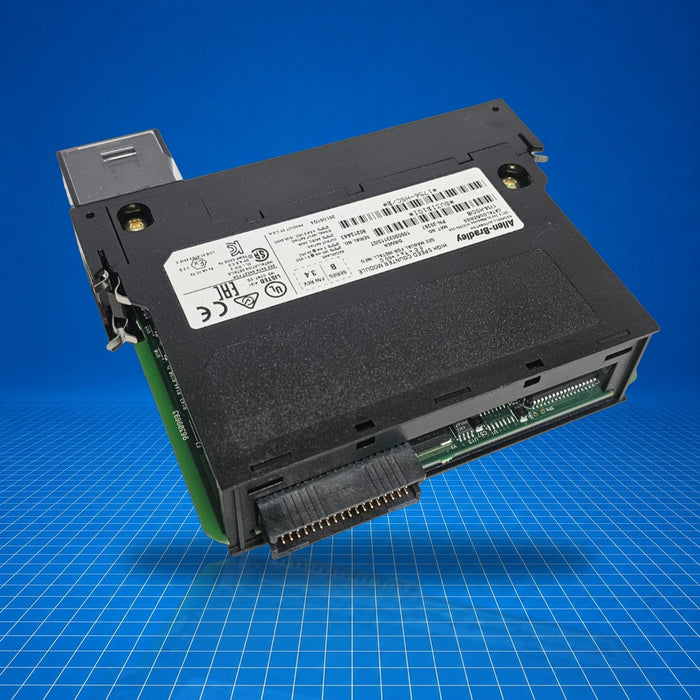

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-HSC Allen-Bradley

Name: 1756-HSC Allen-Bradley
Brand: Allen Bradley
SKU: 1756-HSC
Price: 400.0 USD
Availability: InStock

$400.00 - $659.86

$400.00

$400.00 - $659.86

$400.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-HSC is an Allen-Bradley ControlLogix High-Speed Counter module that provides two independent counter channels with four configurable outputs. It occupies one backplane slot in a ControlLogix chassis and is designed to process high-speed pulse, frequency, and quadrature encoder inputs, delivering accumulated count or rate information to the controller. Typical applications include motion tracking, rapid machine cycle monitoring, and encoder-based positioning. The 1756-HSC enables precise counting tasks and feedback integration in automated systems.

Best Suited For

High-speed pulse counting
Quadrature encoder integration
Machine cycle monitoring
Speed/frequency measurement
Position tracking in motion systems

Counters

2 independent channels

Inputs per counter

3 (A, B, Z)

Max input frequency

1 MHz (counter mode)

Outputs

4 total (2 per channel)

Backplane power / dissipation

1.6 W / 3.5 W max @ 60 °C

Technical Specifications

I/O & Electrical

Operating voltage (inputs/outputs)

5 V ops: 4.5…5.5 V DC; 12/24 V ops: 10…26.4 V DC

Backplane current draw

300 mA @ 5.1 V; 3 mA @ 24 V

Total backplane dissipation

1.6 W

Total power dissipation, max

3.5 W @ 60 °C

Shock / Vibration

30 G operating; 50 G non-operating / 2 G @ 10…500 Hz

Isolation voltage

250 V input-to-backplane; 125 V input-to-input

Communication & Power

Counting frequency, max

1 MHz (counter mode); 500 kHz (rate); 250 kHz (encoder); 70 Hz (filter)

Output current rating, per point

20 mA @ 4.5…5.5 V DC; 1.0 A @ 10…31.2 V DC

On-state voltage drop (max)

0.55 V

Off-state leakage current, per point (max)

300 µA

Surge current, per point

2 A for 10 ms every 1 s @ 60 °C

Debounce filter (max)

70 Hz

Physical & Environmental

Operating temperature

0…60 °C

Non-operating temperature

-40 °C

Relative humidity

5…95 % non-condensing

Enclosure type

Open-style (no enclosure)

Slot width

1 slot

Wire size / screw torque

0.25…2.5 mm² (22…14 AWG); 0.5 N·m (4.4 lb-in)

Certifications

ATEXIECExChina CCCCEAustralian RCMKorean KCUL Listed HazardousUKCAEurasian Economic Community

Certified to ATEX, IECEx, China CCC, CE, Australian RCM, Korean KC, UL Listed (Hazardous), UKCA, Eurasian Economic Community as of May 17, 2026; UL compliance also for Series C models per Certificate E65584 dated January 7, 2021.
