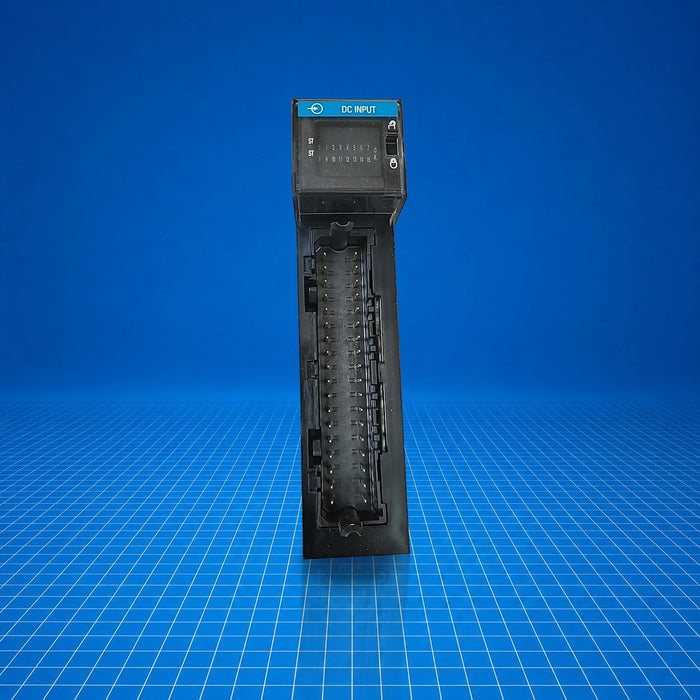

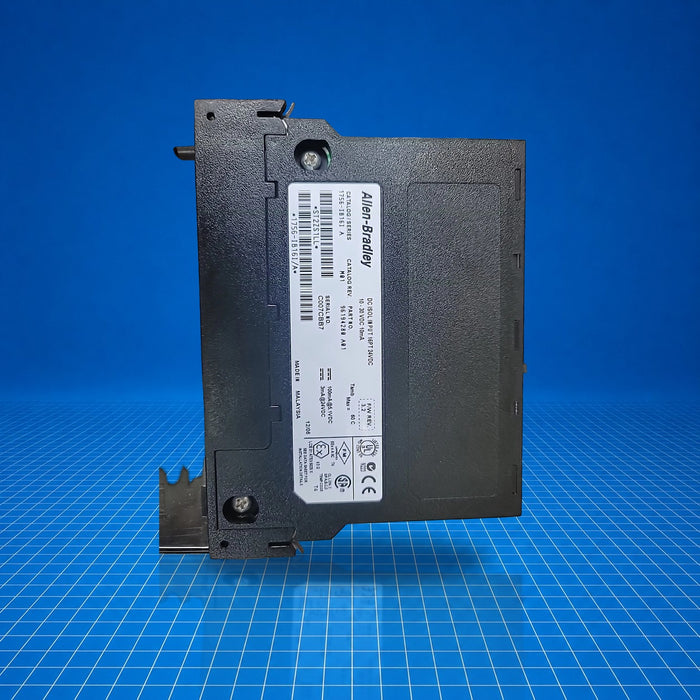

1756-IB16 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-IB16 Allen-Bradley

$308.31 - $400.00
$400.00
$308.31 - $400.00
$400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$308.31
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-IB16 is an Allen-Bradley ControlLogix 16-point DC input module, part of the 1756 I/O platform. It provides sink-type discrete DC input channels (12/24 V DC nominal), typically employed in industrial control systems for receiving field signals such as pushbuttons, sensors, or switches. It mounts in a ControlLogix chassis and communicates via the backplane. The module is used in manufacturing automation, machine control, and process monitoring applications. The part number 1756-IB16 is referenced twice.

Best Suited For

  • ControlLogix chassis discrete input integration
  • Reading 16 binary field signals at 12-24 V DC
  • Applications requiring compact 20-pin DC input modules
  • General industrial automation sensing
Points
16
Input voltage range
10…31.2 V DC
Backplane current draw
2 mA @ 24 V
Power dissipation
5.1 W @ 60 °C
Certifications
CE, UL, ATEX, IECEx, etc.

Technical Specifications

I/O & Electrical

Input points
16
Nominal input voltage
24 V DC
Operating voltage range
10…31.2 V DC
On-state current, min
2 mA @ 10 V DC
On-state current, max
10 mA @ 31.2 V DC
Off-state current, max
1.5 mA
Input delay time (Off→On)
290 µs nominal + filter time
Input delay time (On→Off)
700 µs nominal + filter time

Communication & Power

Backplane current @ 5.1 V
100 mA
Backplane power
0.56 W
Power dissipation, max
5.1 W @ 60 °C
Thermal dissipation
17.39 BTU/hr

Certifications

China CCCCEIECExATEXAustralian RCMEurasian Economic CommunityUL Listed HazardousFM Approved

Certifications include China CCC, CE, IECEx, ATEX, Australian RCM, Eurasian Economic Community, UL Listed Hazardous, FM Approved (as of May 17, 2026).
