1756-IB16D Allen-Bradley

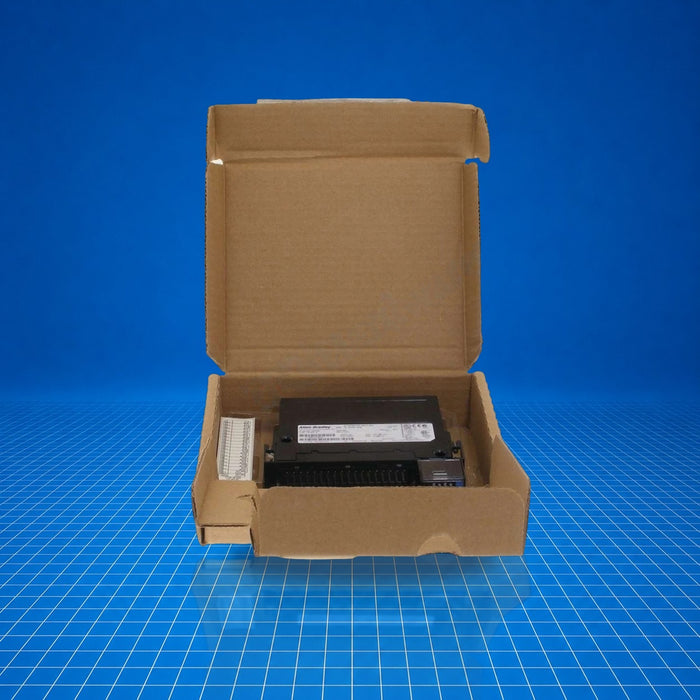

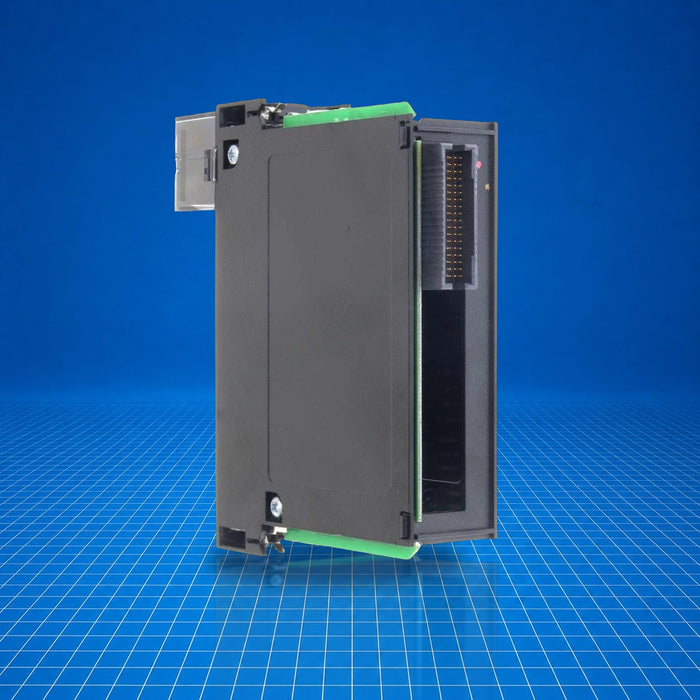

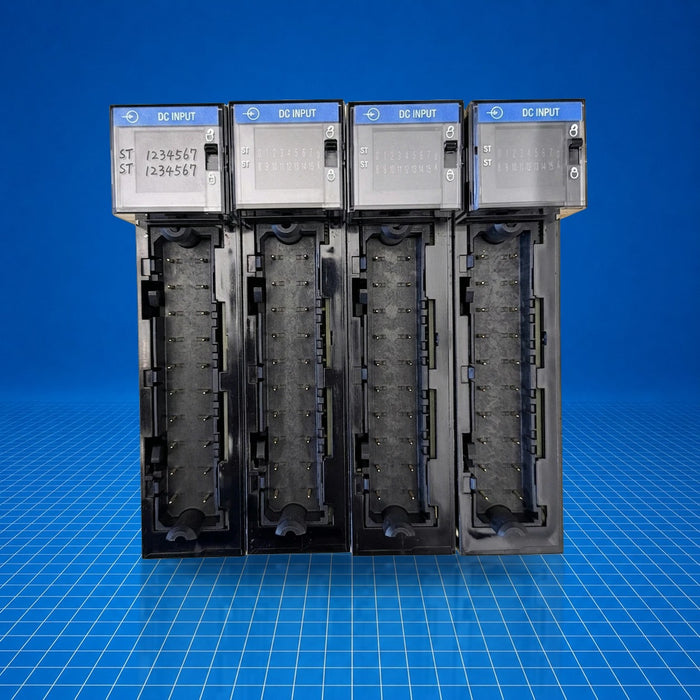

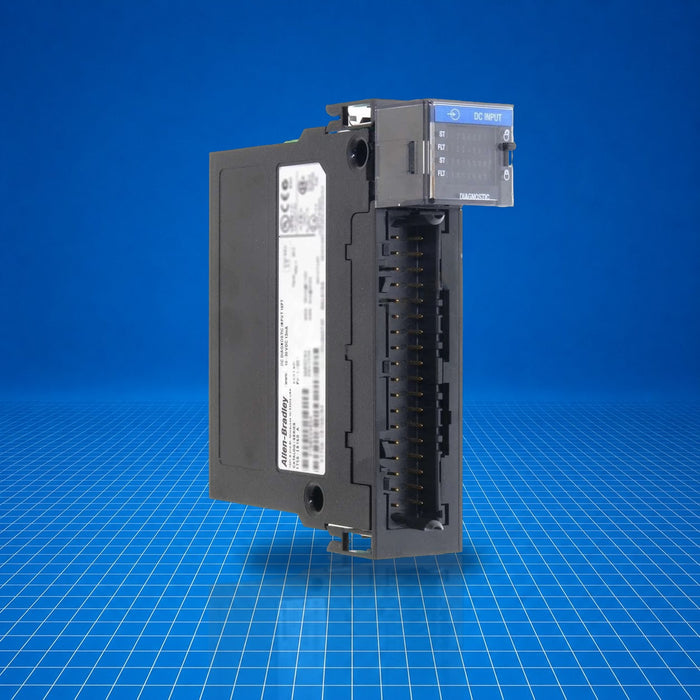

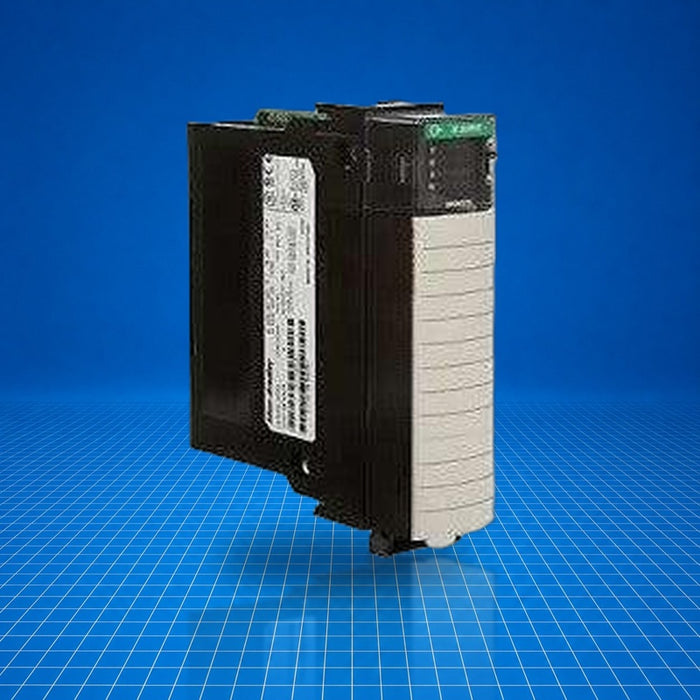

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-IB16D Allen-Bradley

$400.00 - $521.40
$400.00
$400.00 - $521.40
$400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$521.40
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 1756-IB16D is a ControlLogix digital input module with 16 diagnostic DC input channels. Designed for mounting on a ControlLogix backplane, it provides 12/24 V DC sink-type inputs with per-channel diagnostics. Typical applications include general discrete input monitoring, fault detection, and process control in industrial automation systems using ControlLogix platforms. Part number 1756-IB16D implements enhanced diagnostics compared to standard input modules.

Best Suited For

  • Discrete input monitoring in ControlLogix systems
  • Applications requiring per-channel diagnostic feedback
  • Industrial machine safety and status detection
  • Control cabinets needing modular I/O expansion
Channels
16
Input voltage range
10…30 V DC
Diagnostics
Per-channel (4 groups)
Isolation voltage
250 V (inputs-to-backplane & group-to-group)
Power dissipation (max)
5.8 W @ 60 °C

Technical Specifications

I/O & Electrical

Number of input channels
16
Operating voltage range
10…30 V DC
Nominal input voltage
24 V DC
Input voltage category
12/24 V DC sink
Isolation voltage
250 V (continuous)
Off-state voltage, max
5 V
Off-state current, max
1.5 mA
On-state current, min
2 mA @ 10 V DC
On-state current, max
13 mA @ 30 V DC
Inrush current, max
250 mA
Input impedance, max
2.31 kΩ @ 30 V DC

Communication & Power

Backplane current draw @ 5.1 V
150 mA
Backplane current draw @ 24 V
3 mA
Total backplane power
0.84 W
Power dissipation, max
5.8 W @ 60 °C
Thermal dissipation
19.78 BTU/hr

Physical & Environmental

Cyclic update time
200 µs…750 ms
Time-stamp accuracy
±200 µs
Module keying
Electronic, software configurable
Removable terminal block
1756-TBCH, 1756-TBS6H
Slot width
1
Enclosure type
None (open-style)
Temperature code
T3
Reverse polarity protection
Yes

Certifications

UL Listed HazardousCEATEXIECExAustralian RCMChina CCCEurasian EAC

This module holds CE, UL Listed Hazardous, ATEX, IECEx, Australian RCM, China CCC, Eurasian Economic Community certifications as of May 17, 2026.
