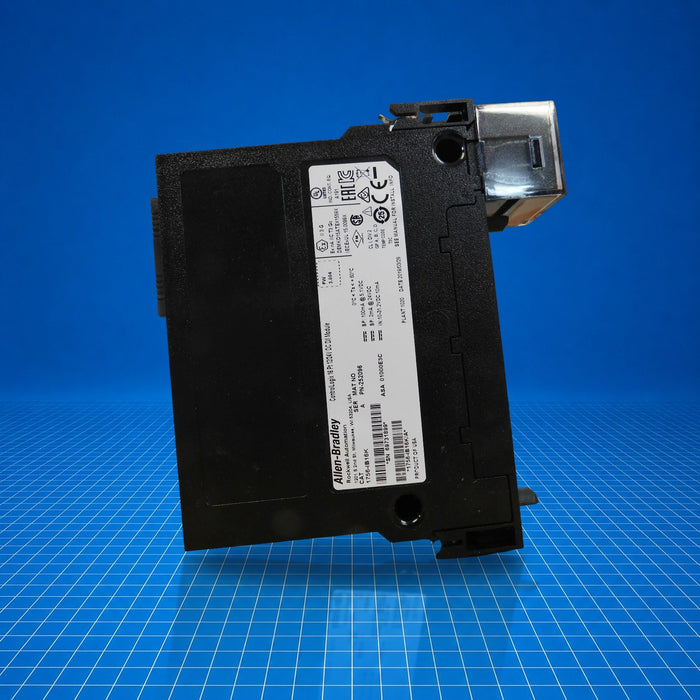

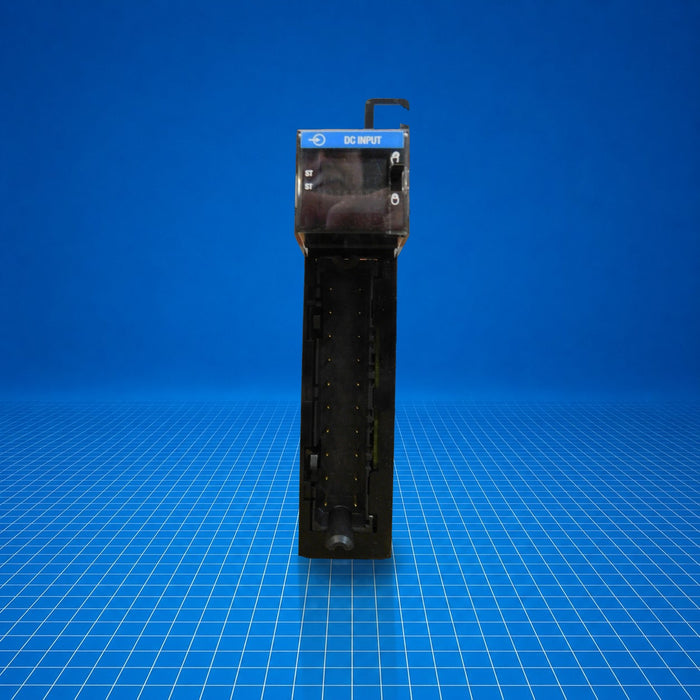

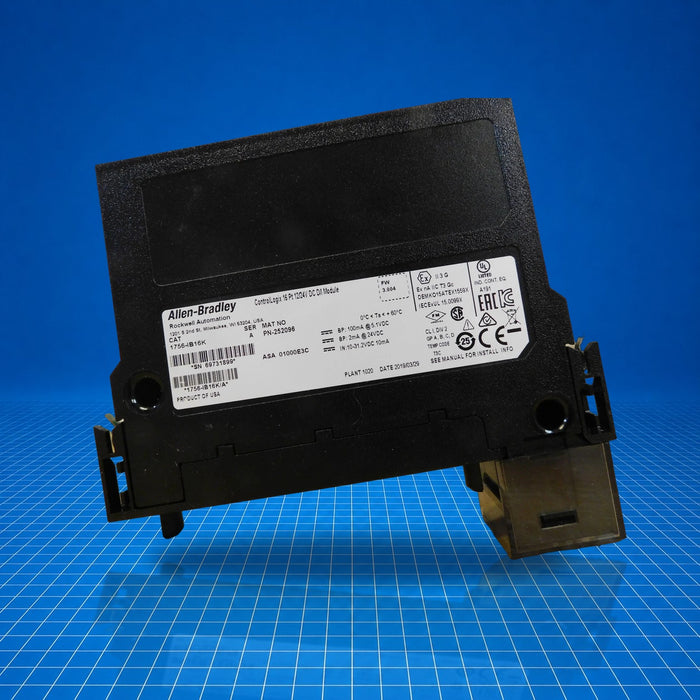

1756-IB16K Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-IB16K Allen-Bradley

$450.00 - $824.78
$824.78
$450.00 - $824.78
$824.78
Surplus - Tested (With Warranty)
Need a Specific Revision?
$824.78
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$450.00
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-IB16K is an Allen-Bradley ControlLogix series DC digital input module offering 16 sinking inputs with conformal coating. It installs in a 1756 chassis and interfaces with backplane communications to relay discrete input status to a ControlLogix controller. Suitable for general-purpose sensing tasks in industrial automation, it supports environments exposed to contaminants or humidity.

Best Suited For

  • Discrete DC input sensing in ControlLogix systems
  • Environments requiring conformal coating protection
  • Integration with 1756 chassis backplane
  • Applications needing compact 16-point sinking inputs
Inputs
16 sinking DC inputs
Operating voltage range
10…31.2 V DC
Power dissipation
5.1 W @ 60 °C
Isolation
250 V continuous, basic, inputs-to-backplane and group-to-group

Technical Specifications

I/O & Electrical

Inputs
16 sinking DC inputs (8 per group)
Operating voltage range
10…31.2 V DC
Input voltage, nominal
24 V DC
On-state current, min
2 mA @ 10 V DC
On-state current, max
10 mA @ 31.2 V DC
Off-state current, max
1.5 mA
Input delay time
Hardware: 290 μs nom/1 ms max + filter (0, 1 ms, 2 ms); Off-to-On hardware 700 μs nom/2 ms max + filter (0, 1, 2, 9, 18 ms)
Isolation voltage
250 V continuous, basic insulation inputs-to-backplane and group-to-group

Communication & Power

Backplane current draw @ 5.1 V
100 mA
Backplane current draw @ 24 V
2 mA
Total backplane power
0.56 W
Power dissipation, max
5.1 W @ 60 °C (17.39 BTU/hr)

Physical & Environmental

Conformal coating
Yes ('K' suffix indicates coating)
Corrosive atmosphere rating
Severity Level G3 (ANSI/ISA 71.04-2013) and CX (IEC 60721-3-3:2019)
Operating temperature
0 °C to 60 °C (32 °F to 140 °F)
Enclosure type
Open-style (no enclosure)

Certifications

CCCATEXIECExRCMEACCE

Certified to China CCC, ATEX, IECEx, Australian RCM, Eurasian Economic Community, CE. Conformal-coated version ('K') adds corrosive-atmosphere rating per ANSI/ISA 71.04-2013 and IEC 60721-3-3. No explicit UL/cULus listed on datasheet.
