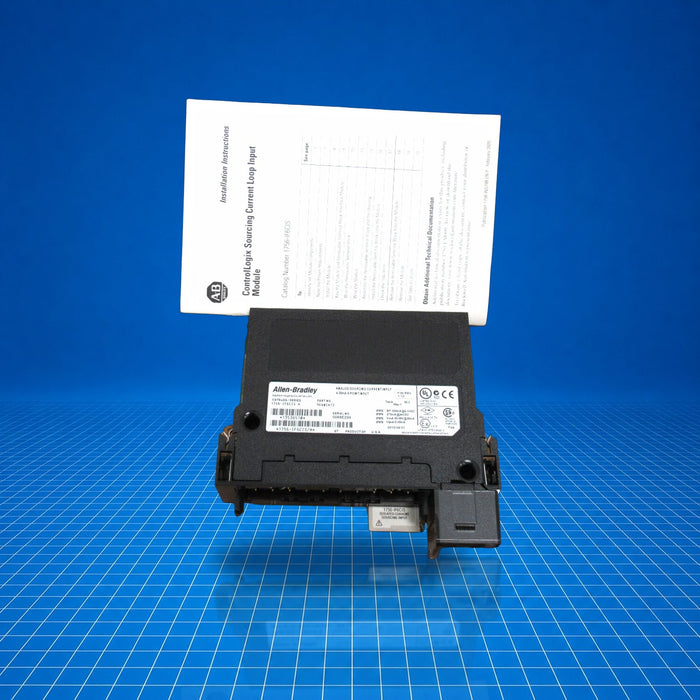

1756-IF6CIS Allen-Bradley
Original price
$2,242.07
-
Original price
$4,375.00
Original price
$2,242.07
$2,242.07
-
$4,375.00
Current price
$2,242.07
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-IF6CIS is an Allen-Bradley ControlLogix analog input module providing six individually isolated current-sourcing inputs. It sources current for two-wire transmitters with per-point isolation and integrates into ControlLogix racks to acquire analog signals. This module supports standard industrial control tasks such as sensor input acquisition, process monitoring, and conversion of field current signals into digital data for programmable automation control systems.
Best Suited For
- Integration in ControlLogix systems requiring isolated current-sourcing inputs
- Two-wire transmitter signal acquisition
- Industrial process control with 0…20 mA loops
- Applications needing per-point isolation to minimize crosstalk
- Replacement of discontinued 1756 analog input modules
Channels
6 isolated current-sourcing inputs
Input range
0…20 mA
Resolution
16 bit (0.34 µA/bit)
Backplane power
7.9 W
Max power dissipation
5.1 W @ 60 °C
Technical Specifications
I/O & Electrical
Input range
0…20 mA
Resolution
16 bit (0.34 µA/bit)
Input impedance
≈ 215 Ω
Open-circuit detection time
Zero reading within 5 s
Communication & Power
Current draw @ 5.1 V DC
250 mA
Current draw @ 24 V DC
275 mA
Total backplane power
7.9 W
Power dissipation, max
5.1 W @ 60 °C
Physical & Environmental
Thermal dissipation
17.4 BTU/hr
Channel bandwidth
3…262 Hz (-3 dB)
Settling time
< 80 ms to 5 % of full scale
Calibrated accuracy (25 °C)
Better than 0.1 % of range (nominal)
Calibration interval
12 months
Certifications
UL ListedCEcULus
