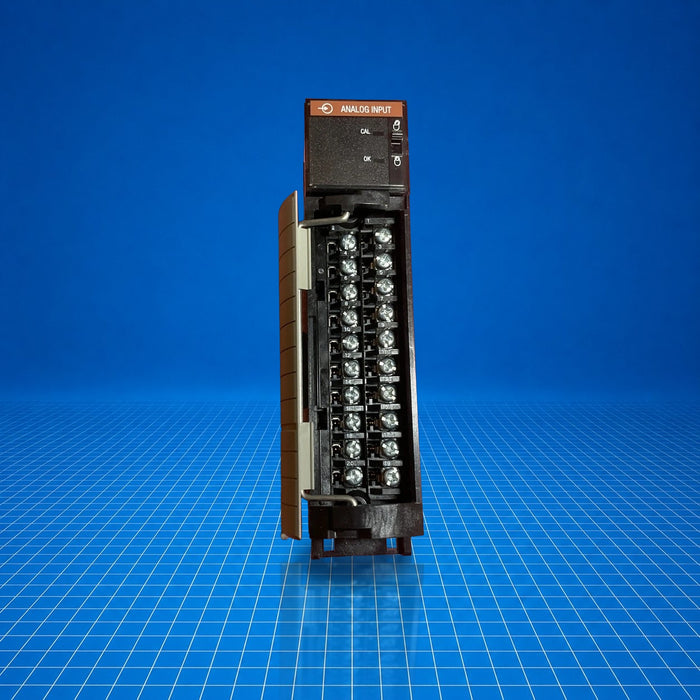

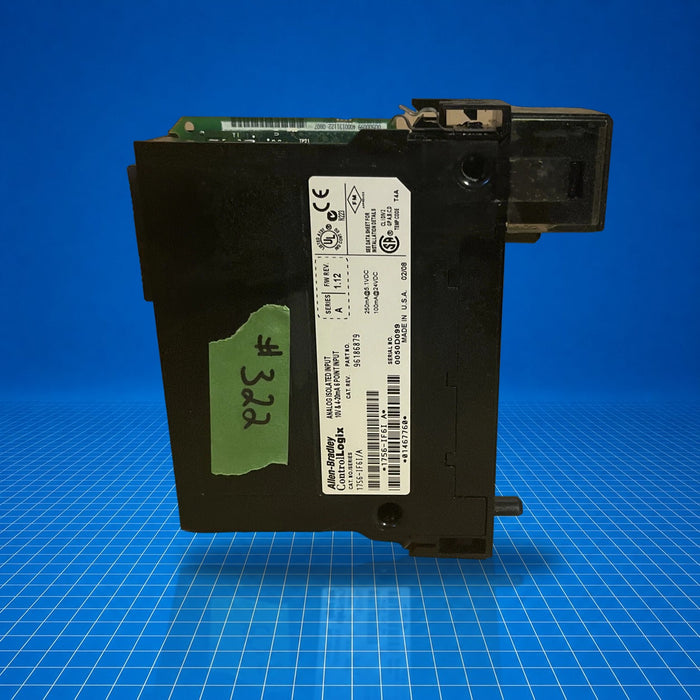

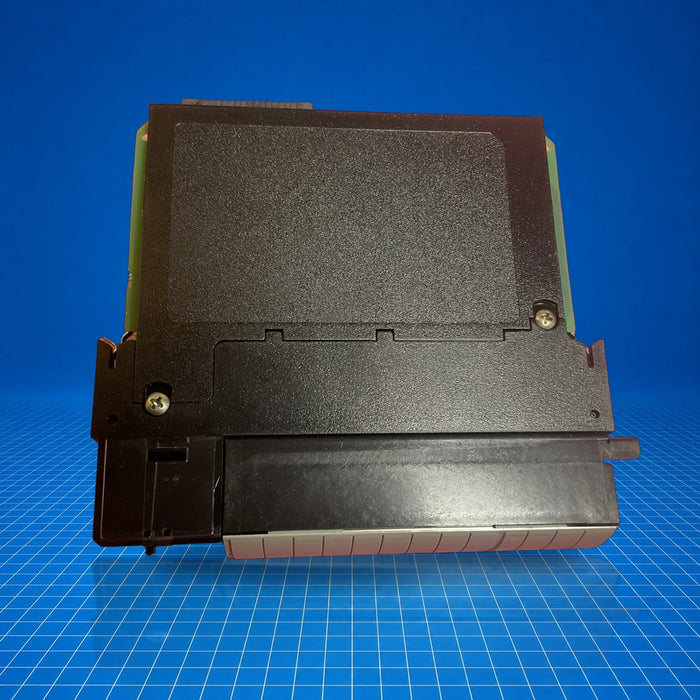

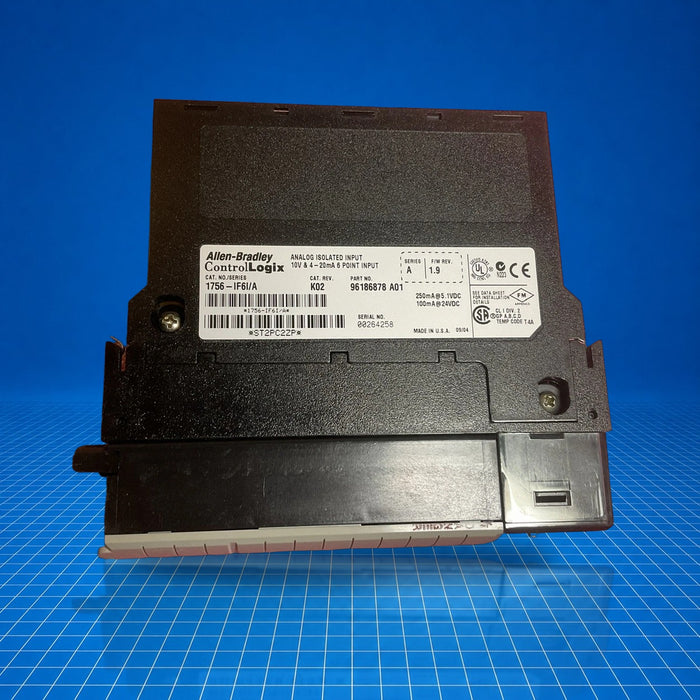

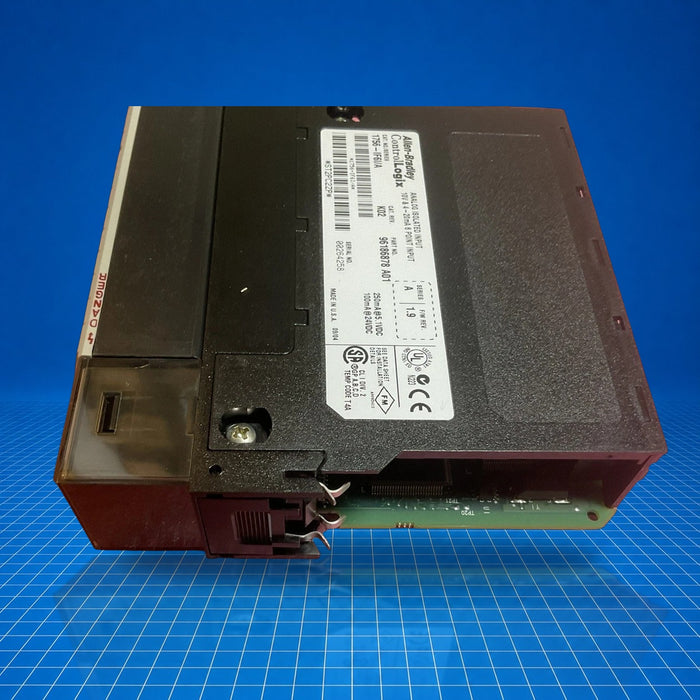

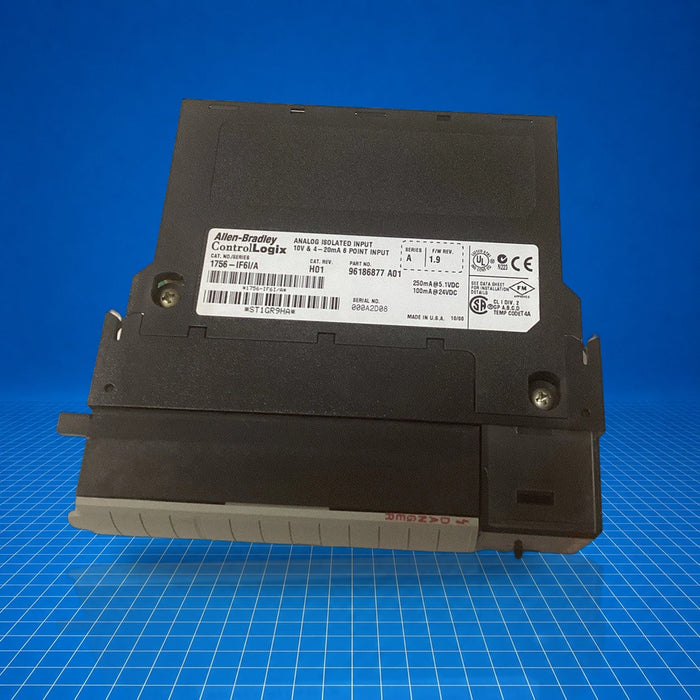

1756-IF6I Allen-Bradley

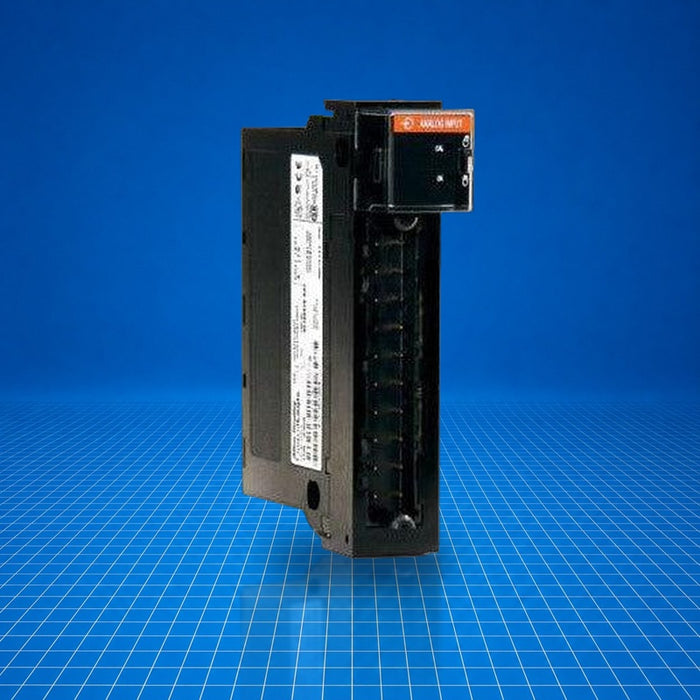

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-IF6I Allen-Bradley

$400.00 - $540.00
$400.00
$400.00 - $540.00
$400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$540.00
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 1756-IF6I is a ControlLogix isolated analog input module supporting six individually isolated current or voltage inputs. It resides in a single ControlLogix chassis slot and acquires analog signals configurable as ±10 V, 0-10.5 V, 0-5.25 V or 0-21 mA. Typically deployed in industrial control systems for tasks such as process monitoring, sensor data acquisition, or machine condition input in manufacturing or infrastructure applications.

Best Suited For

  • Distributed analog input on ControlLogix backplane
  • Voltage and current signal acquisition (configurable per channel)
  • Process monitoring in manufacturing systems
  • Isolated input applications requiring channel-to-channel and channel-to-backplane isolation
Channels
6 individually isolated analog inputs
Input signal types
Voltage/current selectable ±10 V, 0-10.5 V, 0-5.25 V, 0-21 mA
Isolation voltage
250 V continuous, tested at 1350 V AC for 2 s
Backplane power (max)
3.7 W (voltage mode) / 4.3 W (current mode)
Backplane current draw
250 mA @ 5.1 V; 100 mA @ 24 V

Technical Specifications

I/O & Electrical

Channels
6 individually isolated
Input signal
±10 V; 0-10.5 V; 0-5.25 V; 0-21 mA
Input impedance
Voltage: >10 MΩ; Current: 249 Ω
Resolution
16-bit; e.g. 343 µV/bit (10.5 V), 171 µV/bit (0-10.5 V), 86 µV/bit (0-5.25 V), 0.34 µA/bit (21 mA)
Calibrated accuracy
Better than 0.1% of range @ 25 °C
Gain drift with temperature
Voltage: 35 ppm/°C typical, 80 ppm/°C max; Current: 45 ppm/°C typical, 90 ppm/°C max
Offset drift
2 µV/°C
Scan time
25 ms min (floating-point), 10 ms min (integer)
Settling time
<80 ms to 5% of full scale
Module error
0.54% of range
Common-mode noise rejection
120 dB @ 60 Hz; 100 dB @ 50 Hz
Normal-mode noise rejection
60 dB @ 60 Hz

Communication & Power

Backplane current draw
250 mA @ 5.1 V; 100 mA @ 24 V
Power dissipation
3.7 W (voltage), 4.3 W (current)
Total backplane power
3.7 W

Physical & Environmental

Operating temperature
0 °C to 60 °C
Non-operating temperature
-40 °C
Relative humidity
5-95% non-condensing
Shock
Operating: 30 G; Non-operating: 30 G
Vibration
2 G @ 10-500 Hz
Enclosure rating
Open-style (none)
Slot width
1

Certifications

Certified to UL (industrial control equipment), CSA (process control equipment, Class I Division 2 Groups A B C D), ATEX II 3 G Ex nA IIC T4 X Gc, RCM, FM, KC, EAC. Meets IEC 61000-6-2/-6-4, IEC 61131-2, ATEX 60079-15/-0.
