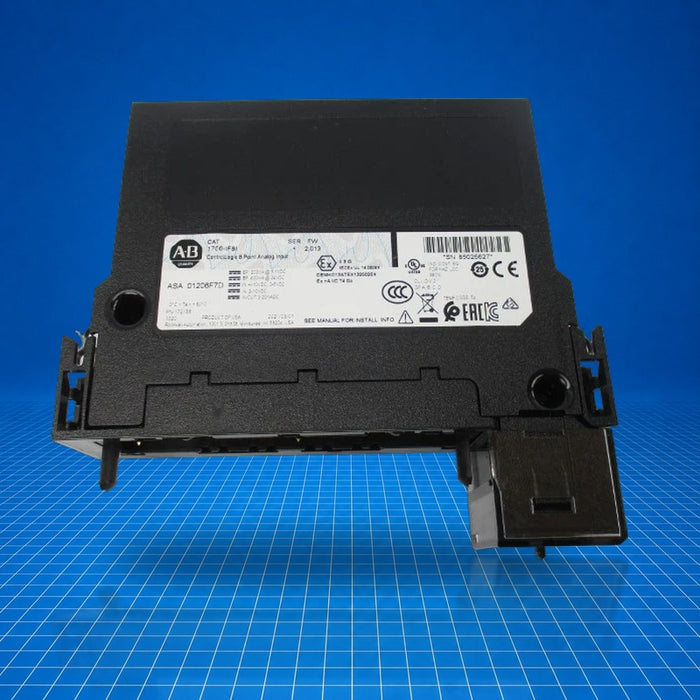

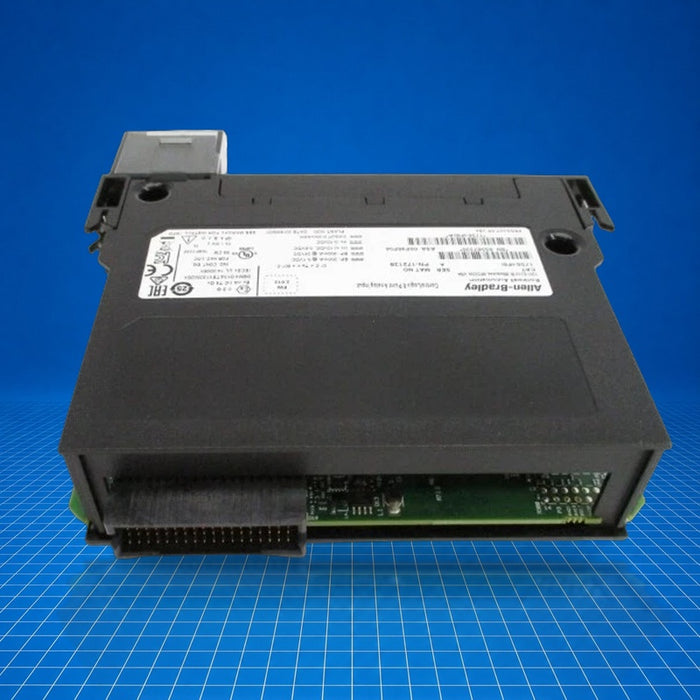

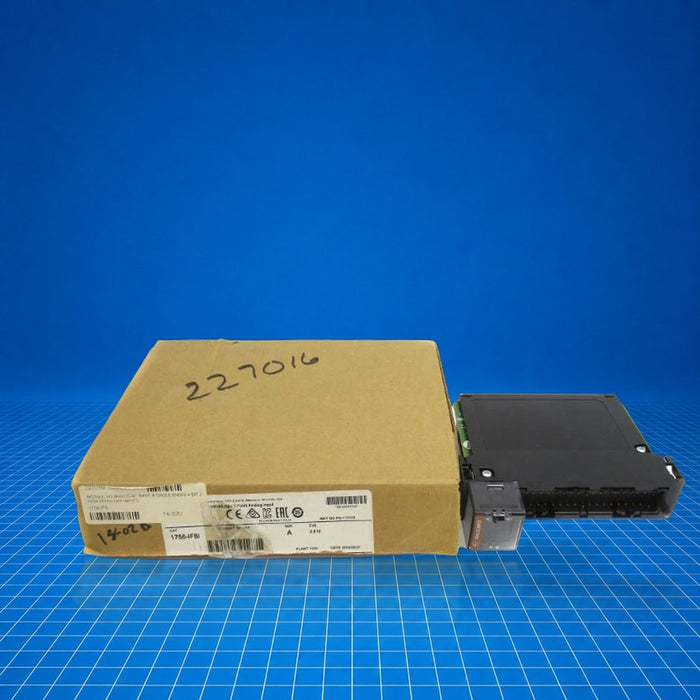

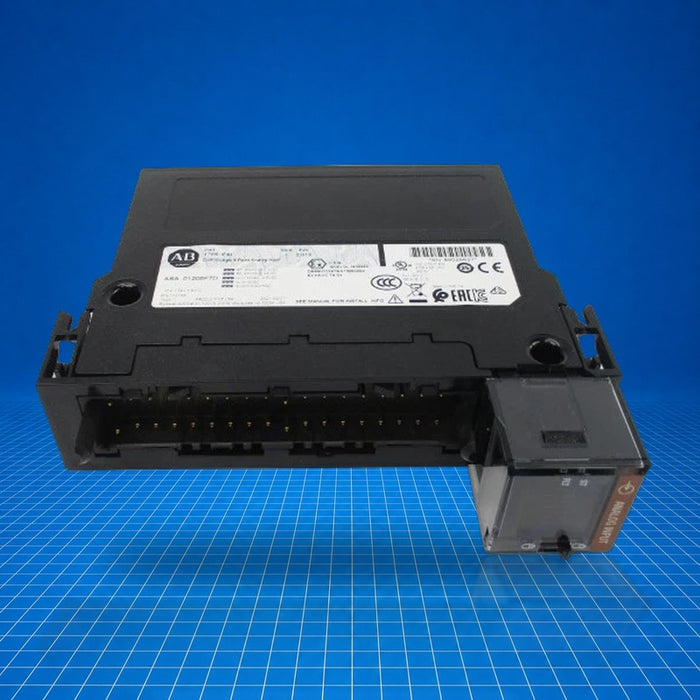

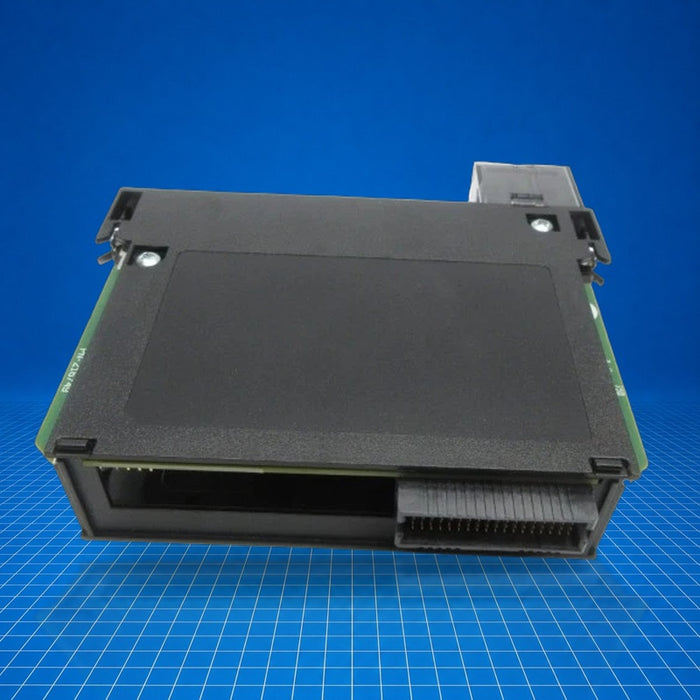

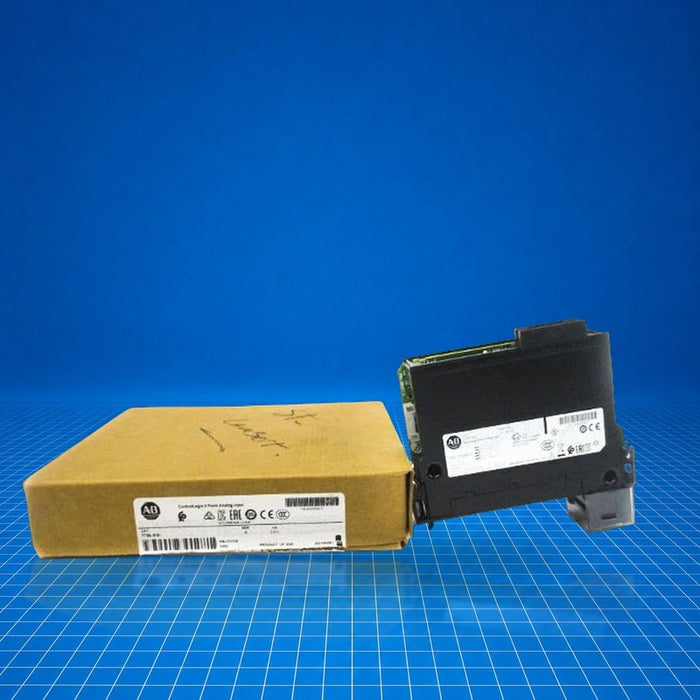

1756-IF8I Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1756-IF8I Allen-Bradley

$1,859.48 - $3,600.00
$3,600.00
$1,859.48 - $3,600.00
$3,600.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$3,600.00
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,859.48
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1756-IF8I is an Allen-Bradley ControlLogix analog input module featuring eight isolated channels configurable for voltage or current (including sourcing current). The module performs Sigma-Delta conversion and delivers IEEE 32-bit floating-point data. It installs into a ControlLogix chassis to interface sensor outputs with a programmable controller for process monitoring or feedback control applications in industrial automation systems. The 1756-IF8I supports -10…10 V, 0…10 V, 0…5 V, and 0…20 mA input ranges.

Best Suited For

  • Distributed analog sensing in ControlLogix racks
  • Mixed voltage and current input configurations
  • Loop-powered sensor applications via sourcing current
  • Process variable monitoring in OEM panels
Channels
8 isolated
Input ranges
-10…10 V, 0…10 V, 0…5 V, 0…20 mA
Resolution
24-bit
Backplane power
4.6 W (non-sourcing)/10.6 W (sourcing)

Technical Specifications

I/O & Electrical

Input ranges
-10…10 V, 0…10 V, 0…5 V, 0…20 mA
Input impedance
Voltage mode: ~1 GΩ (powered), ~7.5 kΩ (unpowered); Current mode: ~125 Ω
Overvoltage protection
±30 V DC maximum
Resolution
24-bit; ±10.5 V (1.49 µV/count), 0…10.5 V (1.49 µV/count), 0…5.25 V (1.49 µV/count), 0…21 mA (2.99 nA/count)
Calibrated accuracy
0.05 % @ 25 °C
Scan time
≥ 1 ms (module input scan time, min)
Common-mode noise rejection
120 dB @ 50/60 Hz
Normal-mode noise rejection
80 dB @ 60 Hz

Communication & Power

Backplane current draw
200 mA @ 5.1 V; 150 mA @ 24 V (non-sourcing), 400 mA @ 24 V (sourcing)
Total backplane power
4.6 W (non-sourcing)/10.6 W (sourcing)
Power dissipation
4.6 W (voltage), 5.1 W (non-sourcing current), 7.3 W (sourcing current)
Thermal dissipation
15.7 BTU/hr (voltage), 17.4 BTU/hr (non-sourcing), 24.9 BTU/hr (sourcing)
Sourcing voltage range
20 V DC (min) to 36 V DC (open-circuit)
Max sourcing current
< 45 mA (IN_x/I/SRC to RTN_x)

Physical & Environmental

Operating temperature
0 to 60 °C
Non-operating temperature
-40 °C
Relative humidity
5…95 % non-condensing
Vibration (operating)
2 G @ 10…500 Hz
Shock
30 G (operating), 50 G (non-operating)
Enclosure type
Open-style (no enclosure rating)
Wire size
0.33…2.1 mm² (22…14 AWG) shielded copper; insulation max 1.2 mm

Certifications

China CCCAustralian RCMKorean KCATEXIECExABSEEC

Certified (as of May 19, 2026) under China CCC, Australian RCM, Korean KC, ATEX, IECEx, American Bureau of Shipping, Eurasian Economic Community.
