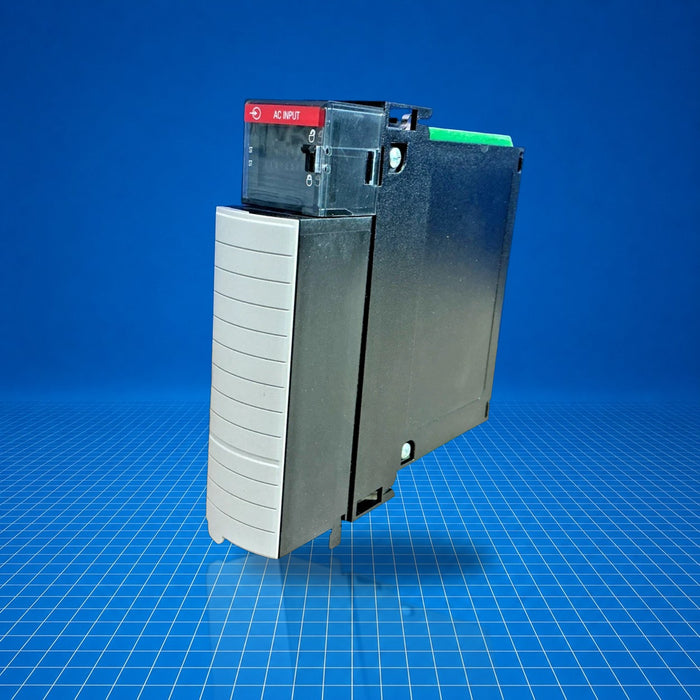

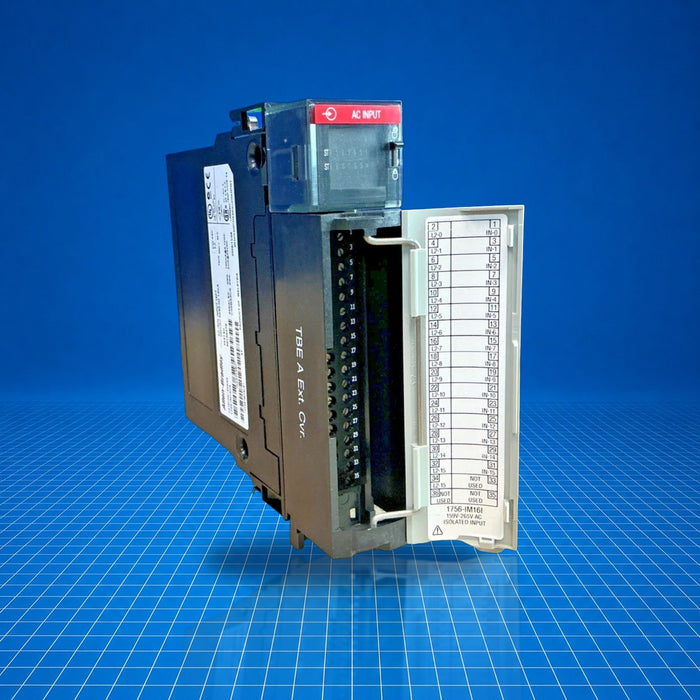

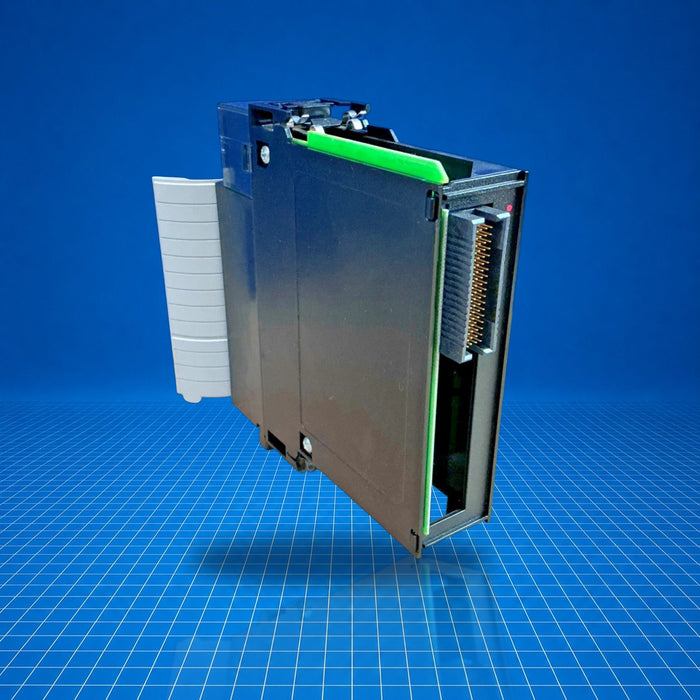

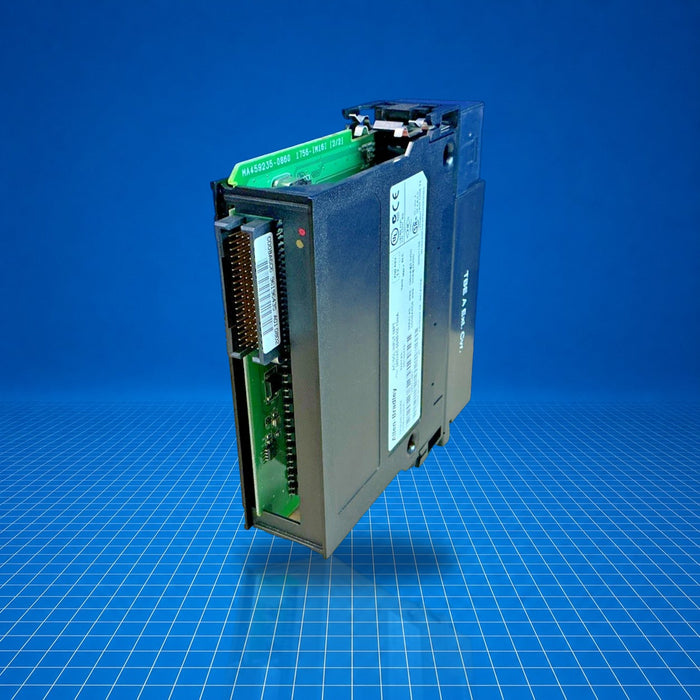

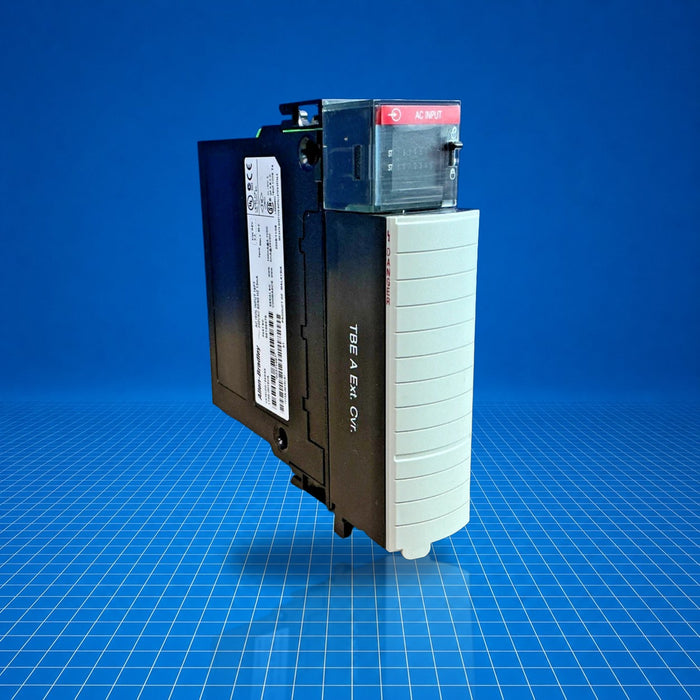

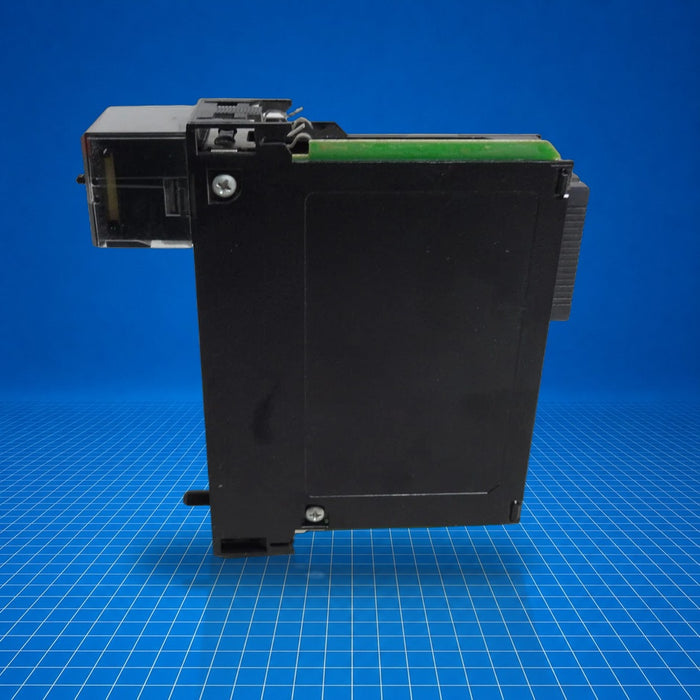

1756-IM16I Allen-Bradley
Original price
$0.00
-
Original price
$318.84
Original price
$318.84
$0.00
-
$318.84
Current price
$318.84
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1756-IM16I is an Allen-Bradley ControlLogix module providing sixteen individually isolated 240 VAC digital inputs, operating within 159…265 VAC (47…63 Hz). It occupies one slot in a ControlLogix rack and isolates each input channel, enabling reliable detection of AC field signals. Typical in industrial control systems, it is used for monitoring high-voltage sensors or switches in process industries, discrete machine control, and applications requiring AC signal interfacing with electrical isolation.
Best Suited For
- ControlLogix racks requiring 240 VAC digital inputs
- Field-device isolation from backplane logic
- Monitoring 159…265 VAC sensors or switches
- Distributing digital input across a control system
- Applications with variable AC-line input voltage
Digital inputs
16 individually isolated
Operating voltage range
159…265 VAC
Backplane power
0.58 W
Power dissipation (max)
5.8 W @ 60 °C
Technical Specifications
I/O & Electrical
Digital input count
16
Operating voltage range
159…265 VAC, 47…63 Hz
Nominal input voltage
240 VAC 50/60 Hz
Isolation voltage
250 V continuous, basic insulation, inputs-to-backplane and input-to-input
Input delay time (Off-to-On)
Hardware delay 10 ms max + filter (1 ms or 2 ms)
Input delay time (On-to-Off)
Hardware delay 8 ms max + filter (9 ms or 18 ms)
Off-state voltage, max
40 V
Off-state current, max
2.5 mA
On-state current, min
5 mA @ 159 VAC, 60 Hz
On-state current, max
13 mA @ 265 VAC, 60 Hz
Inrush current, max
250 mA
Input impedance, max
20.38 kΩ @ 265 VAC, 60 Hz
Communication & Power
Current draw (@ 5.1 V)
100 mA
Current draw (@ 24 V)
3 mA
Total backplane power
0.58 W
Power dissipation, max
5.8 W @ 60 °C
Thermal dissipation
19.78 BTU/hr
Cyclic update time
200 µs…750 ms
Time stamp accuracy
±200 µs
Physical & Environmental
Enclosure type
None (open-style)
Slot width
1 slot
Removable terminal block
1756-TBCH or 1756-TBS6H
Wire category
Category 1 on signal and power ports
Operating temperature
0 °C to 60 °C (32 °F to 140 °F)
Certifications
CEAustralian RCMEurasian Economic Community
